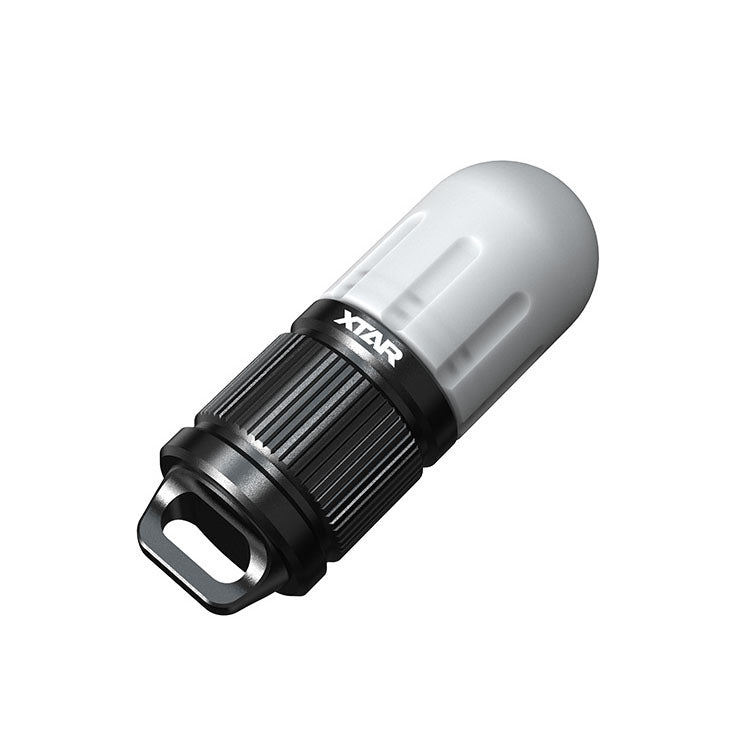

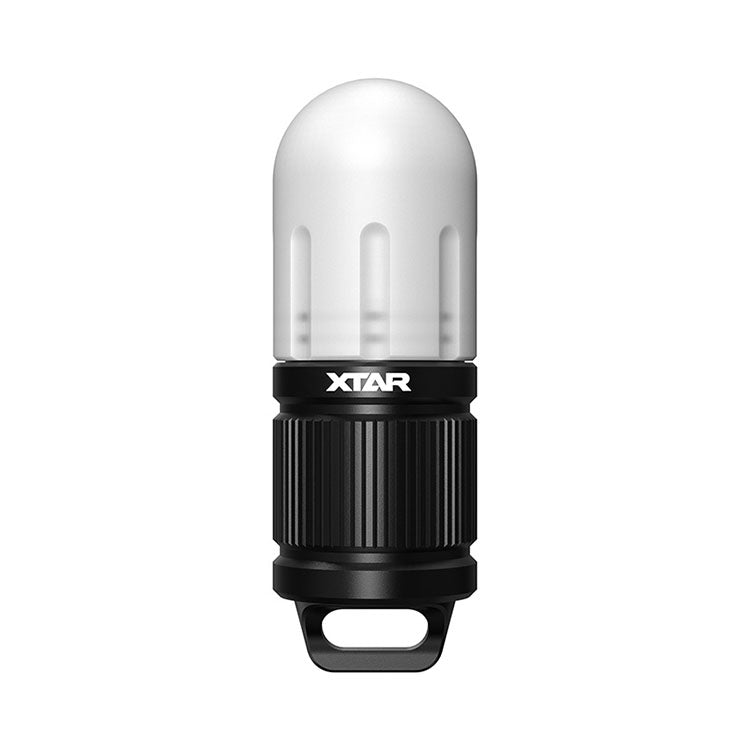

Xtar SD1 Four Colour Mini LED Diving Torch Kit with USB-C Rechargeable Battery

The Xtar SD1 is a lightweight mini diving beacon suitable for underwater depths up to 100 metres, featuring white, red, green and blue outputs all with constant and flashing settings.

With four colour outputs and eight modes in total, the SD1 has a variety of uses. To turn the torch on simply twist to the right and to turn off twist to the left. Cycle through the modes by quickly twisting the torch head back and forth, cycling through white, white flashing, red, red flashing, blue, blue flashing, green, and green flashing outputs.

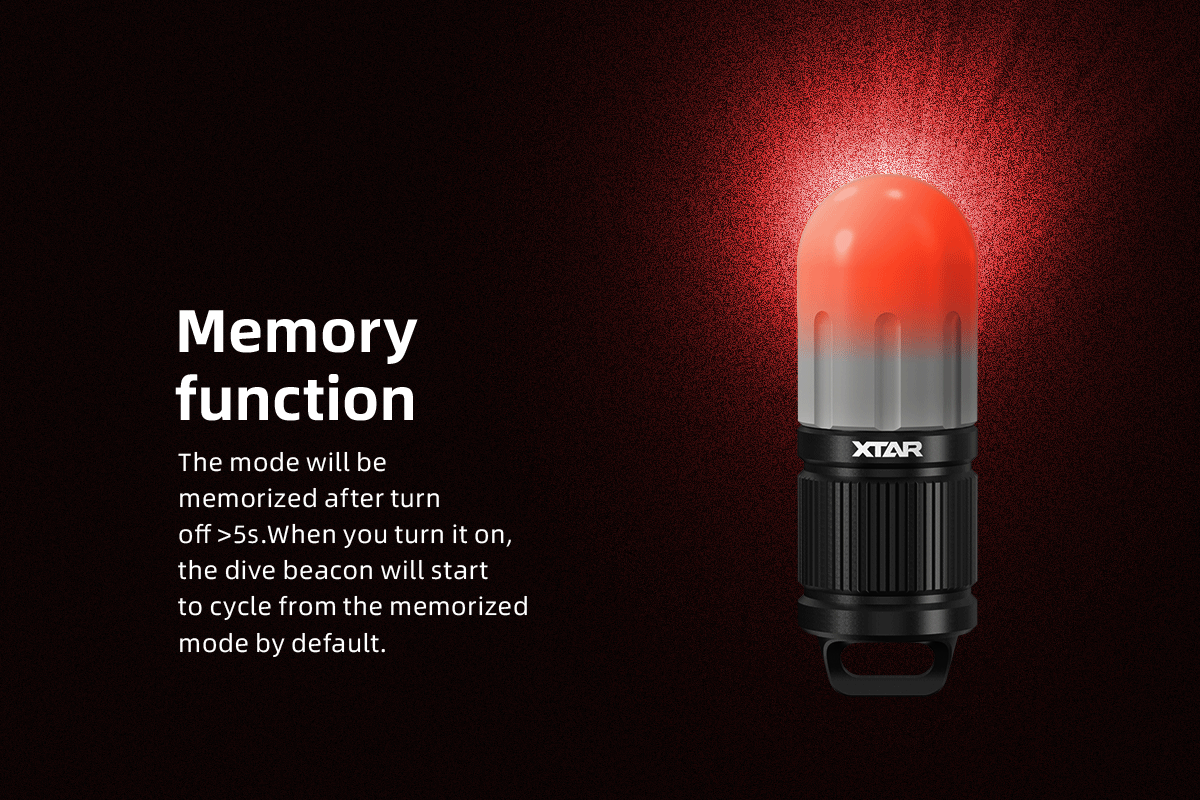

If the SD1 is off for more than five seconds, it maintains its current output instead of progressing to the next. This memory mode feature avoids the need to cycle through all outputs, as the SD1 recalls the last used setting.

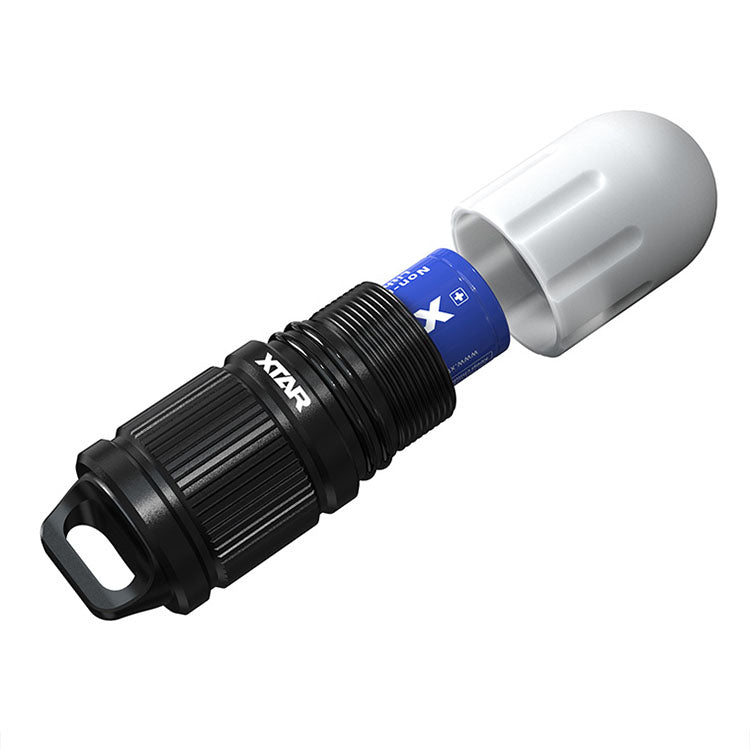

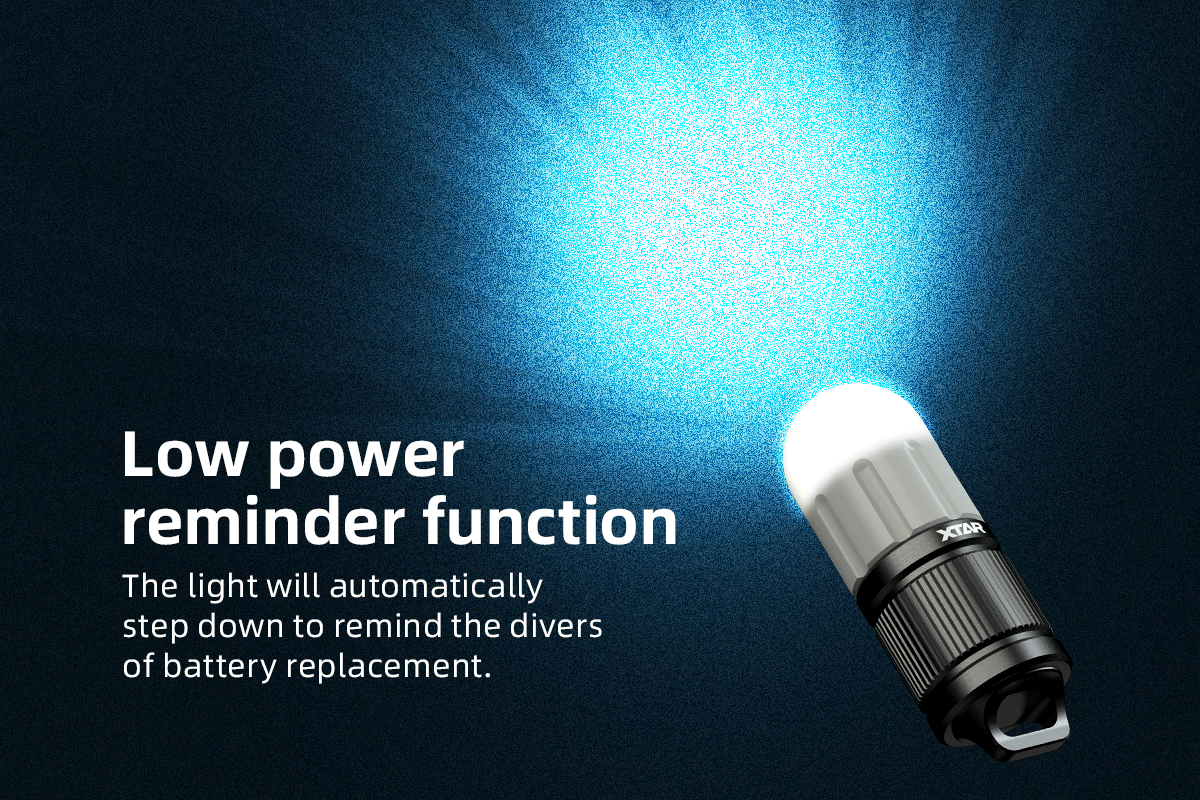

The SD1 is powered by the provided 900 mAh 16340 USB-C lithium ion battery which is charged directly through the USB-C port on the top of the battery. When the battery becomes low the torch will lower the lumen output to let you know the battery needs charging.

A carabiner hook and lanyard are included for easy attachment to clothing or dive gear, perfect for hands free lighting.

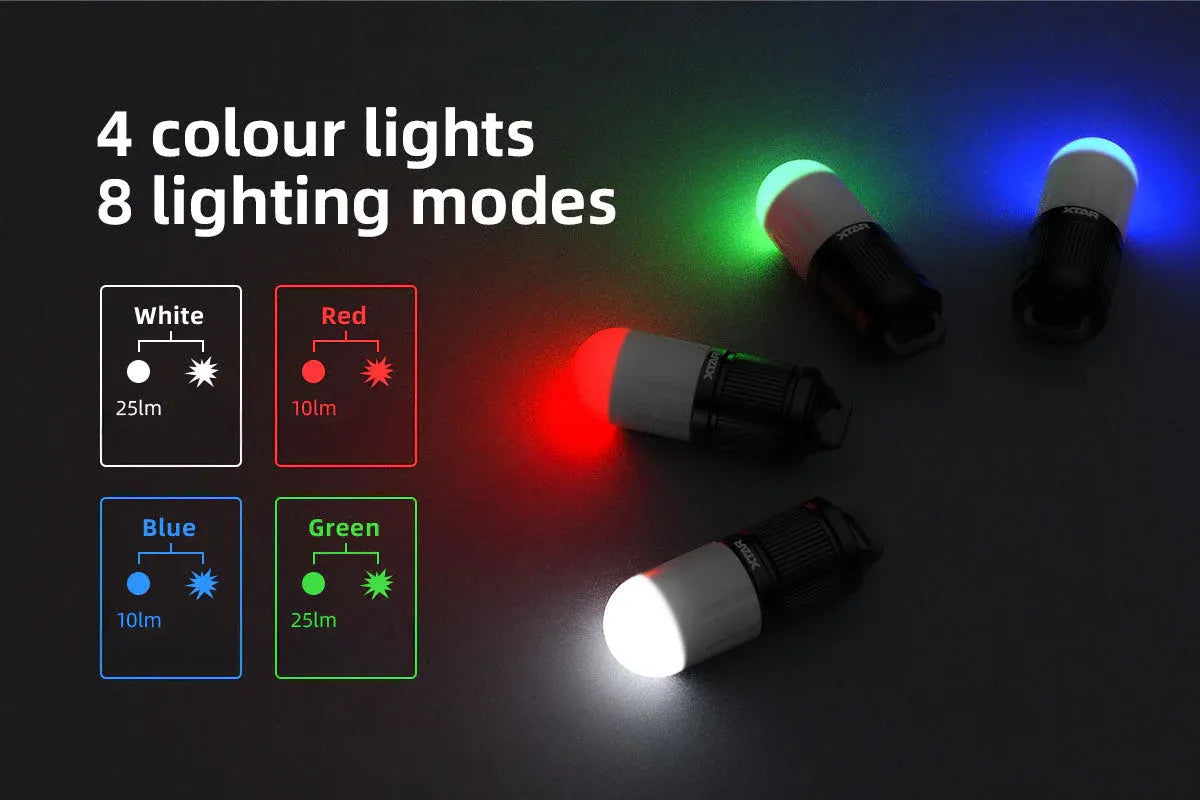

Operational Modes

White Constant: 25 lumens; 6 hours, 30 minutes run-time
White Flashing: 13 hours, 30 minutes run-time
Red Constant: 10 lumens; 6 hours, 30 minutes run-time
Red Flashing: 113 hours, 30 minutes run-time
Blue Constant: 10 lumens; 6 hours, 30 minutes run-time
Blue Flashing: 13 hours, 30 minutes run-time
Green Constant: 25 lumens; 6 hours, 30 minutes run-time
Green Flashing: 13 hours, 30 minutes run-time

Tested in the XTAR Lab using the included 900 mAh 16340 USB-C rechargeable lithium-ion battery.

Technical Details

Type: Mini Diving Beacon
Operating Modes: White Constant / White Flashing / Red Constant / Red Flashing / Blue Constant / Blue Flashing / Green Constant / Green Flashing
Luminous Flux: Up to 25 lumens
Batteries Required: 1 x 16340 lithium-ion (included)
Overall Length: 66 mm
Head Diameter: 23 mm
Weight: 27 grams (excluding battery)
Body Colour: Black
Body Material: 6061 aircraft-grade aluminium alloy with anti-corrosive finish
Switch Type: Twist
Impact Resistance: 1.5 m
Environmental: Waterproof to IPX8 standard (submerged up to 100 m)
Warranty: 2 years

Packaging and Contents

Supplied in retail packaging and contains:
Xtar SD1 Mini LED dive torch x 1
Xtar 900 mAh 16340 USB-C rechargeable lithium-ion battery x 1
USB-A to USB-C charging cable x 1
Carabiner hook x 1
Lanyard x 1
Spare O-ring x 2
Manual x 1
