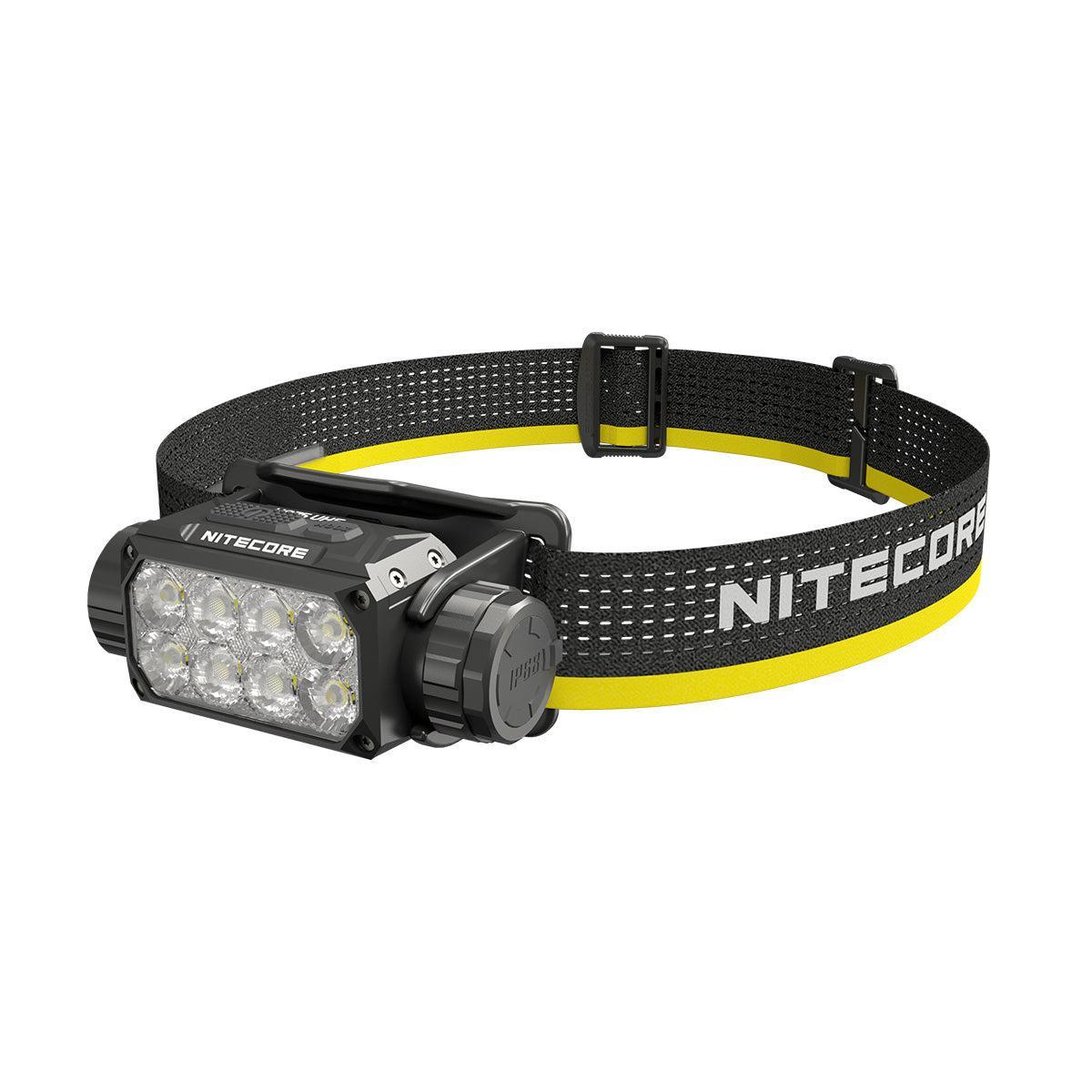

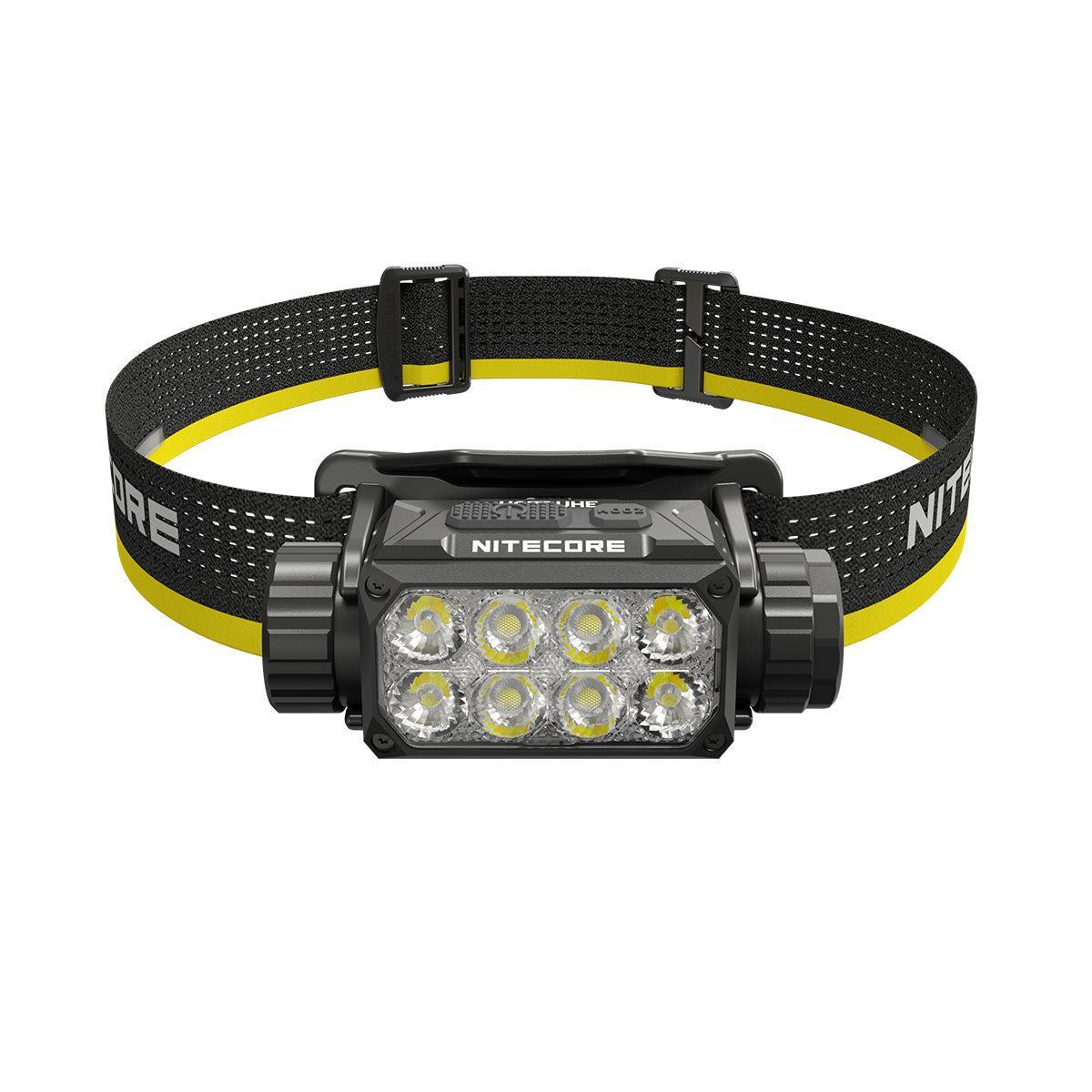

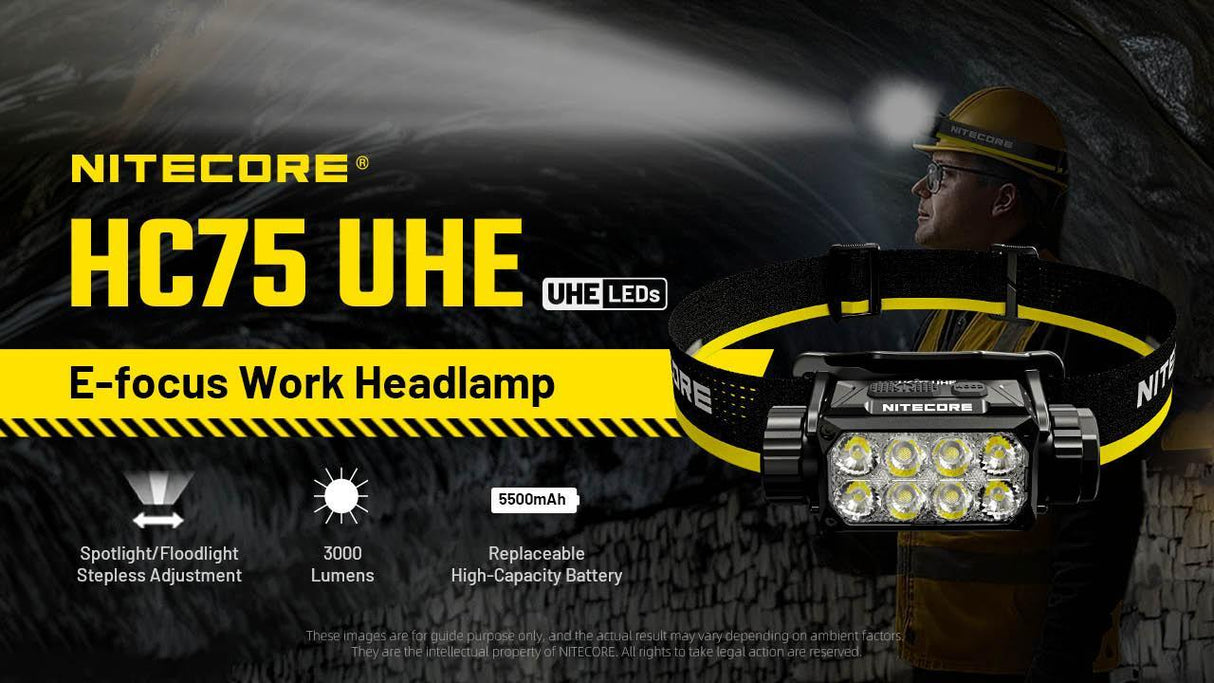

Nitecore HC75 UHE Work Head Lamp

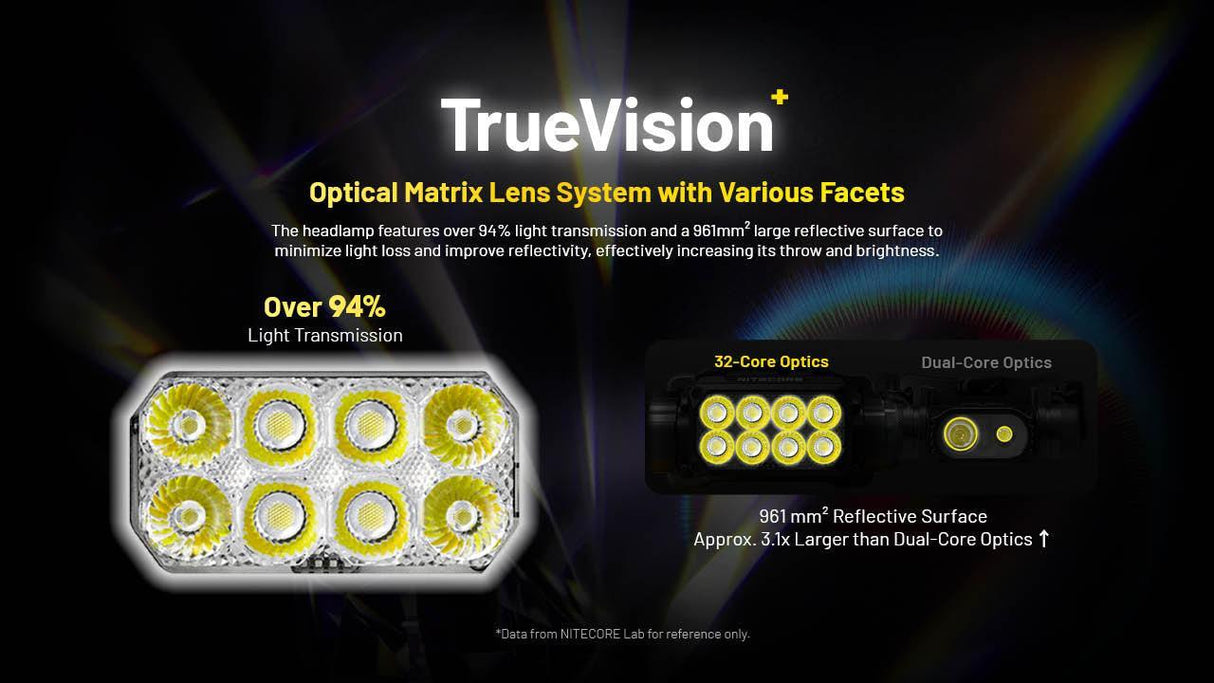

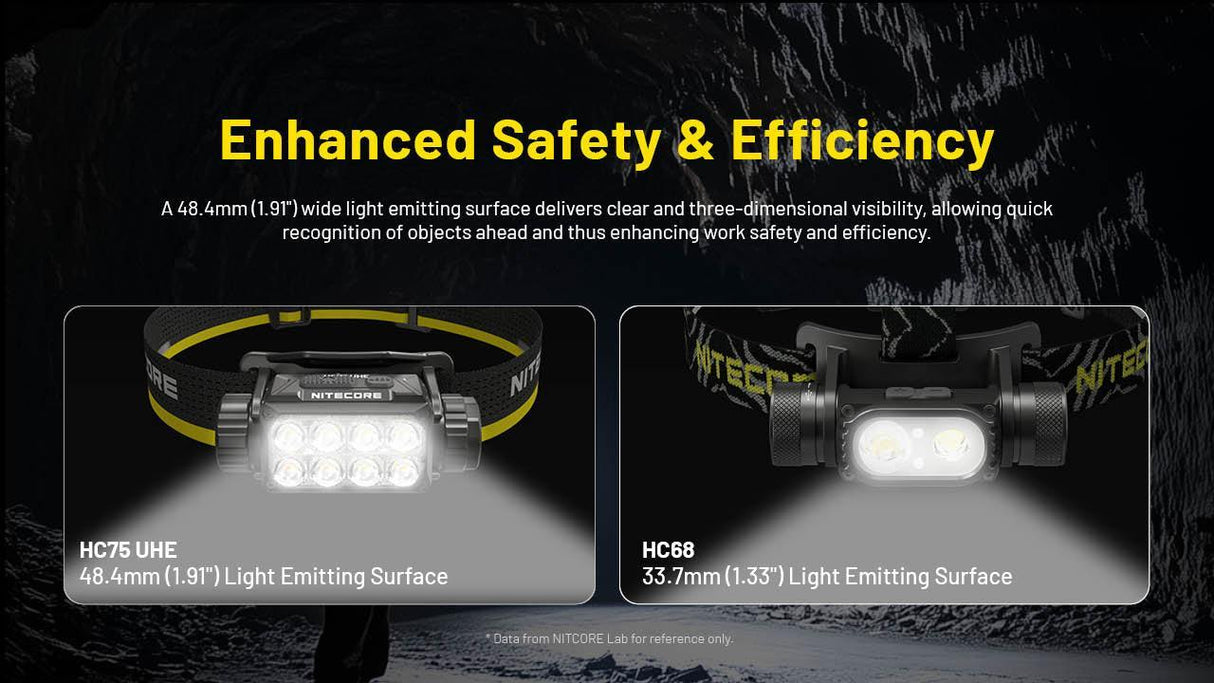

The Nitecore HC75 UHE Utilises an optical matrix lens system comprised of 8 quad-core UHE LEDs which effectively increases it's throw and brightness. Delivering a incredible max output of 3,000 lumens and a max beam range of 192 m the HC75 UHE is perfect for a wide variety of activities.

The primary neutral white light (4,500K) is ideal for general and prolonged use and offers various brightness settings, as well as SOS and beacon function modes. The auxiliary red light is ideal for night vision and signalling offers high, low and flashing outputs.

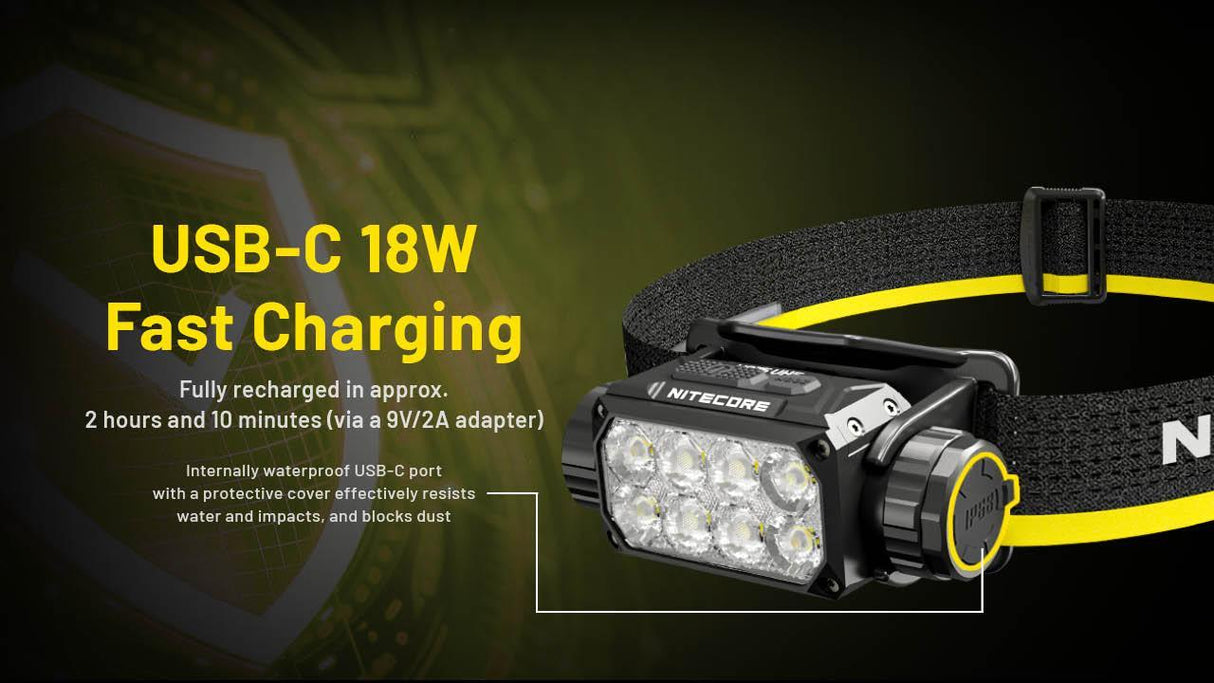

The HC75 UHE comes with 1 x Nitecore NL2155HP 5,500 mAh rechargeable Lithium-ion battery which allows for fast charging via the USB-C port, and it takes approx 2 hours and 10 minutes to fully recharge.

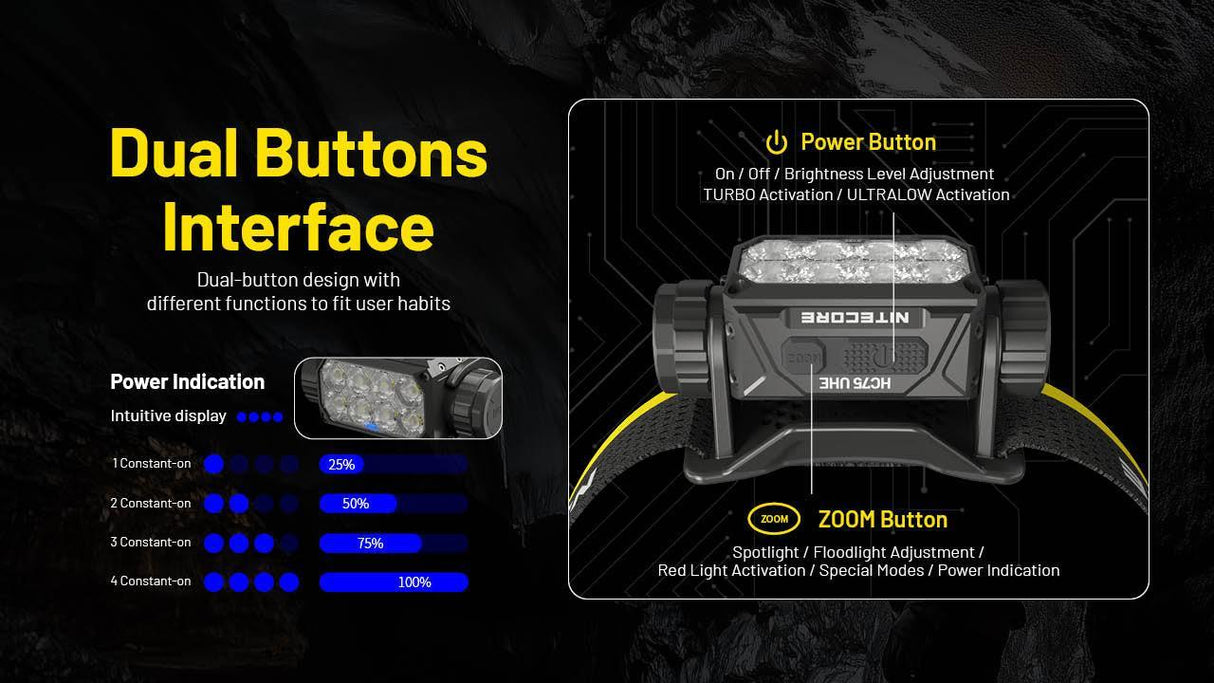

Two buttons are located on top, a power button which turns the light on/off and controls the brightness levels of the various LEDs, and a zoom button which activates the red light function, allows for spotlight/floodlight adjustment, gives access to the special modes and for power indication. The HC75 UHE is designed with 4 power indicators making it easy to see the remaining battery power. Please refer to the manual download for full user instructions.

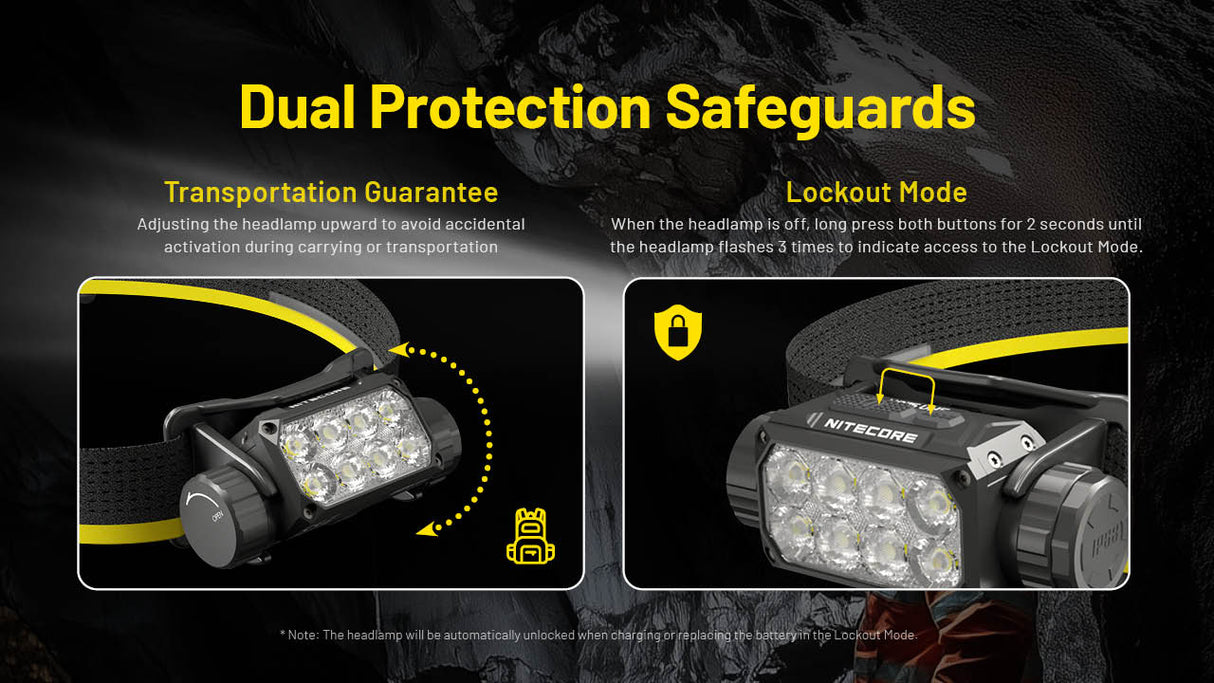

A lockout function prevents accidental activation of the light when not in use, and can be done be simultaneously holding both buttons for 2 seconds until the light flashes 3 times. To exit lockout hold the buttons down again and the light will come on in neutral white ultra-low.

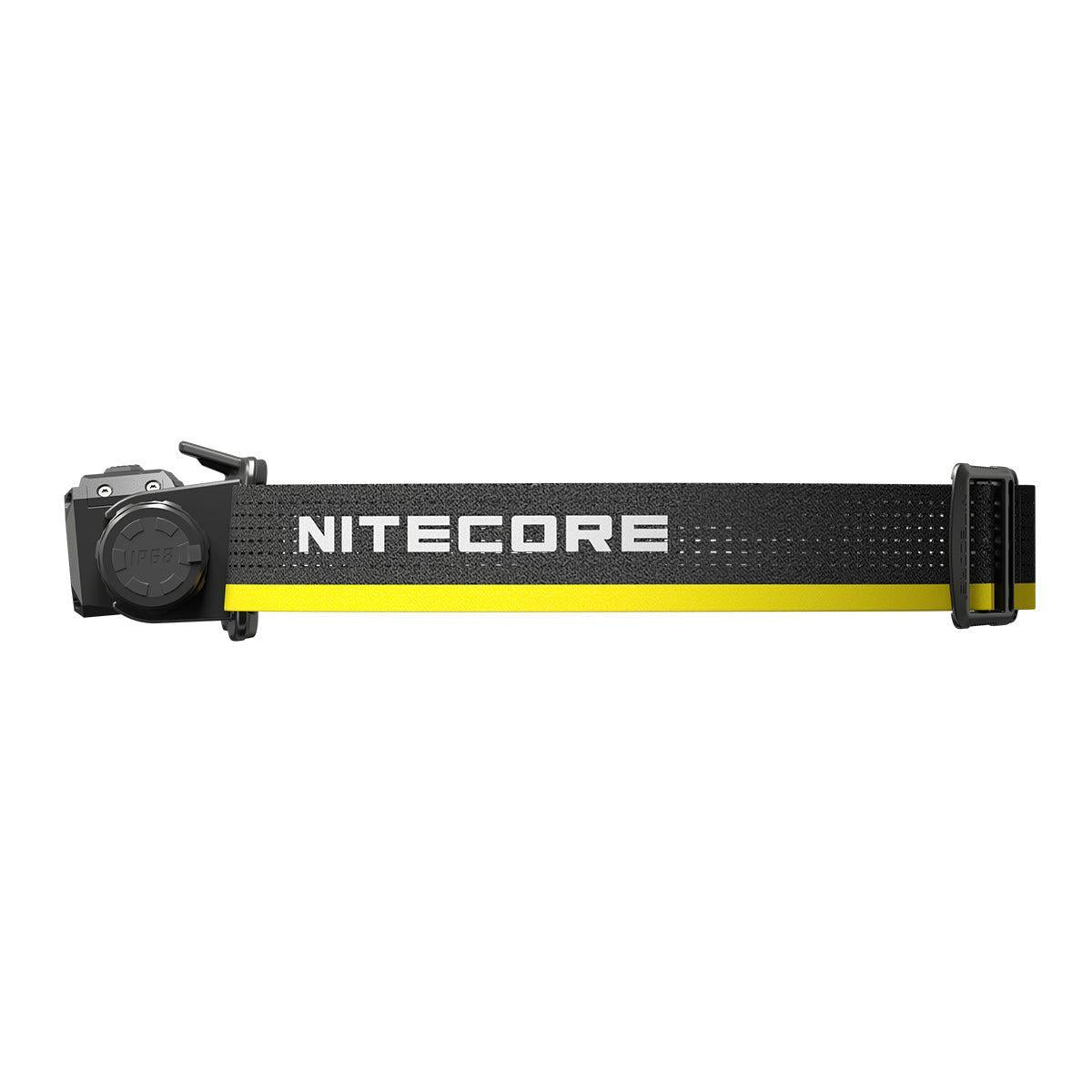

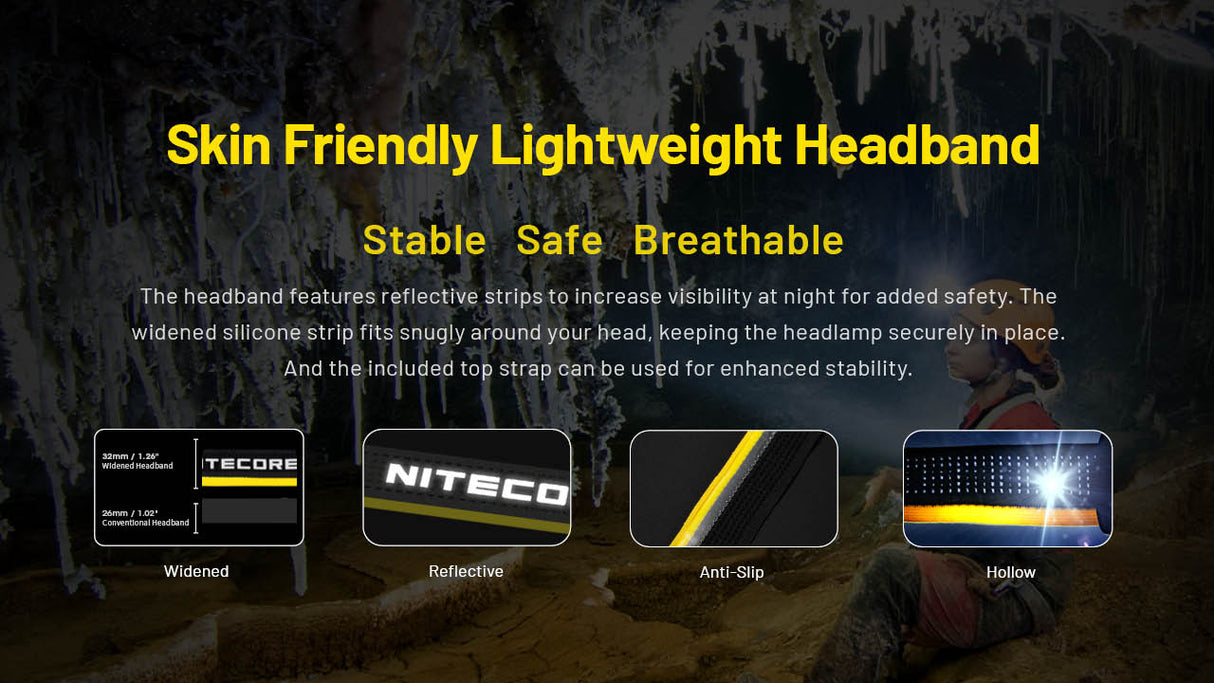

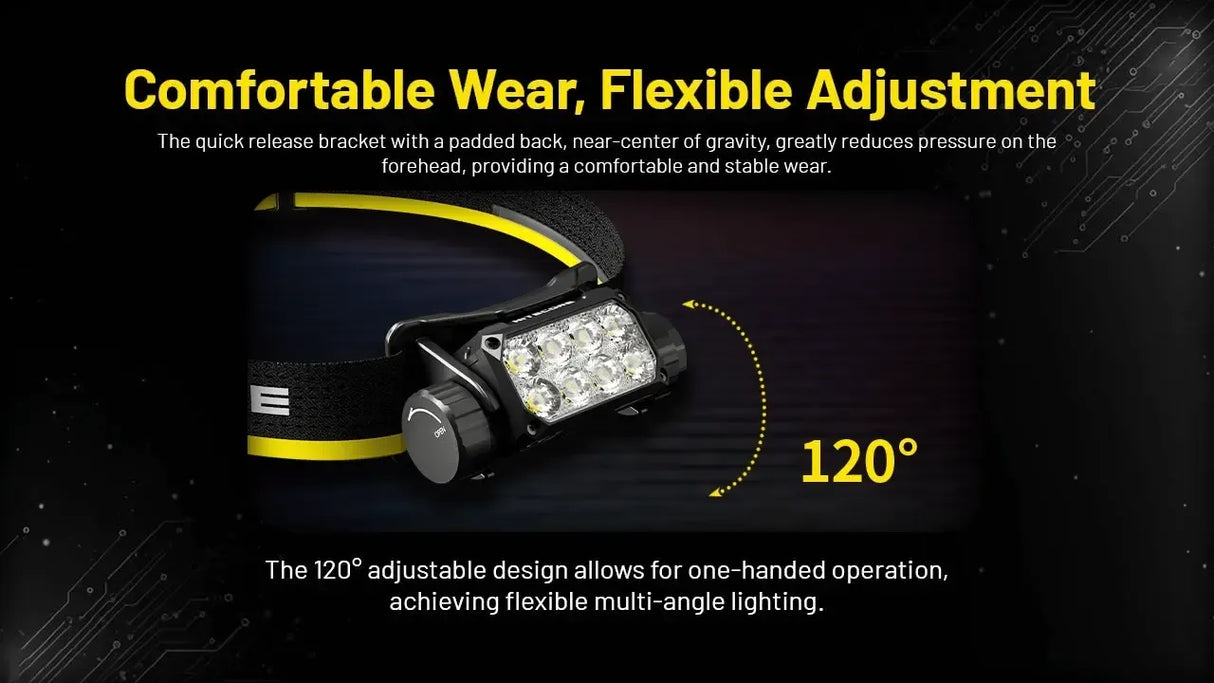

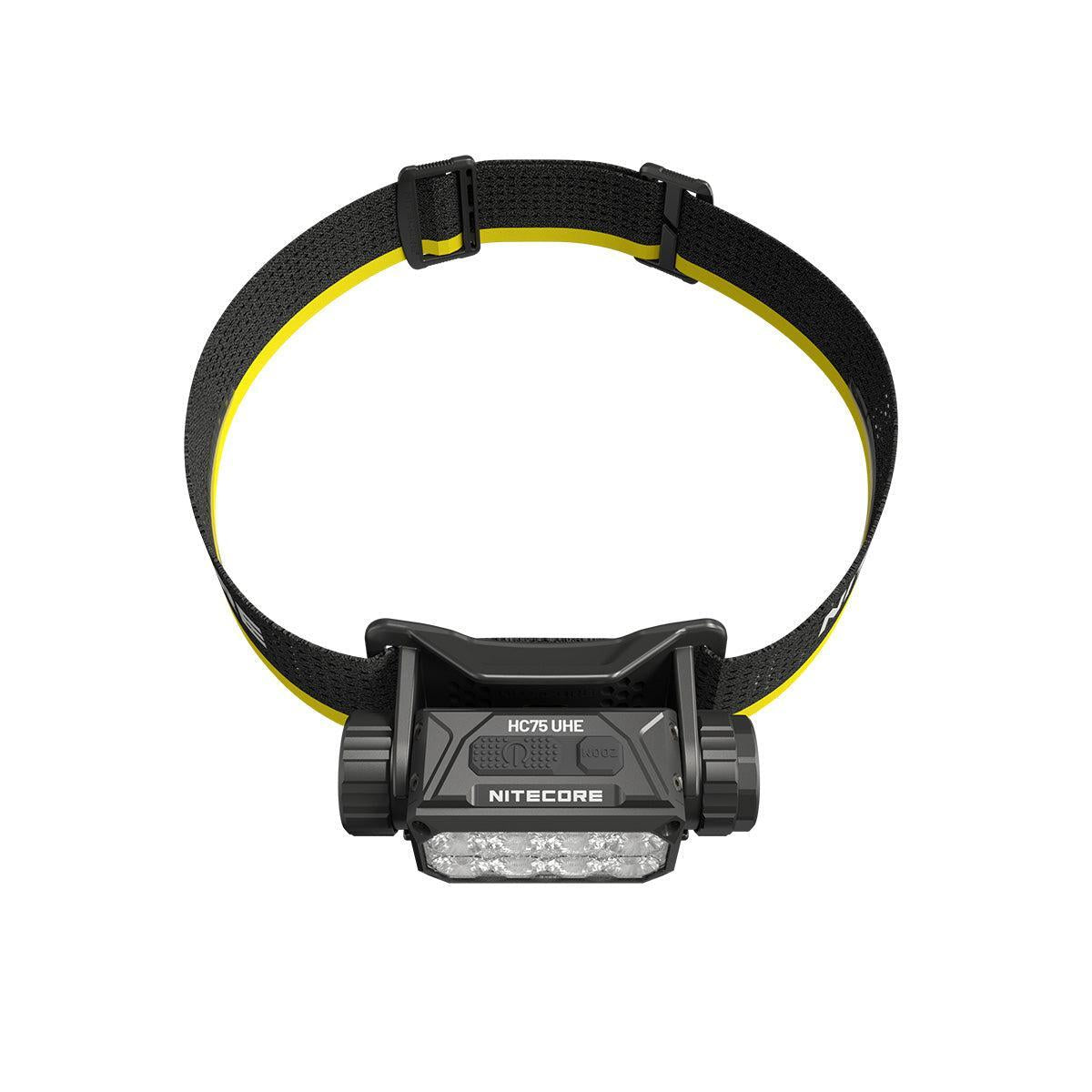

The headband is comfortable and adjustable with a hollow design for breathability, a silicone strip to channel away sweat and a reflective design for safety and enhanced visibility.

Additionally the HC75 UHE comes with a top strap that can be used for enhanced stability and a handy case so that the head torch can be safely stored and transported.

Product Features

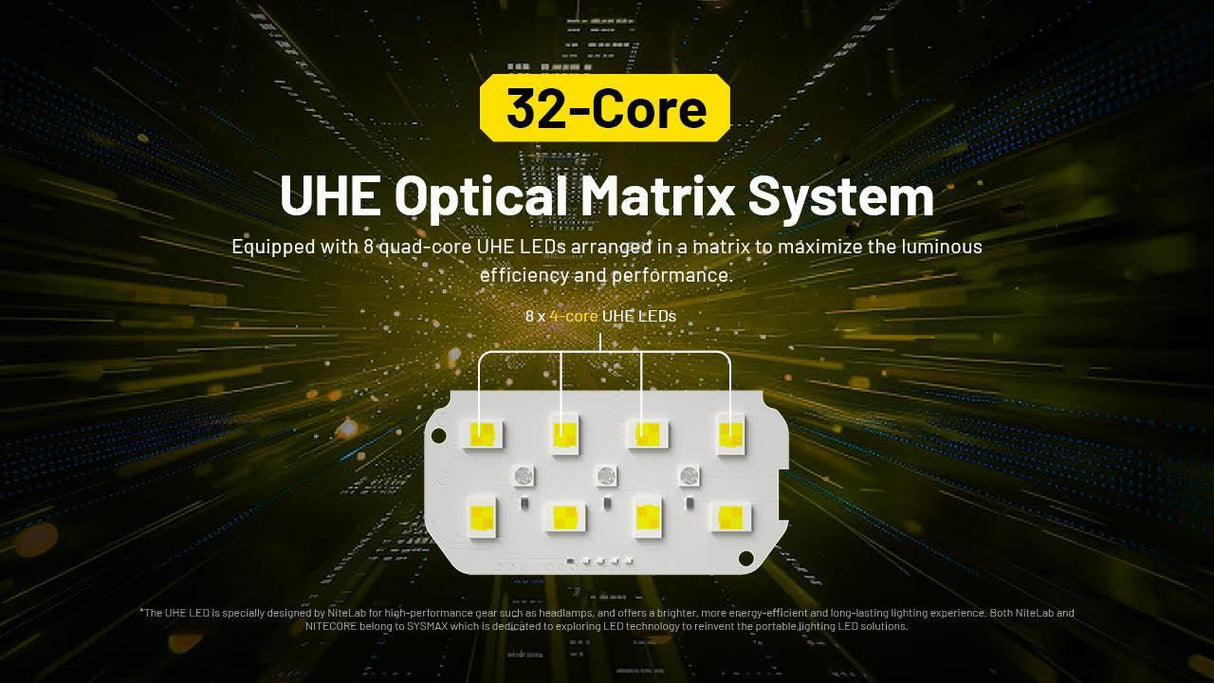

Utilises 8 quad-core UHE LEDs (32-Core)
Dual buttons different in shape and touch
Comfortable and adjustable headband
Built-in charging circuit with a USB-C charging port
Over 100˚ wide beam angle
Designed with 4 power indicators to display remaining battery
Lockout function to prevent accidental activation
Electronic focus adjustment of spotlight, floodlight and auxiliary red lights
Incorporated Advanced Temperature Regulation (ATR) module
Offers 5 brightness levels, 3 special modes and 2 brightness options for red light
Includes a removable bracket

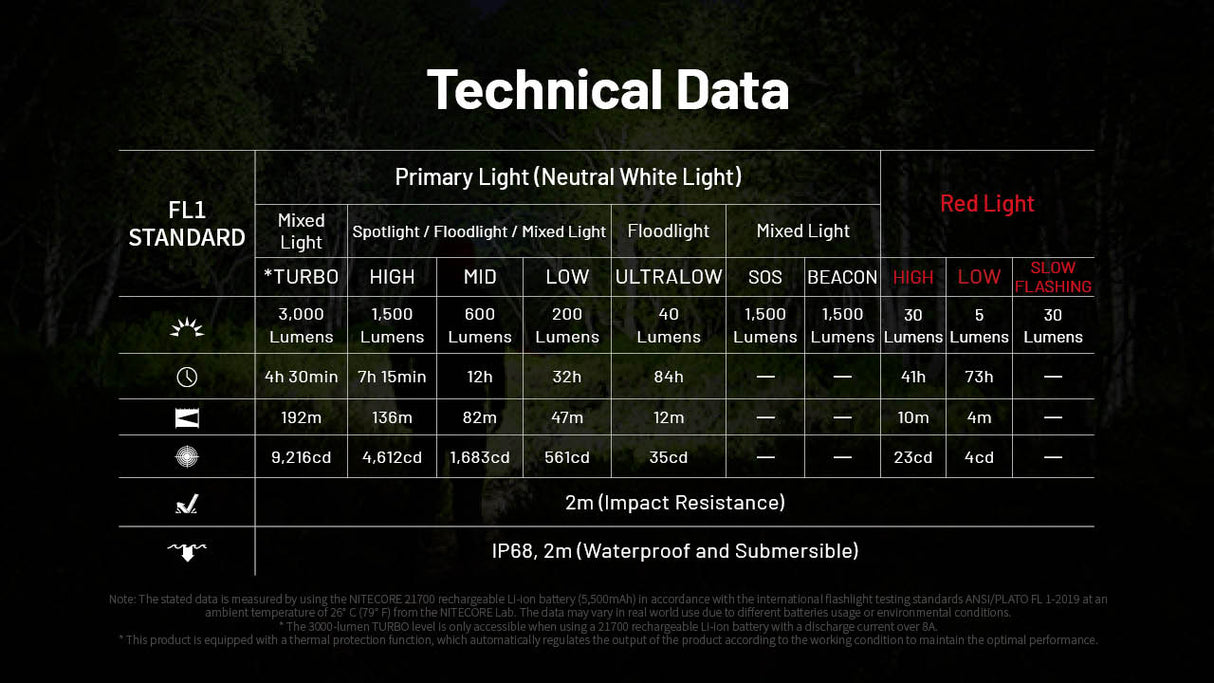

Operational Modes

Mixed Light
Turbo: 3,000 lumens; 4 hours, 30 minutes run-time; 192 m beam range*
SOS / Beacon: 1,500 lumens

Spotlight / Floodlight / Mixed Light
High: 1,500 lumens; 7 hours, 15 minutes run-time; 136 m beam range
Mid : 600 lumens; 12 hours run-time; 82 m beam range
Low: 200 lumens; 32 hours run-time; 47 m beam range

Floodlight
Ultra-Low: 40 lumens; 84 hours run-time; 12 m beam range

Red Light
High: 30 lumens; 41 hours run-time; 10 m beam range
Low: 5 lumens; 73 hours run-time; 4 m beam range
Slow Flashing: 30 lumens

Tested to ANSI/PLATO FL 1-2019 standards in laboratory conditions using the included 21700 5500 mAh lithium-ion NL2155HP battery under the ambient temperature of 26˚C. The data may vary slightly in real world use depending on battery type, individual usage habits and environmental factors.

Note: *The turbo brightness is only accessible when using a 21700 rechargeable lithium-ion battery with a discharge current of over 8 A. This torch is equipped with a thermal regulation system which regulates its outputs and adapts to the ambient environment to maintain optimal performance, therefore this may affect the run-times.

Technical Details

Type: LED work head torch
Operating Modes: Ultra-low / Low / Mid / High / Turbo / SOS / Beacon / Red High / Red Low / Red Slow Flashing
Luminous Flux: Up to 3,000 lumens
Lamp Type: 8 x quad-core UHE neutral white LEDs / 3 x red LEDs
Colour Temperature: 4500 K
Beam Range: Up to 192 m
Beam Angle: 100˚
Batteries Required: 1x NL2155HP Rechargeable Li-ion battery (included)
Overall Length: 92.4 mm x 46.8 mm x 45.5 mm
Weight: 209 g (battery, headband and bracket included)
Body Colour: Black

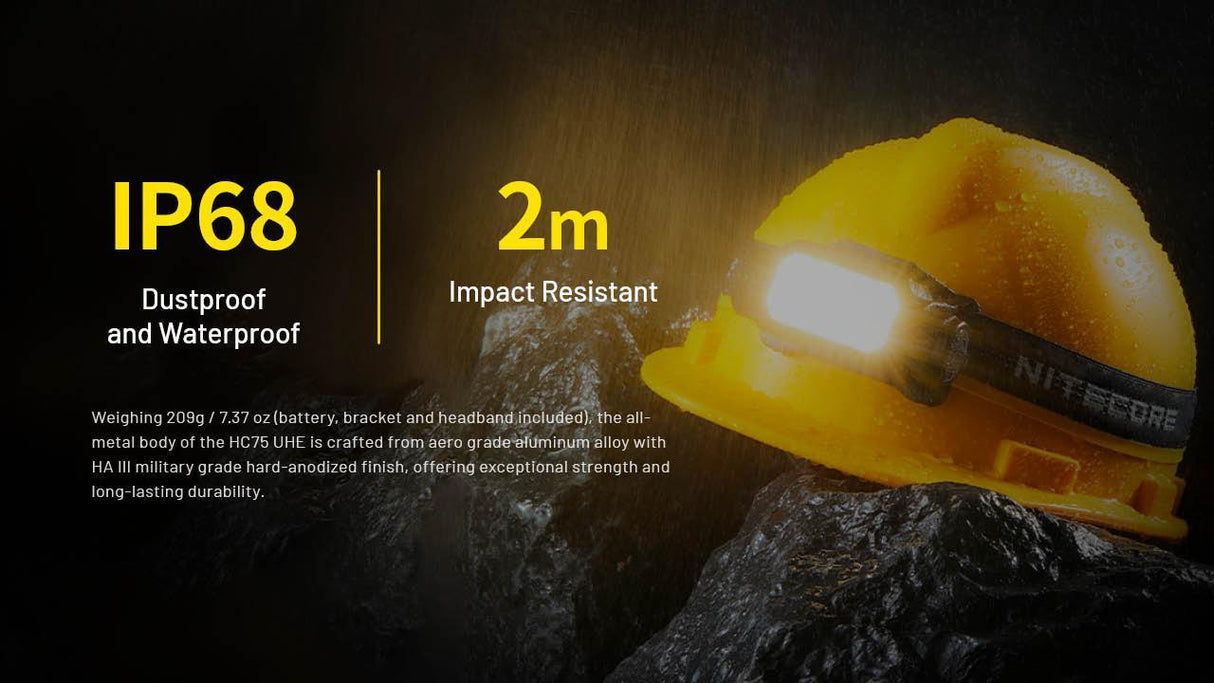

Body Material: Aero grade aluminium alloy with HA III military grade hard-anodised finish
Strap: Adjustable
Switch Type: Dual push button
Impact Resistance: 2 m
Environmental: Water and dust resistant to IP68 standard
Warranty: 5 years

Packaging and Contents

Supplied in retail packaging and includes:
Nitecore HC75 UHE LED head torch x 1
Nitecore NL2155HP rechargeable Li-ion battery x 1
Headband & top strap x 1
USB-C to USB-C charging cable x 1
Bracket x 1
Storage case x 1
Spare O-ring x 1
User Manual x 1
