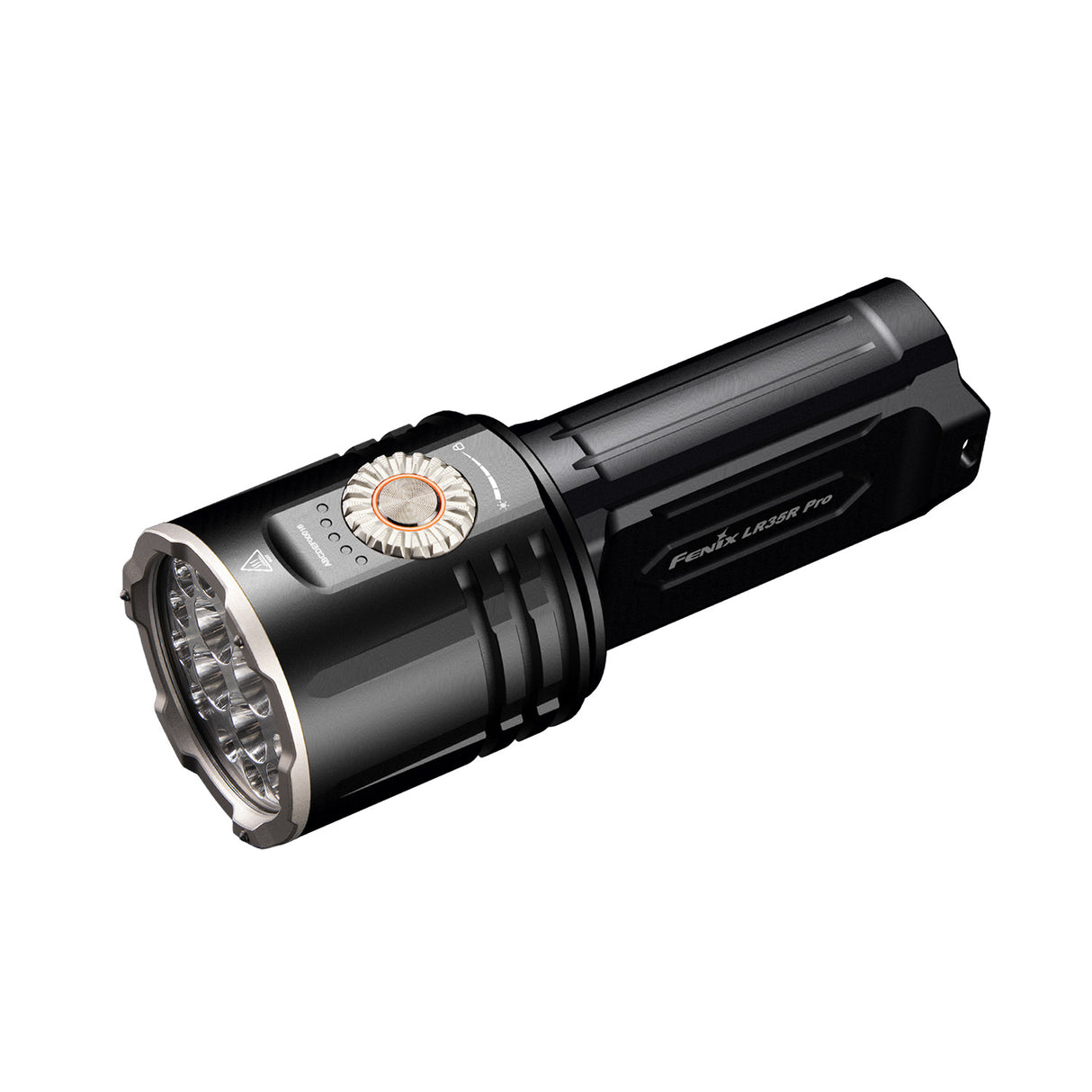

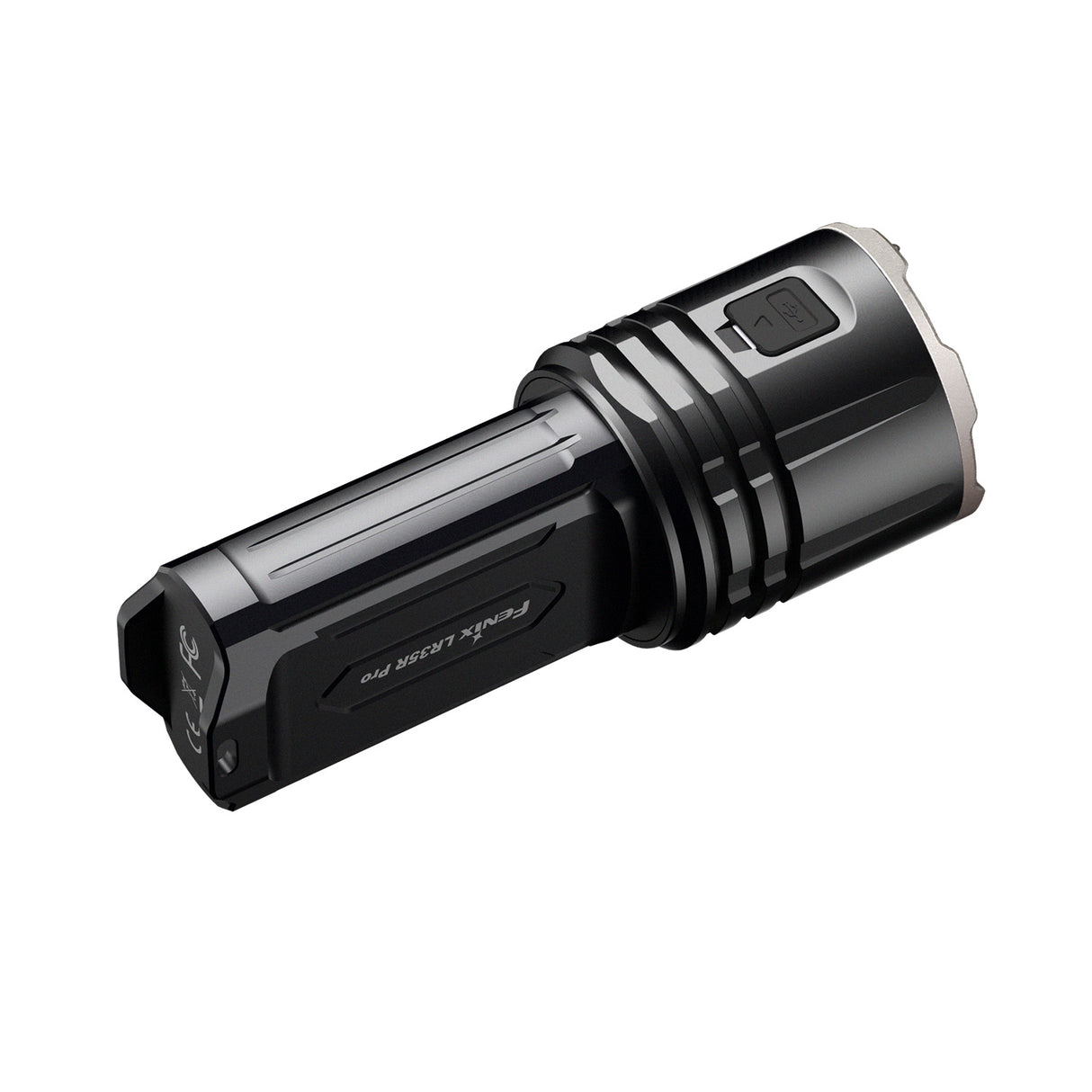

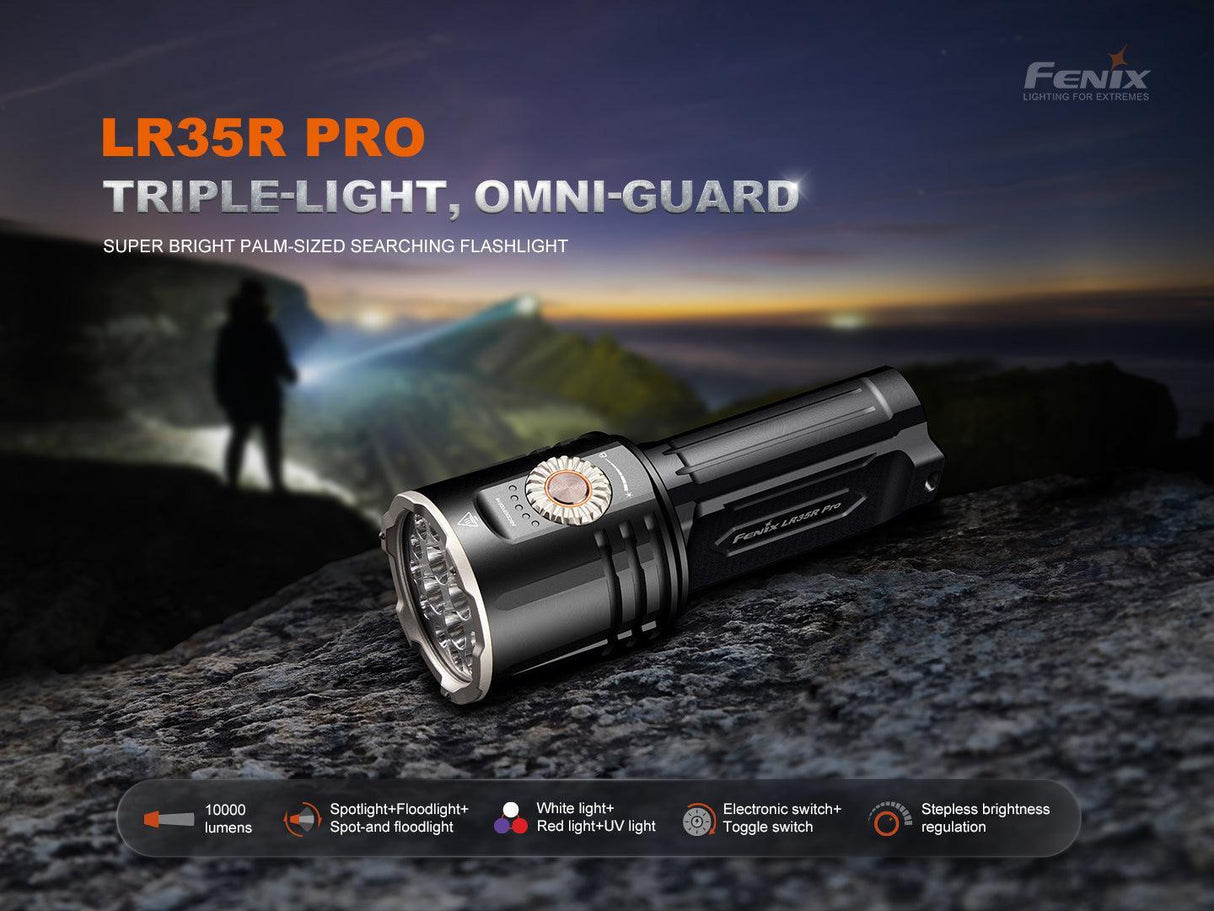

Fenix LR35R Pro Rechargeable Searchlight

The Fenix LR35R Pro is a professional searchlight designed specifically for rescue teams and cavers. It features Spotlight , floodlight, combined, red light and UV beams all in one compact torch. It also features Strobe and SOS modes and can even be utilised as a power bank.

The white light produces a super bright beam making it perfect for long-range illumination. Additionally, it also features a broad floodlight which is perfect for outdoor searching and caving. The Spot and floodlight can be combined for am impressive 10,000 lumens outputs and 445 metres beam range. The red light can be set to constant on with various brightness levels, or it can be set to red flashing. The LR35R Pro also features both Strobe and SOS modes, providing you with confidence across challenging situations and environments such as search and rescue missions and outdoor adventures.

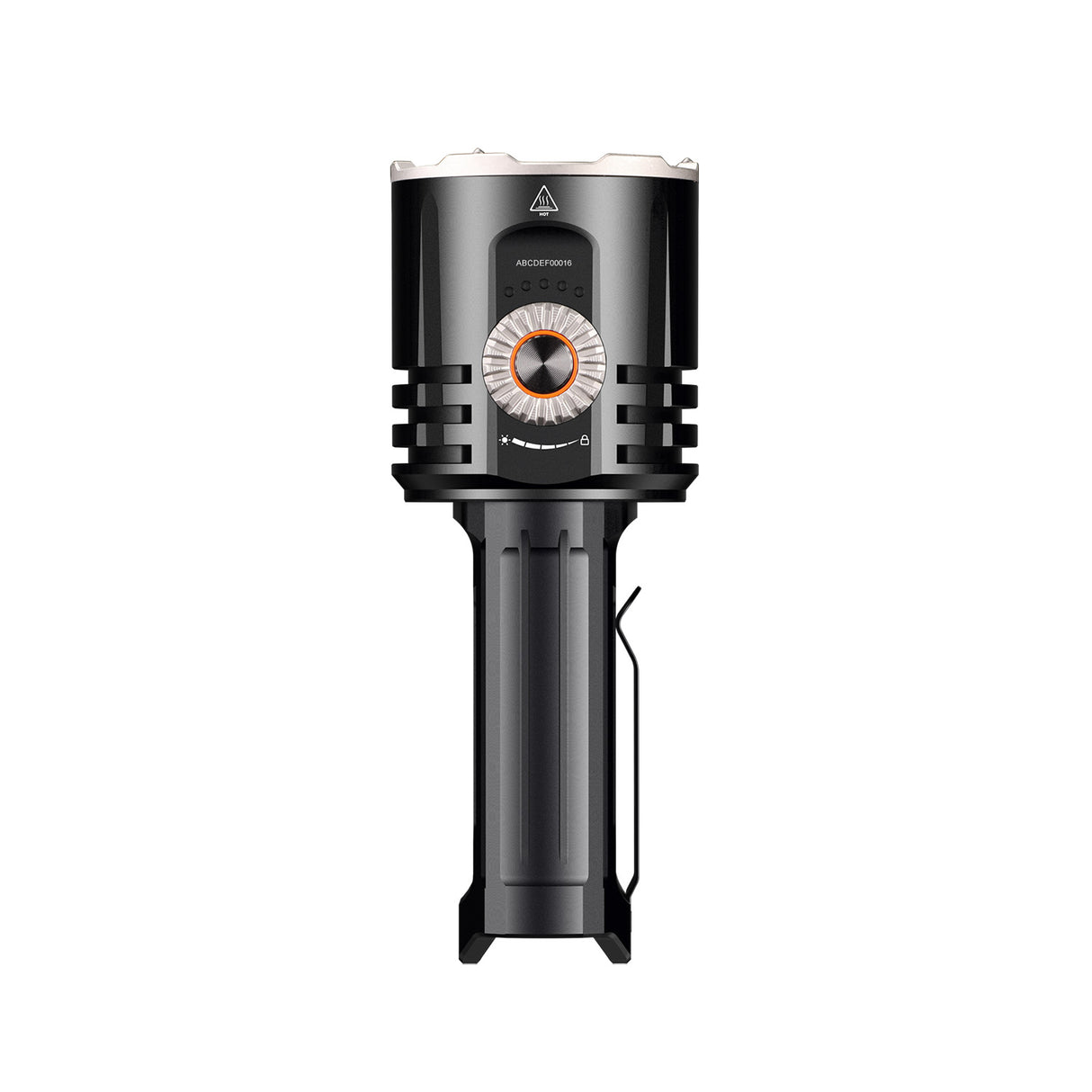

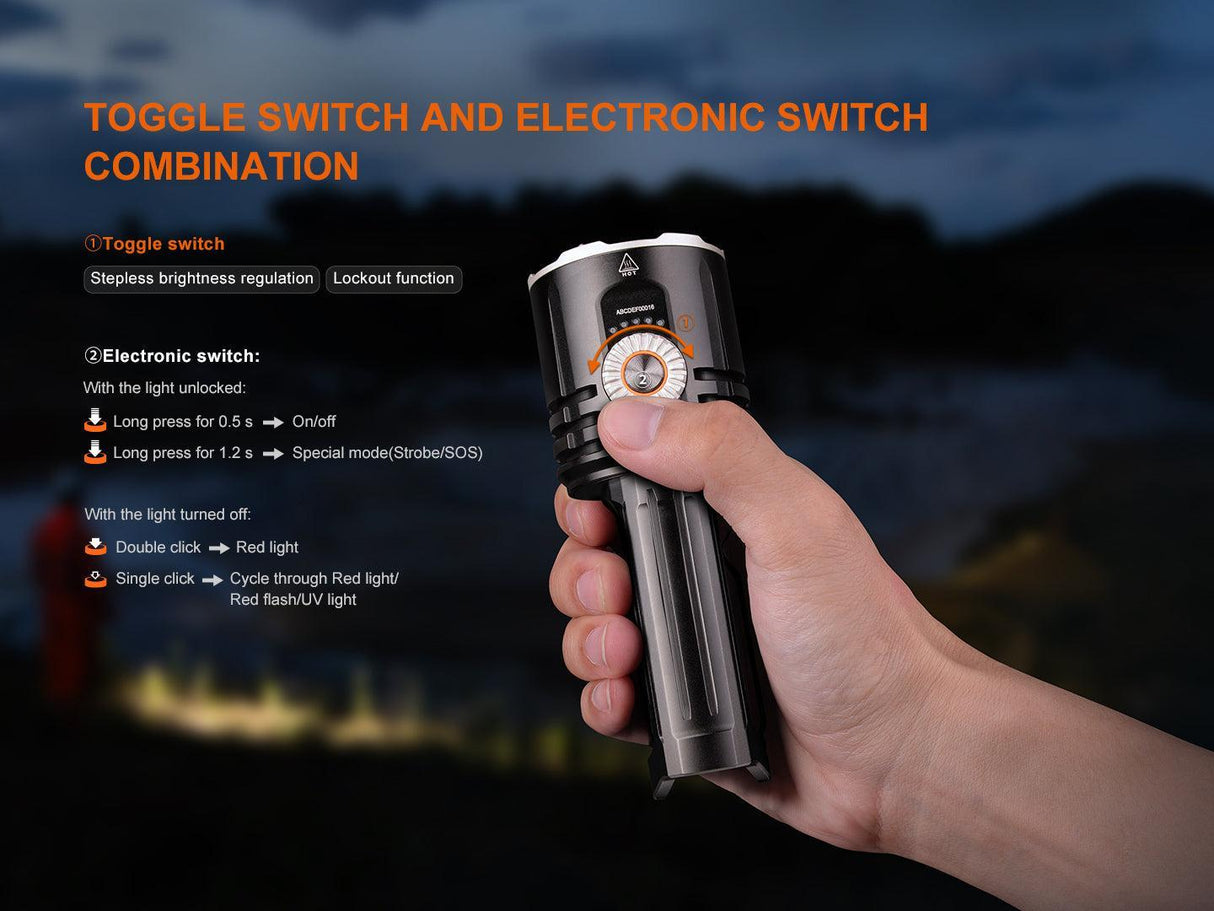

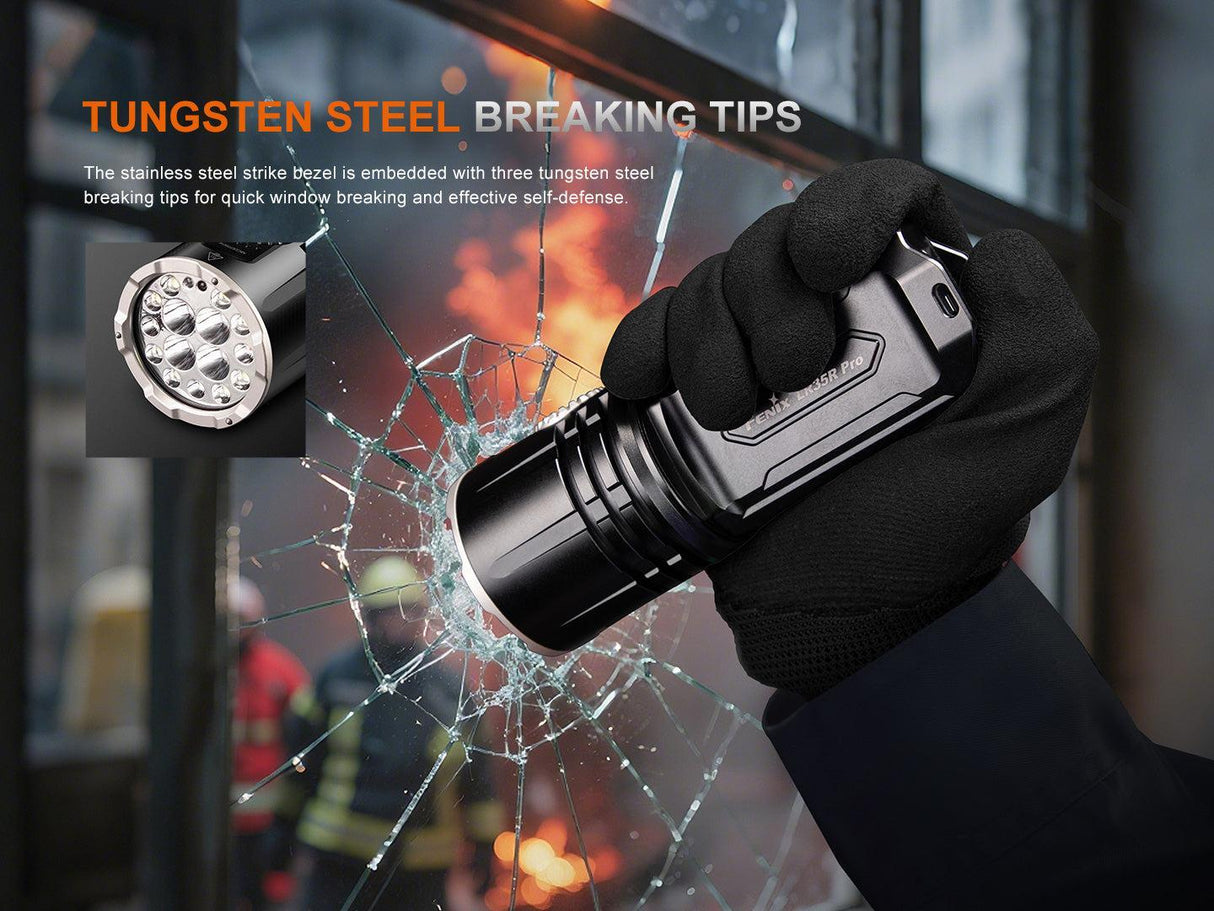

Stepless brightness adjustment is controlled by a rotary switch and is available in all modes except Strobe and SOS. Modes are selected using the central push button for easy operation. To prevent accidental activation, the LR35R Pro features a lockout mode, simply rotate the rotary switch to the lock symbol to lock the torch. The LR35R Pro incorporates a proximity safety sensor in the head of the light to reduce output close to a surface, and tungsten-steel glass breaking tips for emergency situations.

Utilising an intelligent memory circuit system the light automatically memorises the last selected lighting mode excluding Strobe and SOS. When turned on again the previously used mode, either Spotlight mode, floodlight mode, or Spot-and floodlight mode will be recalled. When turned on again by double clicking the electronic switch, the previously used Red light mode, Red flash mode, or UV light mode will be recalled. Please note the light doesn’t memorise the previously used brightness level.

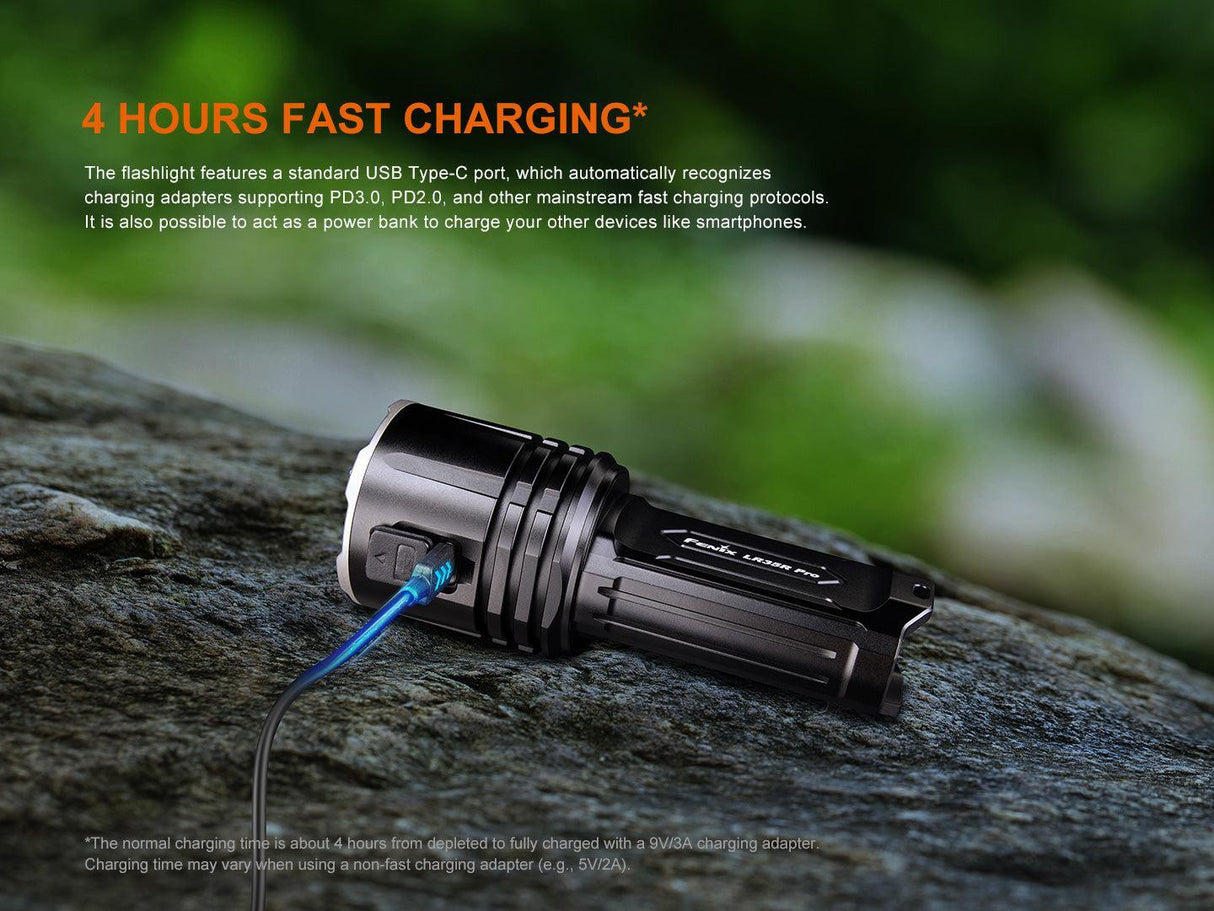

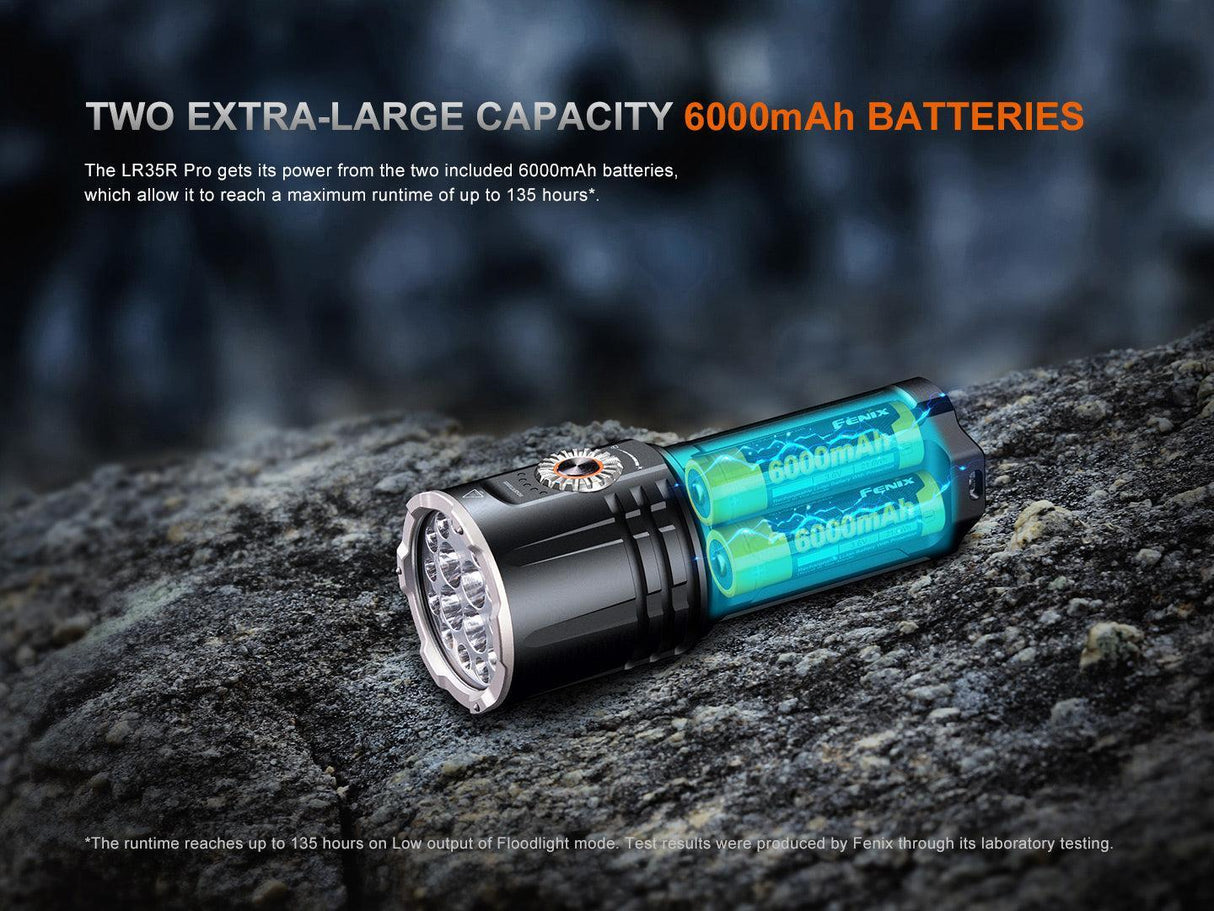

The LR35R Pro is powered by 2 x Ultra-Capacity 6000 mAh 21700 rechargeable batteries and features USB-C rapid charging, plus discharging for use as a power bank. Charging time is 4 hours if using a 9V/3A charging adaptor (not included). The batteries are easily charged inside the torch via the USB-C charging port. The light can also be charged with your mobile phone charger, extending charging time. With the light turned off, single click the electronic switch to check the battery status.


*Do not use a 16340 or 18650 battery or mix batteries of different brands, sizes, capacities, or types.

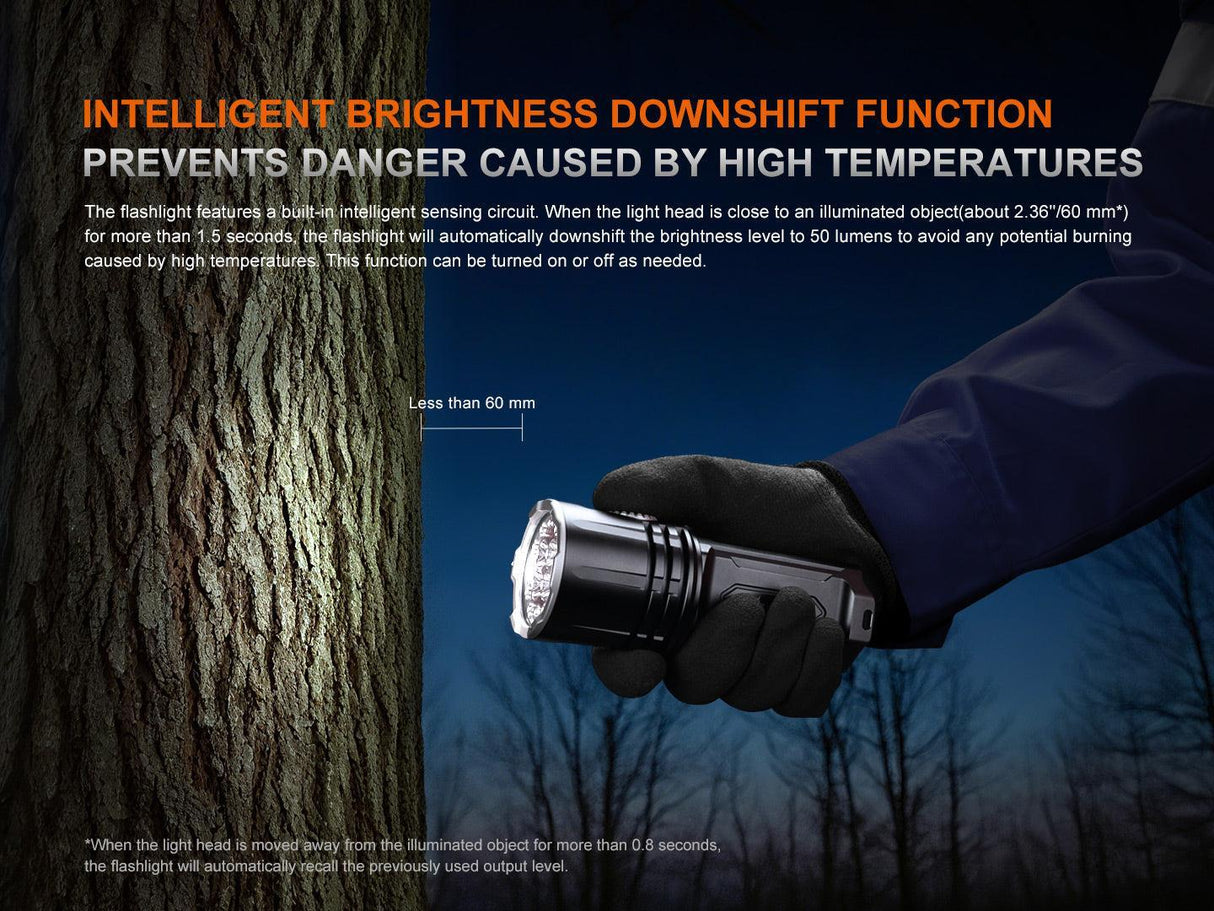

The LR35R features an Intelligent downshift feature, when the light head is close to an illuminated object (about 2.36''/60 mm) for more than 1.5 seconds, the flashlight will automatically downshift to 50 lumens to avoid potential danger/burns caused by high temperatures. When the light head is away from the illuminated object for more than 0.8 seconds, the flashlight automatically recalls the previously used brightness level. This feature can be turned on / off.

When the voltage level drops below the pre-set level, the flashlight is programmed to downshift to a lower brightness level until the lowest output is reached. When this happens in the lowest output, one battery level indicator blinks to remind users to recharge or replace the batteries in a timely manner until the battery level runs out.

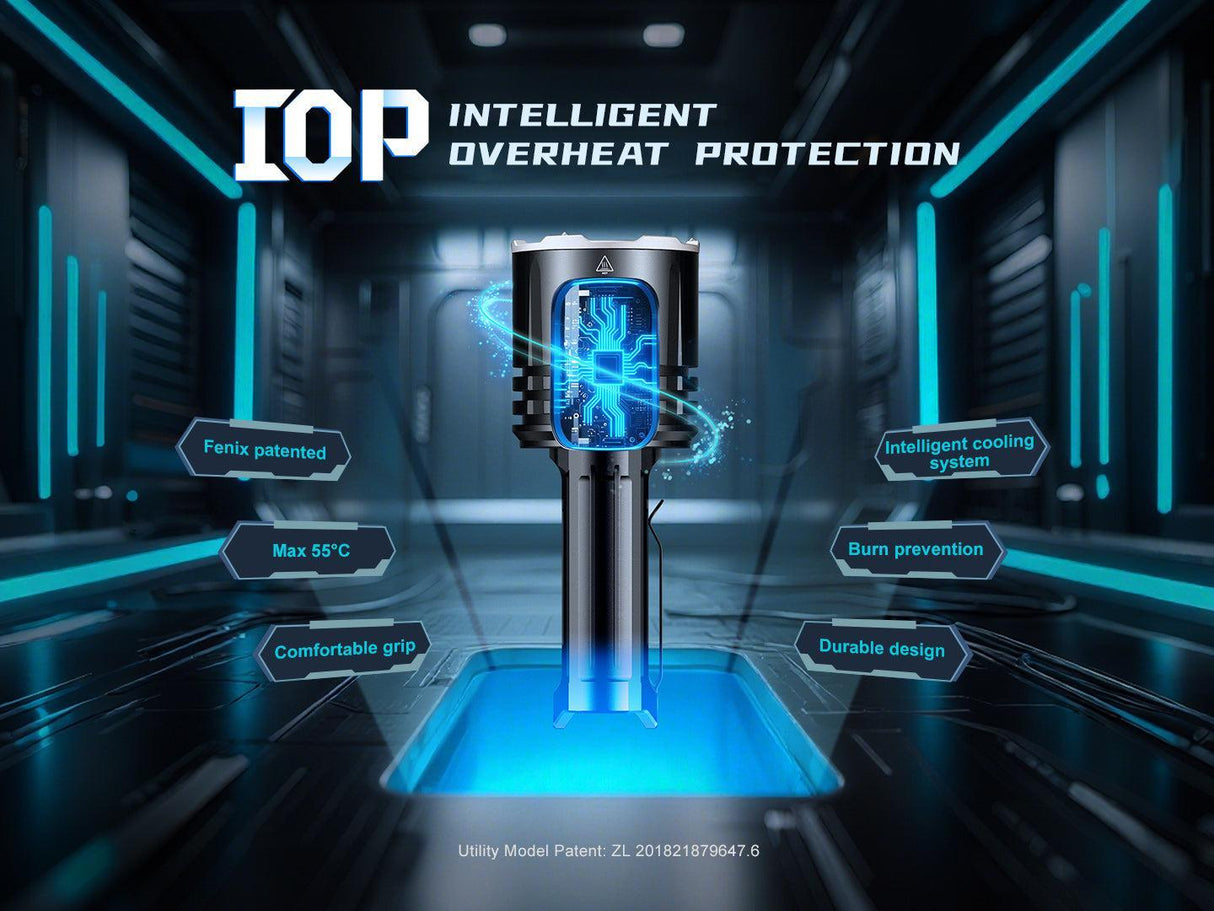

The light will accumulate a lot of heat when used at high output levels for extended periods. When the flashlight reaches a temperature of 55°C/131°F or above, it will automatically step down a few lumens to reduce the temperature. When the temperature drops below 55°C/131°F, the flashlight will gradually recall the pre-set output level.

Product Features

• Throw, flood, combined, red light and UV beams all in one compact torch
• Supplied with 2 x Fenix ARB-L21-6000 replaceable rechargeable batteries
• 18W fast charging. Can be recharged in 4 hours with suitable charger
• Digitally regulated output - maintains constant brightness (after initial step-down at high outputs)
• Rotary switch offers stepless brightness adjustment in all modes except Strobe and SOS
• Intelligent brightness downshift. Prevents damage to torch and any surface within 60mm
• Intelligent overheat protection at 55c
• Low voltage warning
• Power bank function

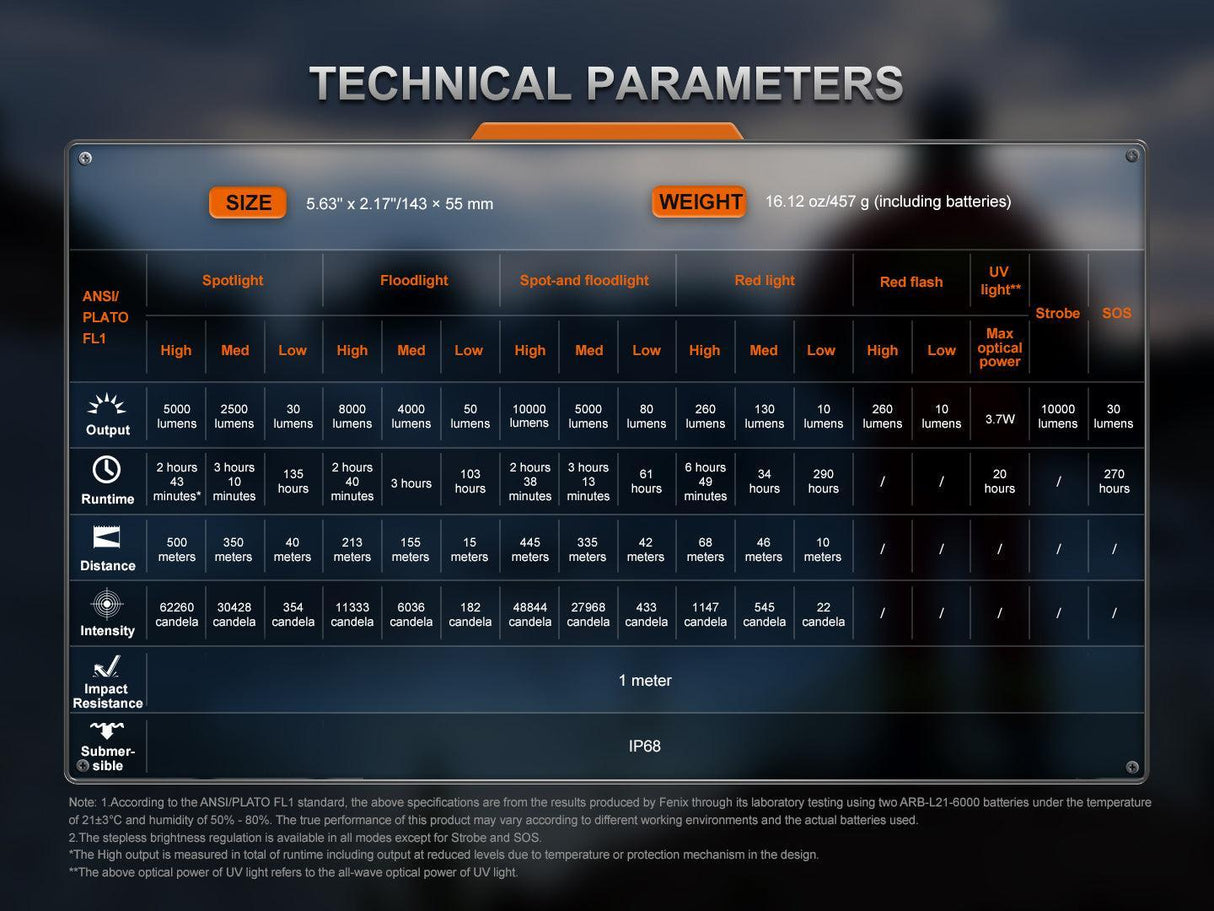

Operational modes

Spotlight:
High - 5,000 lumens; 2 hours, 43 minutes* run-time; 500 m beam range
Mid - 2,500 lumens; 3 hours, 10 minutes run-time; 350 m beam range
Low - 30 lumens; 135 hours run-time; 40 m beam range

Floodlight:
High - 8,000 lumens; 2 hours, 40 minutes run-time; 213 m beam range
Mid - 4,000 lumens; 3 hours run-time; 155 m beam range
Low - 50 lumens; 103 hours run-time; 15 m beam range

Spot and Floodlight:
High - 10,000 lumens; 2 hours, 38 minutes run-time; 445 m beam range
Mid - 5,000 lumens; 3 hours, 13 minutes run-time; 335 m beam range
Low - 80 lumens; 61 hours run-time; 42 m beam range

Red Light:
High - 260 lumens; 6 hours, 49 minutes run-time; 68 m beam range
Mid - 130 lumens; 34 hours run-time; 46 m beam range
Low - 10 lumens; 290 hours run-time; 10 m beam range

Red Flash:
High - 260 lumens
Low - 10 lumens

UV Light** - 3.7W Max optical power; 20 hours run-time
Strobe - 10,000 lumens
SOS: 30 lumens; 270 hours run-time

*The high output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design

**The above optical power of UV light refers to all-wave optical power of UV light.

Lab tested to ANSI / PLATO FL 1 standard using the two included Fenix ARB-L21-6000 lithium-ion rechargeable batteries. Real use conditions may be different and therefore results may vary.

Technical Details

Type: Rechargeable Searchlight
Operating Modes: Floodlight / Spotlight / Spot and FloodLight / Red Light / Red flashing / UV Light / Strobe / SOS
Luminous Flux: Up to 10,000 lumens
Lamp Type: 4 x Luminus SFT25, 8 x Luminus SST25, 2 x Osram GR QSSPA1.23 red LED's and 1 x SST-10-UV LEDs
Beam Range: Up to 500 m
Batteries Required: 2 x ARB-L21-6000 lithium-ion batteries (included)

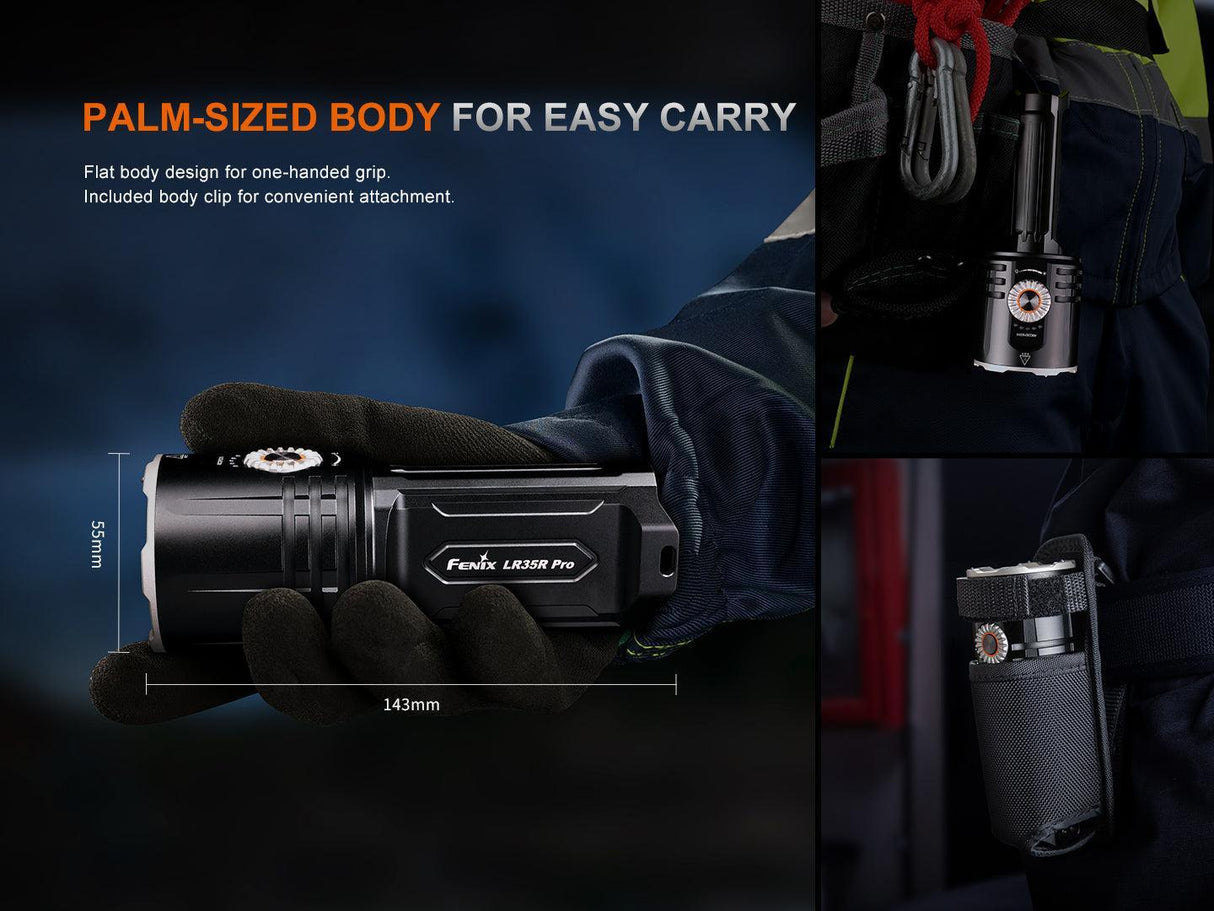

Dimensions: 143 x 55 x 46.5mm
Weight: 457 grams
Body Colour: Black
Body Material: A6061-T6 aircraft grade aluminium
Body Finish: Premium Type III hard-anodised anti-abrasive finish
Switch Type: Central mode select button and rotary lock / stepless brightness dial
Impact Resistance: 1 m

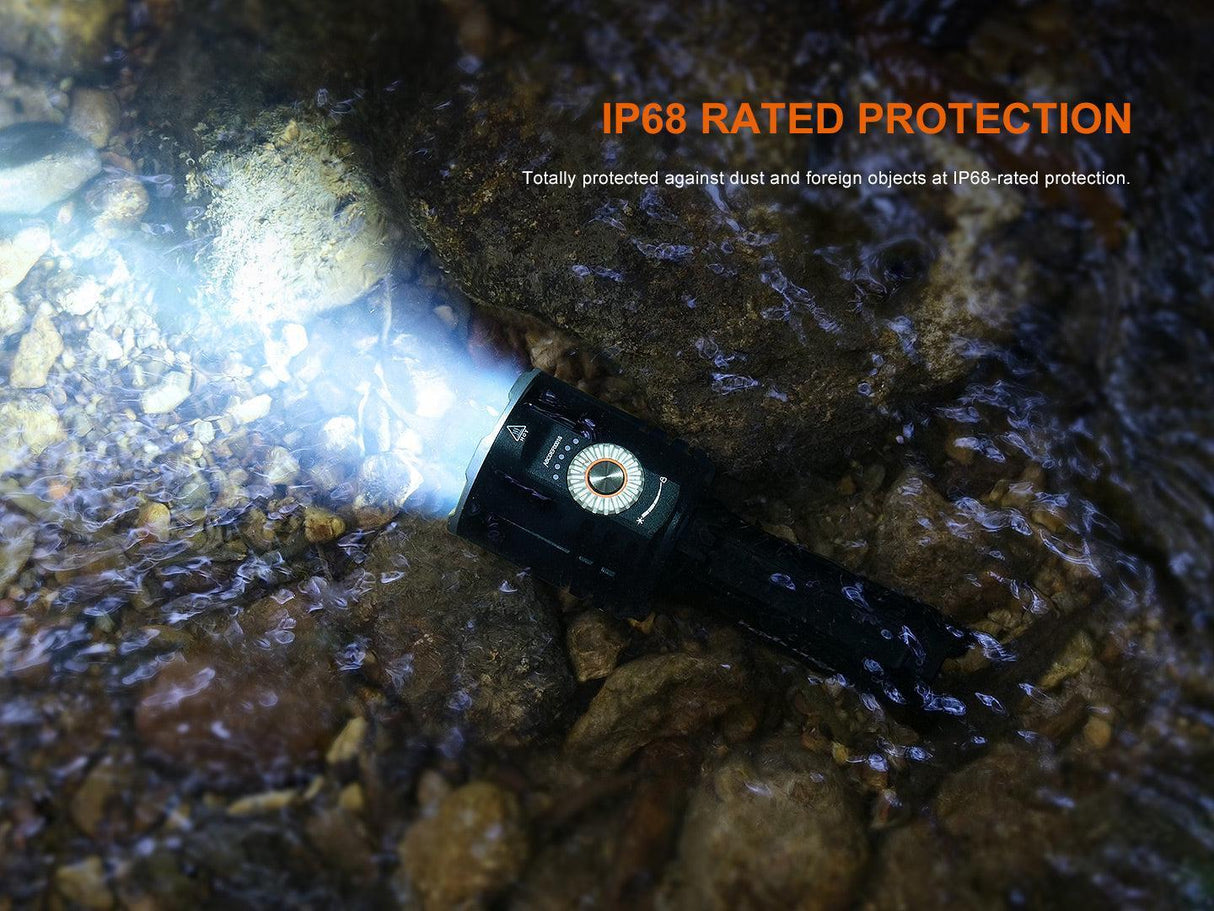

Environmental: IPX8
Warranty: 5 years (torch) / 1 year (batteries)

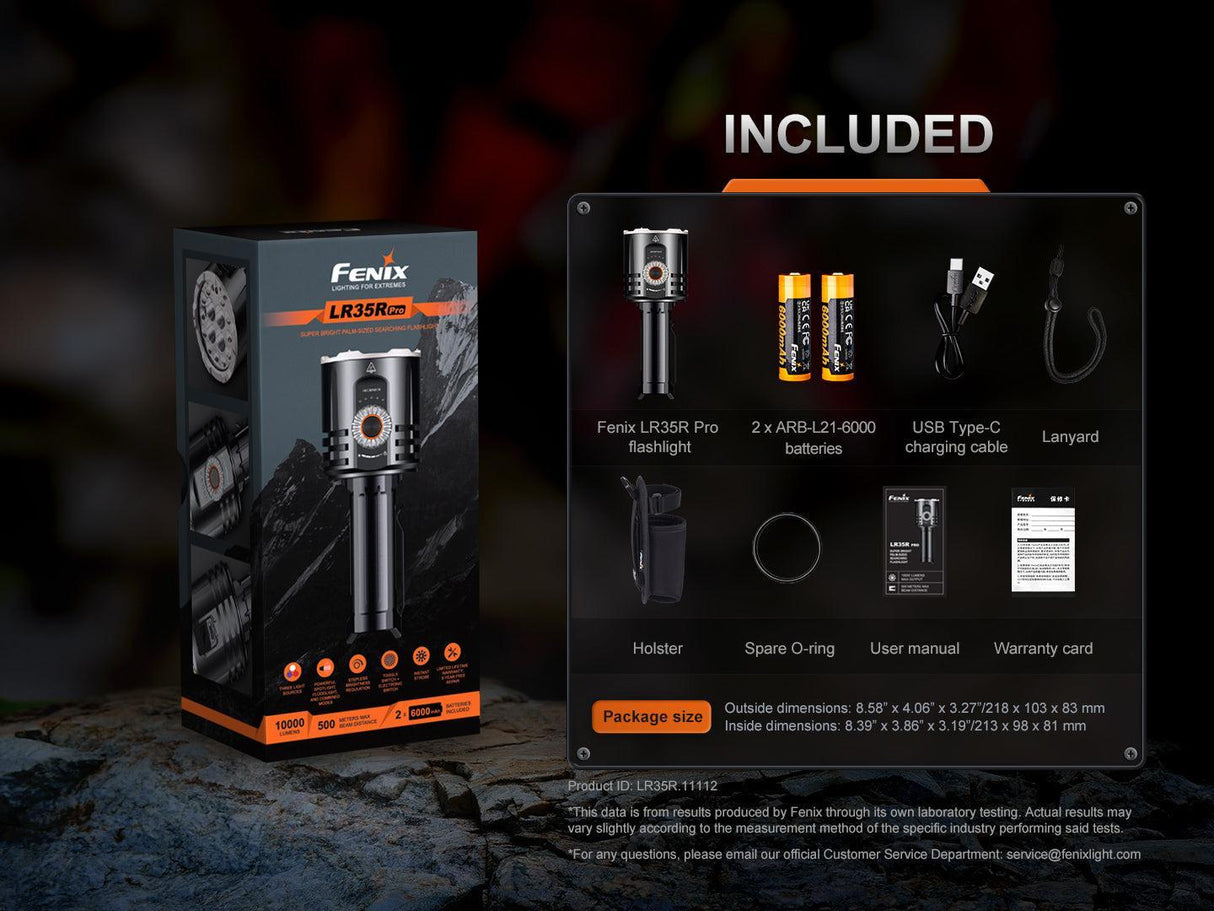

Packaging and Contents

Supplied in retail packaging and includes:
Fenix LR35R Pro Searchlight x1
Fenix ARB-L21-6000 Battery x 2
USB-C Charger Cable x1
Holster x1
Lanyard x1
Spare O-Ring x1
User Manual x1
Warranty Card x1
