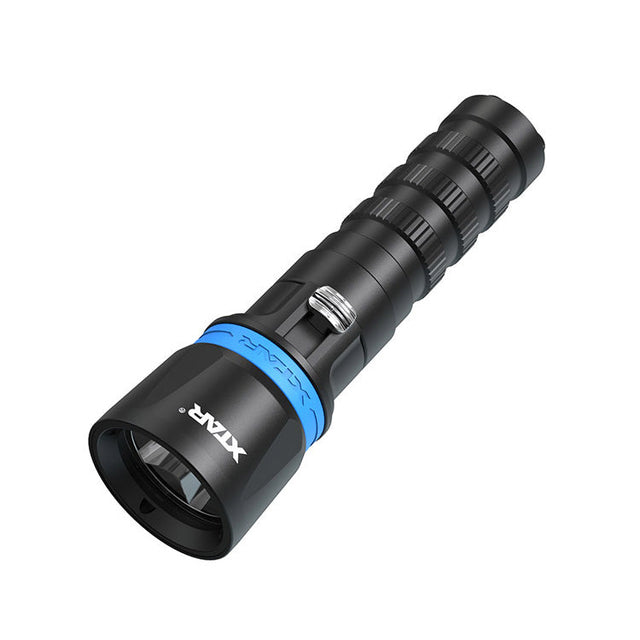

Xtar DS1 LED Diving Torch Kit

The Xtar DS1 is a dive torch perfect for recreational diving and spearfishing, offering up to 1000 lumens on the highest output and working in depths of up to 100 metres underwater.

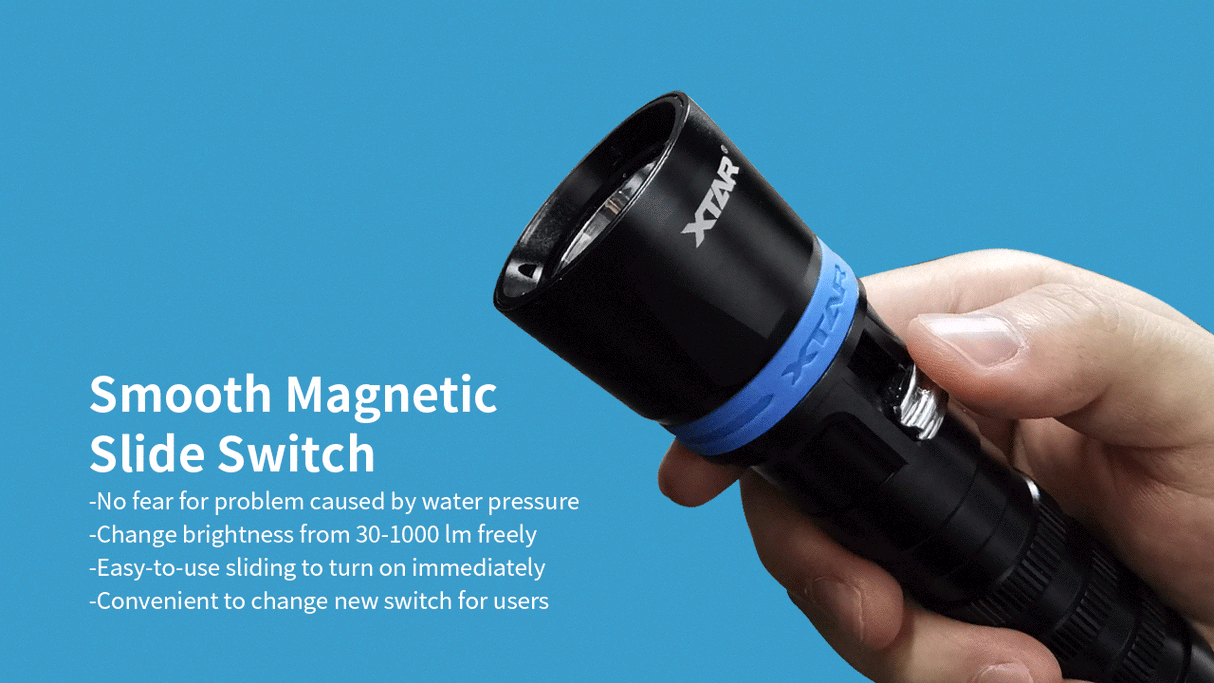

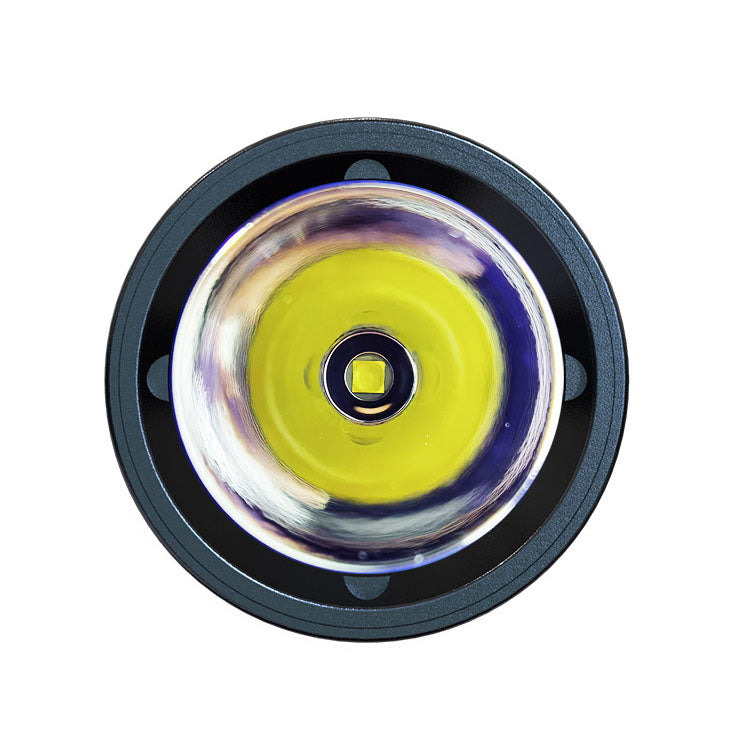

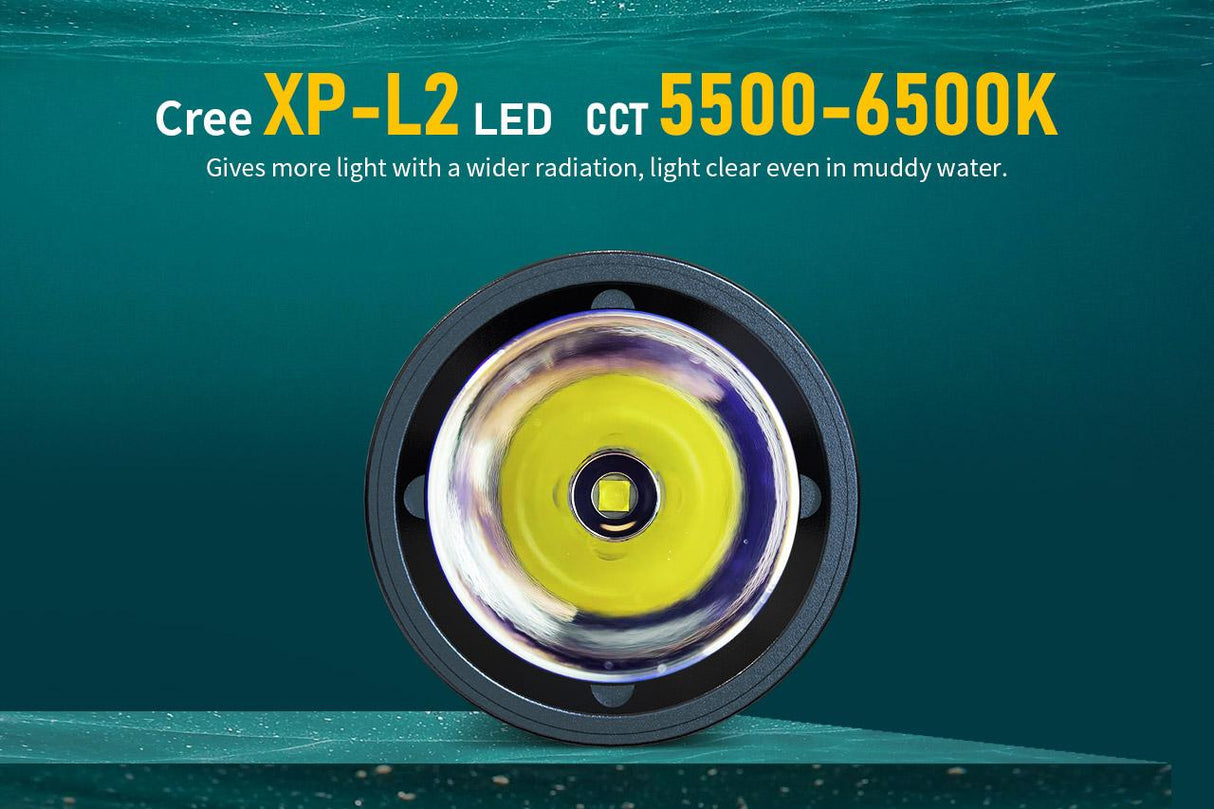

The DS1 features a spot beam with a 7° angle from a Cree XP-L2 LED which gives a clear view even in muddy water and narrow spaces. The smooth magnetic slide switch allows you to freely change between the lowest output of 30 lumens all the way to the highest of 1000 lumens, simply by sliding the switch backwards and forwards. The switch avoids issues related to water pressure, ensuring consistent functionality and can easily be changed with an included spare.

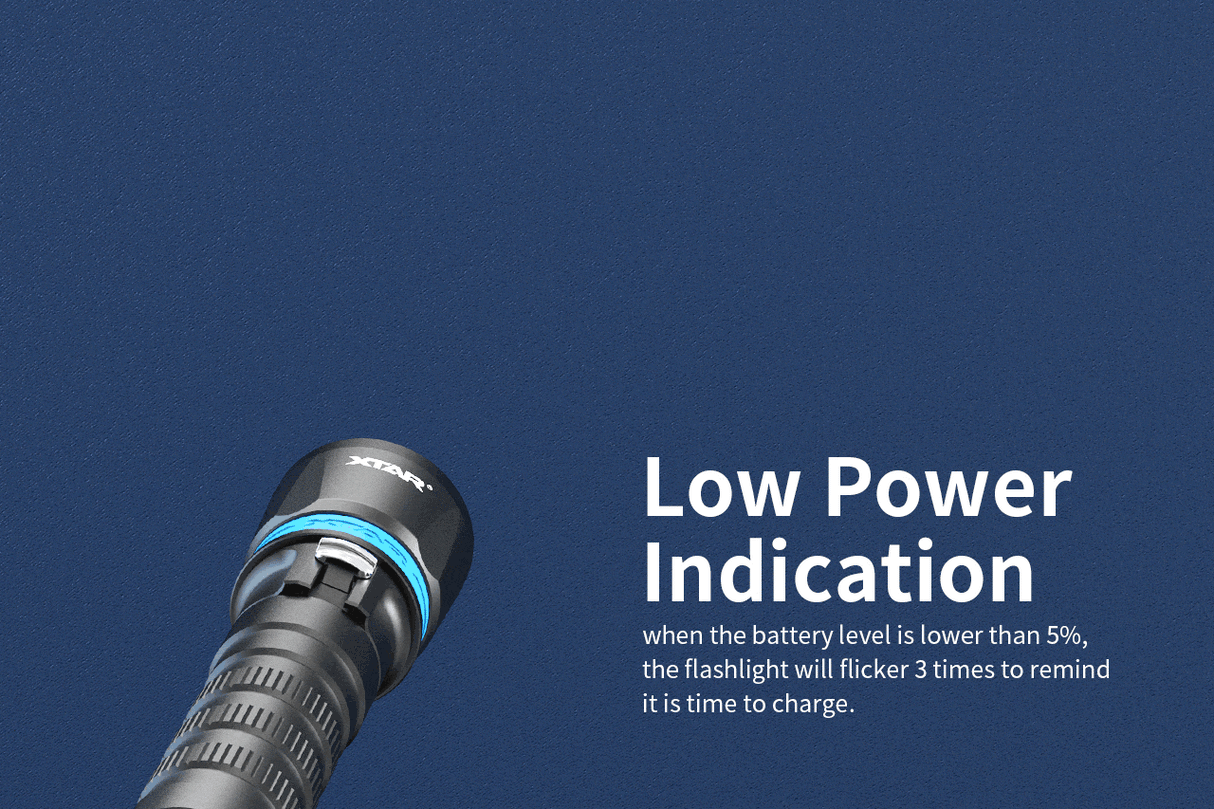

The DS1 is powered by an included 21700 lithium-ion battery which can be recharged by using the provided SC1 charger. A low battery warning keeps you safe by flashing 3 times when the battery's percentage drops below 5% to advise you the battery needs charging.

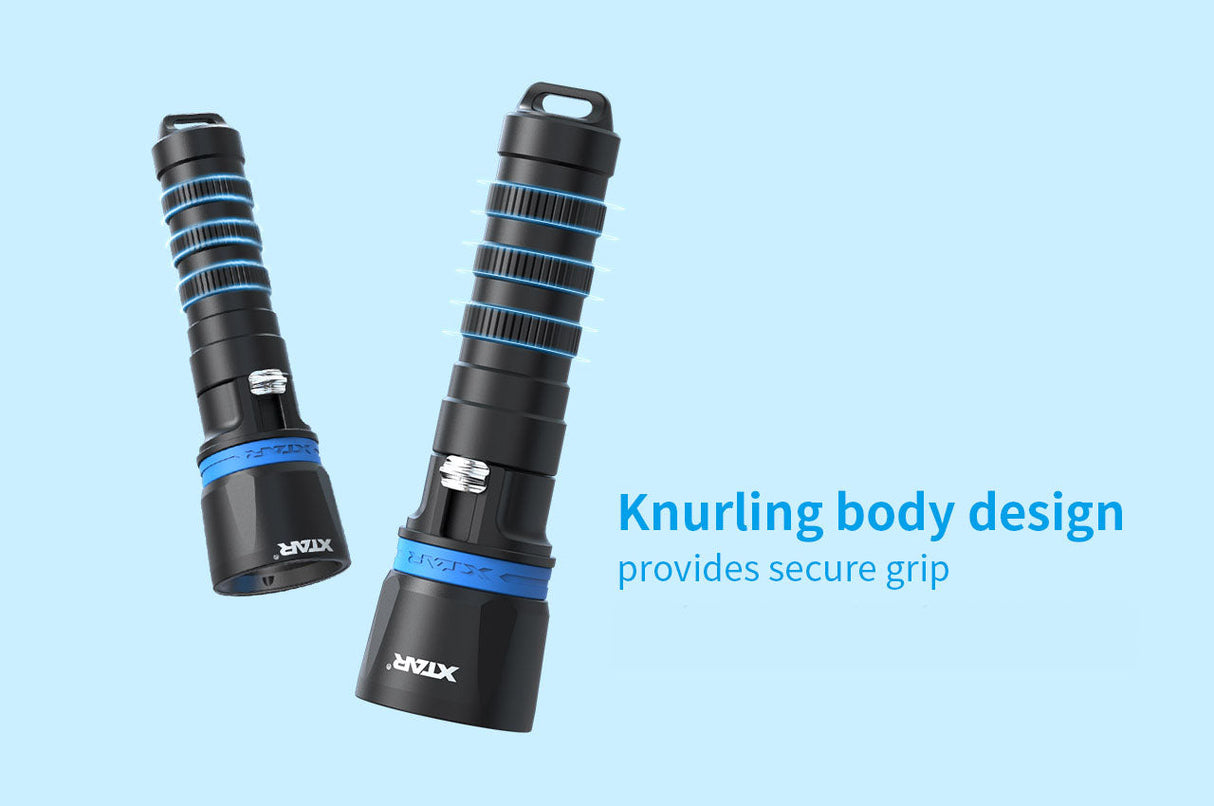

Designed to be compact and easy to handle, the knurled body ensures you'll have a good grip, but just in case there is also a sturdy lanyard included to keep the DS1 securely on your wrist.

Operational Modes

Highest setting: 1000 lumens; 2 hours, 30 minutes run-time
Lowest Setting: 30 lumens; 49 hours run-time

The above parameters are approximate and are lab tested to ANSI standards using a Xtar 4900 mAh 21700 lithium-ion battery. Results may vary between torch, battery and environment.

Technical Details

Type: Diving Torch
Operating Modes: Variable output using sliding switch
Luminous Flux: Up to 1000 lumens
Lamp Type: Cree XP-L2
Beam Range: Up to 282 m
Batteries Required: 1 x21700 lithium-ion (included)
Run Time: Up to49 hours
Overall Length: 156 mm
Head Diameter: 44 mm
BodyDiameter: 29 mm
Weight: 177 grams (excluding battery)
Body Colour: Black
Body Material: Aluminium alloy
Switch Type: Sliding switch
Impact Resistance: 1.5 m
Environmental: Waterproof to 100 m depth
Warranty: 2 years

Packaging and Contents

Supplied in retail packaging and contains:
Xtar DS1 LED dive torch x 1
SC1 charger (with USB cable) x 1
Xtar 21700 lithium-ion battery x 1
Lanyard x 1
Spare O-ring x 2
Spare slider switch x 1
Manual x 1
