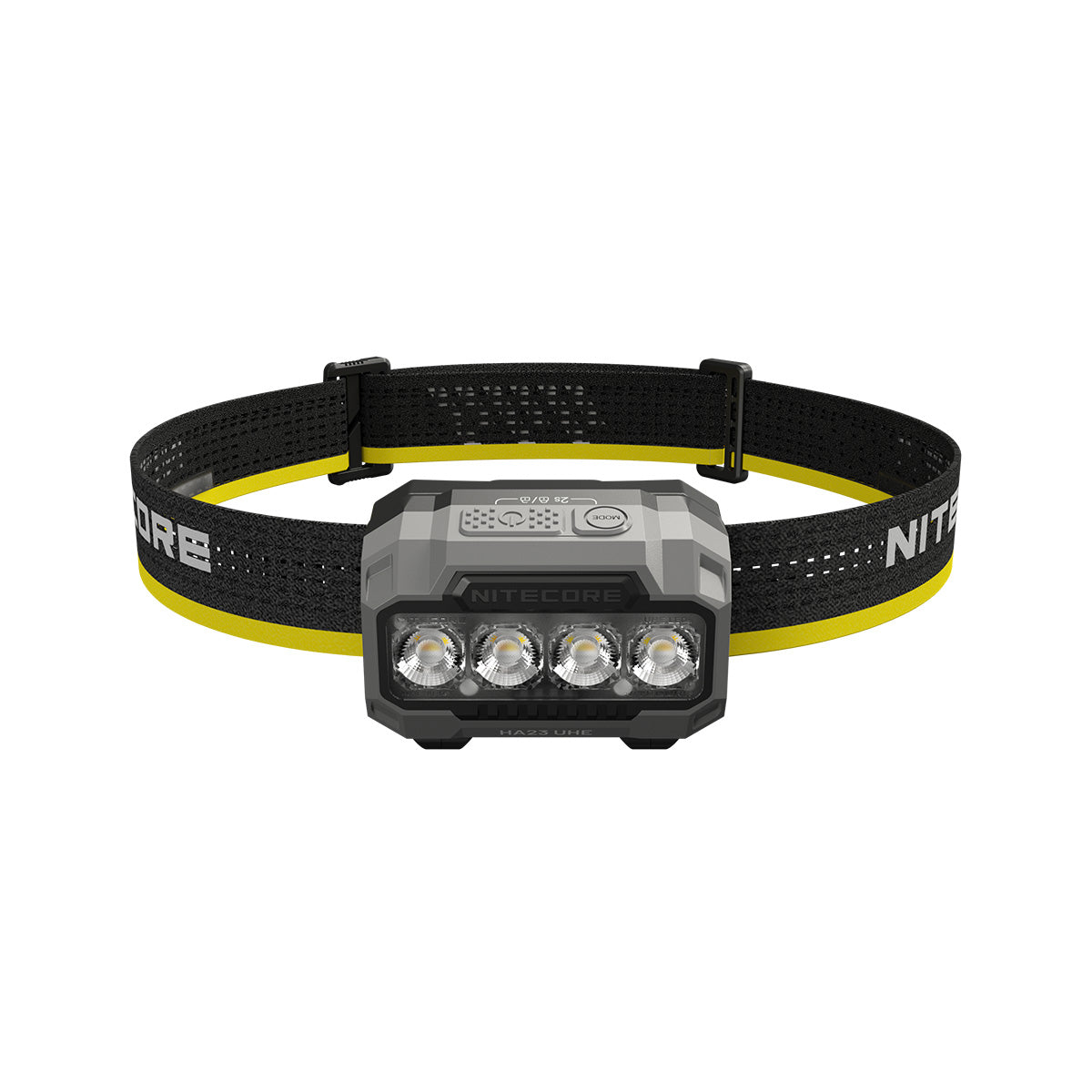

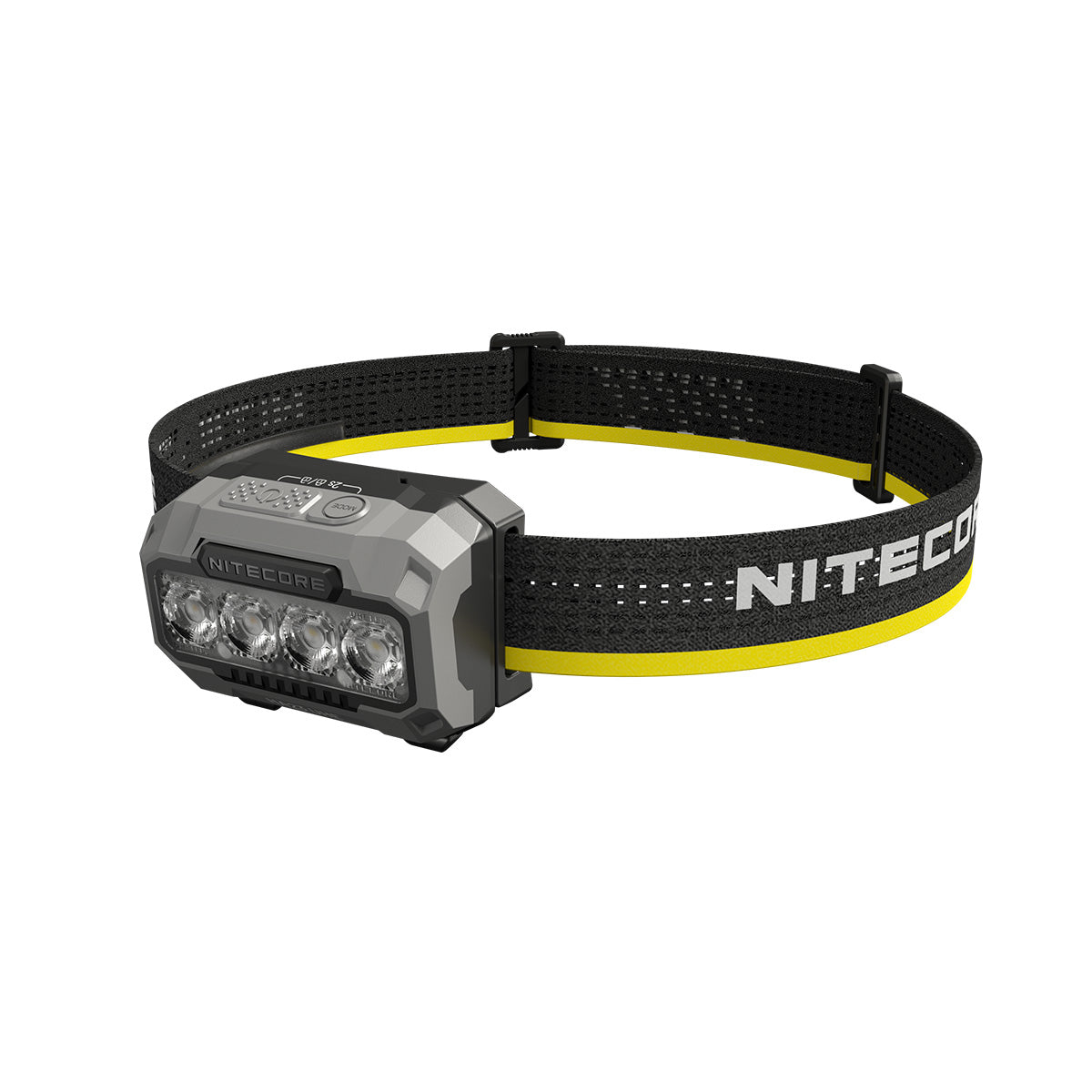

Nitecore HA23 UHE LED Head Torch

The Nitecore HA23 is a lightweight head torch, perfect for a wide variety of activities.

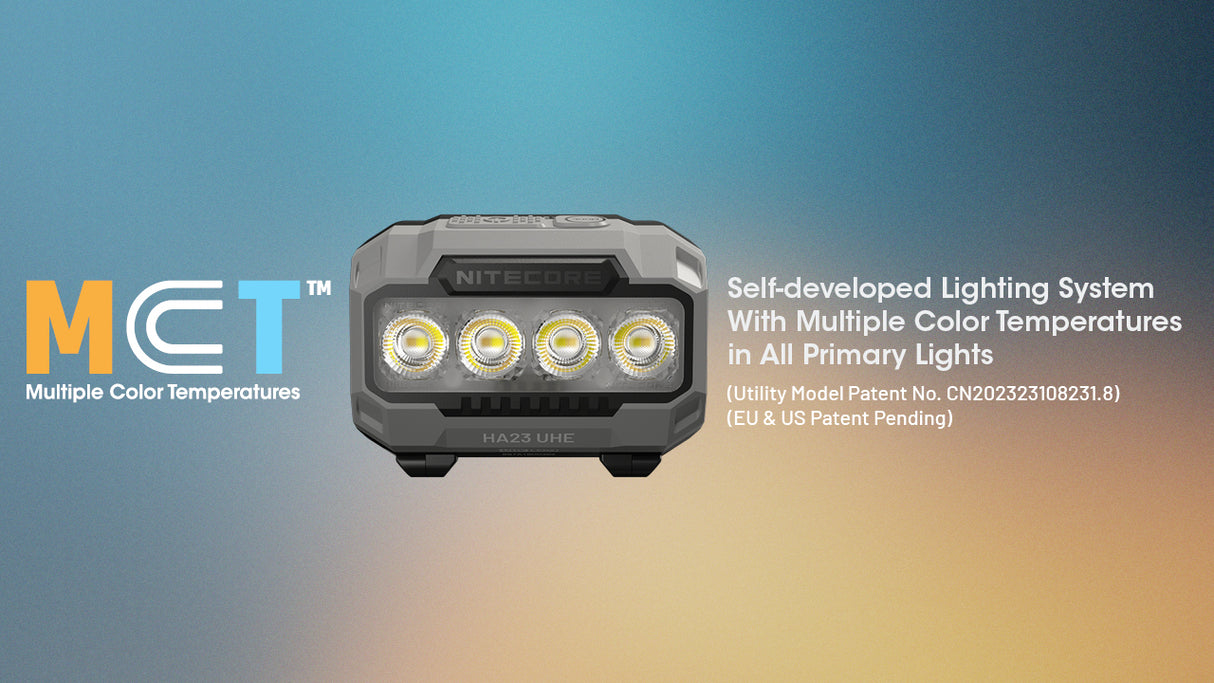

It offers warm white, cool white and neutral white light from the multiple colour temperature (MCT) UHE LEDs, with a maximum output of 600 lumens. There is also an auxiliary red LED offering high, low and flashing outputs, as well as SOS and beacon modes from the neutral white primary LED.

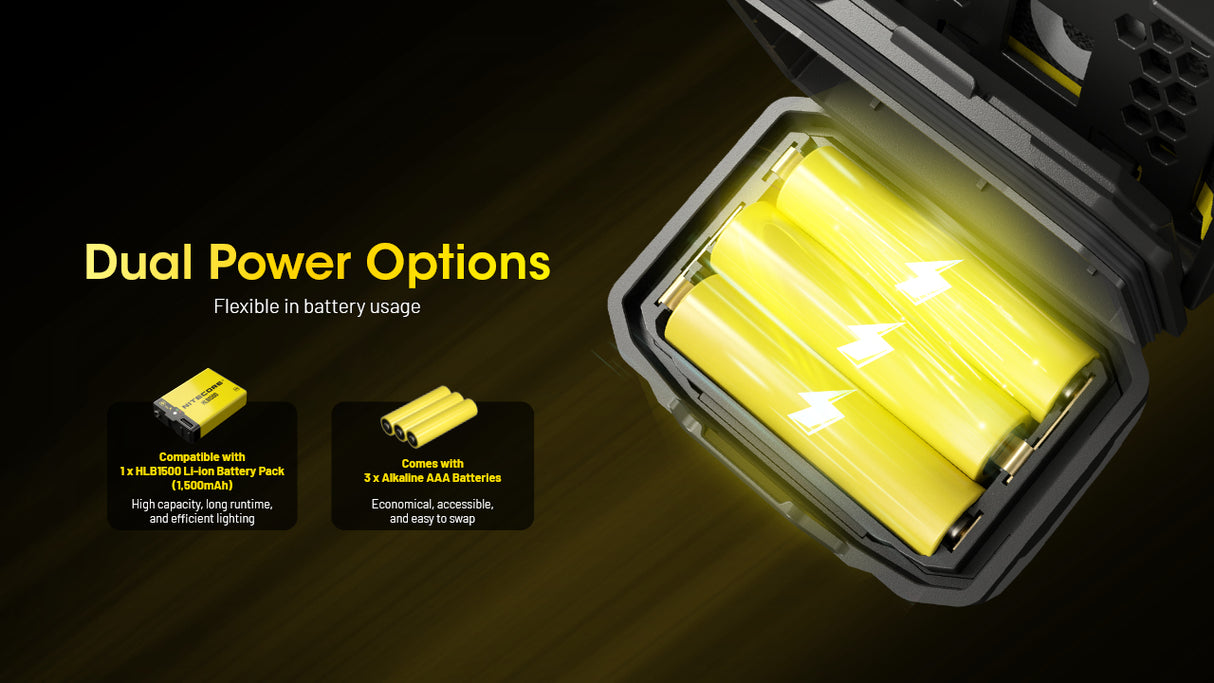

Dual power options means it can use either 3 x AAA batteries (alkaline or NiMH) or the Nitecore HLB1500 lithium-ion battery pack (sold separately) can be used to provide longer run-times.

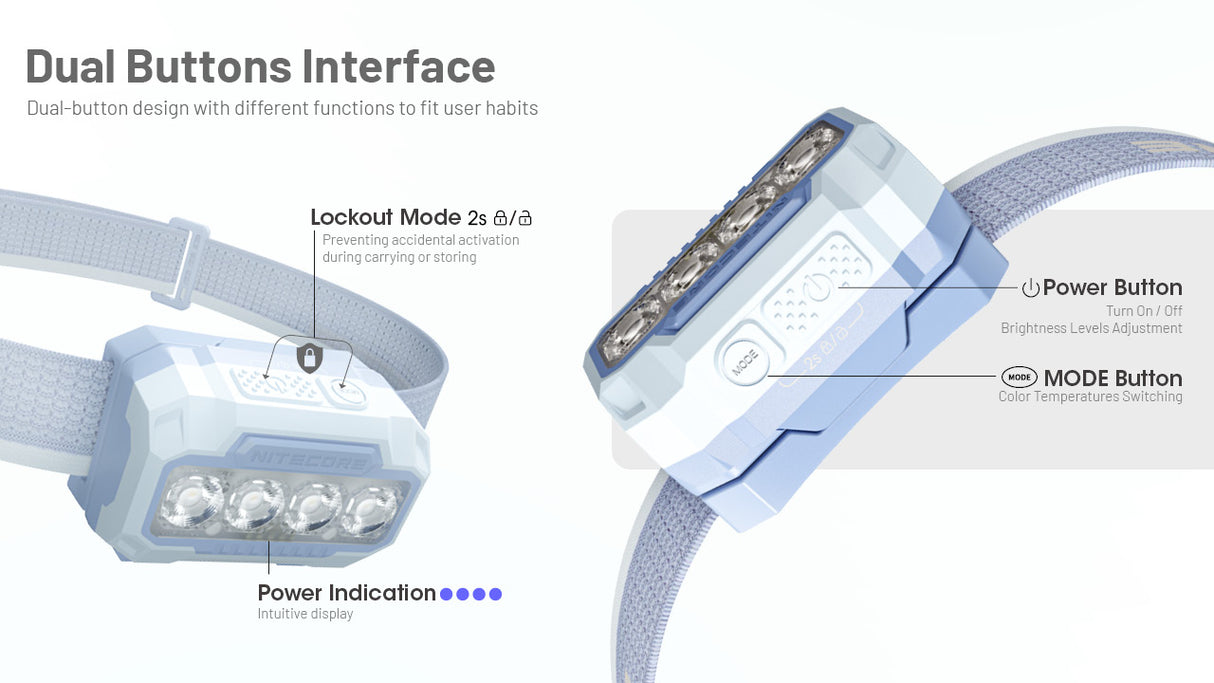

Two buttons are located on top, a power button which turns the light on/off and controls the brightness levels of the various LEDs, and a mode button which changes between the white light colour temperatures, gives direct access to red and enters the special modes. Please refer to the manual download for full user instructions.

A lockout function prevents accidental activation of the light when not in use, and can be done be simultaneously holding both buttons for 2 seconds until the light flashes 3 times. To exit lockout hold the buttons down again and the light will come on in neutral white ultra-low.

The headband is comfortable and adjustable with a hollow design for breathability, a silicone strip to channel away sweat and a reflective design for safety and enhanced visibility. Additionally the HA23 UHE comes with a multi-purpose clip for mounting the light to a cap or bag strap, and a diffusing stuff sack to either store when not in use, or to create a camping lantern.

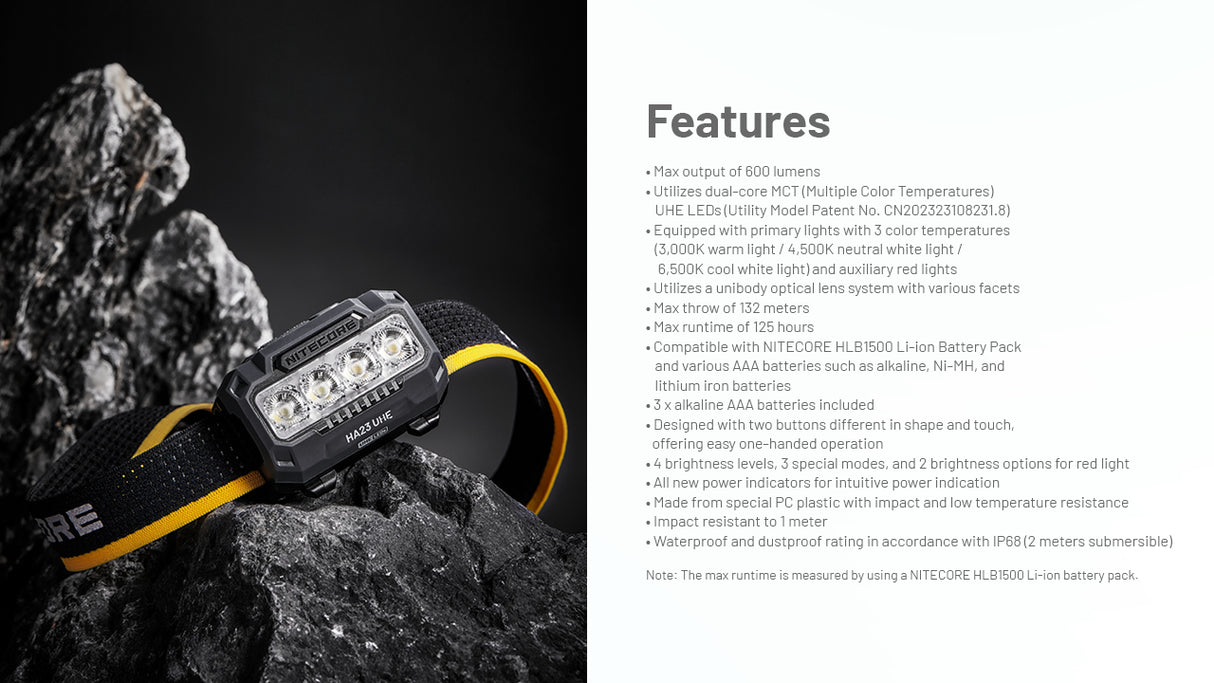

Product Features

Dual buttons different in shape and touch
Comfortable and adjustable headband

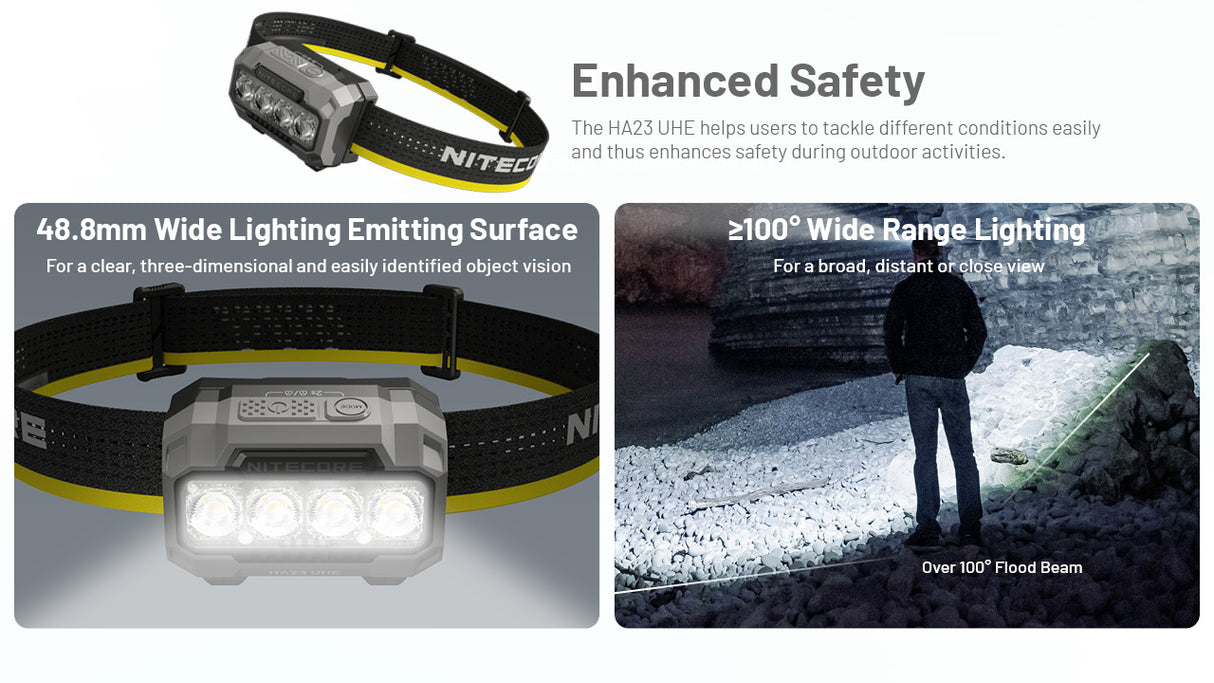

Over 100˚ wide beam angle
Power indicators to display remaining battery
Lockout function to prevent accidental activation
Primary lights with 3 colour temperatures and red light.

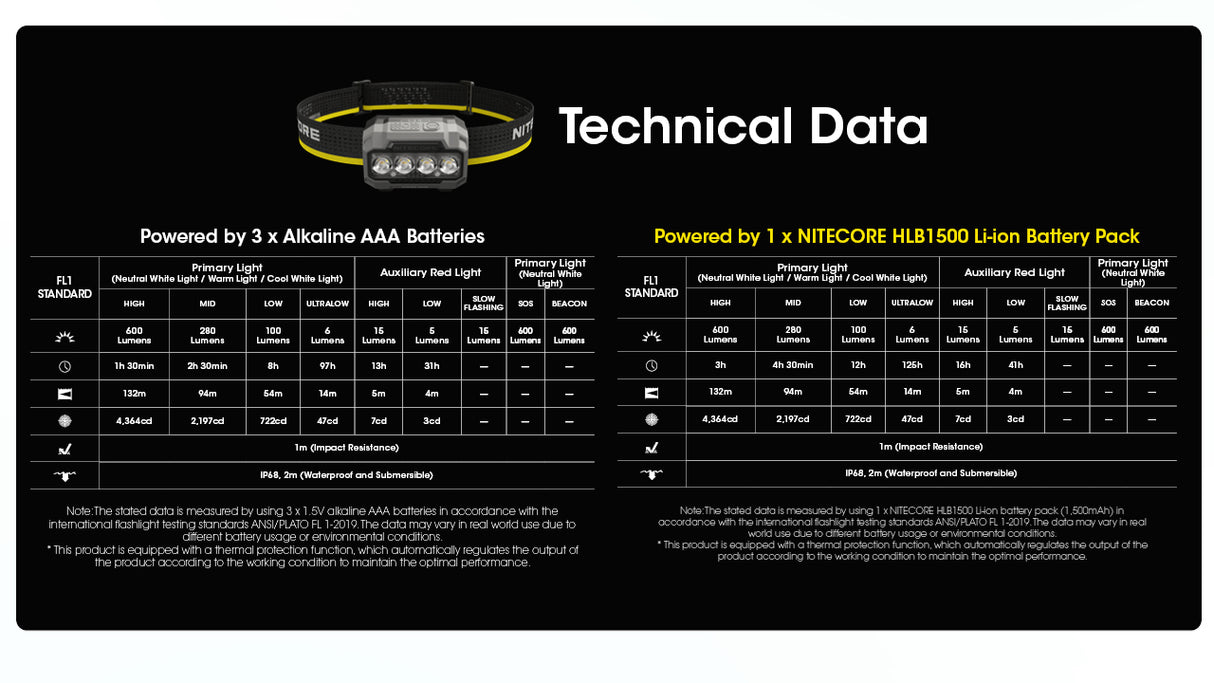

Operational Modes

Using 3 x AAA alkaline batteries;
High: 600 lumens; 1 hour, 30 minutes run-time; 132 m beam range
Mid : 280 lumens; 2 hours, 30 minutes run-time; 94 m beam range
Low: 100 lumens; 8 hours run-time; 54 m beam range
Ultra-Low: 6 lumens; 97 hours run-time; 14 m beam range
Red Light High: 15 lumens; 13 hours run-time; 5 m beam range
Red Light Low: 5 lumens; 31 hours run-time; 4 m beam range
Red Slow Flashing: 15 lumens
SOS / Beacon (neutral white): 600 lumens

Using HLB1500 Lithium-ion battery pack;
High: 600 lumens; 3 hours run-time; 132 m beam range
Mid: 280 lumens; 4 hours, 30 minutes run time; 94 m beam range
Low: 100 lumens; 12 hours run-time; 54 m beam range
Ultra-Low: 6 lumens; 125 hours run-time; 14 m beam range
Red Light High: 15 lumens; 16 hours run-time; 5 m beam range
Red Light Low: 5 lumens; 41 hours run-time; 4 m beam range
Red Light Flashing: 15 lumens
SOS / Beacon: 600 lumens

Tested in laboratory conditions. The data may vary slightly in real world use depending on battery type, individual usage habits and environmental factors.

Technical Details

Type: LED head torch
Operating Modes: Ultra-low / Low / High / SOS / Beacon / Red Constant / Red Flashing
Luminous Flux: Up to 600 lumens

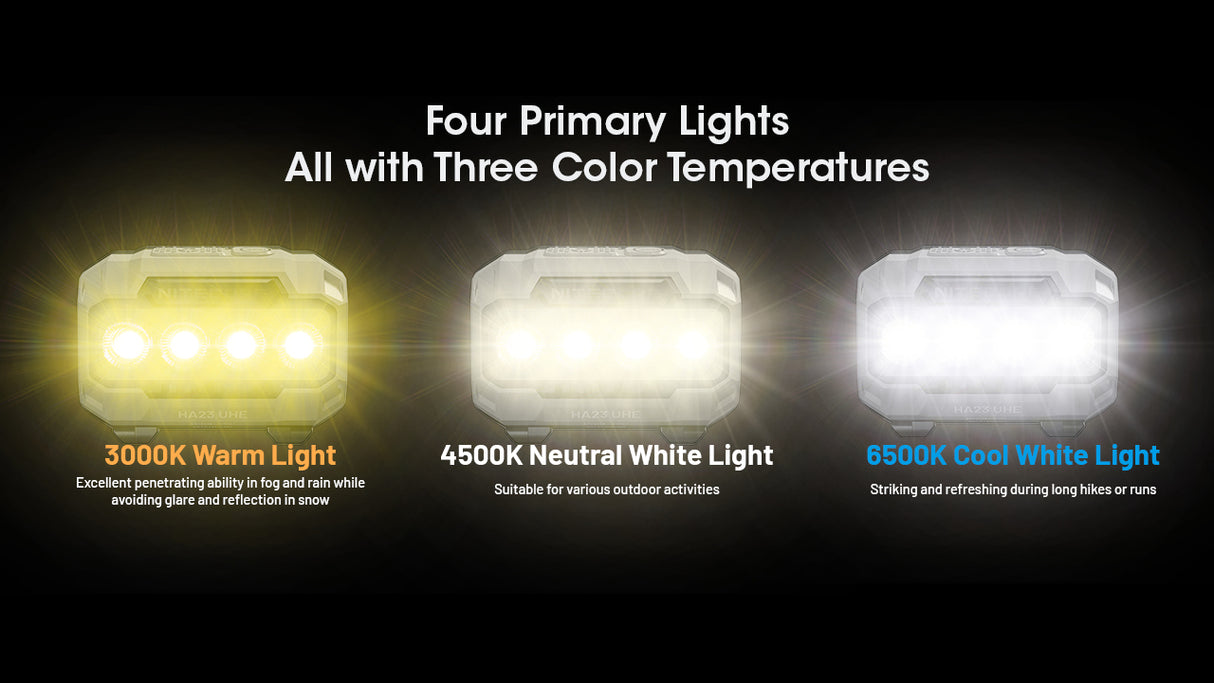

Colour Temperature: Warm (3000 K) / Neutral (4500K) / Cool (6500 K)
Beam Range: Up to 132 m
Beam Angle: 100˚
Batteries Required: 3 x AAA alkaline / NiMH or HLB1500 Li-ion battery pack (not incl.)
Overall Length: 60.2 mm x 46.7 mm x 34.2 mm
Weight: 56 g (headband) / 90 g (batteries & headband)
Body Colour: Black & grey
Body Material: Special PC plastic with low temperature resistance
Strap: Adjustable
Switch Type: Dual push button
Impact Resistance: 1 m
Environmental: Water and dust resistant to IP68 standard
Warranty: 5 years

Packaging and Contents

Supplied in retail packaging and includes:
Nitecore HA23 UHE LED head torch x 1
AAA alkaline battery x 3
Headband x 1
Clip x 1
Diffusing stuff sack x 1
Manual x 1
