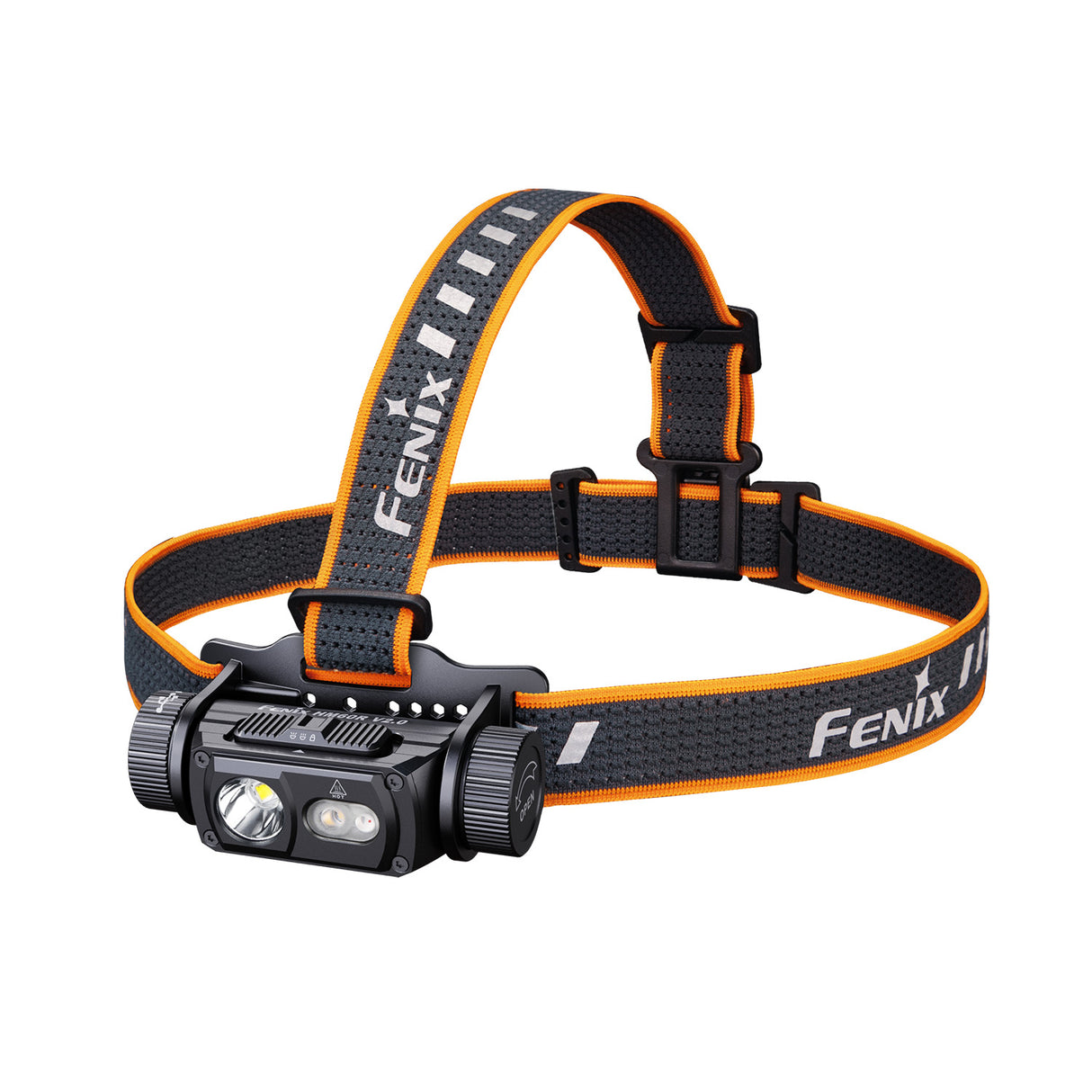

Fenix HM60R V2.0 Rechargeable LED Head Torch

The Fenix HM60R V2.0 is a high-performance rechargeable head torch delivering up to 1600 lumens with a beam distance of up to 170 metres. Compact and robust, it’s designed for demanding outdoor use while remaining comfortable enough for extended wear.

The main spotlight uses a Luminus SST40 Gen 2 white LED, producing a balanced beam with strong centre throw and useful near-field spill. Alongside this is a dedicated neutral white floodlight that provides smooth, wide illumination for close-up tasks and a red LED for preserving night vision or emergency signalling.

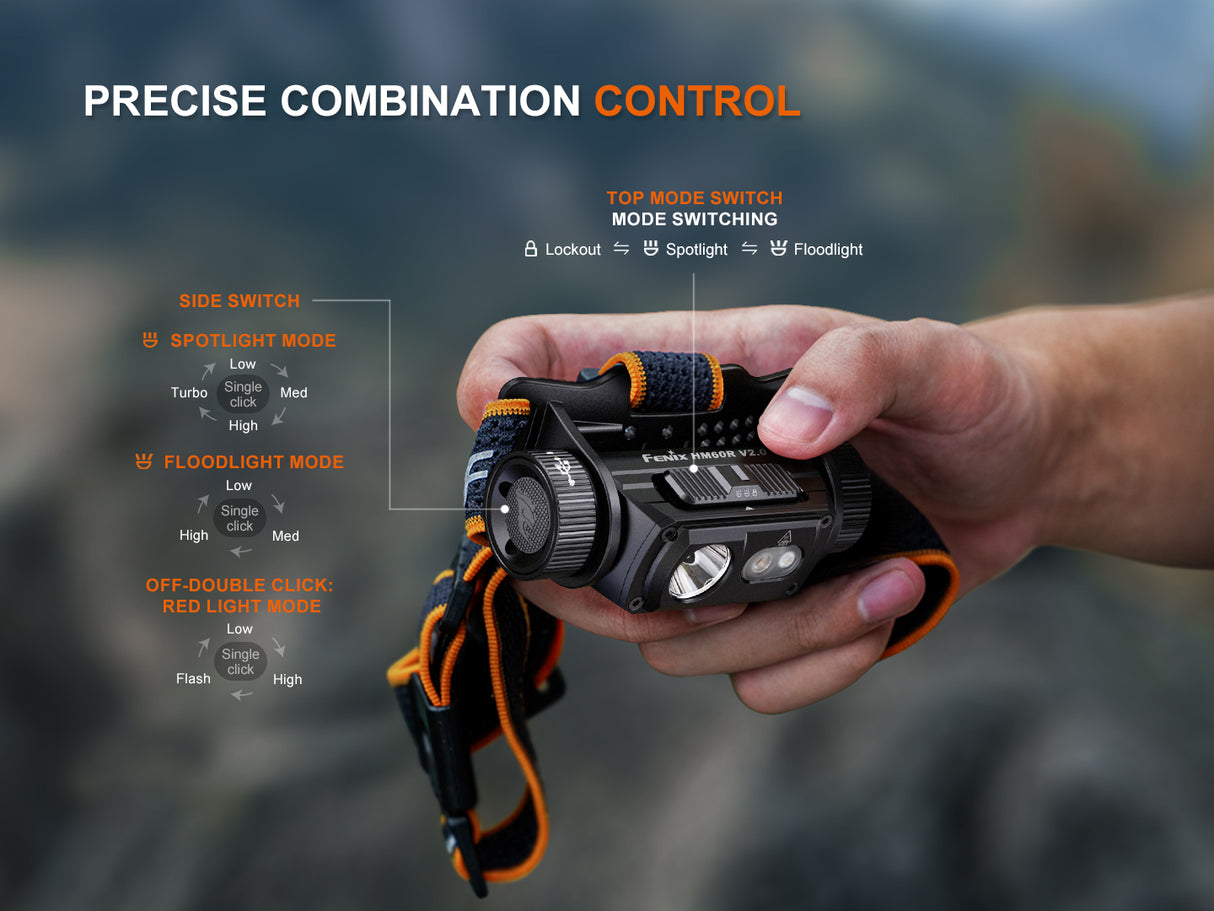

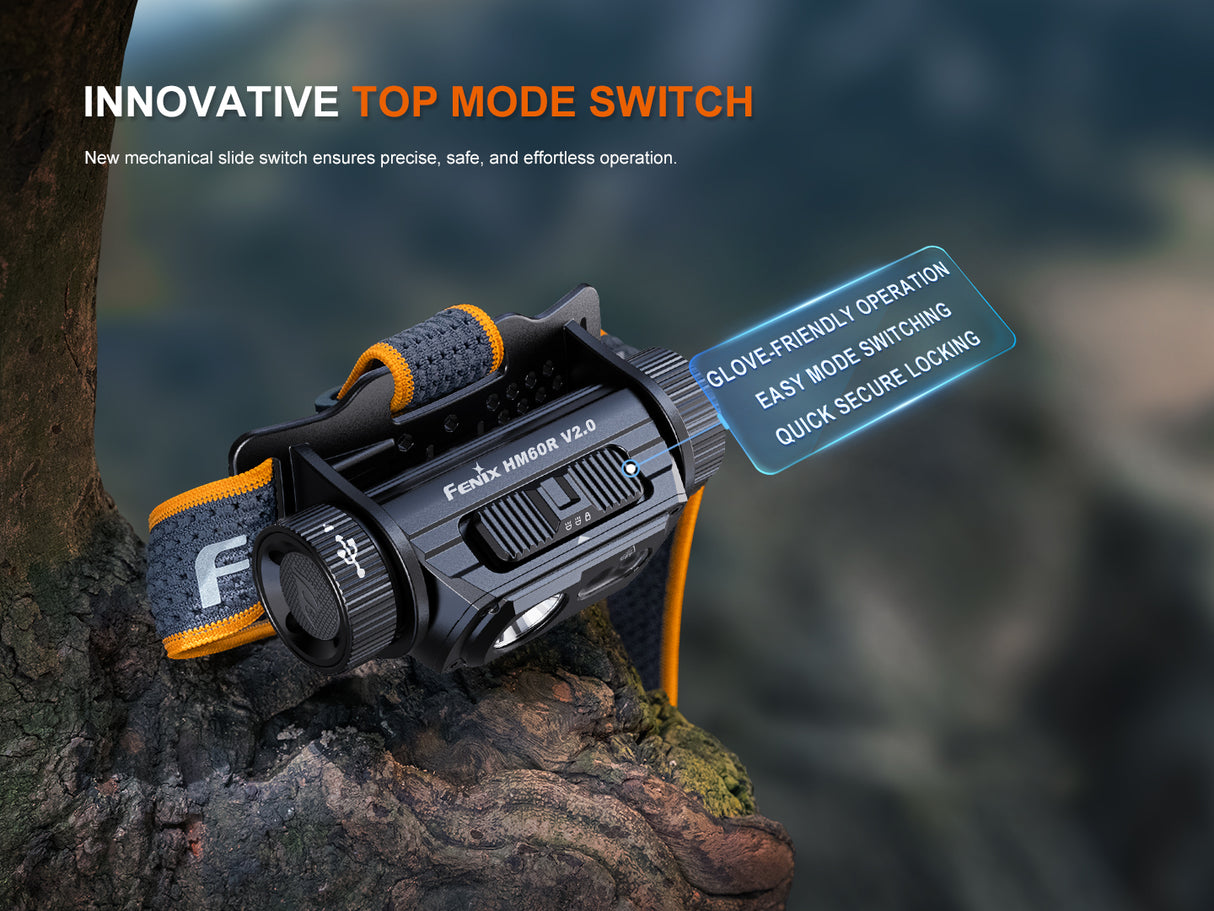

A top-mounted slide switch allows you to quickly select between lockout, spotlight or floodlight modes, while a side button is used to cycle through the available brightness levels. From off, the side button also provides direct access to the red LED, making it easy to switch to low-impact lighting without cycling through white outputs. Mode memory remembers the last used brightness (excluding red) for convenience.

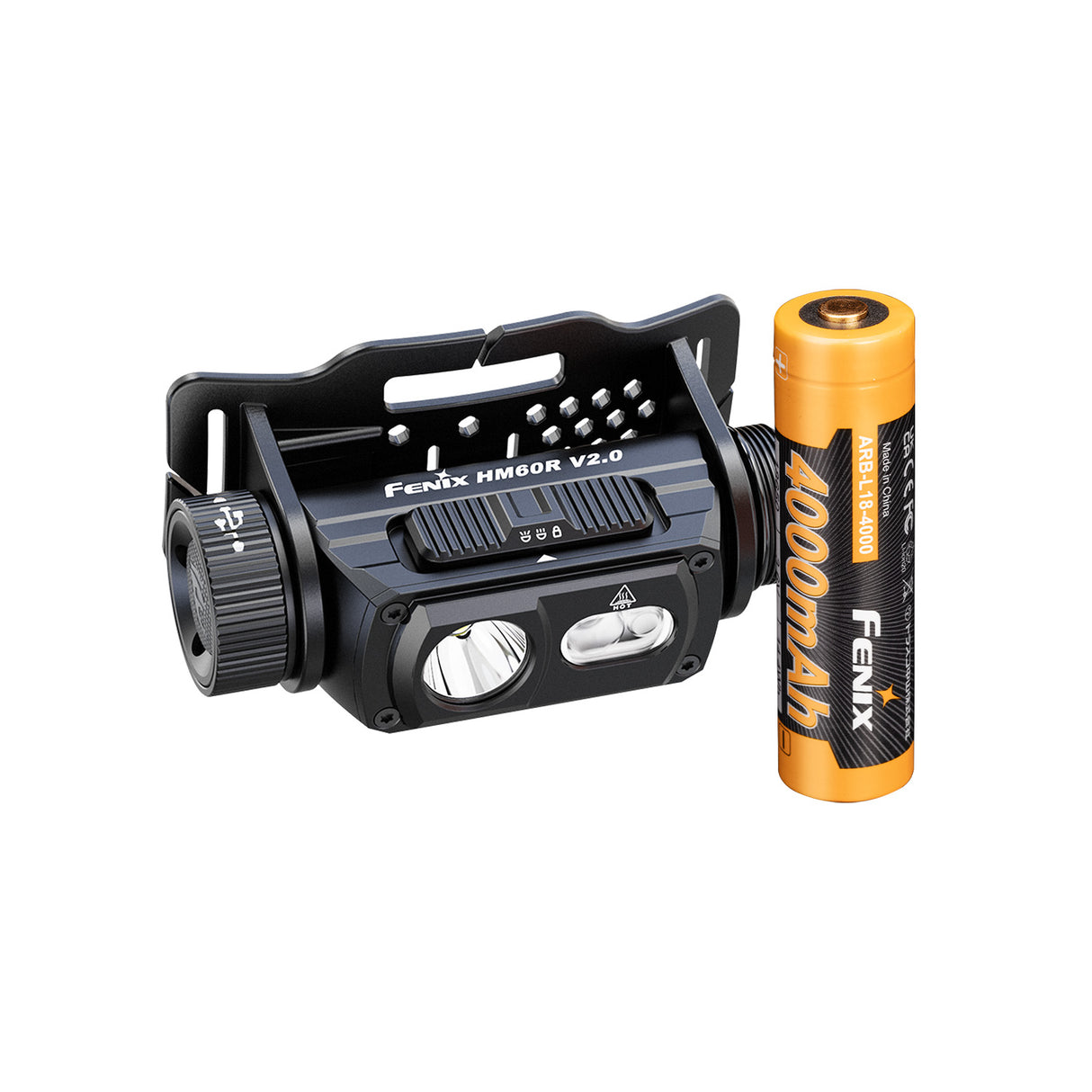

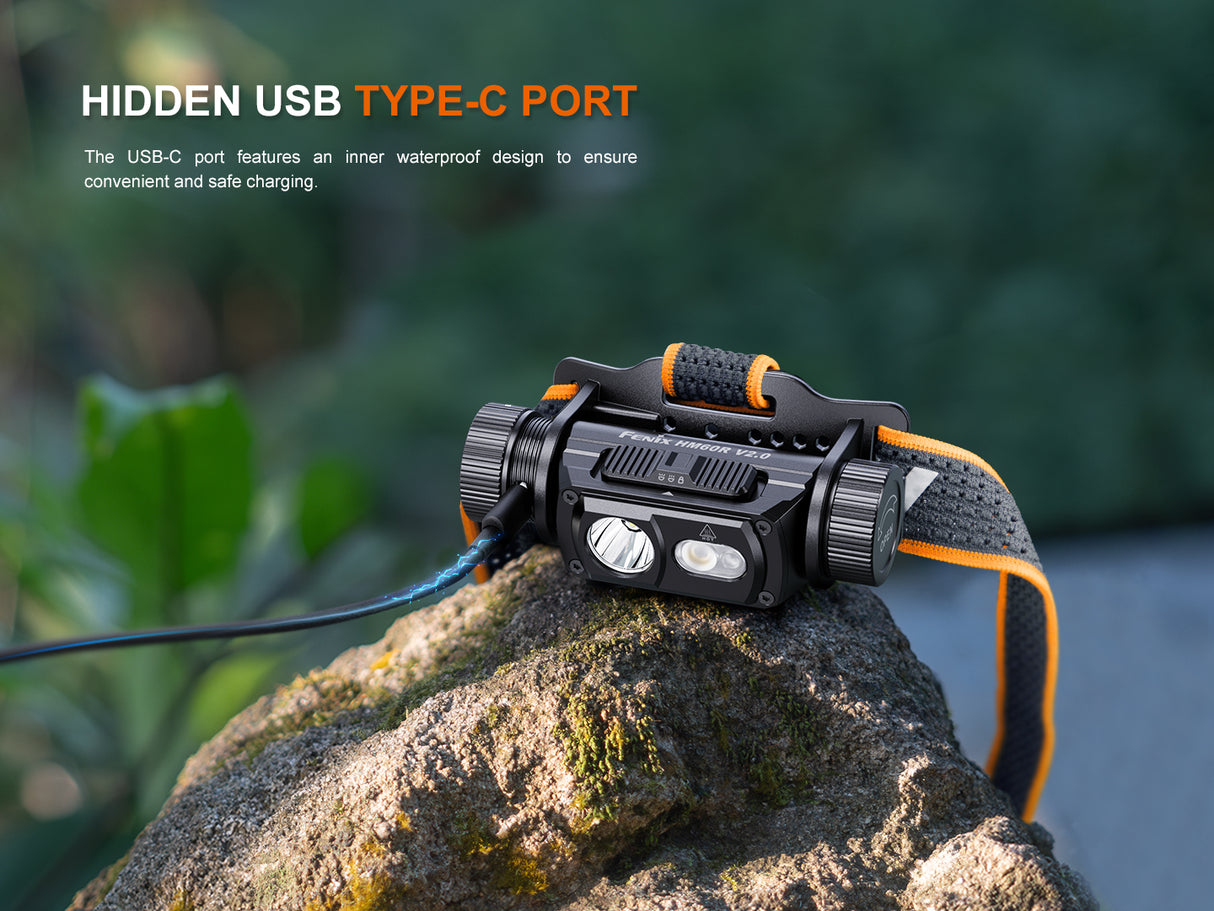

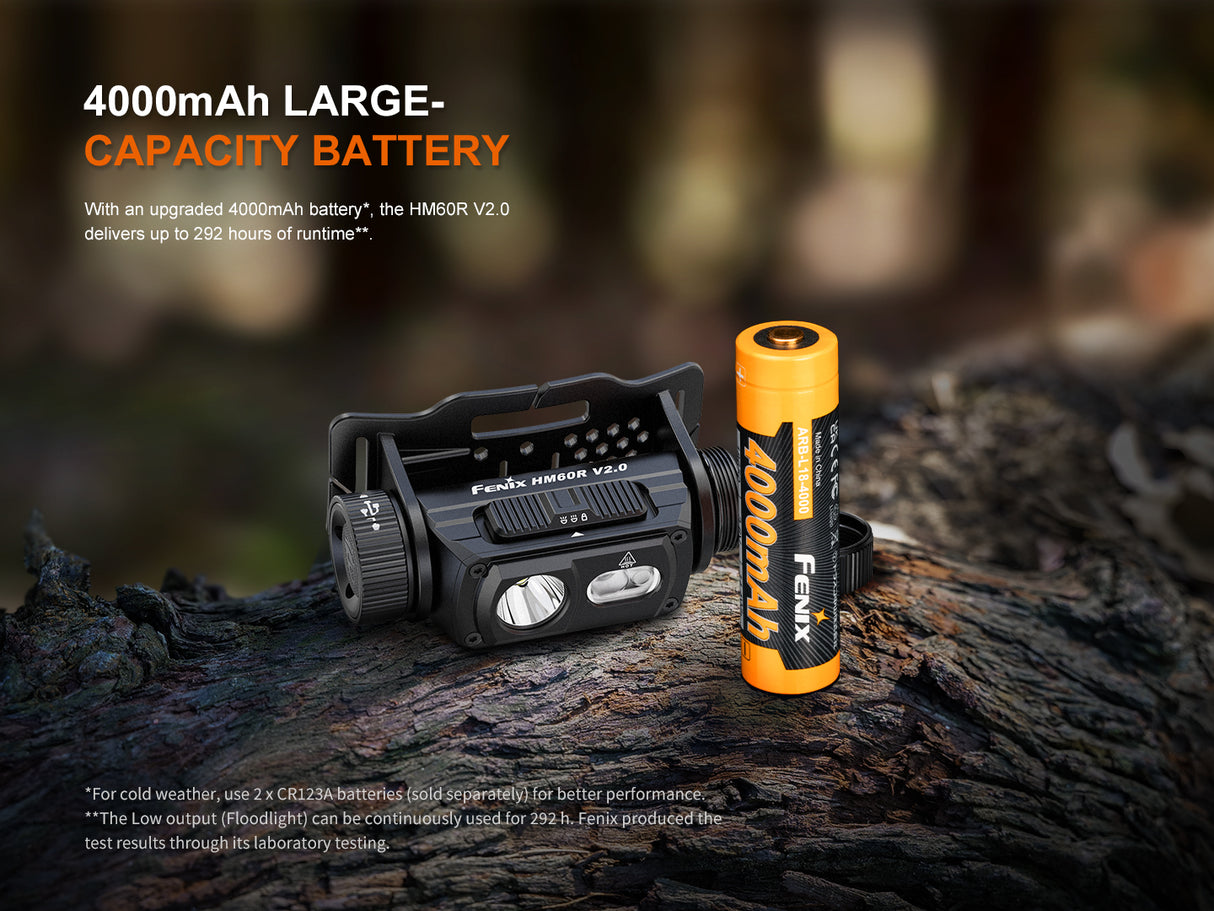

Power comes from the included 18650 rechargeable lithium-ion battery, which charges inside the headlamp via the concealed USB-C charging port. A built-in battery and charging indicator clearly displays remaining power and charging status. For added flexibility, the HM60R V2.0 can also run on two CR123A lithium batteries if required.

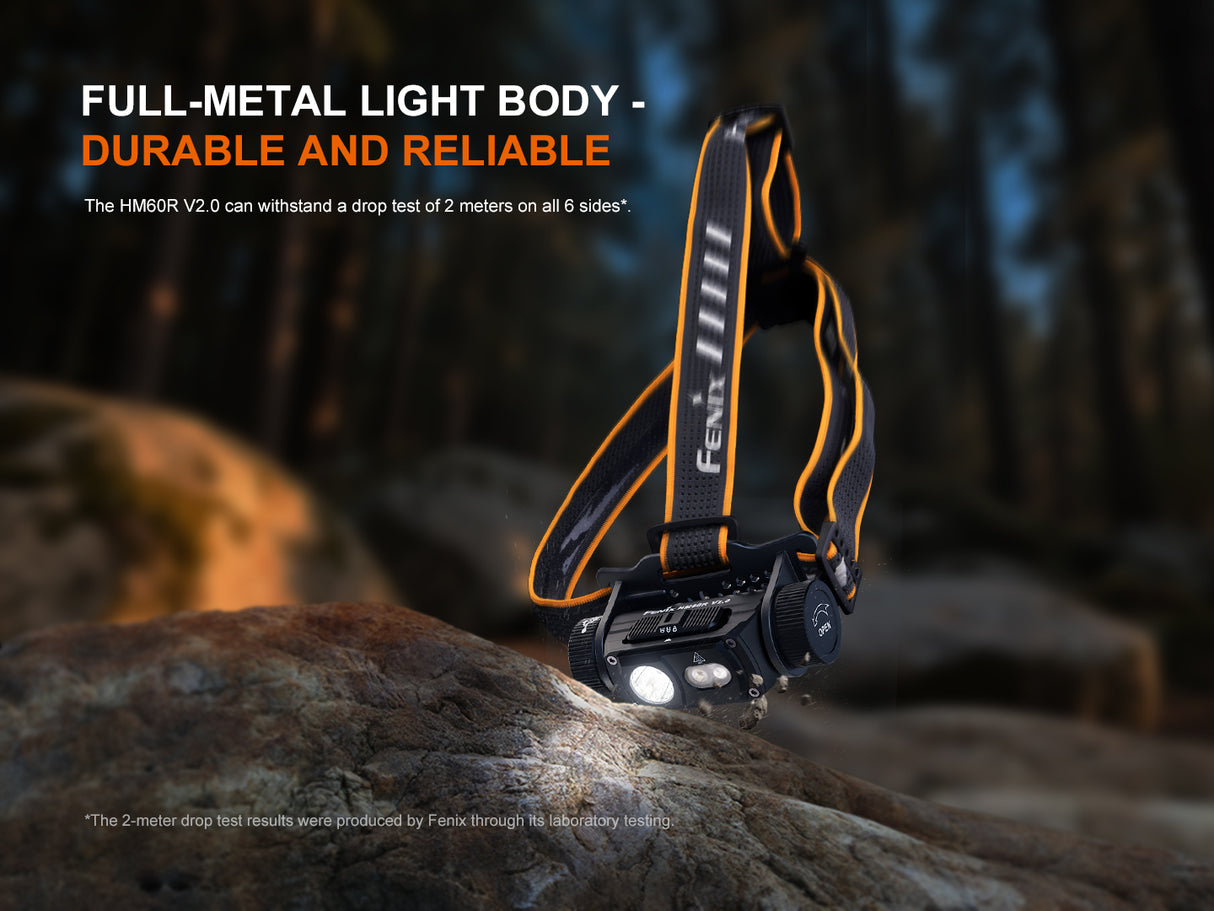

Built with a lightweight aluminium body for excellent heat dissipation, the HM60R V2.0 is drop tested to 2 metres and fully waterproof to IP68 standards. The adjustable headband is breathable and comfortable with reflective detailing for visibility, while the lamp housing tilts to aim the beam exactly where you need it.

Reliable, powerful and refined, the Fenix HM60R V2.0 is a versatile head torch suited to everything from trail use and camping to work and general outdoor activities.

Product Features

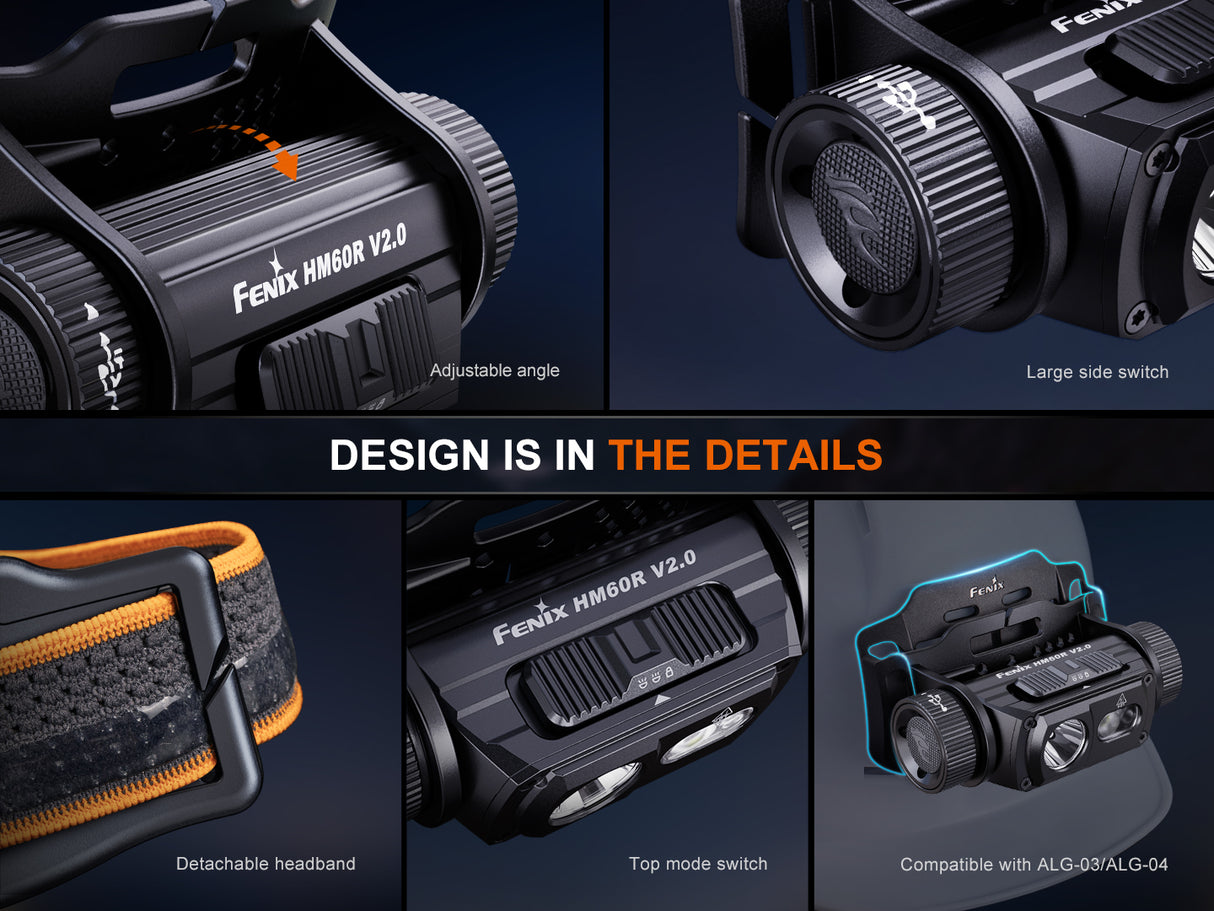

Tilt mechanism to angle light where needed
Lock out to help prevent accidental activation during transport
Slide switch and side button system
Glove friendly switches, perfect for cold weather
LED battery level / charging indicator
Detachable headband
Reflective strips on headband for added visibility

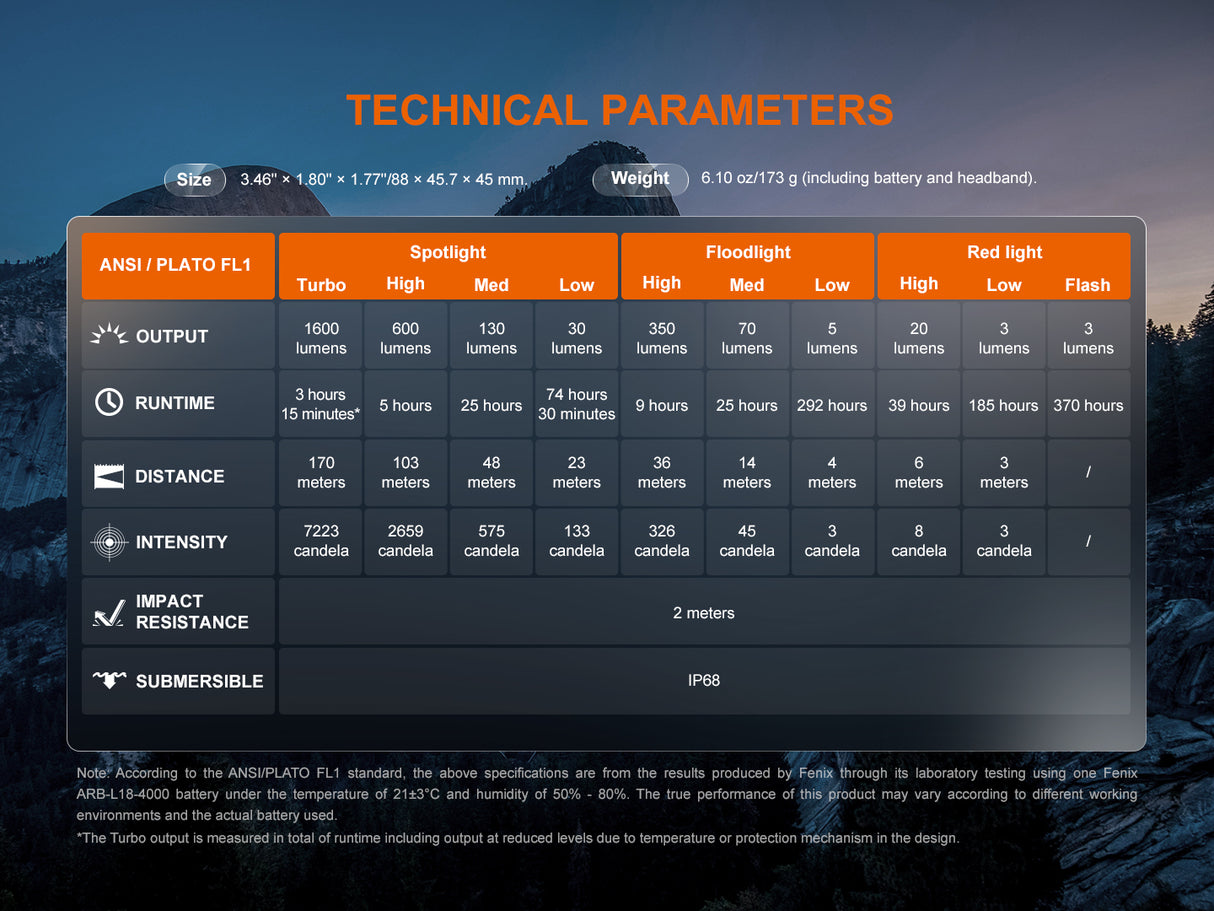

Operational modes

Spotlight
Turbo: 1600 lumens; 3 hours, 15 minutes run-time*; 170 m beam range
High: 600 lumens; 5 hours run-time; 103 m beam range
Mid: 130 lumens; 25 hours run-time; 48 m beam range
Low: 30 lumens; 74 hours, 30 minutes run-time; 23 m beam range

Floodlight
High: 350 lumens; 9 hours run-time; 36 m beam range
Mid: 70 lumens; 25 hours run-time; 14 m beam range
Low: 5 lumens; 292 hours run-time; 4 m beam range

Red Light
High: 20 lumens; 39 hours run-time; 6 m beam range
Low: 3 lumens; 185 hours run-time; 3 m beam range
Flash: 3 lumens; 370 m beam range

Note: *The turbo mode is measured at total run-time including any reduced output levels due to the temperature regulation design.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using 1 x Fenix 4000 mAh 18650 lithium-ion rechargeable battery under the temperature of 21±3°C and humidity of 50% to 80%. Results may vary between torch, battery and environments.

Technical Details

Type: Rechargeable LED head torch
Operating Modes: Spotlight / Floodlight / Red light (including flashing)
Luminous Flux: Up to 1600 lumens
LED Type: 1 x Luminus SST40 Gen 2 / 1 x Luminus SST20 Gen 2 High CRI / 1 x Osram 2835 red
Beam Range: Up to 170 m
Batteries Required: 18650 lithium-ion (included) or CR123A lithium metal x 2 (not incl.)
Dimensions: 88 mm x 45.7 mm x 45 mm
Weight: 173 grams (including battery)
Body Colour: Black
Body Material: A6061-T6 aircraft grade aluminium & PC
Switch Type: Top mode slider and large side button
Impact Resistance: 2 m

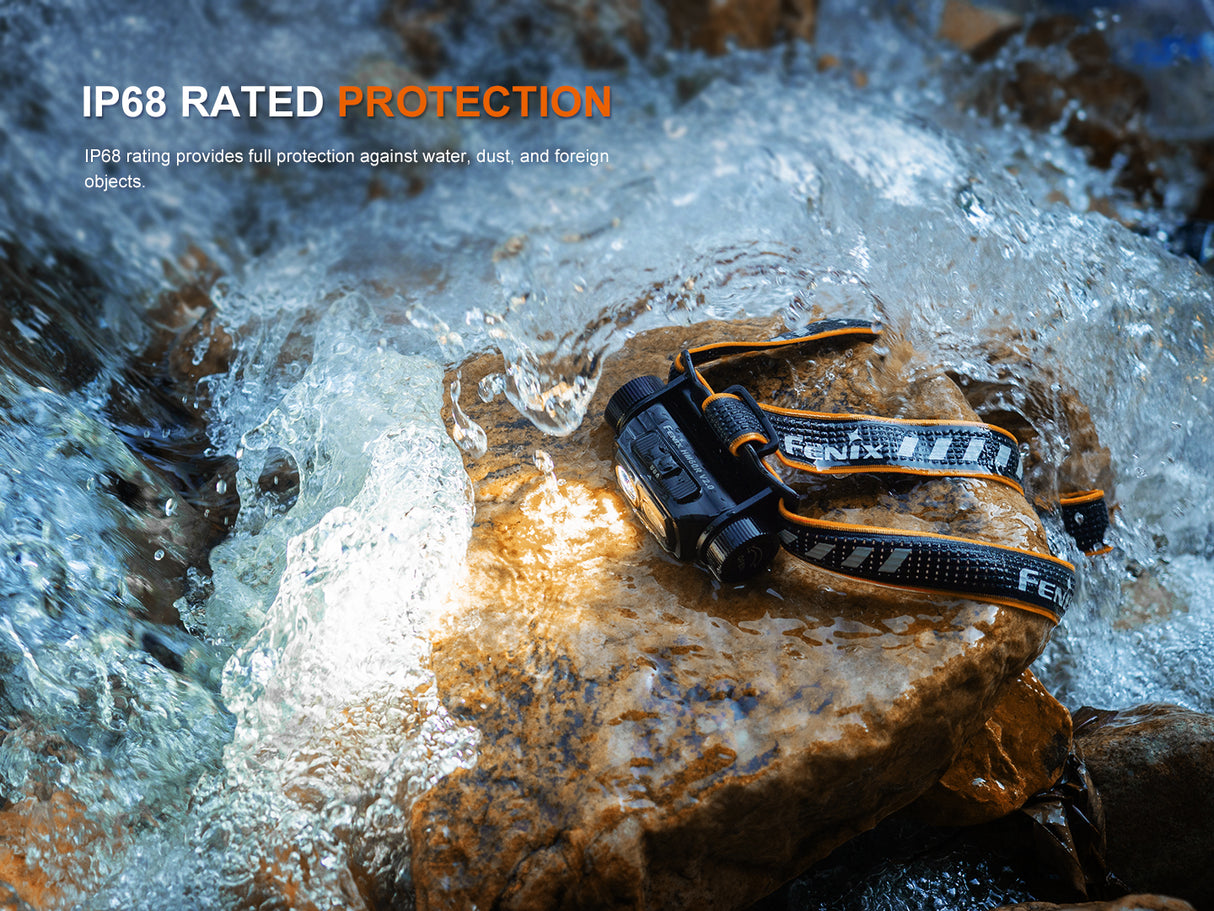

Environmental: Dust and waterproof to IP68 Standard (2 m)
Warranty: Head torch is 5 years / Battery is 1 year

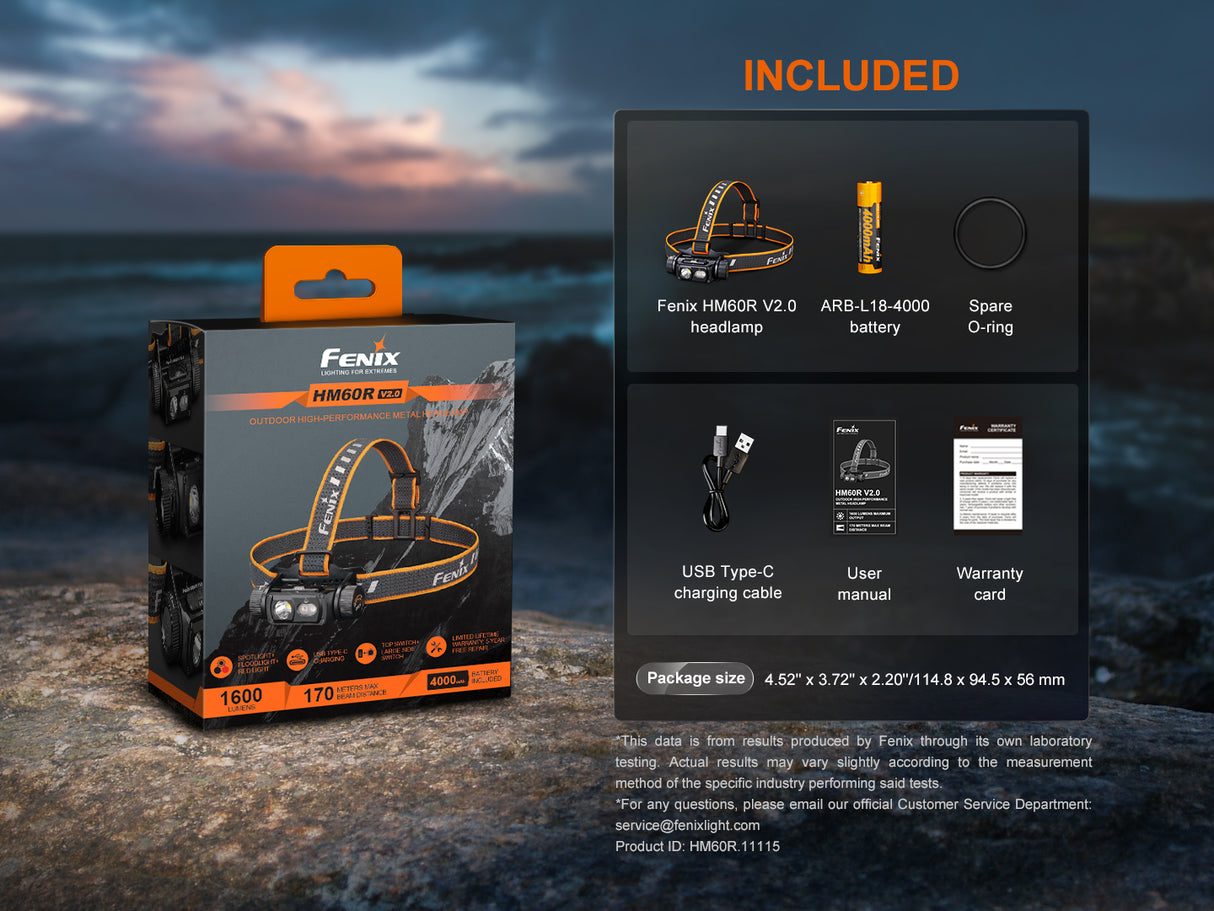

Packaging and Contents

Supplied in retail packaging and includes:
Fenix HM60R V2.0 x 1
Fenix ARB-L18-4000 battery x 1
Spare O-ring x 1
USB-A to USB-C Charging Cable x 1
User manual x 1
Warranty card x 1
