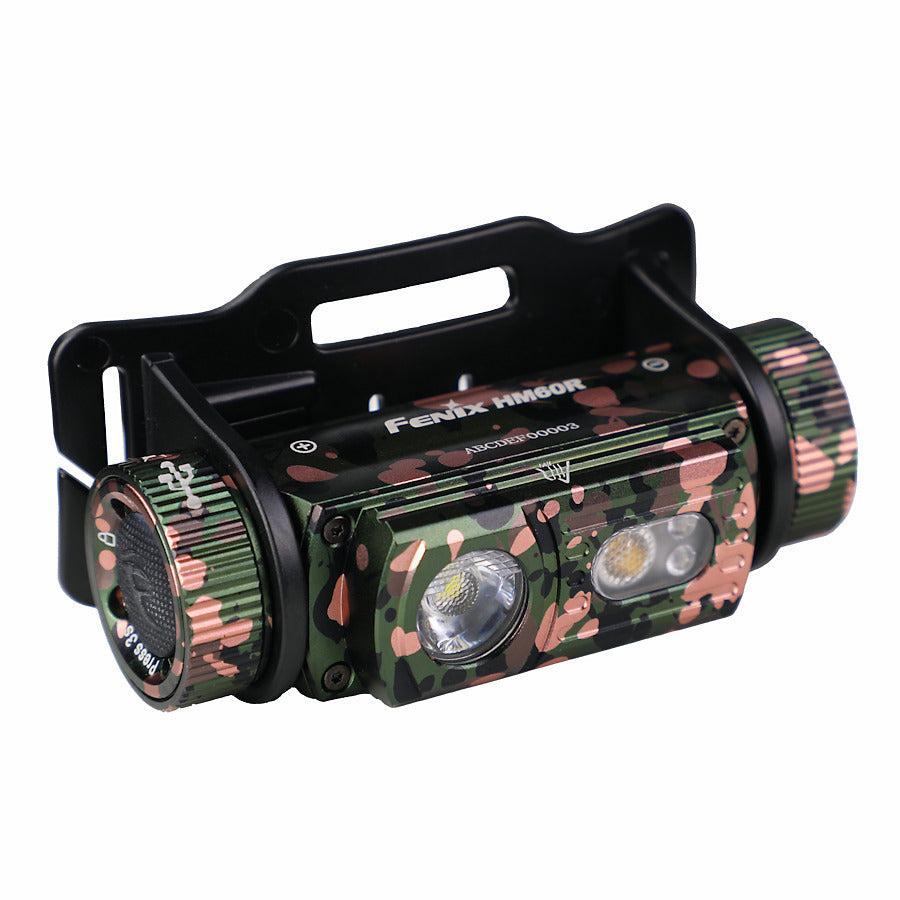

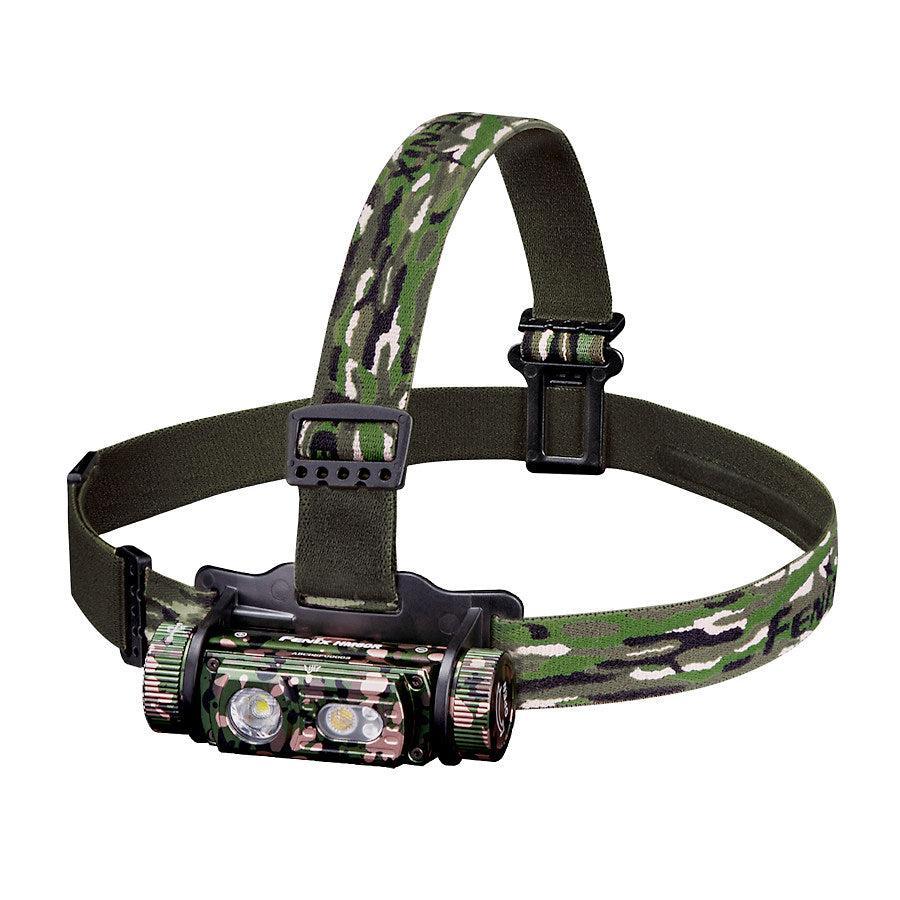

Fenix HM60R Camo Rechargeable LED Head Torch

The Fenix HM60R Camo is a lightweight rechargeable head torch designed with carp fishing, field sports, and outdoor use in mind. Delivering up to 1300 lumens, it incorporates a Dual Distance main beam, pure flood beam and red flood beam with SOS function into one compact and rugged unit.

A dual distance main beam uses a Luminus SST40 LED that combines a smooth reflector with a textured lens to provide a beam profile that consists of a spot light, near light and a wide area spill light, with a beam range of up to 120 metres. The flood beam provides smooth, wide coverage with no hotspots, while the red light preserves night vision and offers a discreet signal option with constant or SOS modes.

Powered by the included 3400 mAh 18650 rechargeable lithium-ion battery, the HM60R Camo charges directly via a USB-C port hidden under a screw cover, delivering a full charge in around 3 hours. A built-in battery indicator keeps you informed of remaining power.

Alternatively you can use 2 x CR123A lithium metal non-rechargeable batteries, however these cannot be charged inside the torch and therefore must not be connected to the charging cable with CR123A batteries inside.

Constructed with a durable aluminium body for improved heat dissipation, the HM60R Camo is IP68 waterproof, 2 m impact tested and tilt-adjustable through 180°. To prevent accidental activation the HM60R Camo has a lockout function.

Product Features

Dual distance main beam
Single large push button operation
White, neutral white & red outputs
LED battery & charging indicator
Can be rotated within a 180° angle
USB-C charging port
Lockout function to prevent accidental activation

Operational modes

Spotlight Mode:
Turbo: 1300 lumens; 2 hours run-time; 116 m beam range*
High: 350 lumens; 8 hours run-time; 60 m beam range
Mid: 130 lumens; 18 hours run-time; 36 m beam range
Low: 30 lumens; 54 hours run-time; 18 m beam range

Functional Mode:
High: 350 lumens; 8 hours run-time; 33 m beam range
Mid: 70 lumens; 24 hours run-time; 15 m beam range
Low: 5 lumens; 300 hours run-time; 6 m beam range
Red: 5 lumens; 100 hours run-time; 5 m beam range
Red SOS: 5 lumens; 200 hours run-time; 5 m beam range

Note: *The turbo mode is measured at total run-time including any reduced output levels due to the temperature regulation design.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using 1 x Fenix 3400 mAh 18650 lithium-ion rechargeable battery under the temperature of 21±3°C and humidity of 50% - 80%. Results may vary between torch, battery and environments.

Technical Details

Type: Rechargeable LED head torch
Operating Modes: Spot Mode: low, mid, high, turbo / Flood Mode: low, mid, high, red, red SOS
Luminous Flux: Up to 1300 lumens
Lamp Type: Luminus SST40 x 1, Cree XP-G2 Neutral White x 1 and Everlight 2835 red light LED x 2
Beam Range: Up to 120 m
Batteries Required: 18650 lithium-ion (included) or CR123A lithium metal x 2 (not included)
Dimensions: 85 mm x 45 mm x 45 mm
Weight: 157 grams (including battery)
Body Colour: Camo
Body Material: A6061-T6 aircraft grade aluminium
Switch Type: Single push button
Impact Resistance: 2 m
Environmental: Dust and waterproof to IP68 Standard (2 m)
Warranty: 5 years (head torch) / 1 year (battery)

Packaging and Contents

Supplied in retail packaging and includes:
Fenix HM60R Camo LED head torch unit x 1
Fenix ARB-L18-3400 lithium-ion battery x 1
USB-C to USB-A charging cable x 1
Spare O-ring x 1
Manual x 1
