Home Torches Handheld Torches Ledlenser EXC6R ATEX Zone 0/21 Rechargeable LED Angle Torch
Ledlenser  |  SKU: 502406

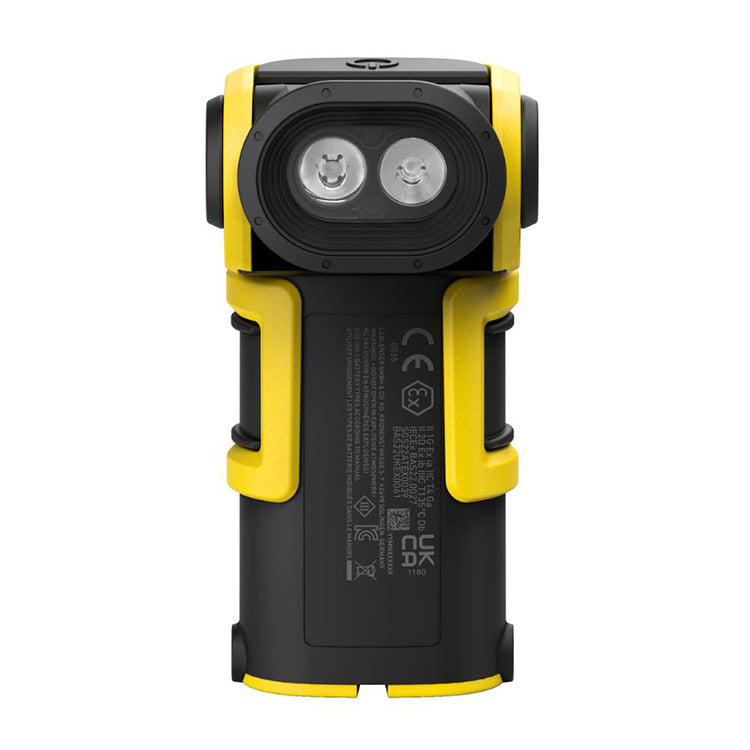

Ledlenser EXC6R ATEX Zone 0/21 Rechargeable LED Angle Torch

£328.92

The LED Lenser EXC6R intrinsically safe torch is ATEX Zone 0/21 compliant, designed specifically for firefighters.

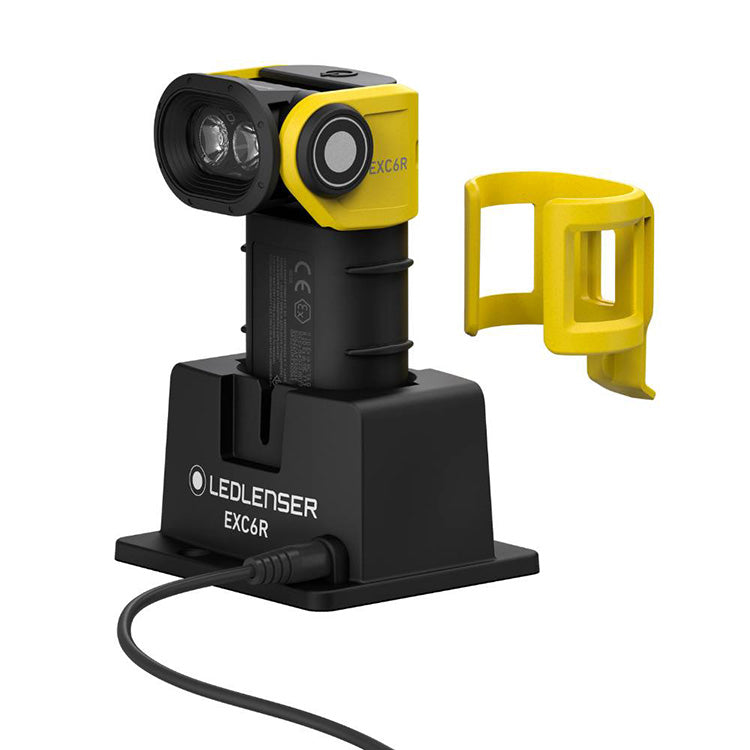

The EXC6R is powered by a built-in lithium-ion battery which is easily recharged via the included charging cradle. Simply connect the torch to the cradle and then the cradle to mains power using the included adaptor cable and power adaptor. The charging light on the torch will flash red to show charging is in progress and will turn green once charging is complete.

Never install the charging cradle inside an explosive atmosphere and never attempt to charge the battery while inside an explosive atmosphere. The battery should only be replaced by qualified persons, contact Ledlenser for battery replacement. To remove the battery, open the screws on the side of the enclosure and remove the cover.

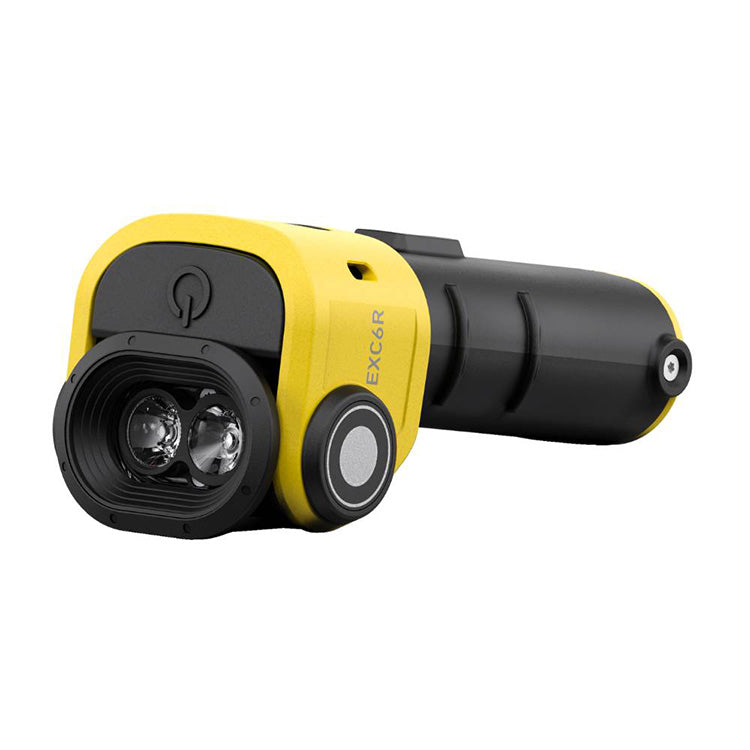

The button on the top of the EXC6R controls the torch, press and hold for 2 seconds to turn the torch on or off. Each press cycles through the spot, flood and combined outputs.

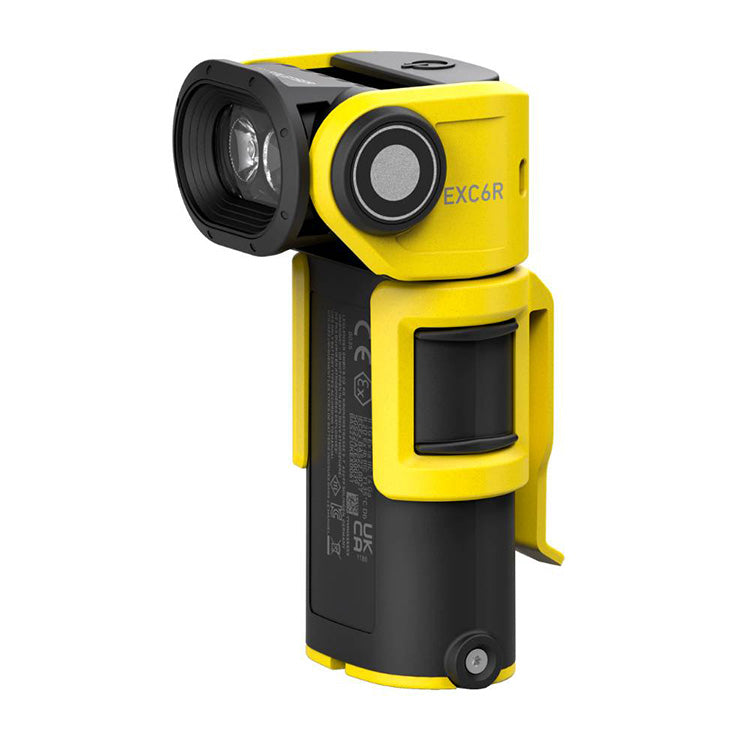

The hinged bracket allows for the EXC6R to be swivelled both upwards and downwards for a direct aim of light. The durable polycarbonate body features a removable pocket clip so that it can be easily carried on a shirt pocket or on a trouser pocket.

Due to the use this product is intended for it is advised that it is cleaned down regularly with a dry lint free cloth to prevent dust build-up on the outer casing.

Note: Please carefully read all warnings in the product manual before use.

Certifications

Zone 0/21

II 1G Ex ia IIC T4 Ga
II 2D Ex ib IIIC T135°C Db

Certification number:
SGS22ATEX0039

Certificate of conformity:
IECEx BAS 22.0027

Operational Modes

Spot: 180 lumens; 4 hours run-time; 150 m beam range
Flood: 120 lumens; 10 hours run-time; 30 m beam range
Combined: 300 lumens; 3 hours run-time; 180 m beam range


Technical Details

Type: ATEX hand torch
Operating Modes: Spot / Flood / Combined
Luminous Flux: Up to 300 lumens
Lamp: 1 x Spot Power LED / 1 x Flood High Power LED
Beam Range: Up to 180 m
Batteries Required: Built-in Lithium-ion battery
Run Time: Up to 10 hours
Dimensions: 161 x 67 mm
Weight: 205 grams
Body Colour: Yellow and black
Body Material: Polycarbonate housing
Switch Type: Push button
Environmental: IPX8


Packaging and Contents

Supplied in retail packaging and includes:
LED Lenser EXC6R Zone 0/21 torch x 1
Charging cradle x 1
Adaptor cable x 1
Power adaptor x 1
Pocket clip x 1
Manual x 1
