Nitecore New i4 Intellicharger Four Bay Li-ion/NiMH Charger

This new Nitecore i4 intellicharger is an update of the older i4 and now offers twice the charging speed with a maximum output of 1500 mA while one battery is charging or a maximum output of 750 mA per bay when two batteries are charging.

Other new features include the active distribution technology, which will automatically direct all the power where it is needed, for example if two batteries are in the charger and one finishes charging before the other, the i4 will distribute all the power to the one bay with the uncharged battery.

The expanded compatibility means that the i4 can support 1.2 V, 3.7 V, 4.2 V and 4.35 V batteries, allowing you to charge a large selection of batteries from one charger. The charging voltage can be set independently for each charging bay by using the V button.

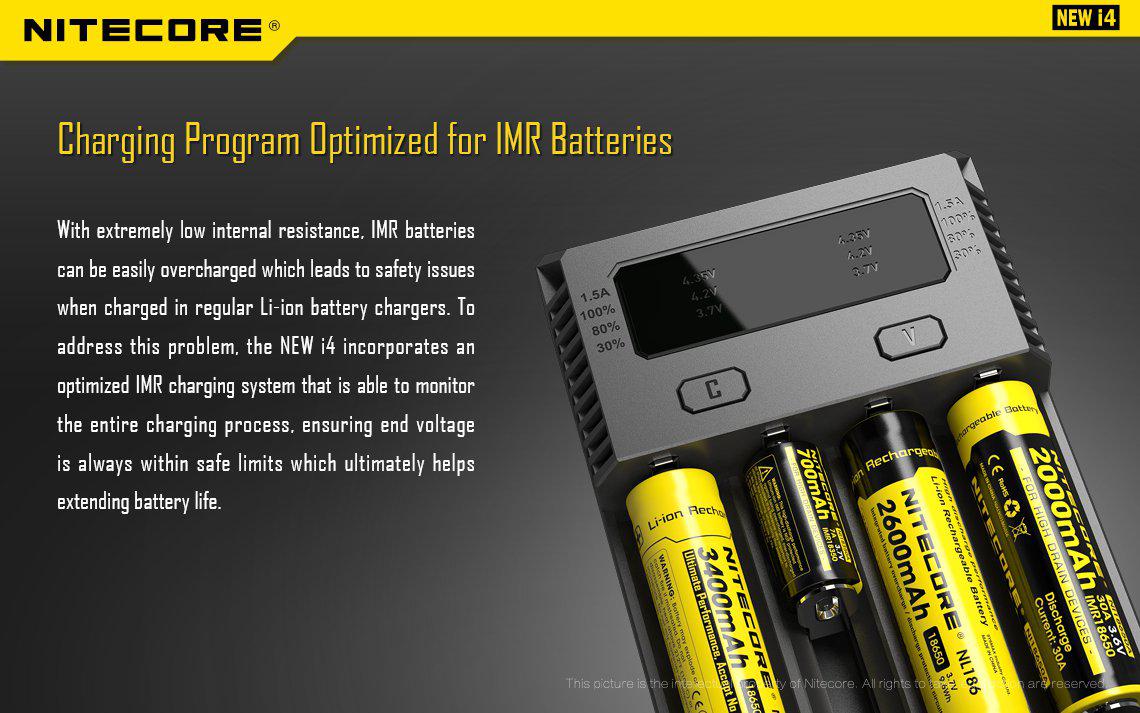

An optimised charging programme for IMR batteries monitors the entire charging process to ensure the end voltage is always within safe limits which helps extend battery life. The i4 also has IMR battery restoration feature, to revive depleted 0 V IMR batteries, that is activated by pressing and holding the C and V buttons on the charger.

The i4 will intelligently select the appropriate charging current based on the battery capacity and it can also identify non-rechargeable batteries, immediately notifying the user after installation by displaying four flashing LEDs. The charging current can also be manually adjusted.

While charging is in progress three green LEDs will steadily illuminate and once charging has complete the three LEDs will go solid green.

Compatible with and identifies the following rechargeable batteries

Lithium-ion Battery Default Power Allocation

Large capacity batteries (over 1200 mAh or 65 mm in length):
One battery: 1500 mA
Two batteries: 750 mA per slot
Three batteries: 750 mA x 1 slot, 375 mA x 2 slots
Four batteries: 375 mA per slot

Small capacity batteries (less than 1200 mAh and 65 mm in length):
One battery: 500 mA
Two batteries: 500 mA per slot
Three batteries: 500 mA x 1 slot, 375 mA x 2 slots
Four batteries: 375 mA per slot

Product Features

four independent charging bays
Detects battery capacity and selects appropriate charging current
Optimised charging design for IMR batteries
Fast charging with maximum output up to 1500 mA
Detects battery power status and displays charging progress
Automatically stops charging when complete
Over discharged battery activation
Overcharging timeout protection
Reverse polarity protection and short circuit prevention
Designed for optimal heat dissipation

Specifications

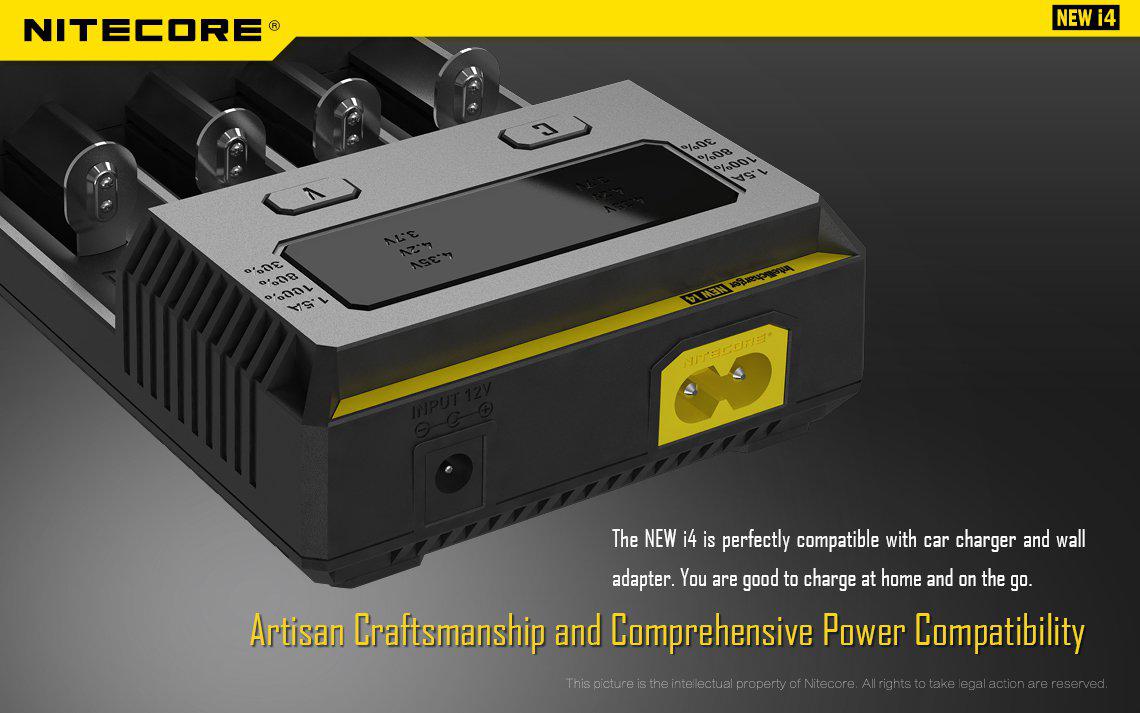

Input: 100-240 V ac, 50/60 Hz, 250 mA (max), 10W, 9-12 V dc 1000 mA
Output Voltage: 4.35V ± 1% / 4.2V ± 1% / 3.7V ± 1% / 1.48V ± 1%
Output Current: 1500 mA x 1 / 750 mA x 2 / 500 mA x 2 / 375 mA x 4
Dimensions: 140 x 94.8 x 37 mm
Material: Made from fire retardant, flame resistant PC material
Weight: 202 g
Warranty: 1 year

Packaging and Contents

Supplied in retail packaging and includes:
Nitecore Intellicharger new i4 x 1
UK mains plug x 1
Manual x 1

Safety Notes

1. Charge only Lithium-ion/IMR/LiFePO4 or NiMH rechargeable batteries.
2. Charging any other types of batteries may cause them to leak rupture or explode.
3. Do not disassemble or modify the charger or attempt to use as a power source.
4. Always unplug the charger from outlet before attempting maintenance or cleaning.
5. This charger should not be used by persons without adequate training or knowledge.
