Ledlenser AF Series Controller

The Ledlenser Controller is a remote controller designed for the AF work light series, offering Bluetooth compatibility for convenient control.

The controller works both remotely and through Bluetooth with the Ledlenser Connect App. Firstly connect the controller to your work light, remove the dust covers from the power input on the work light, the controller and the mains cable plus, if being used, the Ledlenser extension cable. Connect the corresponding five pin connectors on the remote to the work light and mains power cable. Or if using the Ledlenser extension cable connect to the extension cable and mains power cable. To disconnect, twist the covers on the connecters on the controller and gently remove the remote.

Once the remote is ready for use, enable the Bluetooth feature to allow remote control from the Ledlenser app. Open the app and press the Bluetooth symbol button on the left of the controller. The LED indicator on the left will blink while establishing a connection and turn solid once connected to the Ledlenser app.

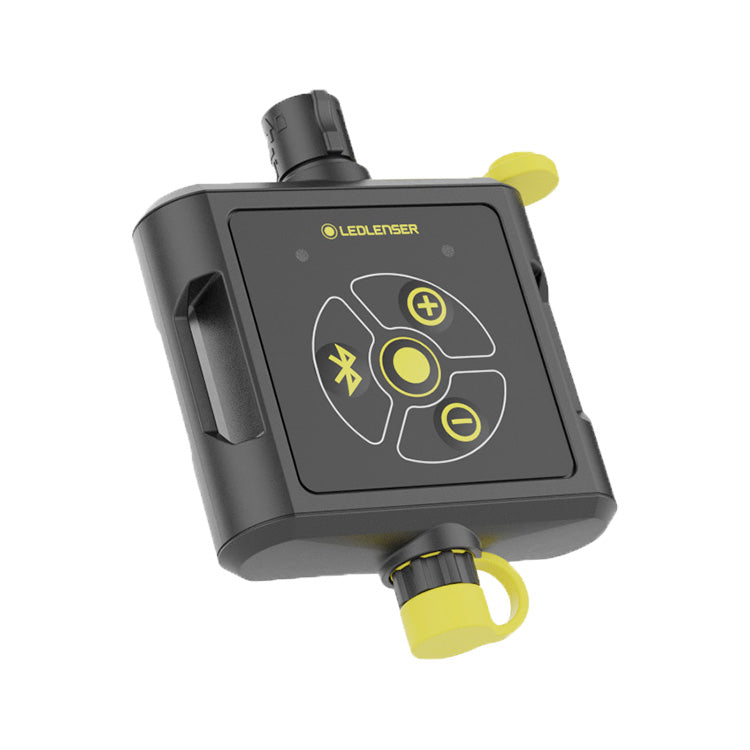

Alternatively you are able to use the controller itself. The controller features a ring of buttons to access the outputs. Push the central button to turn the work light on or off, or long press to turn from the neutral white light to the customisable colour temperature outputs. While in the colour temperature output, the next press of the central button will turn the light off. The LED indicator on the right of the controller will show red when in the neutral white outputs and yellow when in the customisable colour temperature outputs. The plus symbol button above the the central button increases the lumen output of either modes, while the minus symbol button below decreases the output of either modes.

Compatible with: AF4R Work / AF8R Work / AF12R Work / AF12C Work

Technical Details

Body Material: Aluminium and durable plastics
Measurements: 710 x 78 x 23 mm
Weight: 84 grams (excluding battery)
Switch Type: Push button

Packaging and Contents

Supplied in retail packaging and includes:
Ledlenser Controller x 1
Manual x 1
