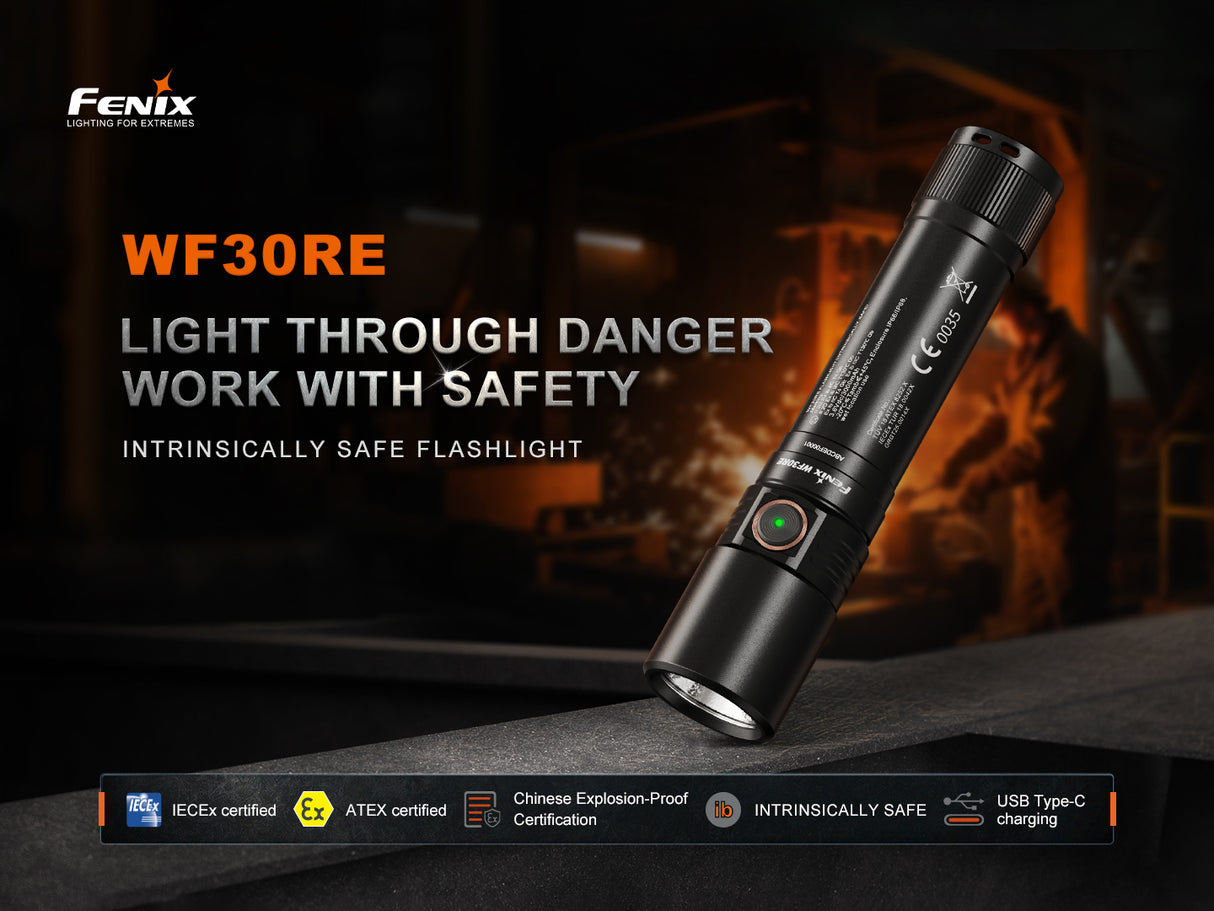

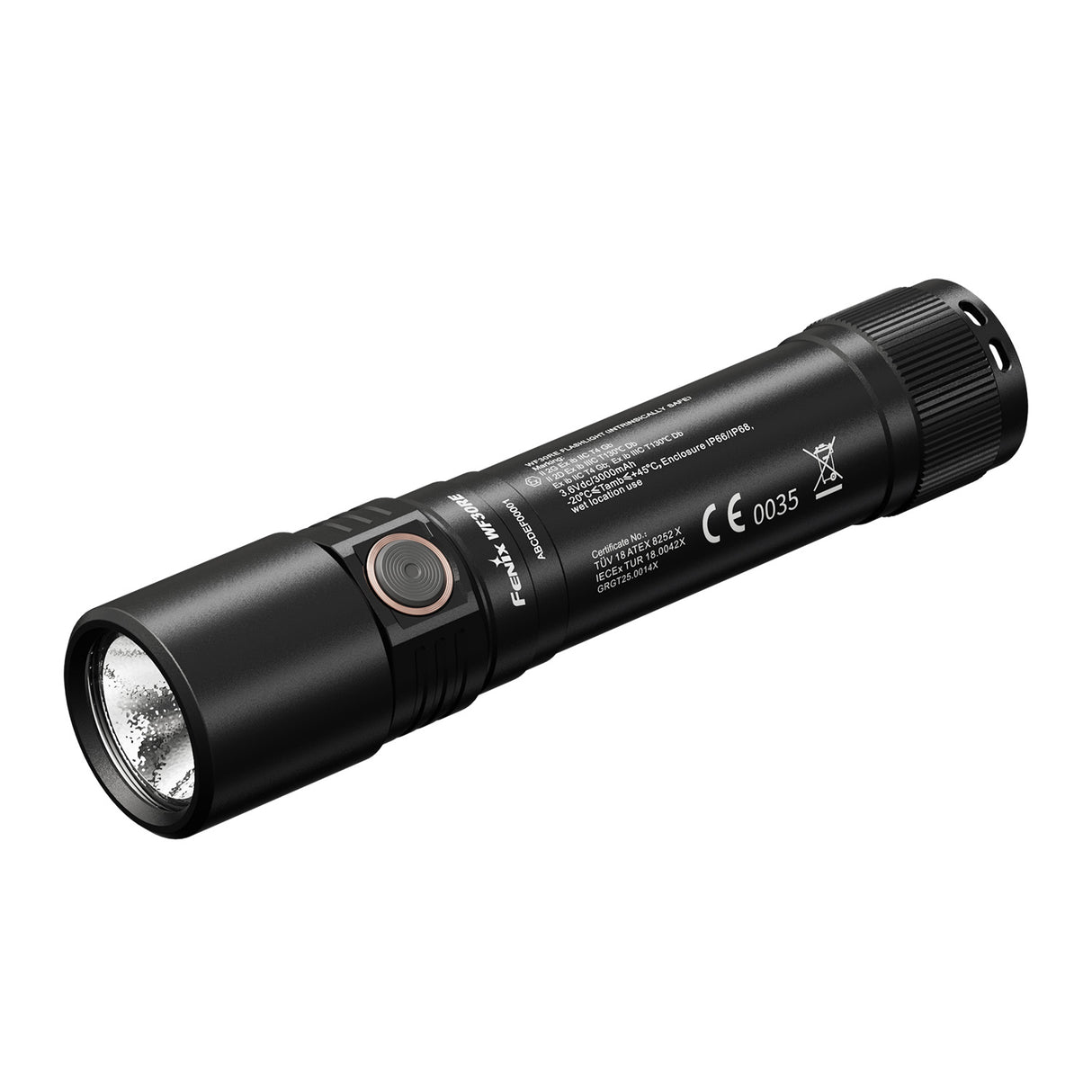

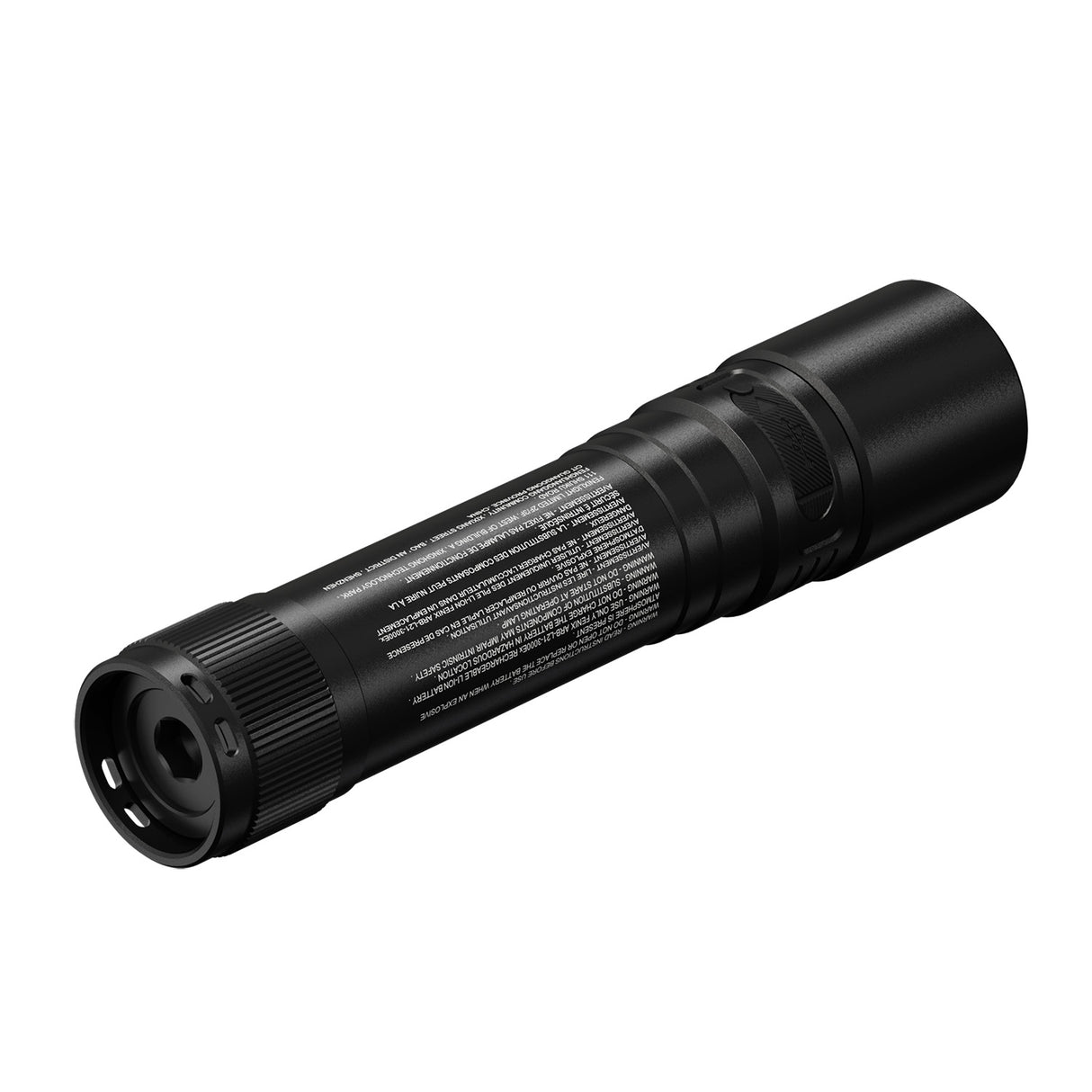

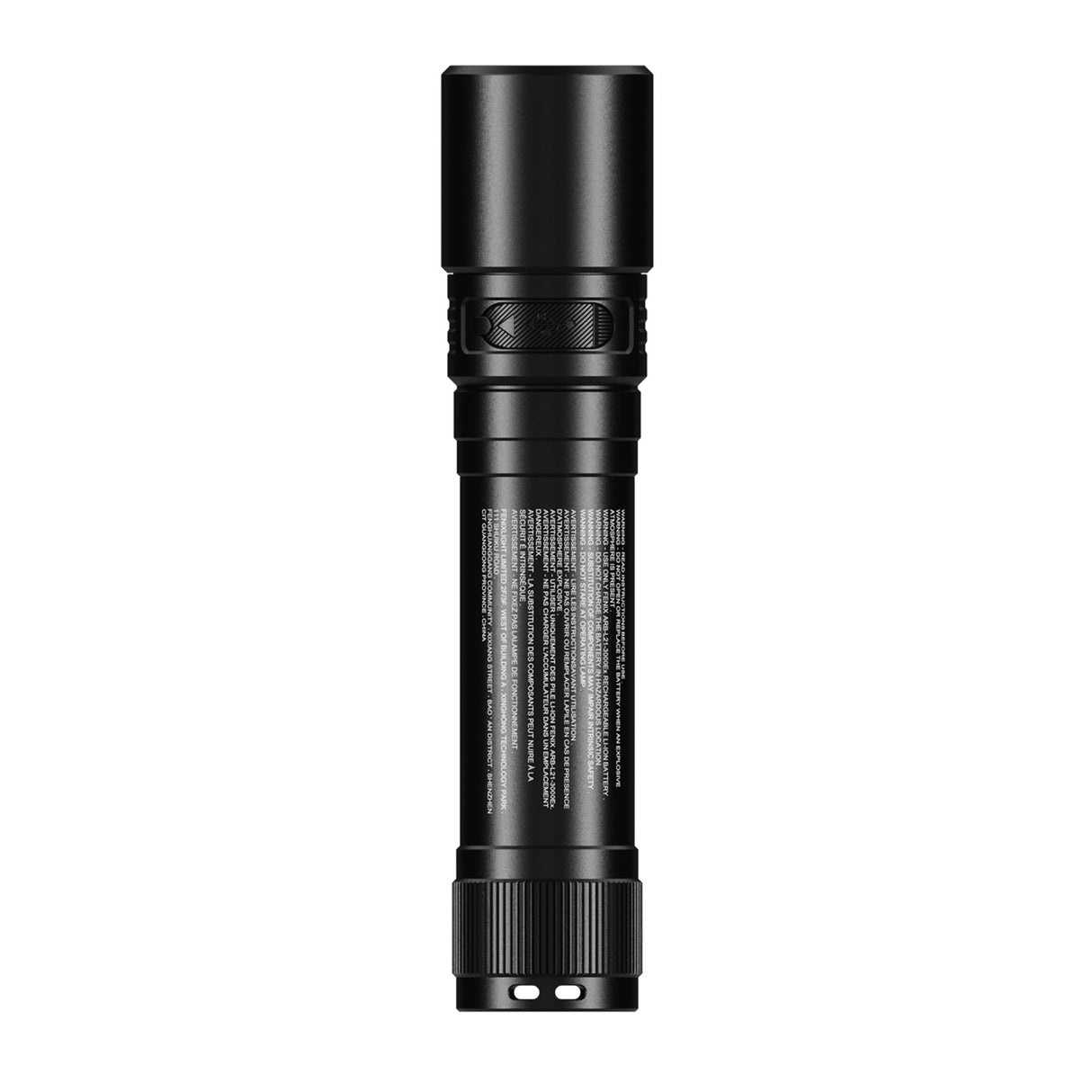

Fenix WF30RE 2025 ATEX Intrinsically Safe LED Torch

The Fenix WF30RE is an intrinsically safe rechargeable torch designed for use in hazardous locations (excluding underground mines).

It has been independently tested and certified to IECEx, ATEX and GRGT standards, allowing it to be safely used in Zone 1 and Zone 2 environments where class IIA, IIB and IIC explosive gas mixtures may be present. It is also suitable for combustible dust areas in Zone 21 and Zone 22, making it ideal for petroleum, chemical, textile, metallurgical, fire control, power station and paper production industries.

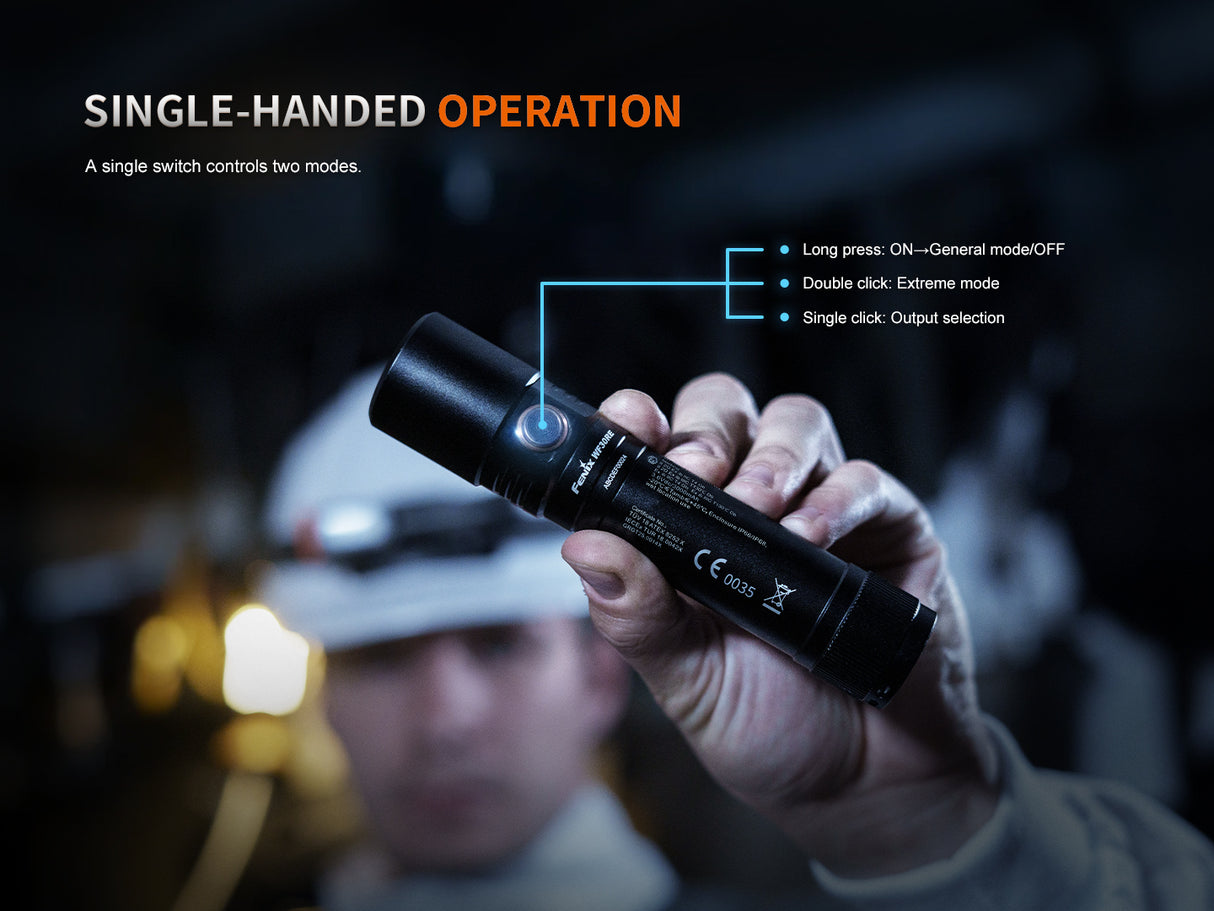

Equipped with a Cree XP-G3 LED, the WF30RE delivers a maximum output of 300 lumens and offers Low, Mid and High brightness levels, as well as Eco and SOS modes. The light is operated via the side switch and features mode memory for the regular outputs, excluding Extreme modes.

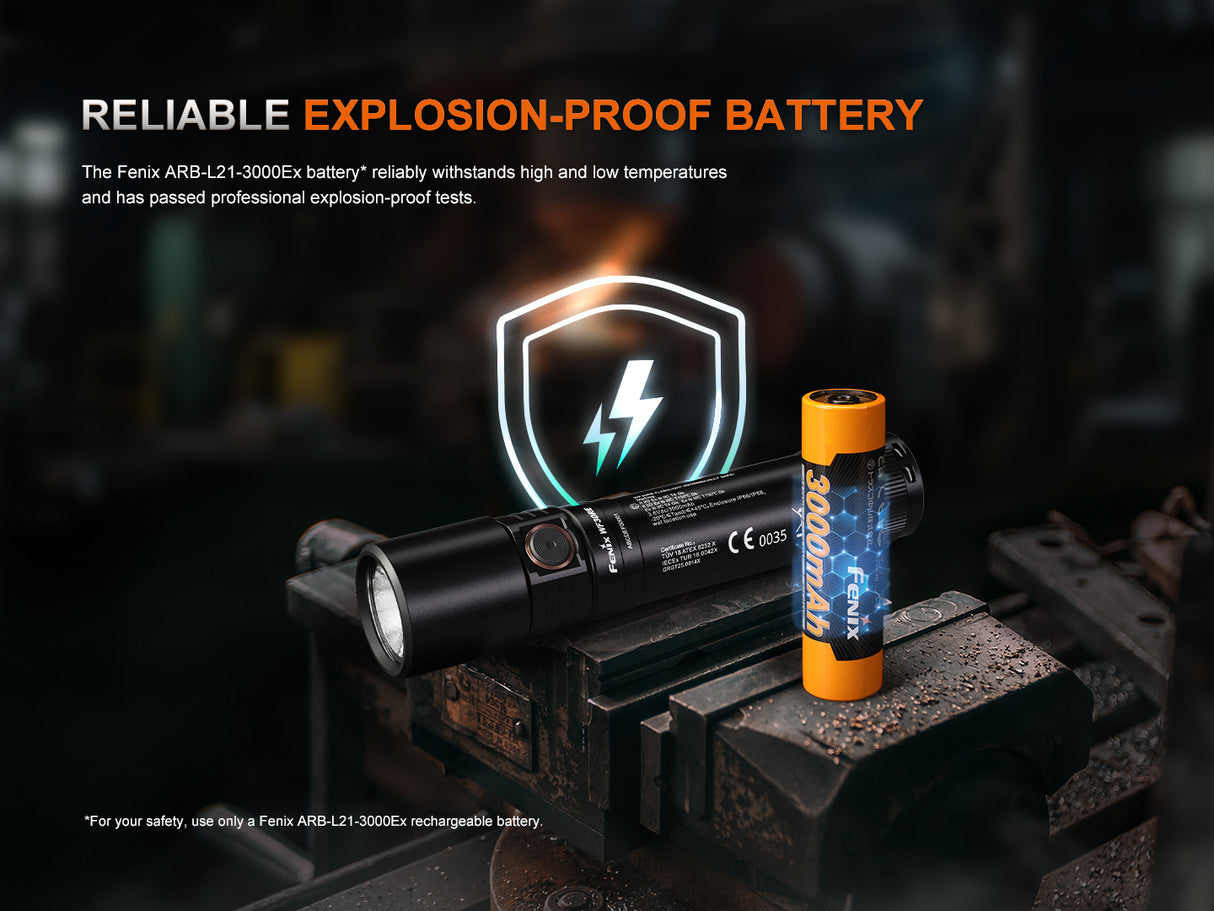

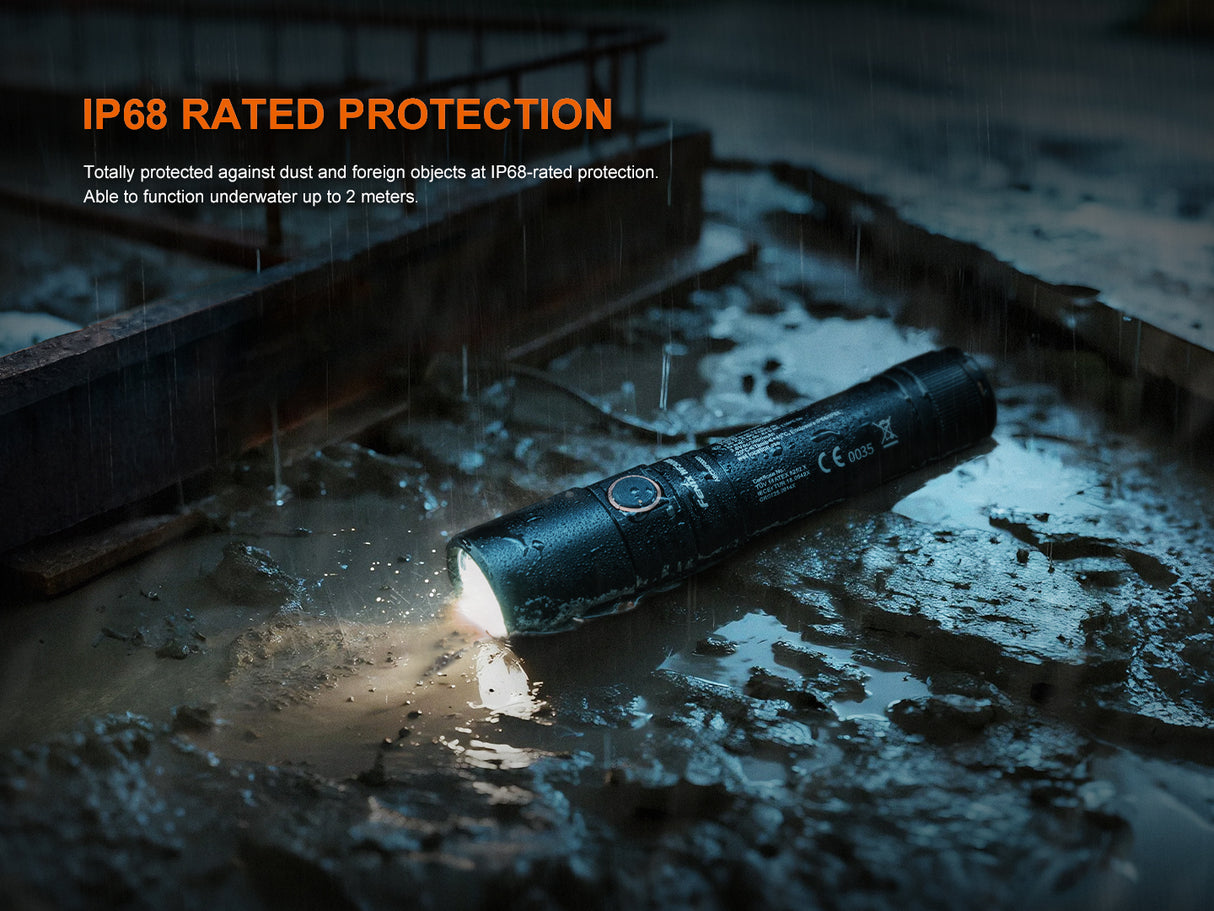

Constructed from durable high-strength A6061-T6 aluminium, the WF30RE is rated to IP68 standards, meaning it is fully dustproof and can be submerged in water up to 2 metres. It is powered by the included Fenix ARB-L21-3000Ex rechargeable lithium-ion battery, specifically designed and certified for ATEX use with this model. The battery has passed explosion-proof and temperature resistance testing to ensure safe and reliable operation in extreme conditions, and no other battery type should be used.

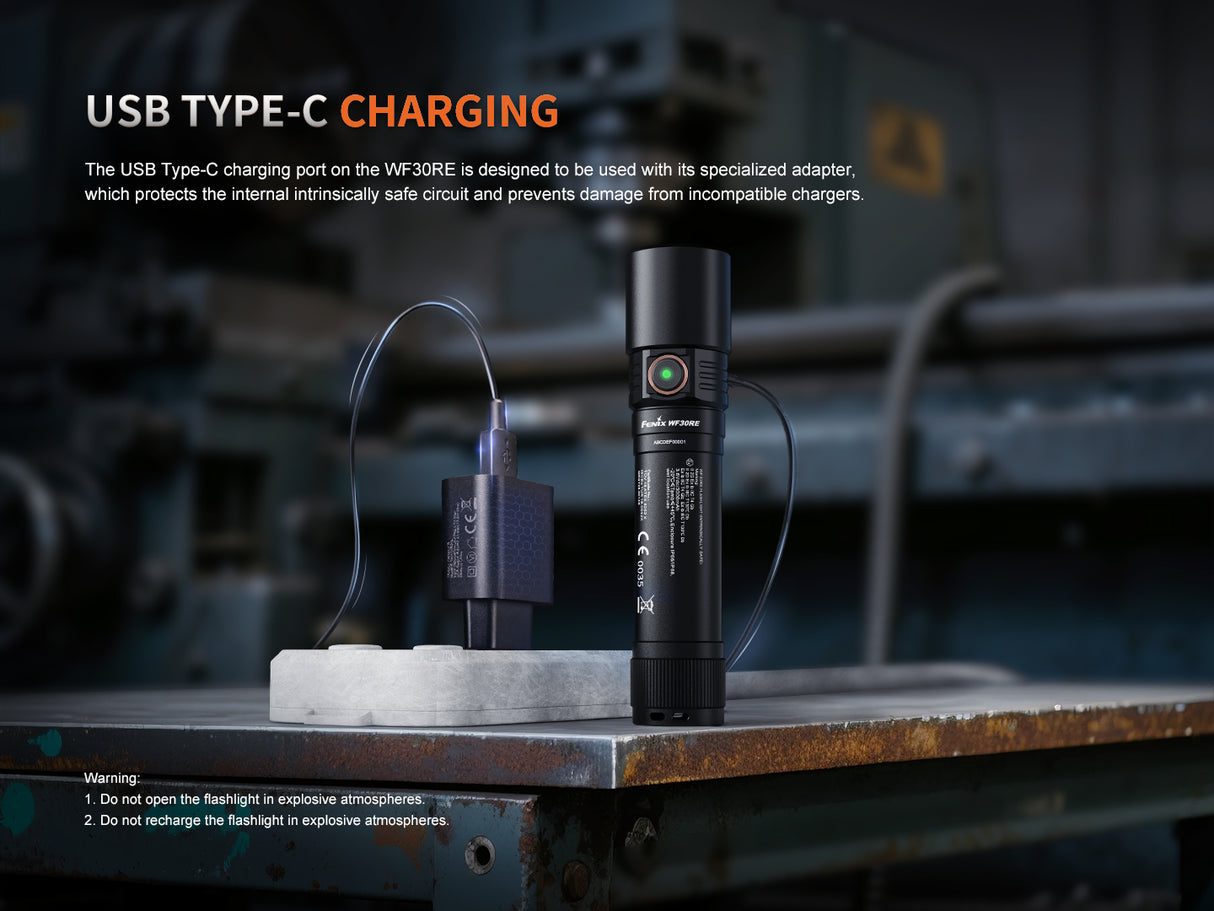

The battery can be charged inside the torch via the USB-C charging port using the included adapter, which is designed with a specialised protector block to maintain the intrinsically safe circuit and provide additional protection. The secure battery compartment can only be accessed with an 8 mm Allen wrench, ensuring the battery remains properly fitted and protected at all times. For safety reasons, never charge the torch in a hazardous location and always replace the dust cover after charging to maintain full protection.

The battery level indicator displays a solid green light when charge is between 100% and 85%, flashing green between 85% and 50%, solid red between 50% and 25%, and flashing red between 25% and 1%. A low voltage warning system automatically downshifts to a lower brightness level when voltage drops below the preset threshold, and once on Low output, the indicator flashes red to remind users to recharge or replace the battery promptly.

Please Note: Always fully read the manual before use, paying extra attention to the safety notes and precautions.

Product Features

ATEX Zone 1, 2, 21 and 22 compliant
Multiple explosion proof certifications
Three output levels plus Eco and SOS modes
Rechargeable with specialised charging protection
Battery level indication and low voltage warning

Certifications

IECEx: IECEx TUR 18.0042X
Ex ib IIC T4 Gb
Ex ib IIIC T130°C Db

ATEX: TÜV 18 ATEX 8252X
II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T130°C Db IP66/IP68

GRGT: GRGT25.0014X
Ex lb IIC T4 Gb
Ex lb IIIC T130°C Db

Standards
IEC 60079-0:2017
IEC 60079-11:2023
EN IEC 60079-0:2018
EN 60079-11:2012
GB/T 3836.1-2021
GB/T 3836.4-2021

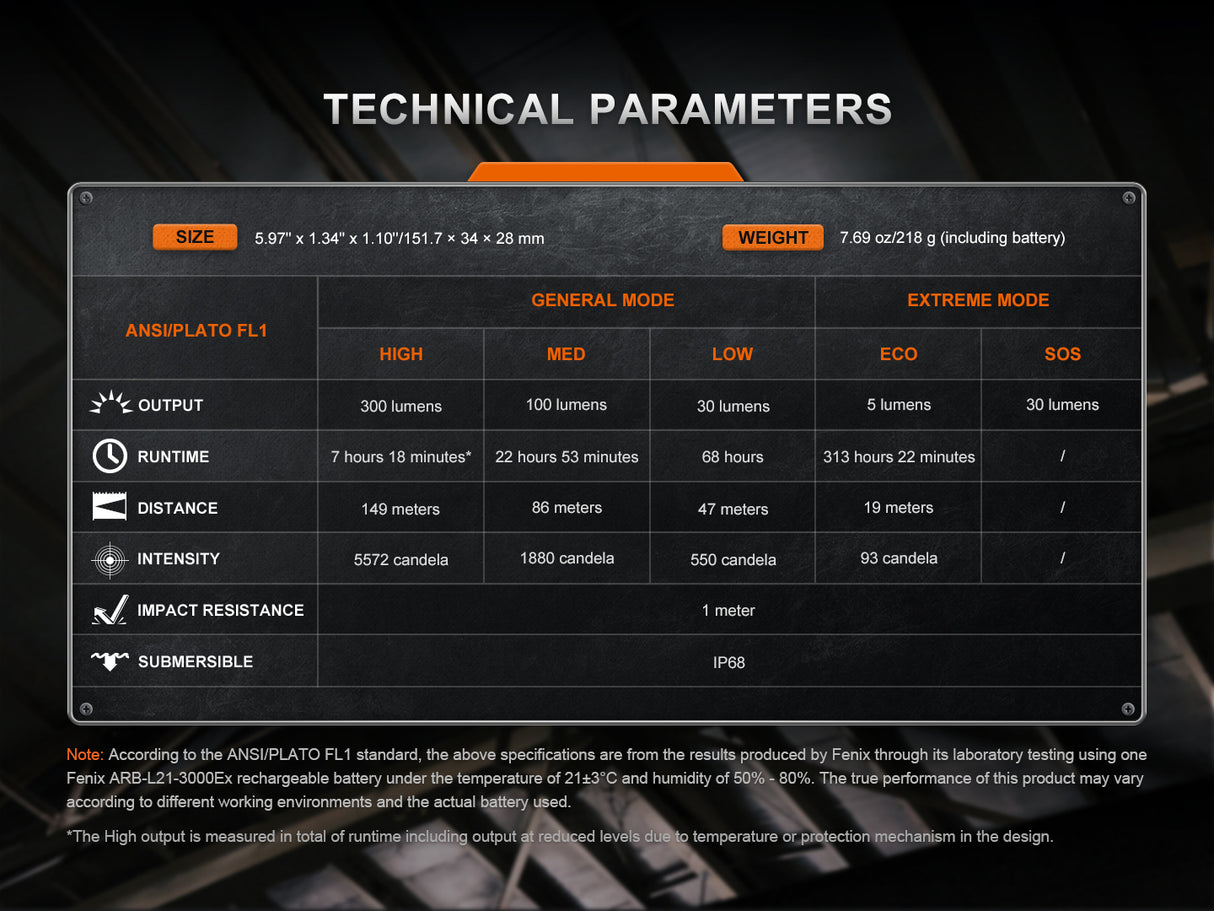

Operational Modes

High: 300 lumens; 7 hours, 18 minutes run-time*; 149 m beam range
Mid: 100 lumens; 22 hours, 53 minutes run-time; 86 m beam range
Low: 30 lumens; 68 hours run-time; 47 m beam range
Eco: 5 lumens; 313 hours, 22 minutes run-time; 19 m beam range
SOS: 30 lumens

Note: *The high output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using 1 x Fenix ARB-L21-3000Ex rechargeable battery under the temperature of 21±3°C and humidity of 50%-80%. Results may vary between torch, battery and environments.

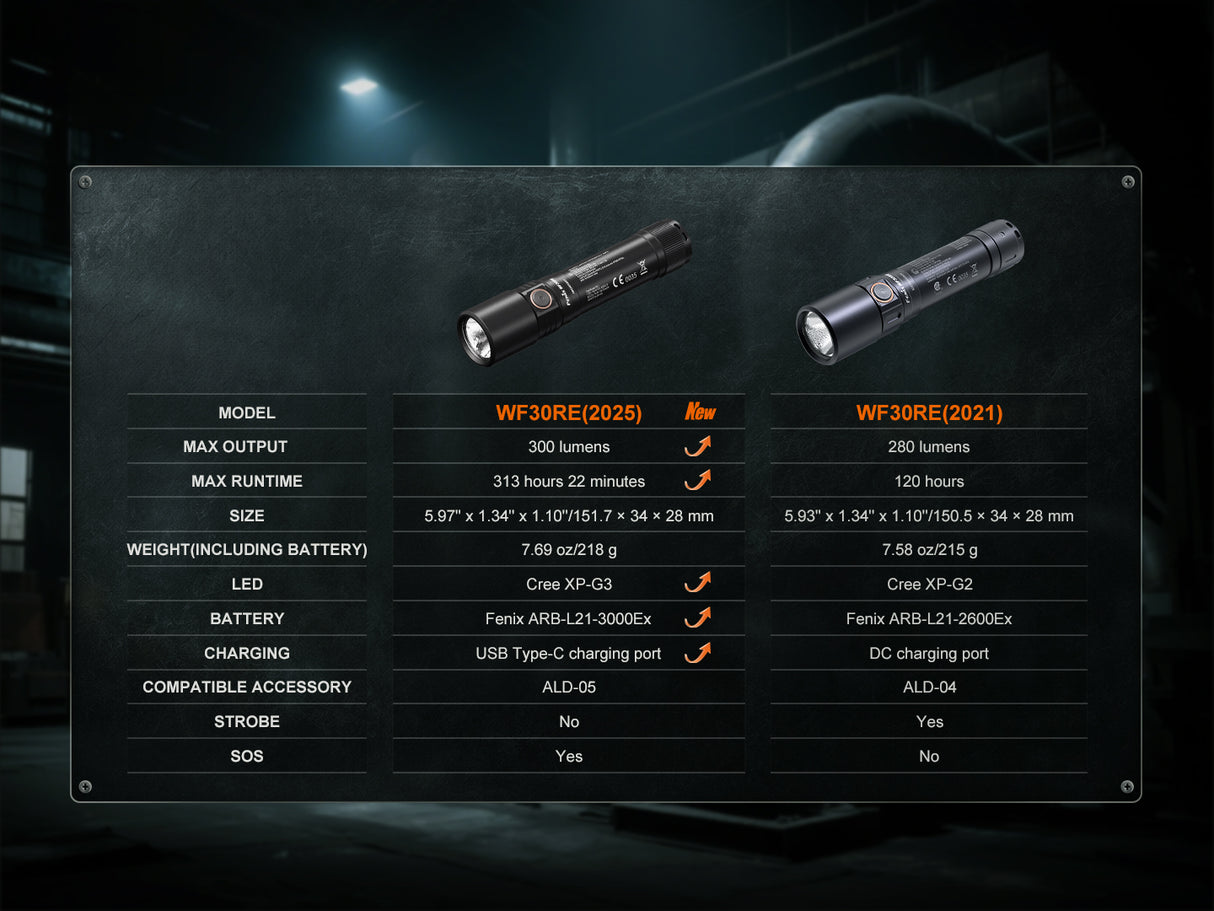

Technical Details

Type: ATEX hand torch
Operating Modes: Low / Mid / High / Eco / SOS
Luminous Flux: Up to 300 lumens
Lamp: Cree XP-G3 LED
Beam Range: Up to 149 m
Batteries Required: 1 x Fenix 21700 ARB-L21-3000Ex (included)
Overall Length: 151.7 mm
Head Diameter: 34 mm
Body Diameter: 28 mm
Weight: 218 grams (including batteries)
Body Colour: Black
Body Material: A6061-T6 aircraft grade aluminium
Switch Type: Side button

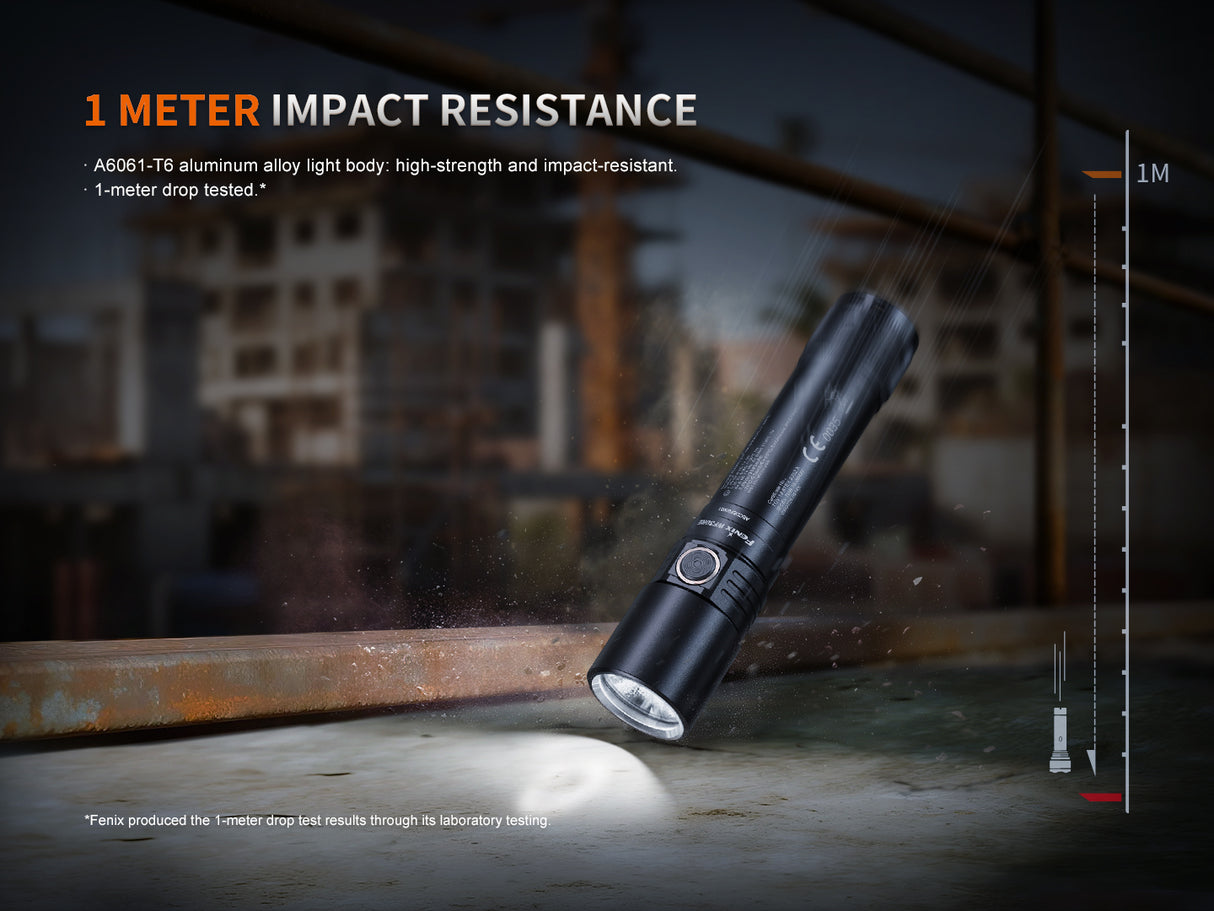

Impact Resistance: 1 m
Environmental: IP68 standard
Warranty: 5 years (1 year battery warranty)

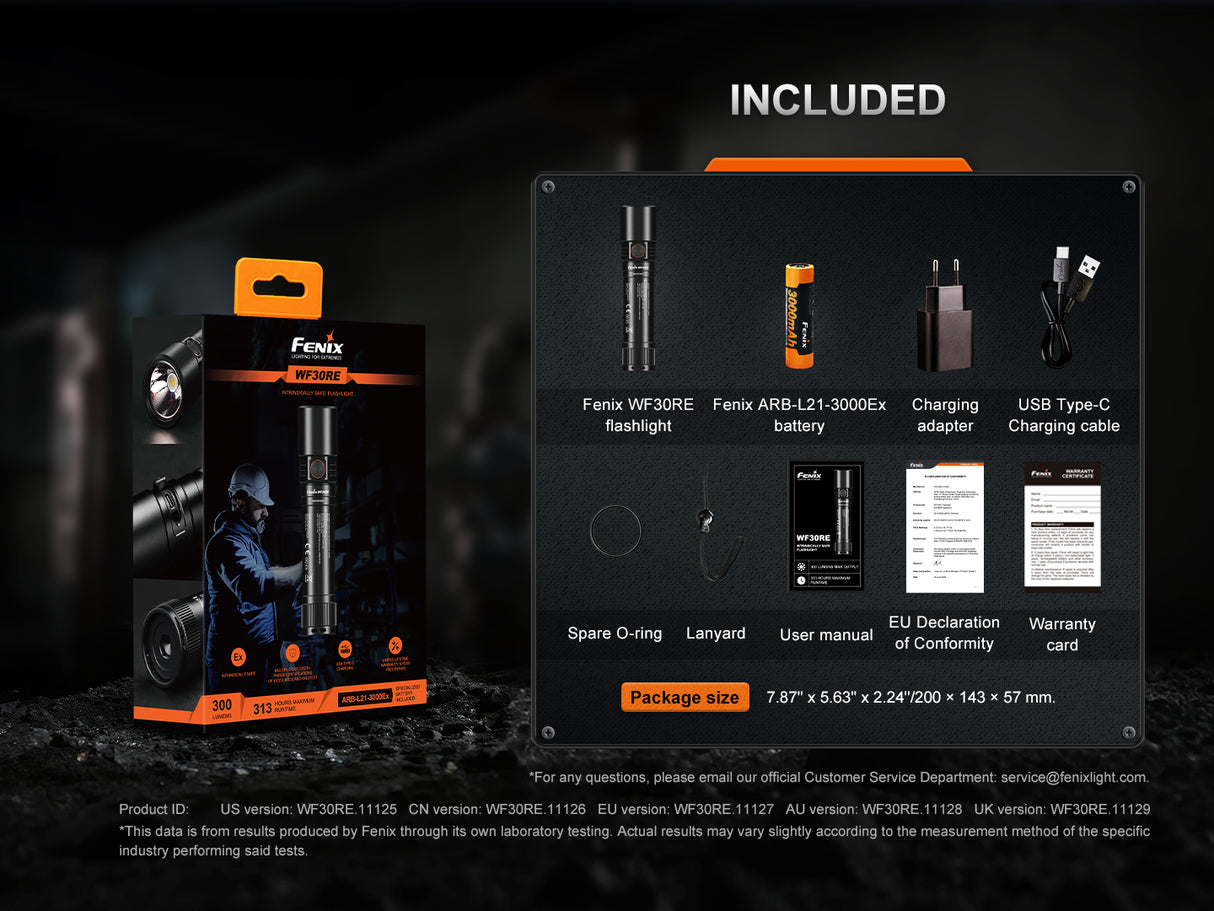

Packaging and Contents

Supplied in retail packaging and includes:
Fenix WF30RE 2025 ATEX torch x 1
Fenix ARB-L21-3000ex Explosion Resistant Battery x 1
UK mains specialist charging adaptor x 1
USB-C to USB-A cable x 1
Lanyard x 1
Spare O-ring x 1
Declaration of Conformity x 1
User Manual x 1
Warranty Card x 1
