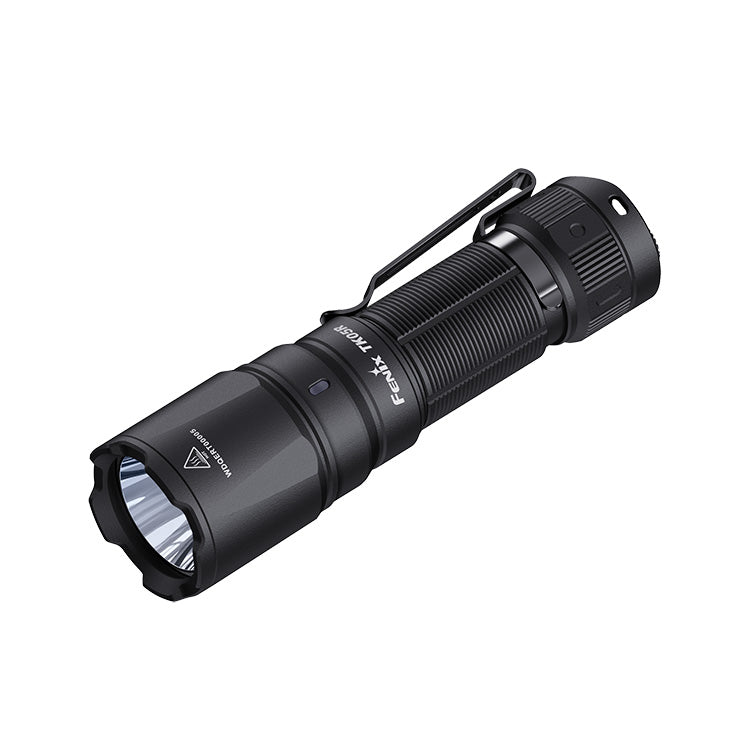

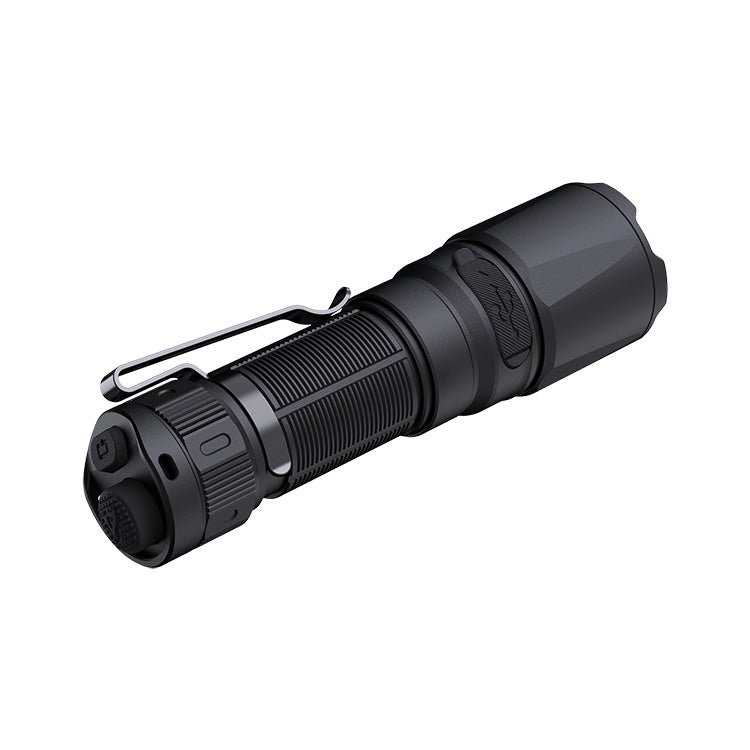

Fenix TK05R Rechargeable Tactical LED Torch

The Fenix TK05R is a super compact and versatile torch, perfect for rugged outdoor use, search and rescue or police.

Utilising a Osram CSLPM1.TG LED it offers a maximum output of 1000 lumens on high and throws the beam up to 450 metres, providing an excellent combination of output and distance in a compact body.

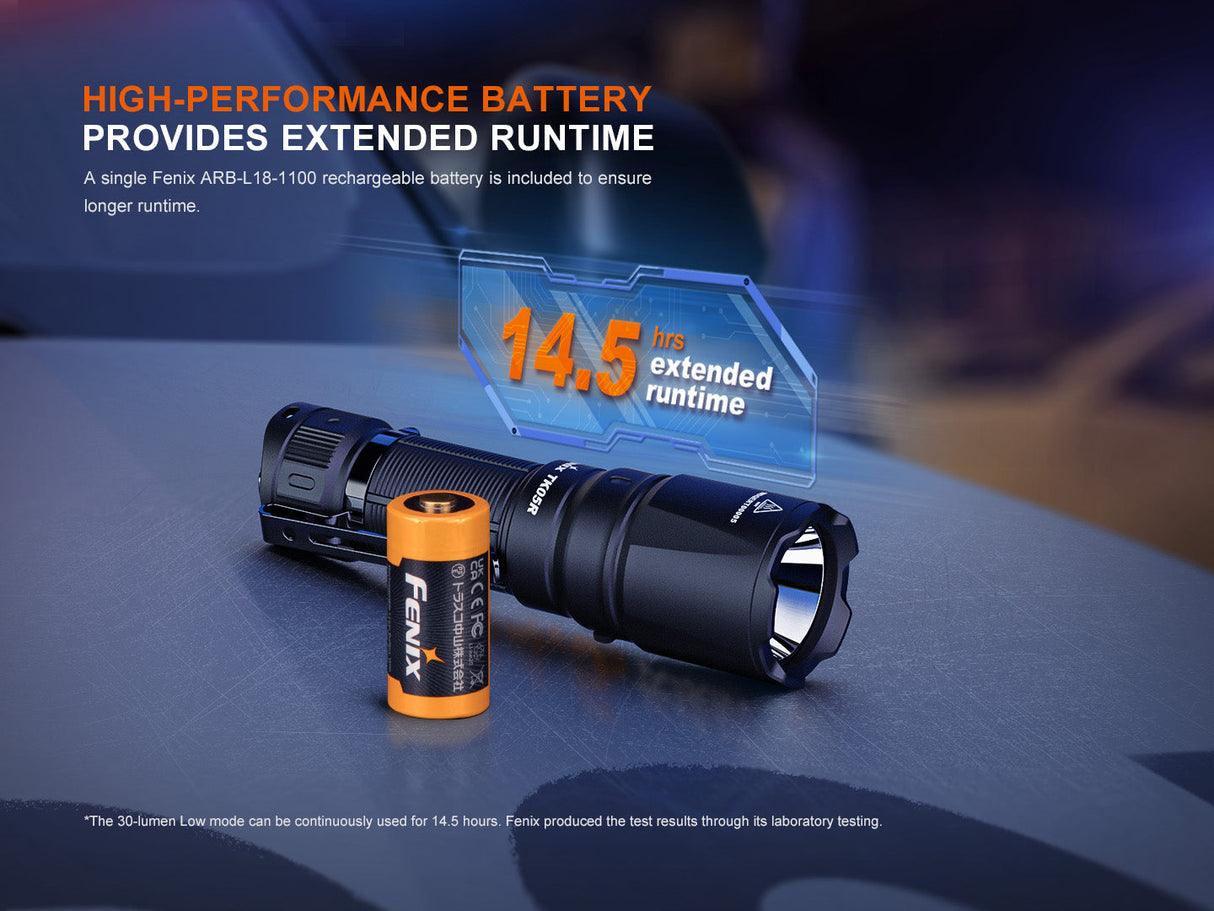

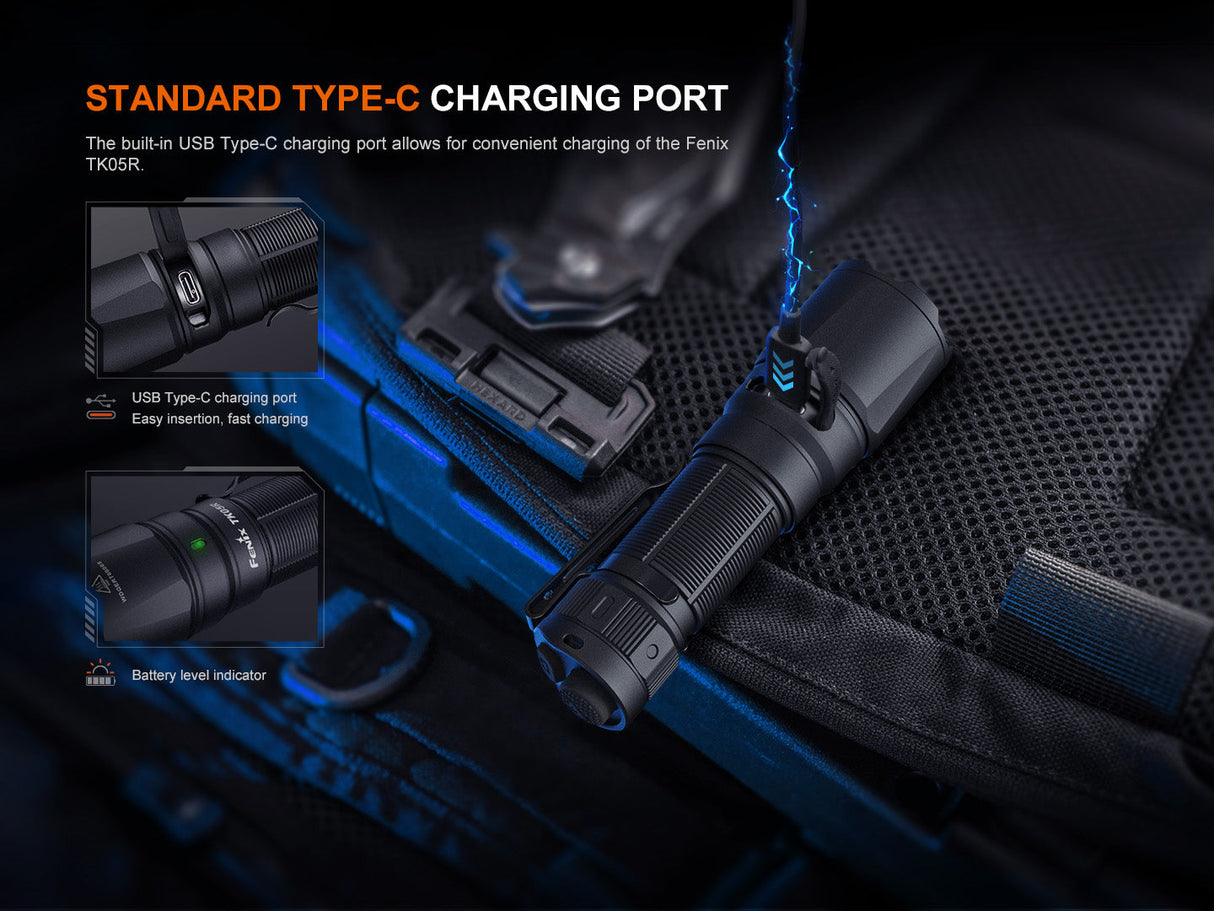

It is powered using the included Fenix 18350 rechargeable lithium-ion battery which is charged inside of the torch via the USB-C charging port on the neck of the torch. Simply plug in the included USB-C charging cable and the standard USB-A end into a USB power source to begin charging. A red light will illuminate on the battery to show charging is in progress, and turn green once charging is complete.

Three brightness levels are available plus the strobe output and they are controlled by the circular tactical and oval functional switch located on the tail cap of the torch. To turn the TK05R on or off press the tactical switch. Half pressing the switch will temporally turn the torch on and when releasing the switch the torch will turn off.

With the torch on, press the functional switch to cycle through the low, medium and high outputs. To access the strobe with the torch on, press and hold the functional switch for 0.5 seconds. The next press of the functional switch will return the torch to its previous setting or a full press of the tactical switch will turn the torch off. To access strobe instantly, while the torch is off press and hold the functional switch, when released the torch will turn off.

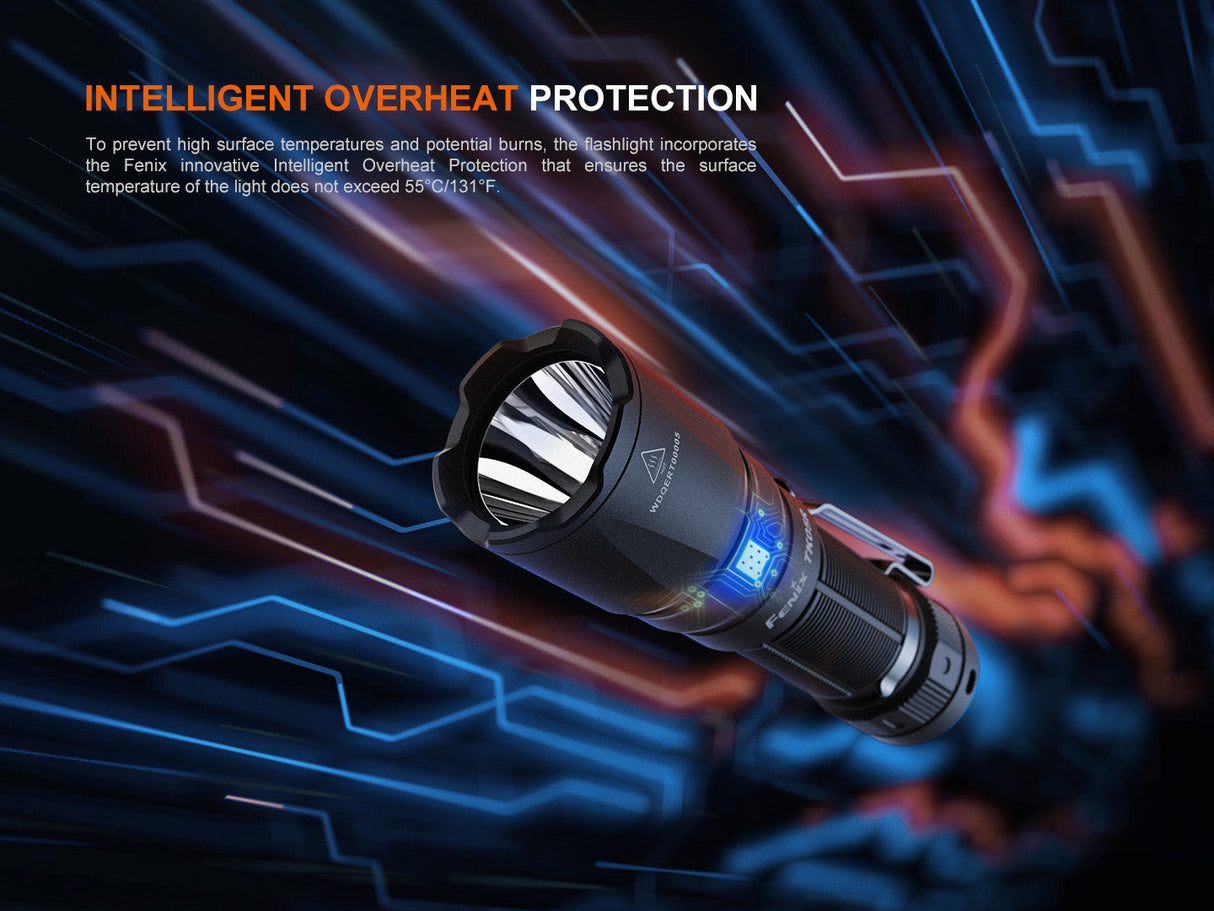

Intelligent overheat protection will lower the output of the torch in order to cool the torch and prevent damage from overheating. Once the torch has cooled the high mode can be selected again. If the battery voltage drops below the pre-set level the torch is programmed to downshift to a lower brightness level until low output is reached, at which point the battery indicator will flash red.

Product Features

Tactical and functional tail switch
Constant and momentary on
Reverse polarity protection
Over heat protection

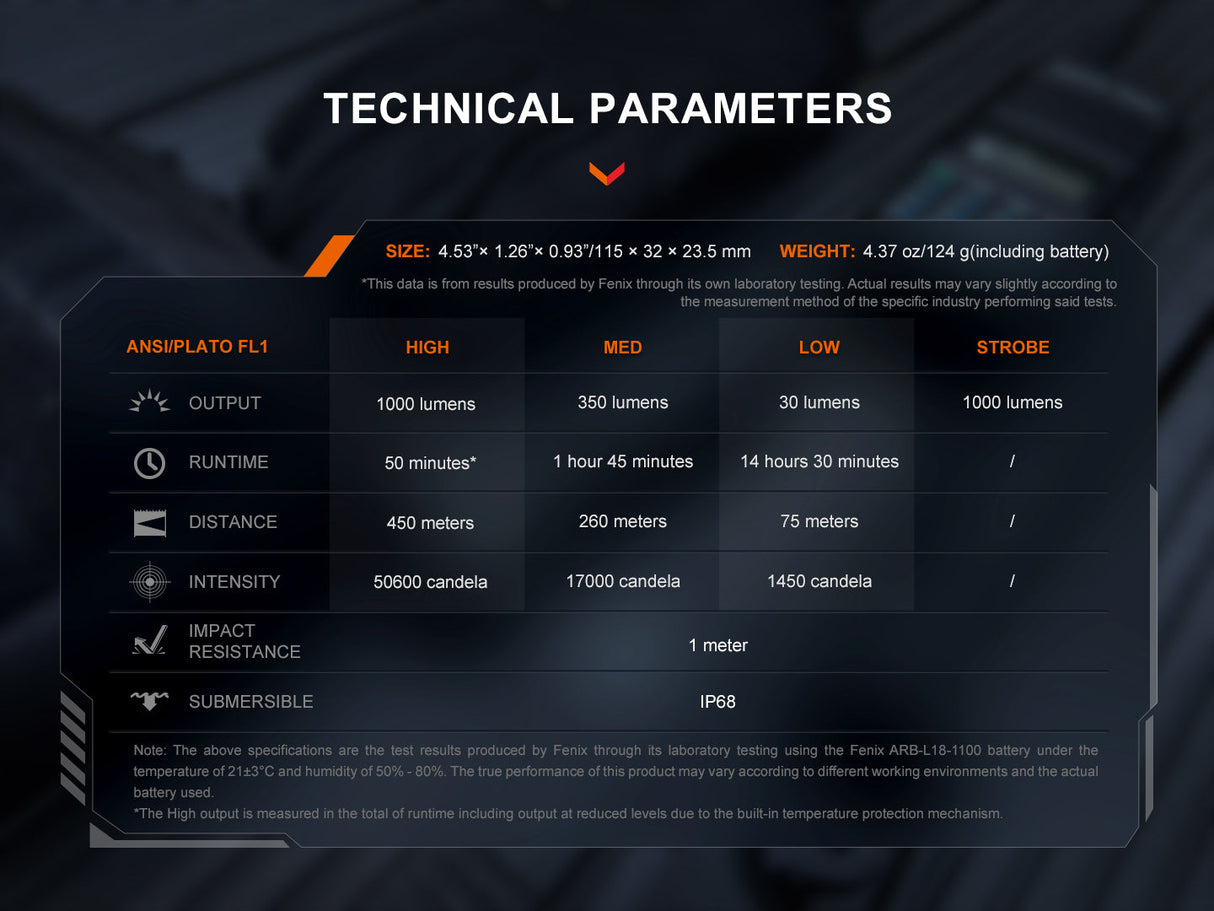

Operational Modes

Low: 30 lumens; 14 hours, 30 minutes run-time; 75 m beam range
Medium: 350 lumens; 1 hour, 45 minutes run-time; 260 m beam range
High: 1000 lumens; 50 minutes run-time; 450 m beam range
Strobe: 1000 lumens

Note: *The high output is measured at total run-time, including output at reduced levels due to temperature or the built-in protection mechanism.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using 1 x Fenix ARB-L18-1100 18350 lithium-ion rechargeable battery. Results may vary between torch, battery and environments.

Technical Details

Type: Hand held tactical LED torch
Operating Modes: Low / Mid / High / Strobe
Luminous Flux: Up to 1000 lumens
Lamp Type: Osram CSLPM1.TG LED
Beam Range: Up to 450 m
Batteries Required: 1 x Fenix 18350 L18 series lithium-ion rechargeable

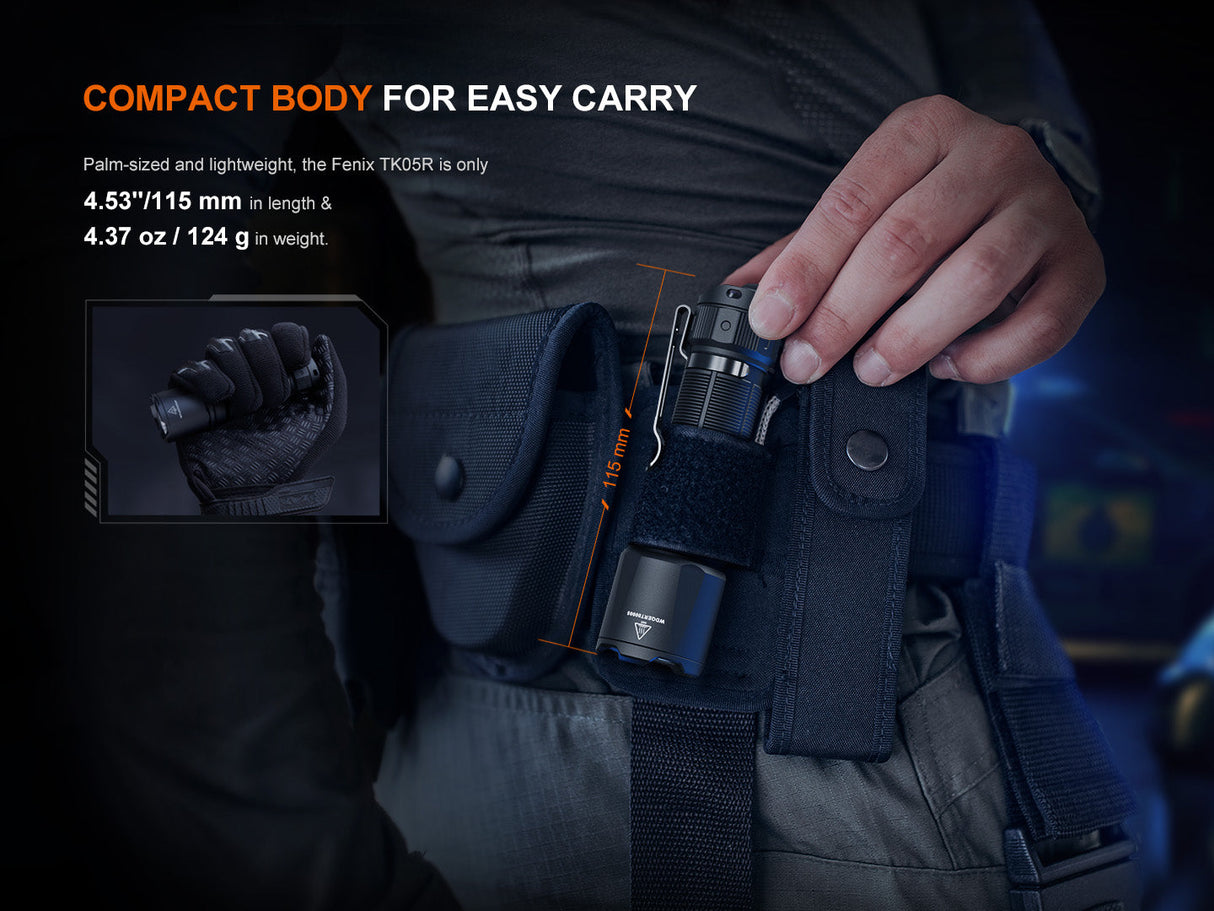

Overall Length: 115 mm
Head Diameter: 32 mm
Body Diameter: 23.5 mm
Weight: 124 grams (excluding battery)
Body Colour: Black
Body Material: A6061-T6 aluminium
Body Finish: Premium type III hard anodised anti-abrasive finish
Switch Type: Tactical and functional tail switch
Impact Resistance: 1 m

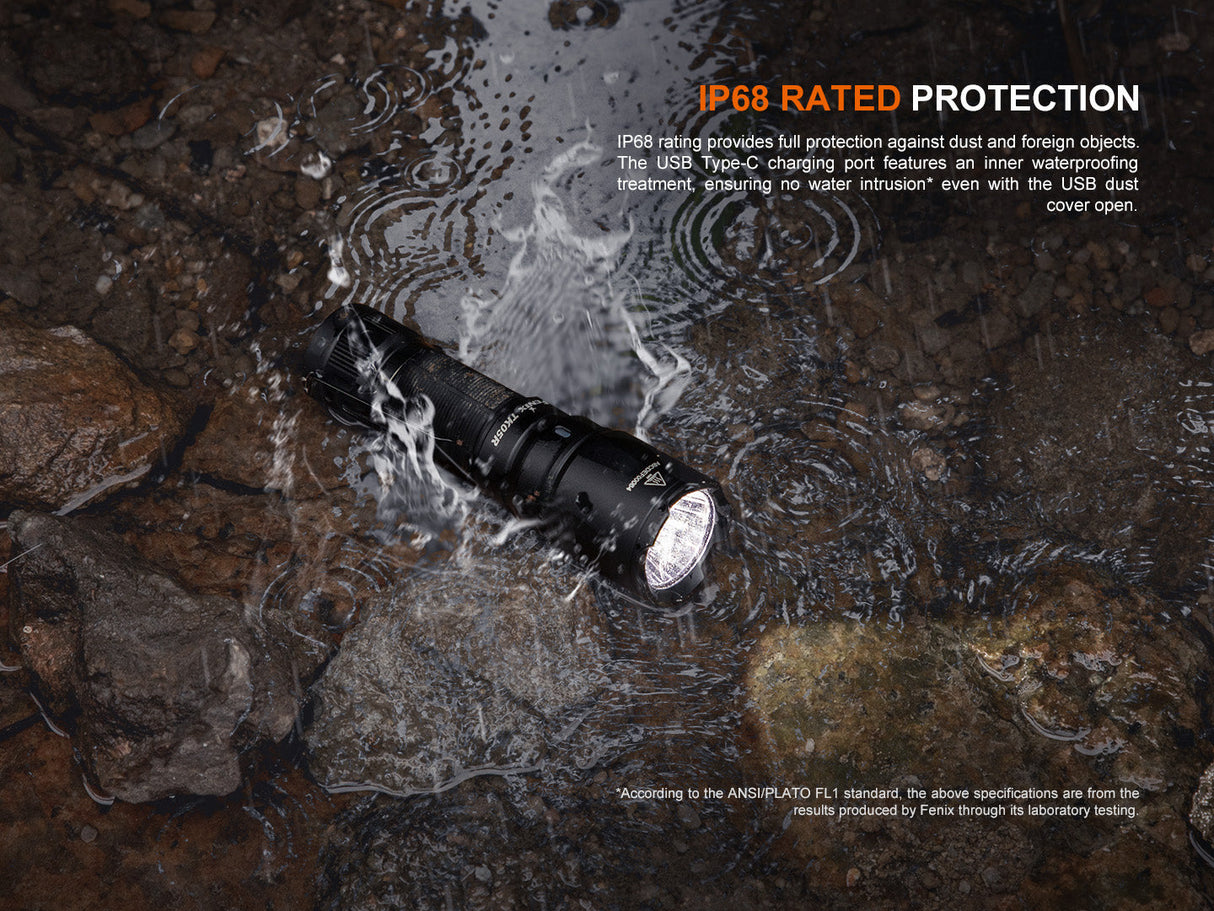

Environmental: IPX8
Warranty: 5 years

Packaging and Contents

Supplied in retail packaging and includes:
Fenix TK05R LED torch x 1
Fenix ARB-L18-1100 V2 18350 rechargeable lithium-ion battery x 1
USB-C charging cable x 1
Lanyard x 1
Holster x 1
Spare O-ring x 1
Manual x 1
