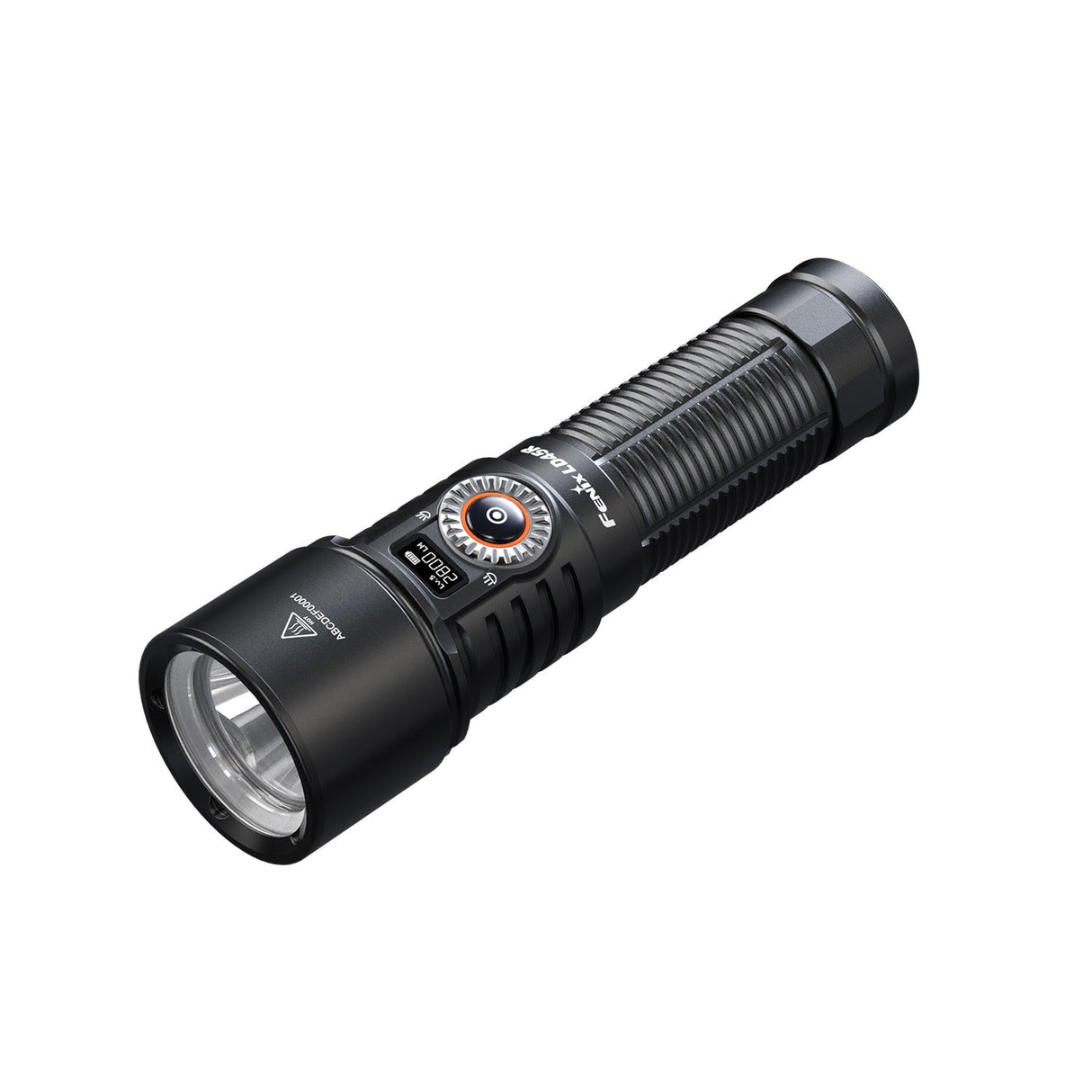

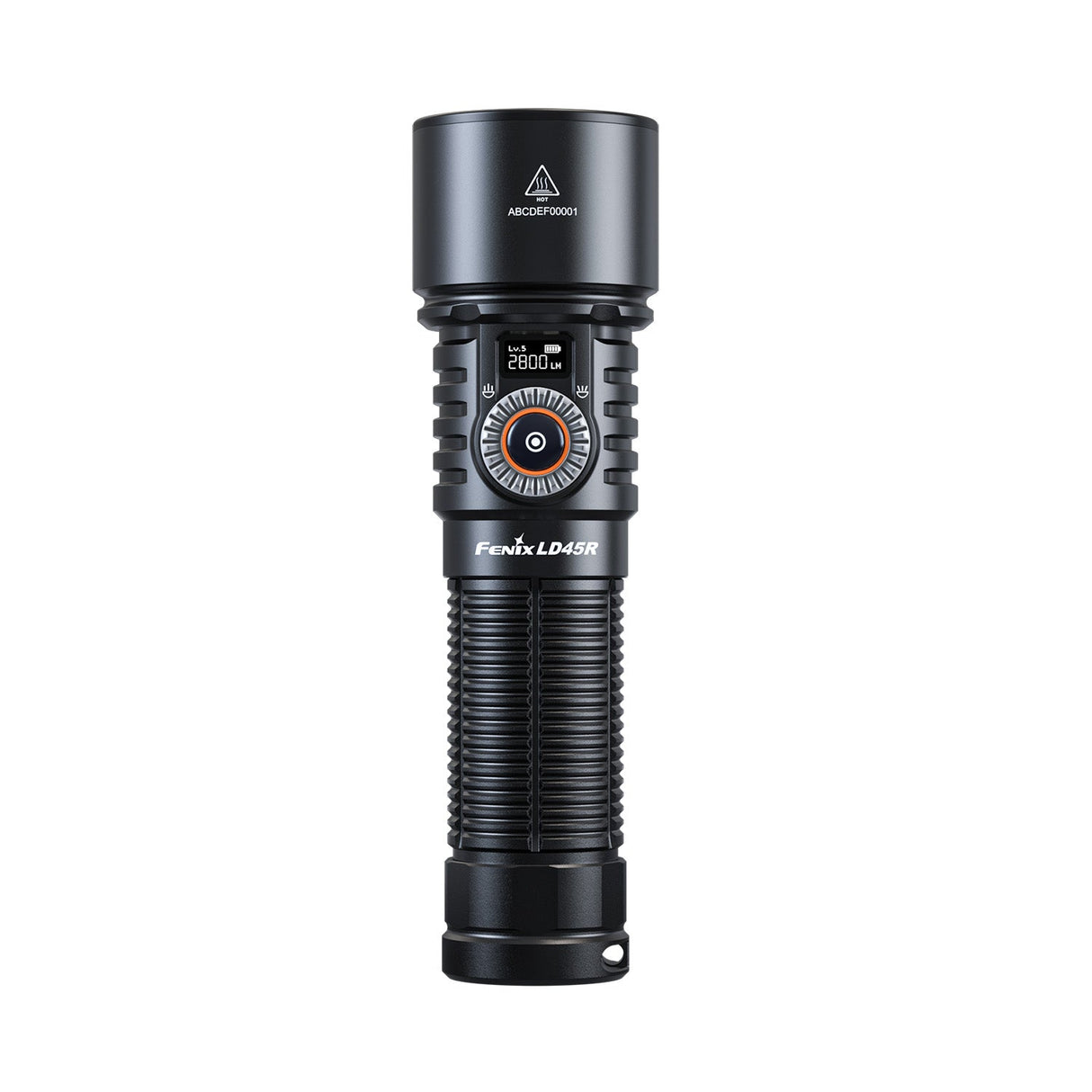

Fenix LD45R Digital Focusing Rechargeable LED Torch

The Fenix LD45R is a handheld, rechargeable LED torch with up to 2800 lumens output and a revolutionary digital focusing technology, plus an OLED screen.

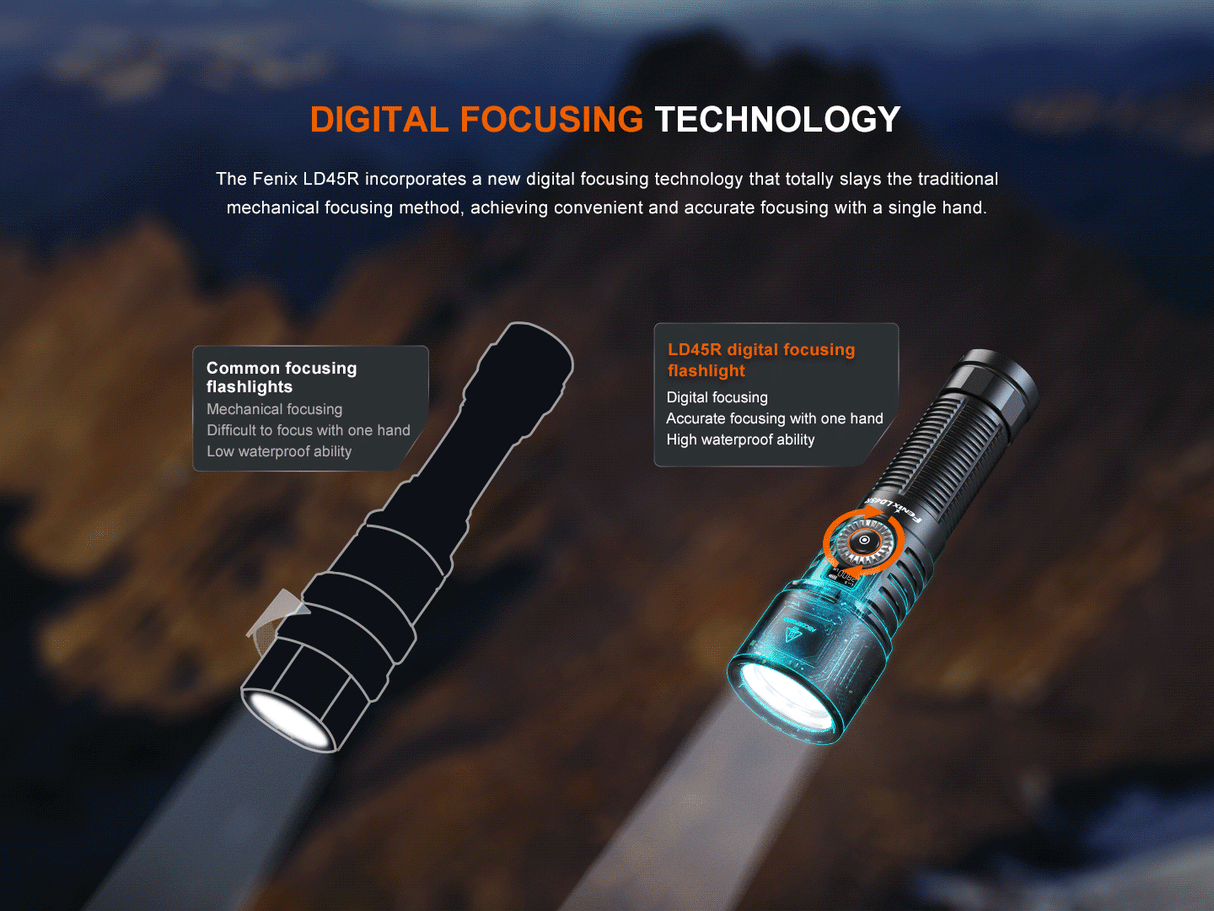

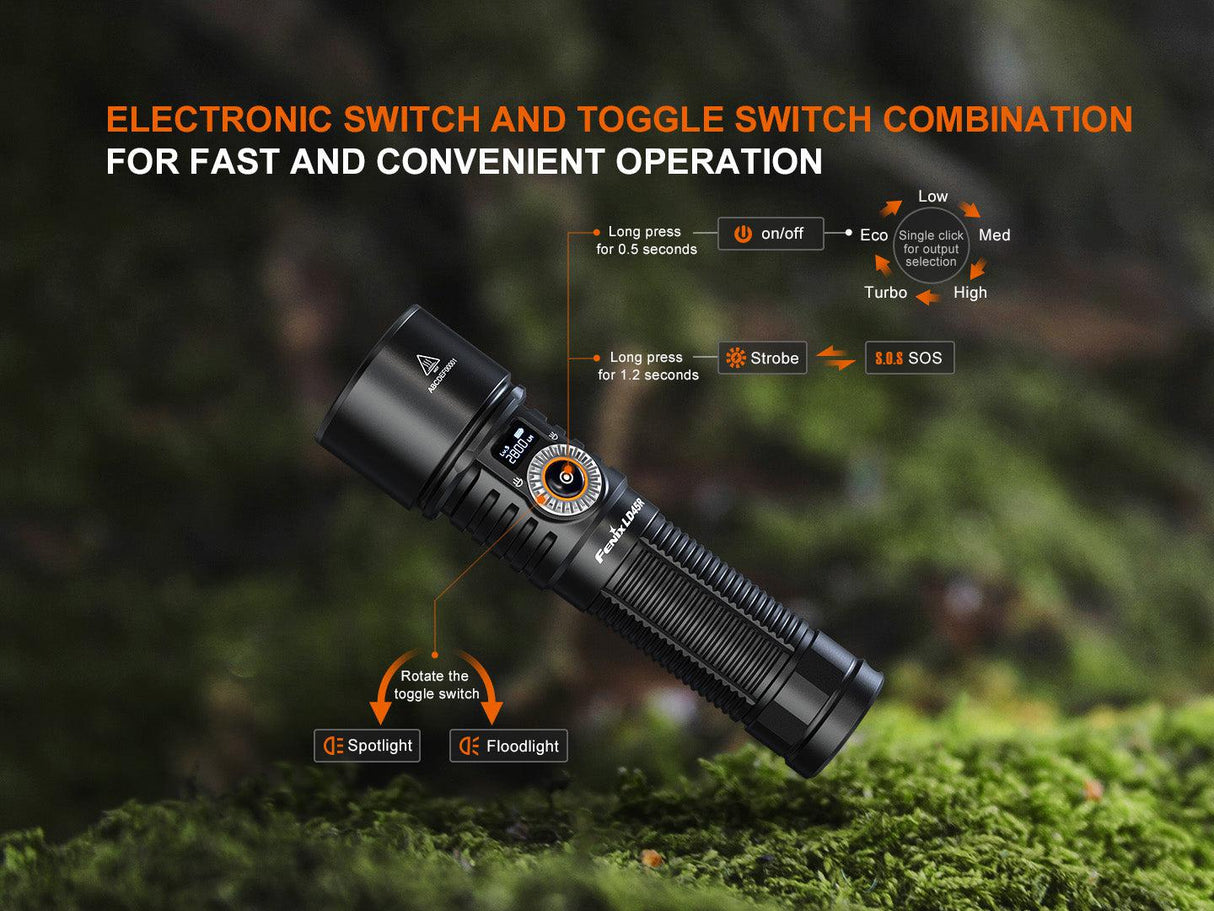

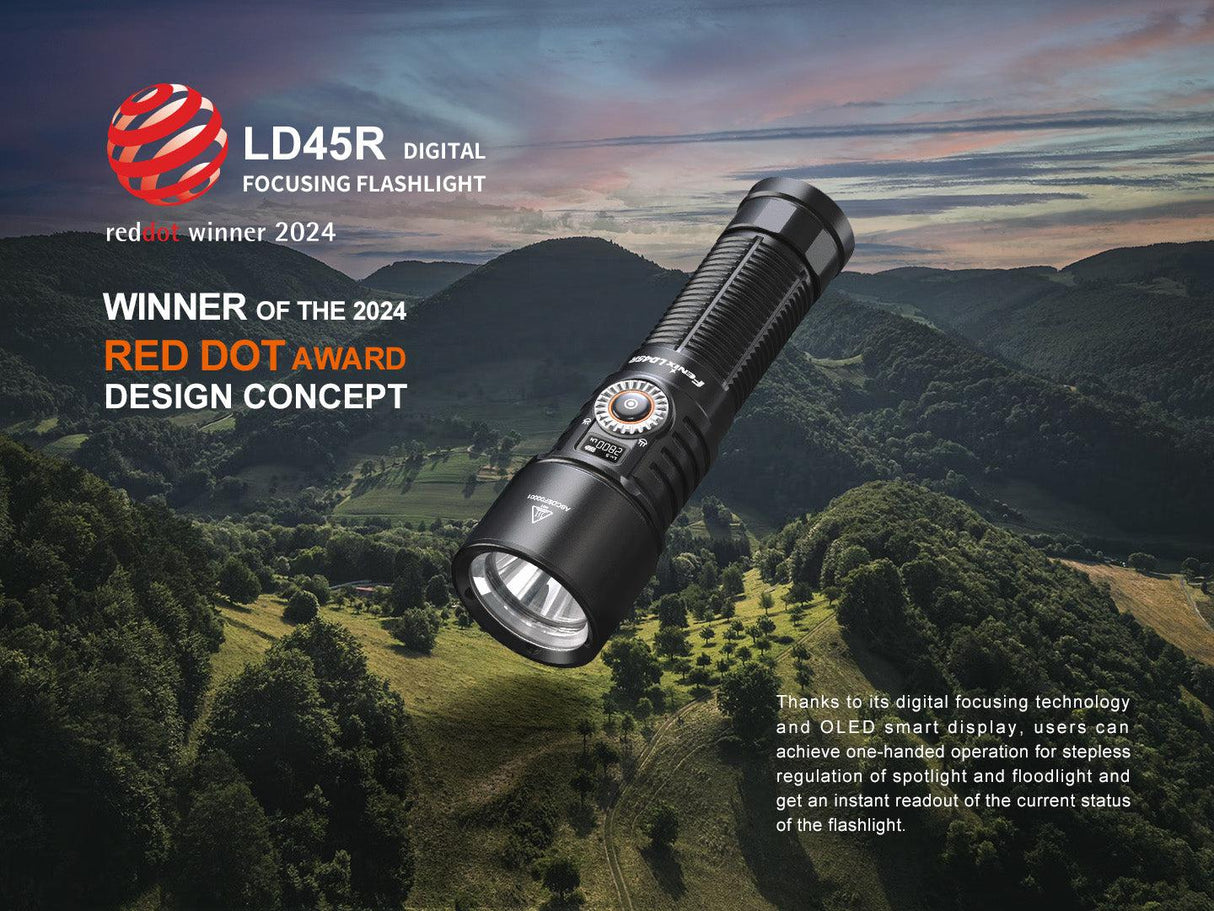

The new spot to flood focusing system from Fenix features a combination of traditional deep reflector and electronically adjustable lens which is easily controlled with one hand thanks to the toggle switch on the side of the torch.

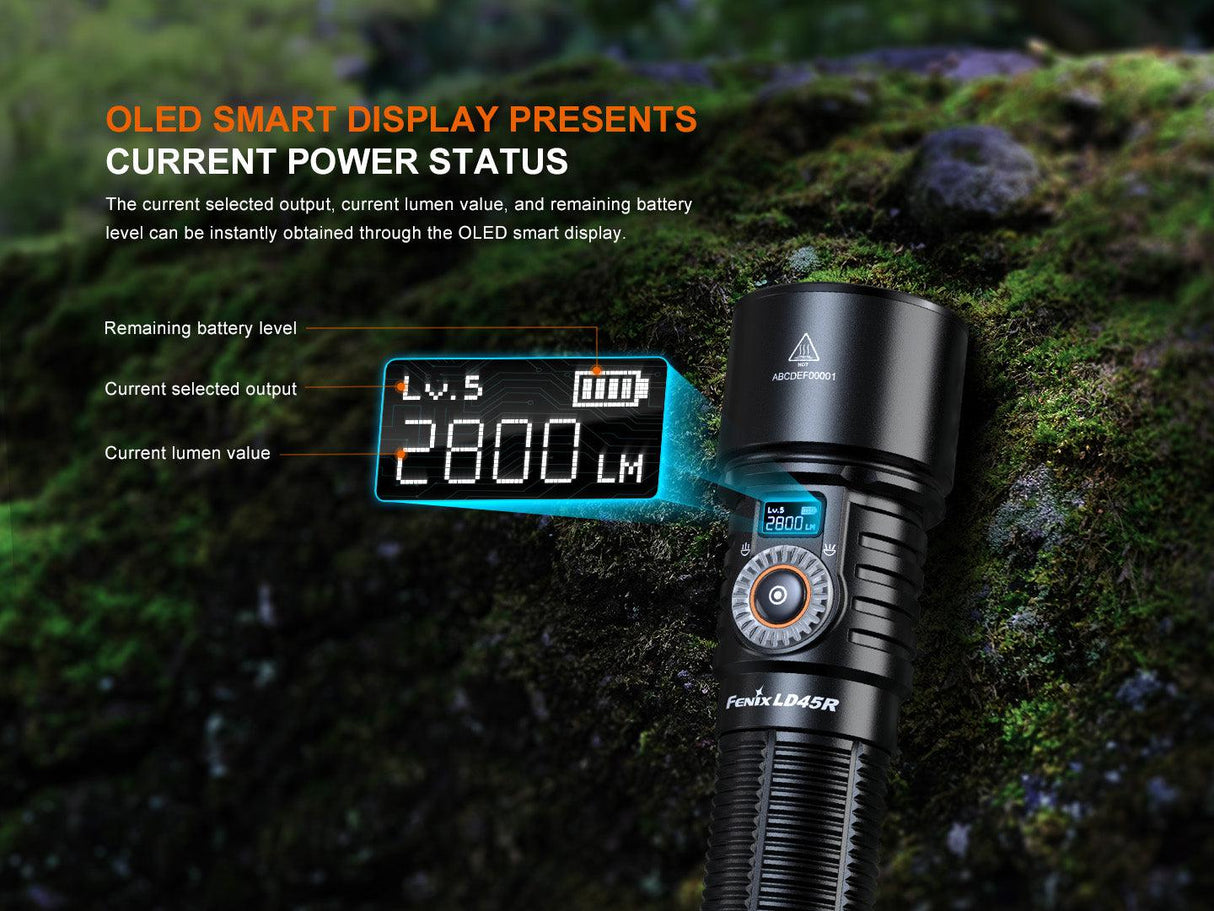

Five brightness levels, plus strobe and SOS are available and operated by the push switch in the centre of the toggle switch. The smart OLED screen will display the current lumen output and the remaining battery.

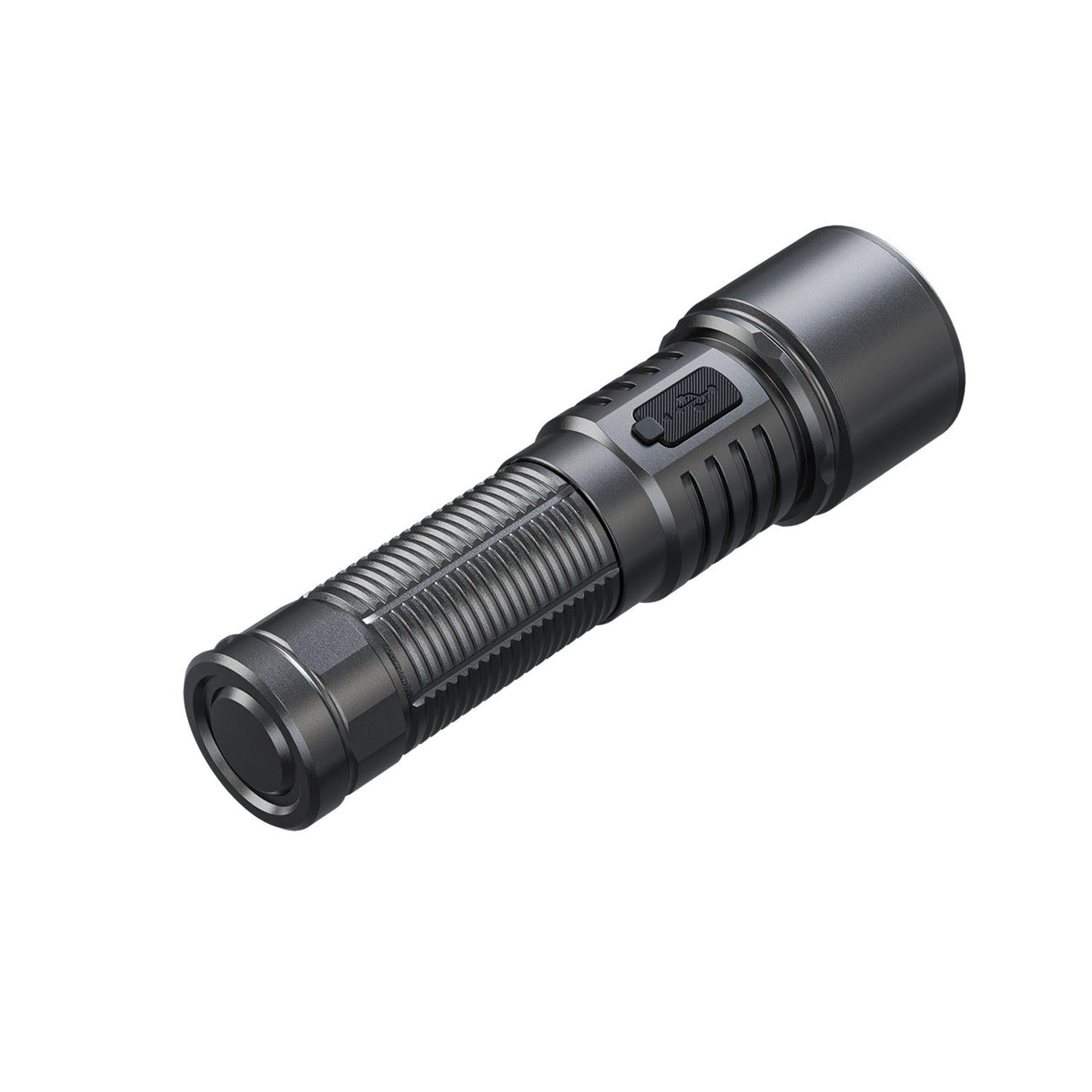

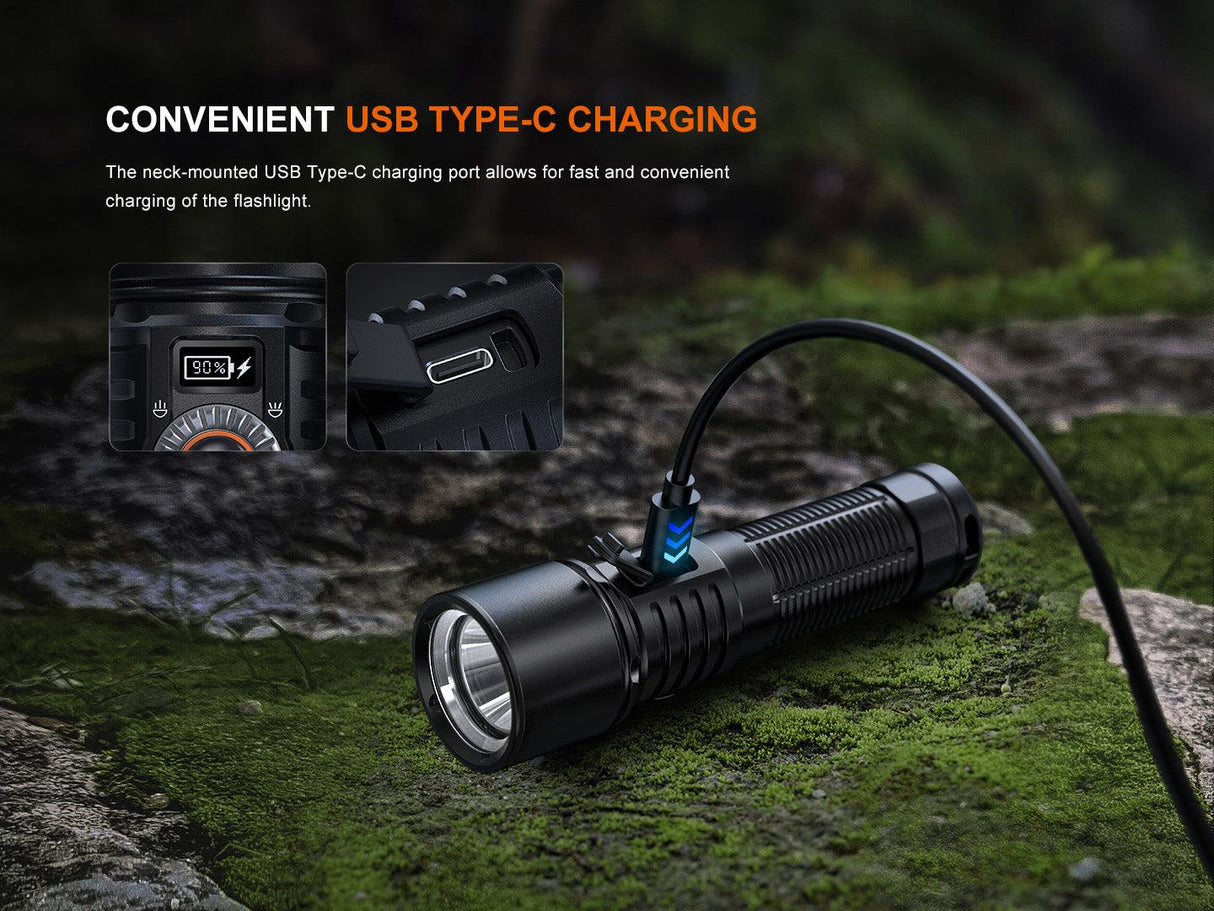

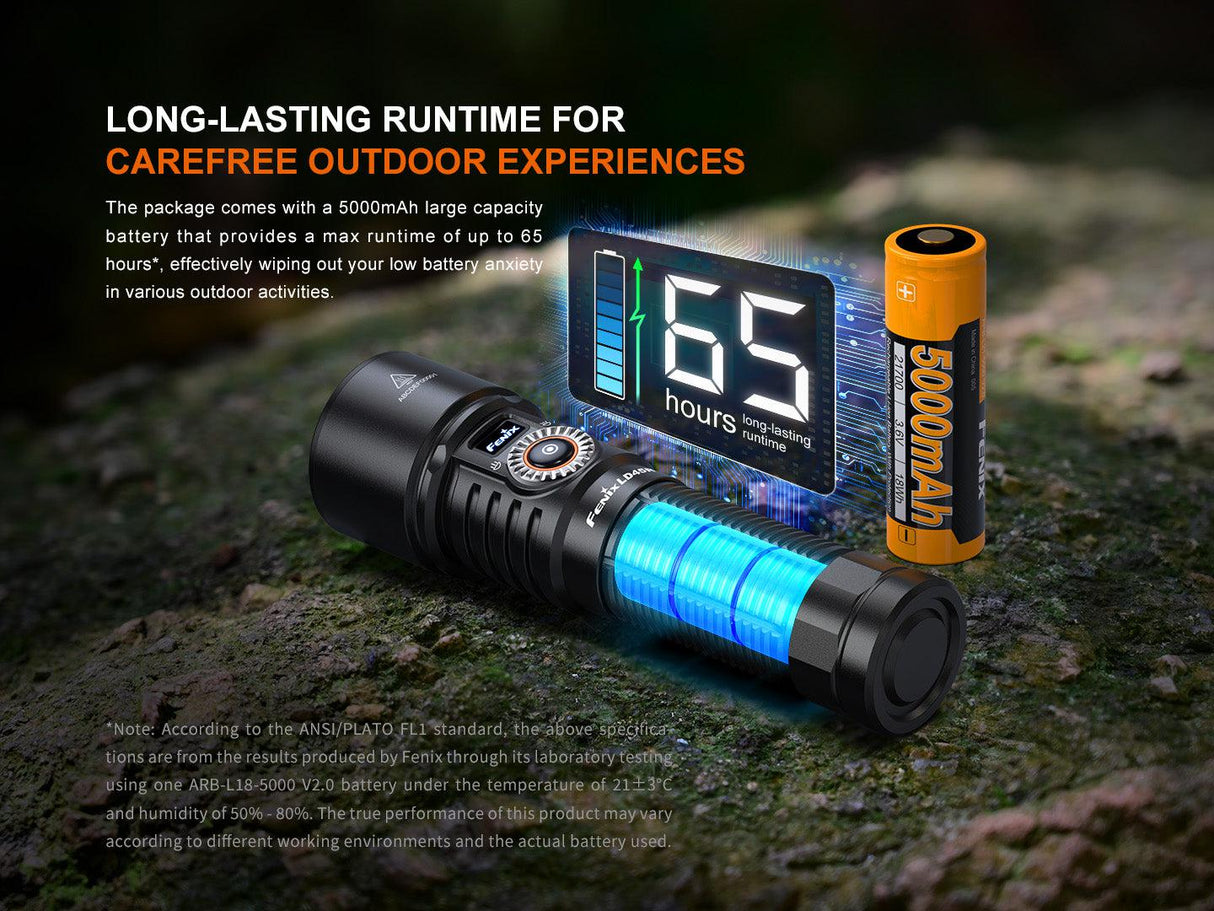

Powered by the included 21700 lithium-ion battery, the LD45R can easily be recharged via the USB-C port on the neck of the torch. The OLED screen displays the battery level and a low battery voltage warning function is programmed to downshift to a lower brightness level when the voltage drops below the preset level.

The LD45R features a lockout mode to prevent accidental activation. When in lockout mode the OLED screen will display a lock symbol.

Intelligent overheat protection will automatically downshift the brightness output to reduce the heat of the torch. Full details of the output reduction can be found in the manual.

The LD45R has a tail stand for using the torch as a candle or lantern and provides easy hands free light upright while the included lanyard is perfect for everyday carry.

Product Features

Revolutionary digital focusing technology
Smart OLED screen
Low-voltage warning function
Tactical tail switch and side switch
Over-heat protection to avoid high-temperature of the surface

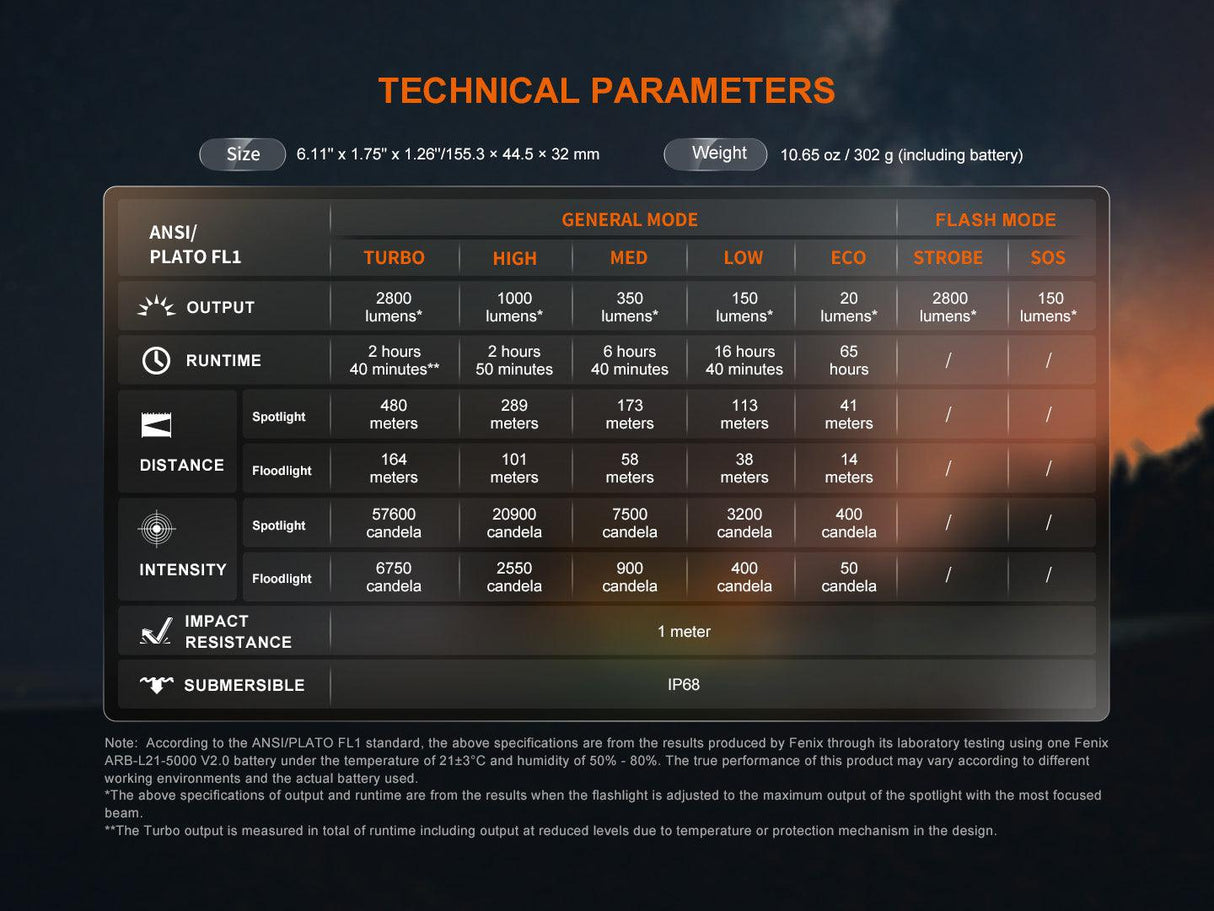

Operational Modes

General Mode:
Turbo: 2800 lumens; 2 hours, 40 minutes run-time; 480 m beam range*
High: 1000 lumens; 2 hours, 50 minutes run-time; 289 m beam range
Medium: 350 lumens; 6 hours, 40 minutes run-time; 173 m beam range
Low: 150 lumens; 16 hours, 40 minutes run-time; 113 m beam range
Eco: 20 lumens; 65 hours run-time; 41 m beam range

Flash Mode:
Strobe: 2800 lumens
SOS: 150 lumens

Note: *The turbo output is measured at total run-time, including output at reduced levels due to temperature or the built-in protection mechanism.

Tested to ANSI/PLATO FL1 standard using 1 x Fenix ARB-L21-5000 lithium-ion rechargeable battery in laboratory conditions. Results may vary between torch, battery and environments.

Technical Details

Type: EDC torch
Operating Modes: Turbo / High / Medium / Low / Eco / Strobe / SOS
Luminous Flux: Up to 2800 lumens
Lamp Type: Luminus SST70 LED
Beam Range: Up to 480 m
Batteries Required: 1 x 21700 lithium-ion battery (included)
Dimensions: 155.3 mm x 44.5 mm x 32 mm
Weight: 302 grams
Body Colour: Black
Body Material: Durable high strength aluminium
Body Finish: Type III hard anodised anti abrasive finish
Switch Type: Tactical tail switch and side mounted switch

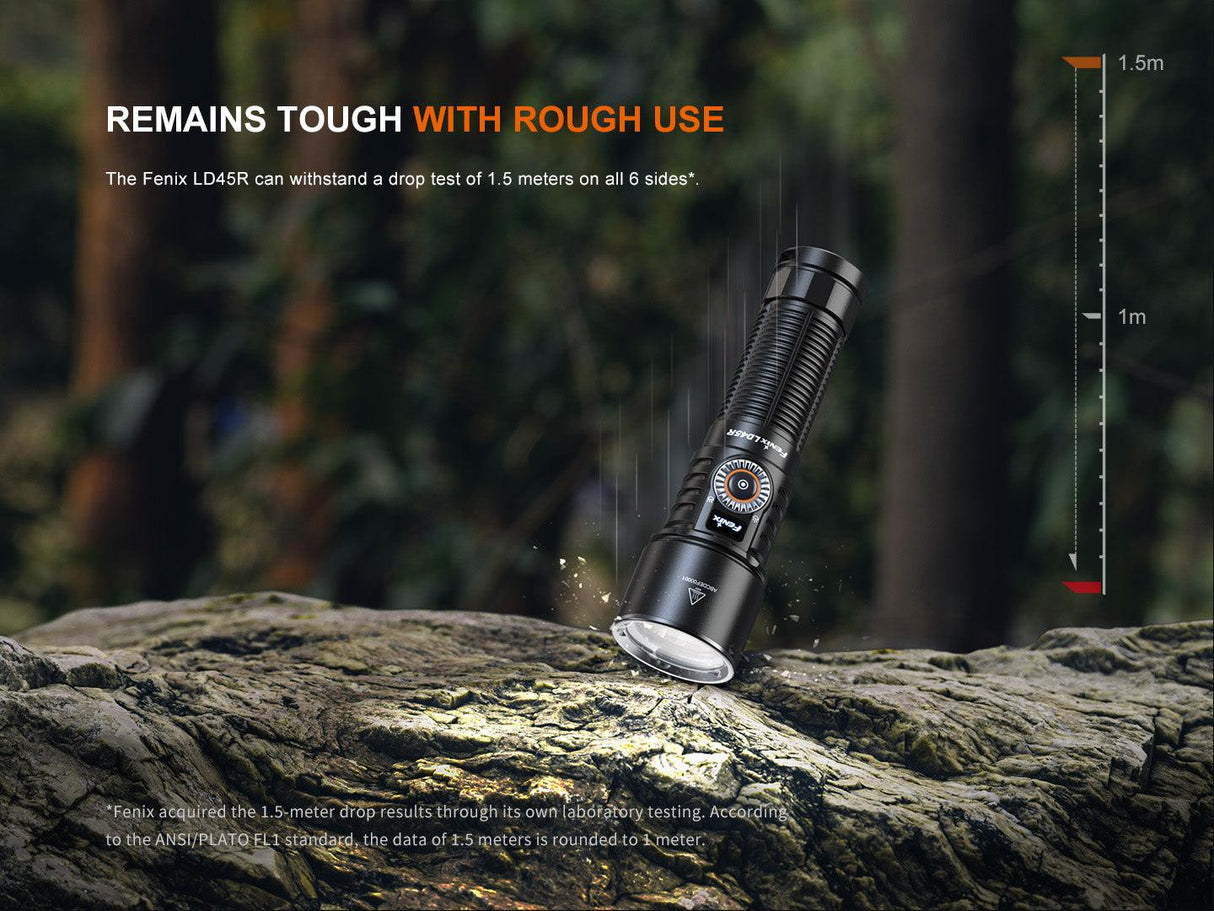

Impact Resistance: 1 m

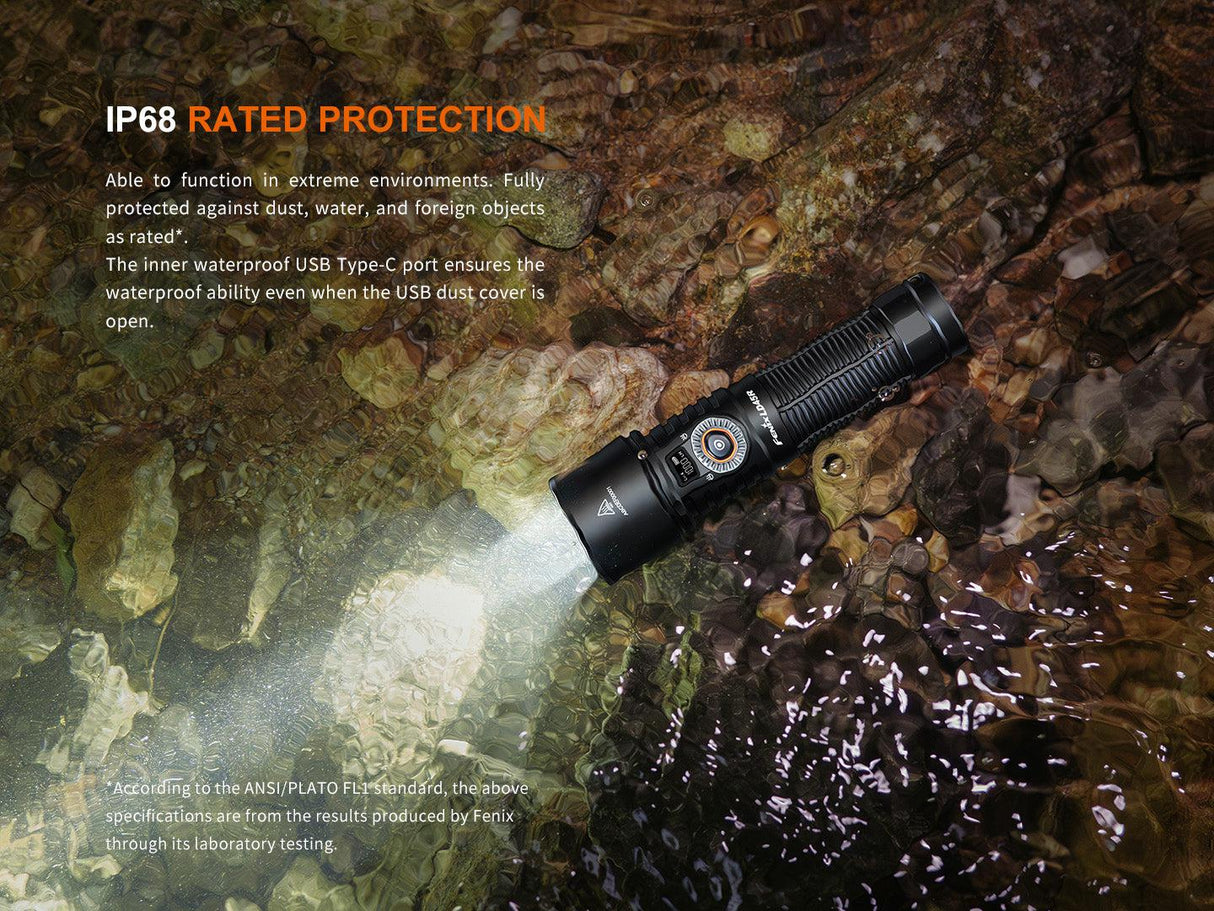

Environmental: IPX8
Warranty:  5 years (torch) - 1 year (battery)

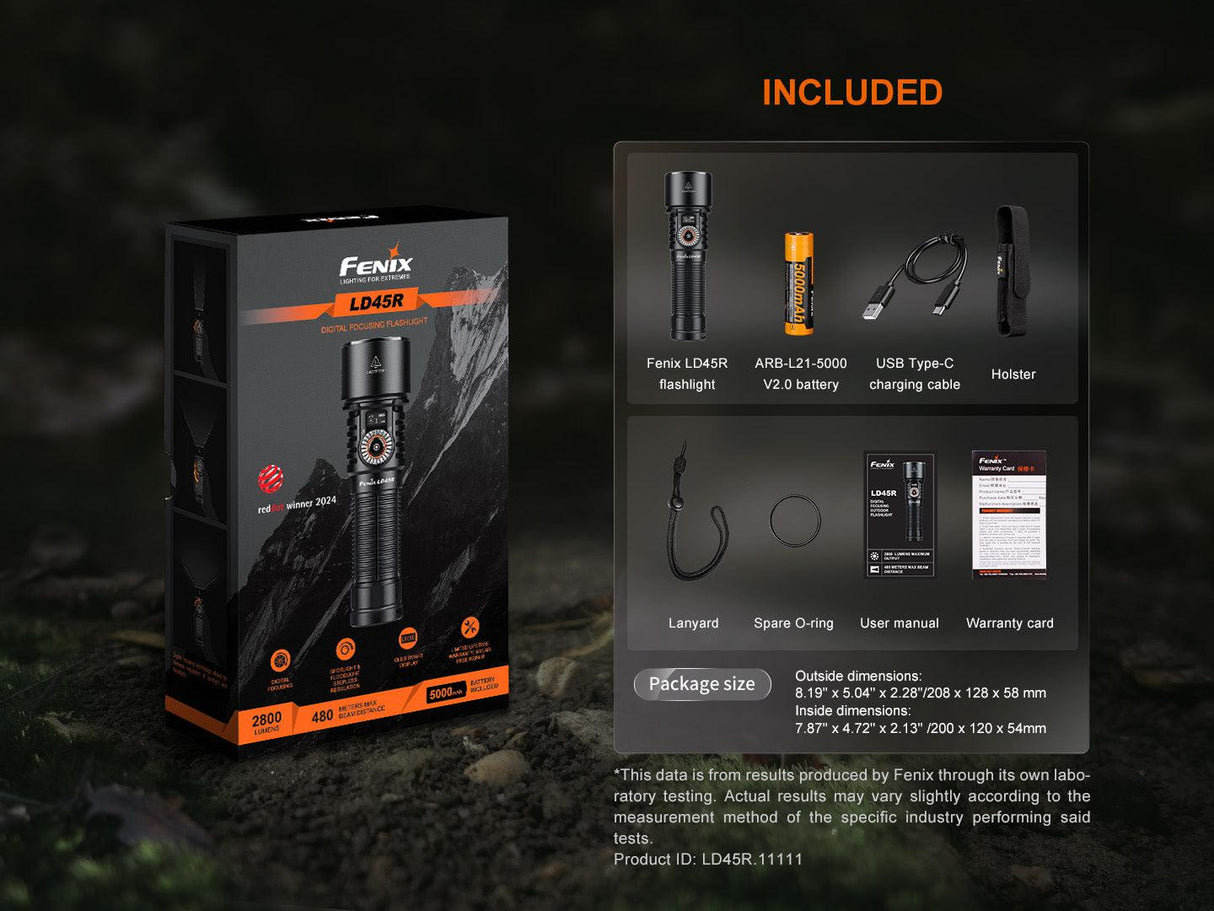

Packaging and Contents

Supplied in retail packaging and includes:
Fenix LD45R LED torch x 1
Fenix ARB-L21-5000 V2 rechargeable lithium-ion battery x 1
USB-C charging cable x 1
Holster x 1
Lanyard x 1
Spare O-ring x 1
Manual x 1
