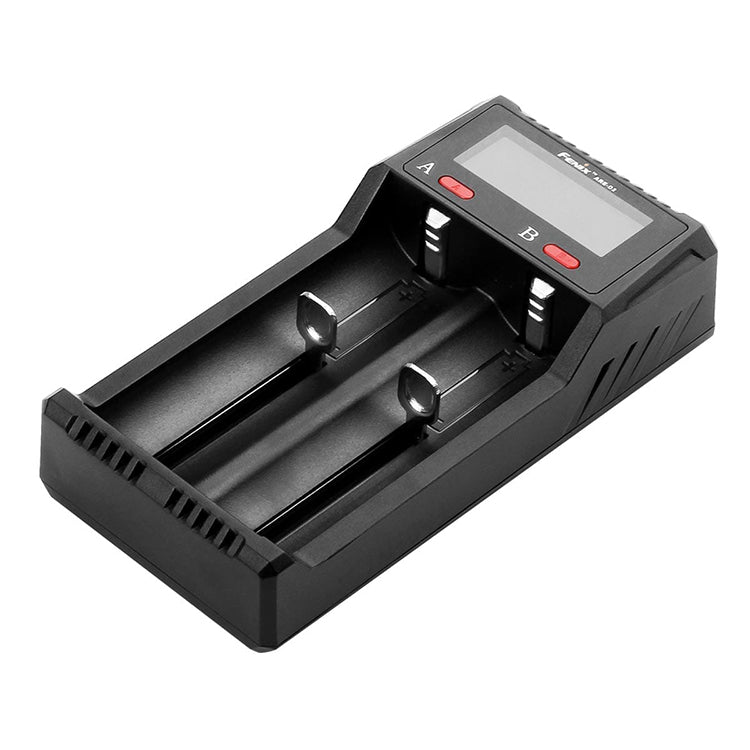

Fenix ARE-D2 Dual Bay Li-ion Battery Charger

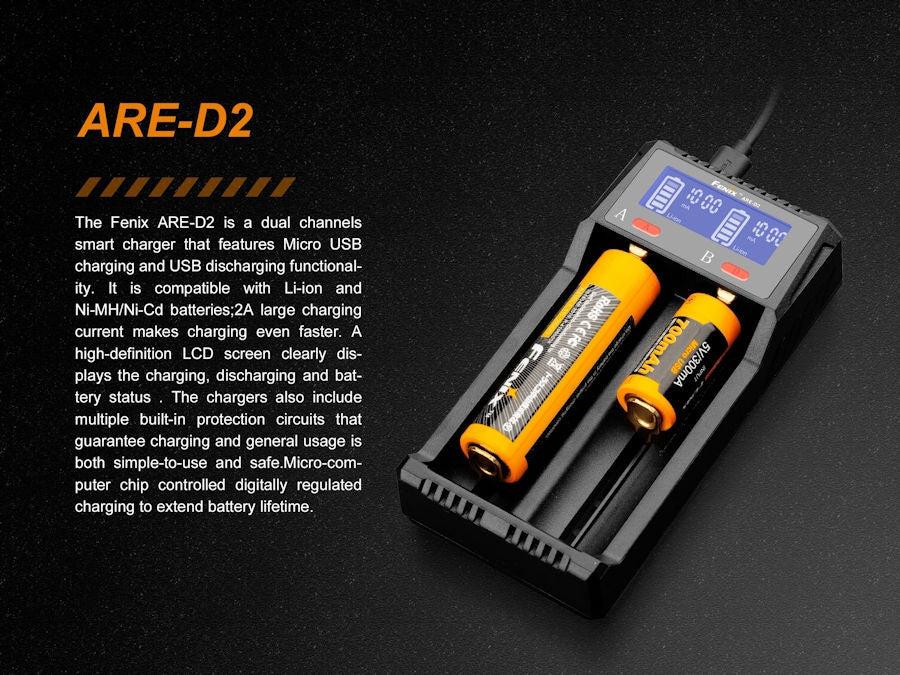

The Fenix ARE-D2 is a lithium-ion and NiMH smart multi charger with a two independent charging bays, and features a digital display and a power bank function.

It is suitable for charging the following batteries;

NiMH/NiCd 1.2 V batteries:
AAA, AA and C cell

Lithium-ion 3.6/3.7 V batteries:
10440, 14500, 16340/RCR123A, 18650, 21700 and 26650

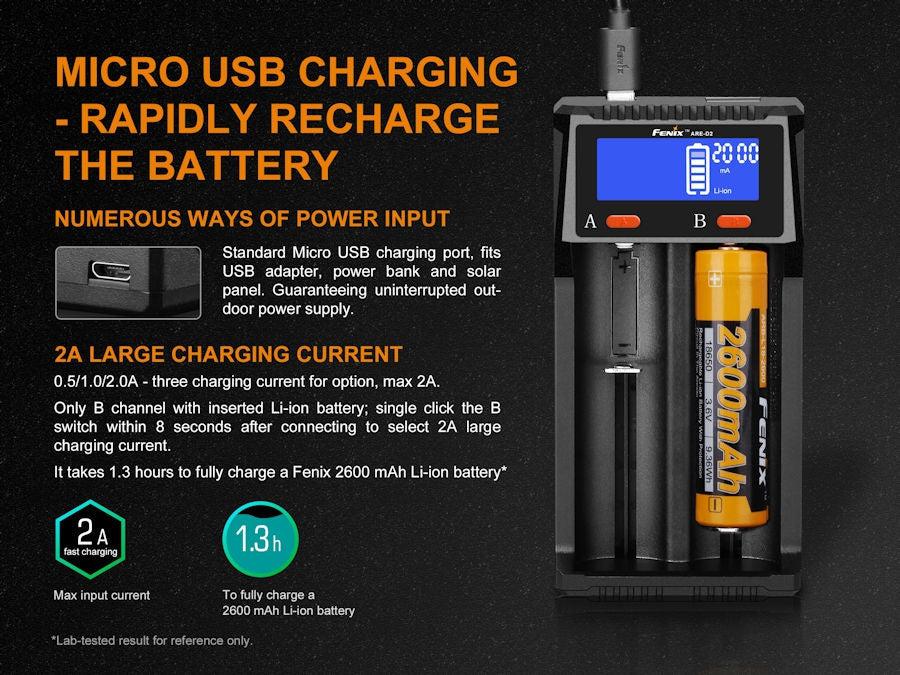

The included micro USB cable plugs into the micro USB port at end of the charger, and the standard USB at the other end of the cable plugs into a USB port on a computer, power bank, 5 V solar panel, USB car charger or USB mains charger and the LCD display will light up for 2 seconds to show power is being provided and will then display a battery symbol if no battery is inserted, the the screen will turn off after 30 seconds.

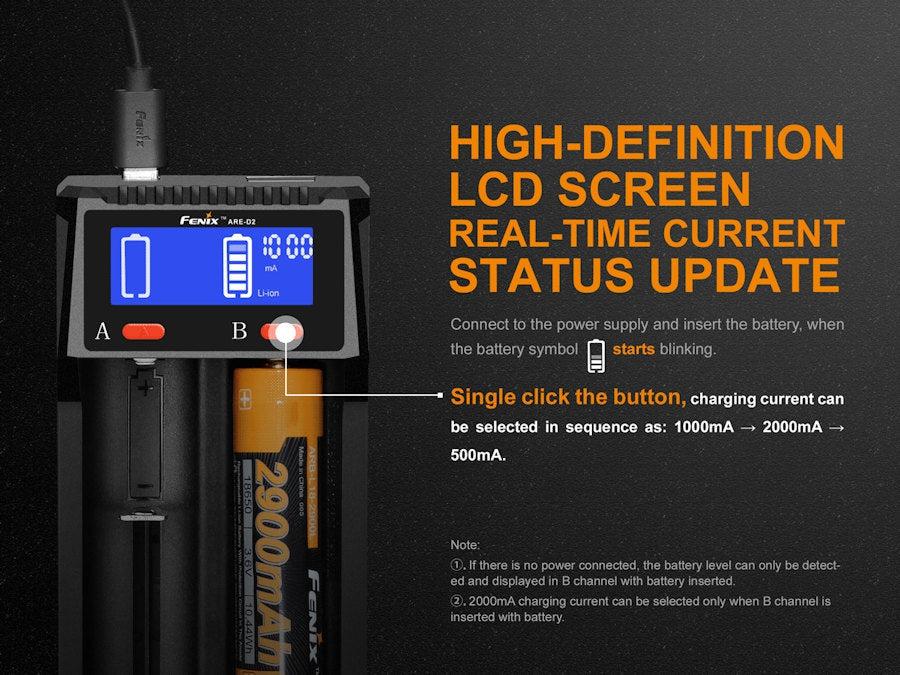

Insert a compatible battery with the polarity the correct way round and the battery type, capacity and charging status will be displayed followed by a battery symbol that will flash for 8 seconds, during which time you can press the orange A or B button above the corresponding bay to select between the charging currents. Bay A is for standard charging with choice of 0.5 A or 1 A for all battery types and Bay B is for fast charging lithium-ion batteries with a choice of 0.5 A, 1 A or 2 A when only one battery is in Bay B. If a battery is inserted in both bays then the maximum current output is 1 A per bay. NiMH/Ni-Cd batteries can only be charged at 0.5 A or 1 A.

The battery will then begin charging and the LCD screen will display the charging status indicator bar on the left hand side above each bay which will indicate the following;

One flashing: Less than 20%
One on & one flashing: 21-40%
Two on & one flashing: 41-60%
Three on & one flashing: 61-80%
Four on & one flashing: More than 80%
Five on: Fully charged

The right hand side above each bay will display charging stats and can be cycled through in the order of charging current (A), battery voltage (V), charging capacity (Ah) and charging time (T) by pressing the orange button above each bay. The LCD screen can be turned off by holding the button for two seconds, and turned back on with a single press.

The charger is fully protected against short circuit, over current, over voltage and reverse polarity assuring the utmost safety and taking the best possible care of your batteries. There is no trickle charge for lithium-ion batteries to prevent overcharging once fully charged, and the charging current (A) will read 0. NiMH / Ni-Cd batteries will receive a trickle charge of 3-5 mA to ensure they are fully charged.

If short circuiting is detected then the charger will automatically stop charging, or if the battery is inserted the wrong way round then charging will not commence.

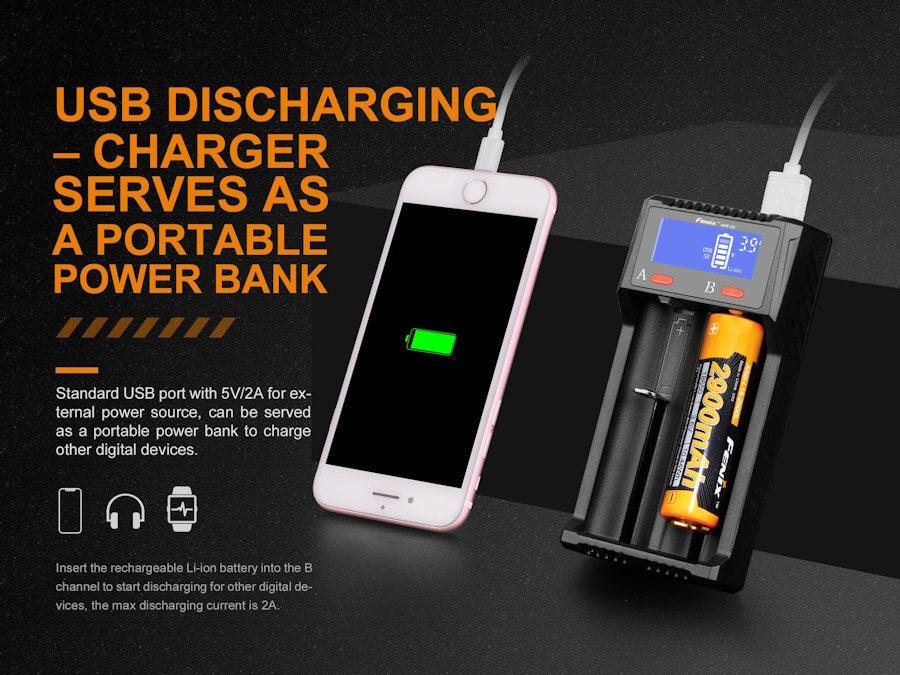

This charger has the advantage of a USB port power output, so you can use Bay B of the ARE-D2 as a power bank, enabling you to charge external devices at a maximum output of 2 A. Insert a suitable charged battery into Bay B and then connect the charging cable of the device to the standard USB port of the ARE-D2 to begin discharging the battery in order to charge your device.

The LCD screen will display the battery level and voltage during the discharging process. Only lithium-ion batteries can be discharged to charge external devices, and if the battery is being charged at the same time then the power bank function will be disabled until the battery is fully charged. A small charging current mode of 100 mA can also be activated if required.

Note: Always use in accordance with instruction manual and read before first use.

Product Features

Maximum 2 A fast charging speed
Trickle charges Ni-MH batteries at end of cycle to achieve full charge
Short circuit, over current, over voltage and reverse polarity protected
Micro USB charging and USB discharging capability
High resolution LCD screen displays charging stats

Operation Temperature: -20°C to 50℃
Input: Micro USB 5 V, 2 A
Rated Output Power: 3 W (NiMH/Ni-Cd) / 8.4 W (Li-ion)
Charging Current Output: 2 x 0.5 A, 2 x 1 A or 1 x 2 A (li-ion) / 2 x 0.5 or 2 x 1 A (NiMH/Ni-Cd)
USB Output: 5 V 2A for charging external devices
Weight: 92 grams
Dimensions: 123 x 62 x 30 mm

Supplied in retail packaging and includes:
ARE-D2 dual bay charger x 1
USB charge cable x 1
Instruction manual x 1

Safety Notes

1. Charge only rechargeable 3.6/3.7 V lithium-ion batteries or rechargeable 1.2 V NiMH/Ni-Cd batteries
2. Charging any other types of batteries may cause them to leak rupture or explode.
3. Do not disassemble or modify any part of the charger or use as a power source.
4. Always unplug the charger from outlet before attempting maintenance or cleaning.
5. This charger should not be used by persons without adequate training or knowledge.
