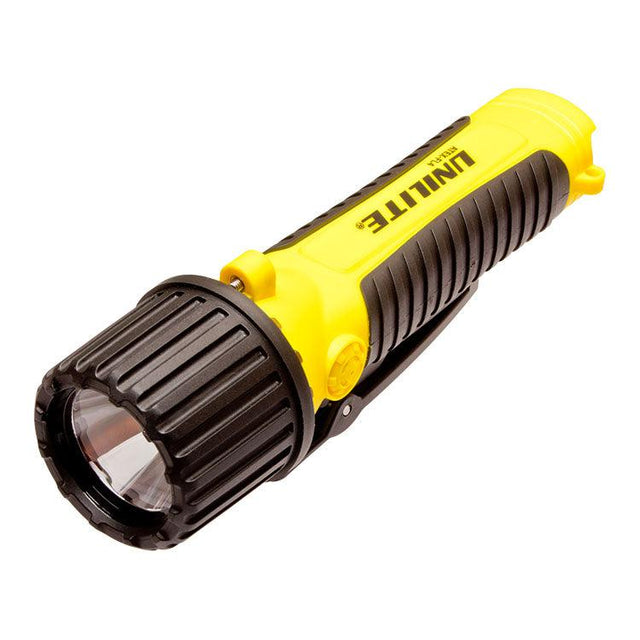

Unilite ATEX-FL4 Intrinsically Safe Zone 0 Safety LED Torch

The Unilite ATEX-FL4 is an intrinsically safe torch that uses a high quality Cree LED to deliver 150 lumens of bright white light.

The industrial strength polycarbonate body, AR coated toughened glass lens and rubberised head and handle grips makes this torch the ultimate robust and reliable safety torch for use in in even the most arduous environments.

The ATEX-FL4 is powered by four AA alkaline or NiMH batteries which are securely fastened in the torch for safety and require a screwdriver to open the battery compartment.

The IP67 rating means that this torch is dustproof as well as waterproof and can be submerged underwater up to 3 metres.

Only specific types of AA alkaline and NiMH batteries are permitted for use in this torch, they are as follows;

Alkaline: Energizer E91, Duracell MN 1500, Rayovac 815, Ansmann 5015548 and Ansmann 1502-0002
NiMH: Energizer NH15-2300

Product Features

ATEX Zone 0 compliant
Anti-explosive, safe around sparks
Safety release valve to release hydrogen gases
Rubberised head and tactical micro tail switch
Detachable belt clip included for easy carrying
Rubberised handle for extra grip

Certifications

Class I Div 1 Grp ABCD / Class II Div 1 Grp EFG
Class III / Temperature Code T4 IP67
File number: E324236

II 1G Ex ia IIC T4 IP67
DEMKO 13 ATEX 1302999X

Ex ia IIC T4 Ga IP67
IECEx UL 13.0013X

Operational Modes

High: 150 lumens; 6 hours run-time; 235 m beam range
Low: 35 lumens; 69 hours run-time; 110 m beam range

Technical Details

Type: ATEX hand torch
Operating Modes: High / Low / Off
Luminous Flux: Up to 150 lumens
Lamp: Cree LED
Beam Range: Up to 235 m
Batteries Required: 4 x AA alkaline or NiMH batteries (not included)
Run Time:  Up to 69 hours
Dimensions: 174 x 47 mm
Weight: 115 grams (excluding batteries)
Body Colour: Yellow
Body Material: Industrial strength polycarbonate housing, chemical/corrosion resistant
Switch Type: Tail push button
Impact Resistance: 1 m
Environmental: IP67 standard (dust proof and submersible to 3 m depth)

Packaging and Contents

Supplied in retail packaging and includes:
Unilite ATEX FL4 Zone 0 torch x 1
Instruction leaflet x 1
