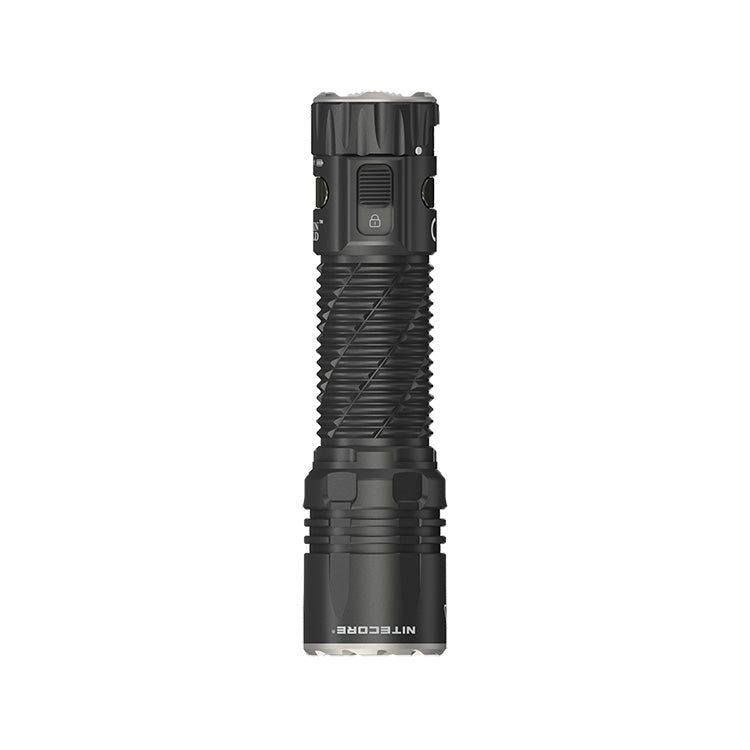

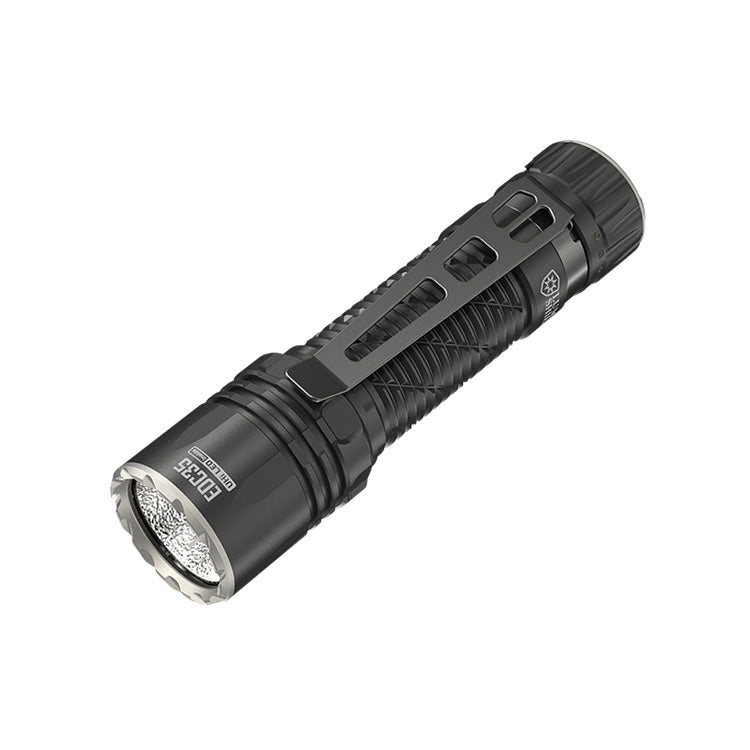

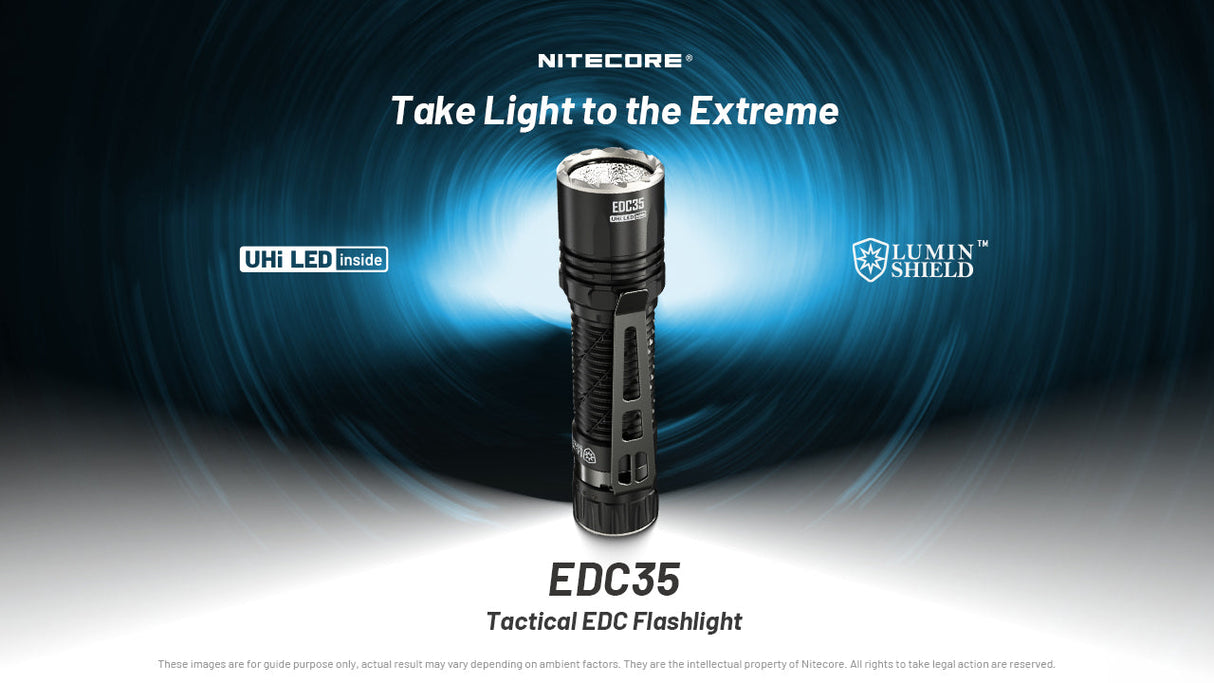

Nitecore EDC35 Slim Rechargeable LED Torch

The EDC35 is a compact and versatile high performance rechargeable torch with a maximum output of 4000 lumens, featuring the Lumin Shield floodlight and Search spotlight outputs from an upgraded NiteLab UHI 40 MAX LED.

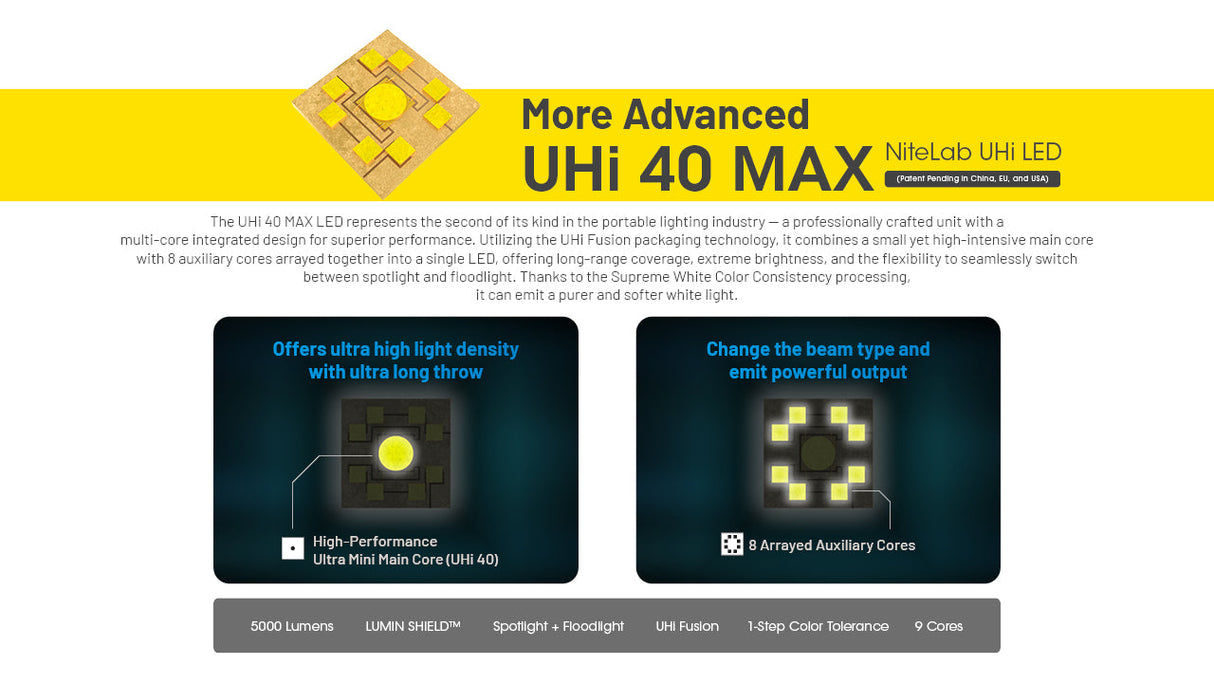

The UHi 40 MAX LED offers a small but high-intensive core which offers long-range coverage, extreme brightness and the flexibility to switch seamlessly between the flood and spot light, ensuring the EDC35 is perfect for a range of tasks.

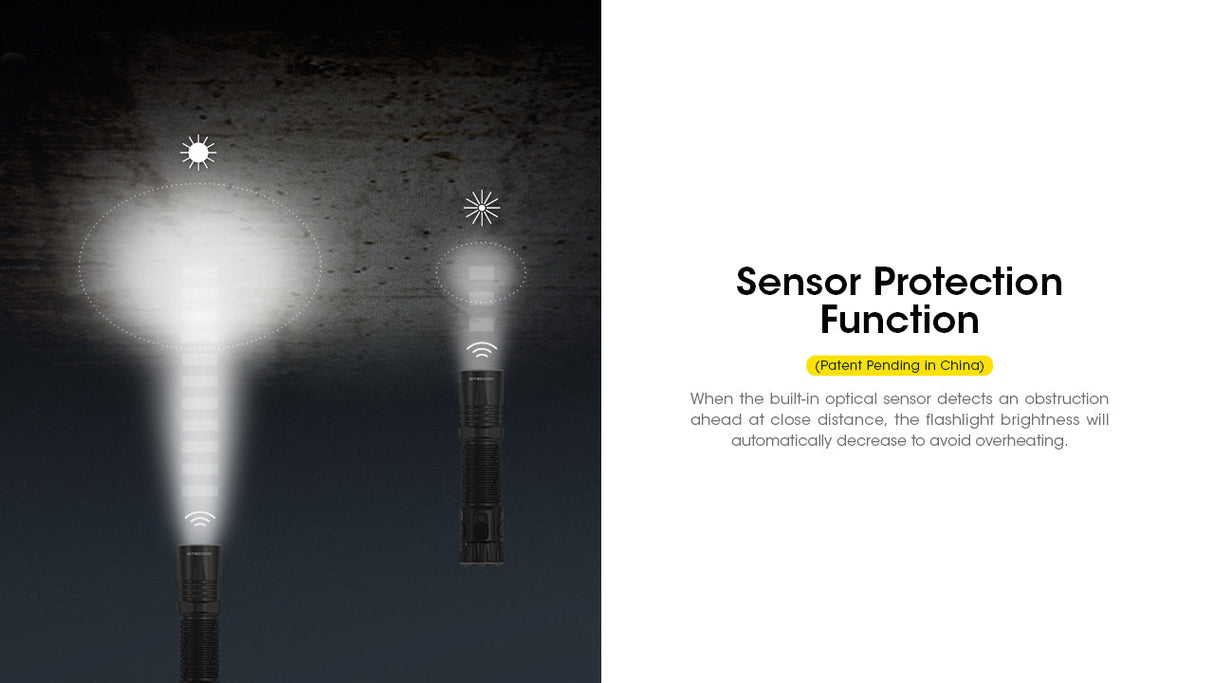

The EDC35 features a built-in optical sensor which detects obstructions and automatically reduces the output to 300 lumens to protect the torch from overheating. Once the obstruction is removed the torch will return to the previous output. This function is only available in the high output and can be temporarily disabled by quickly half pressing the tail button once the torch is turned on.

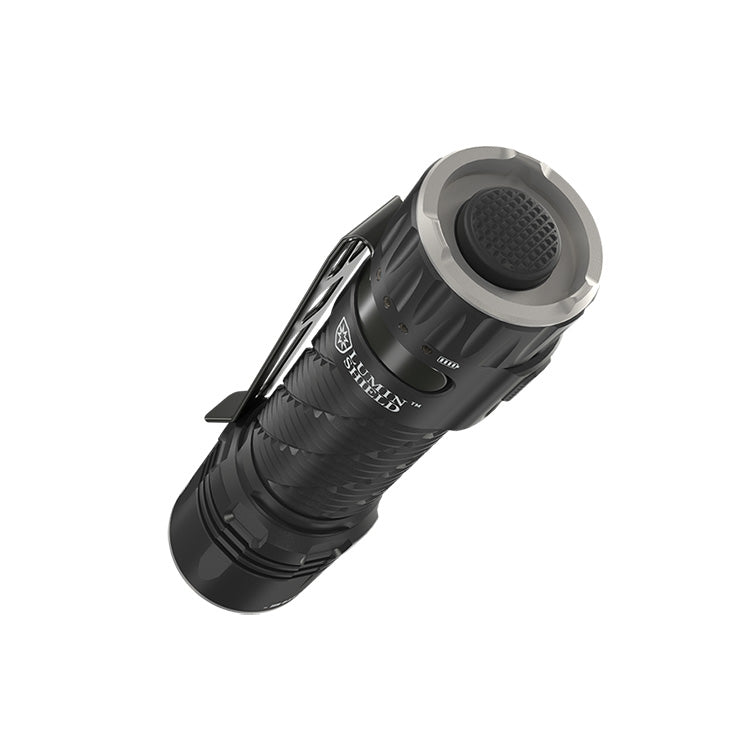

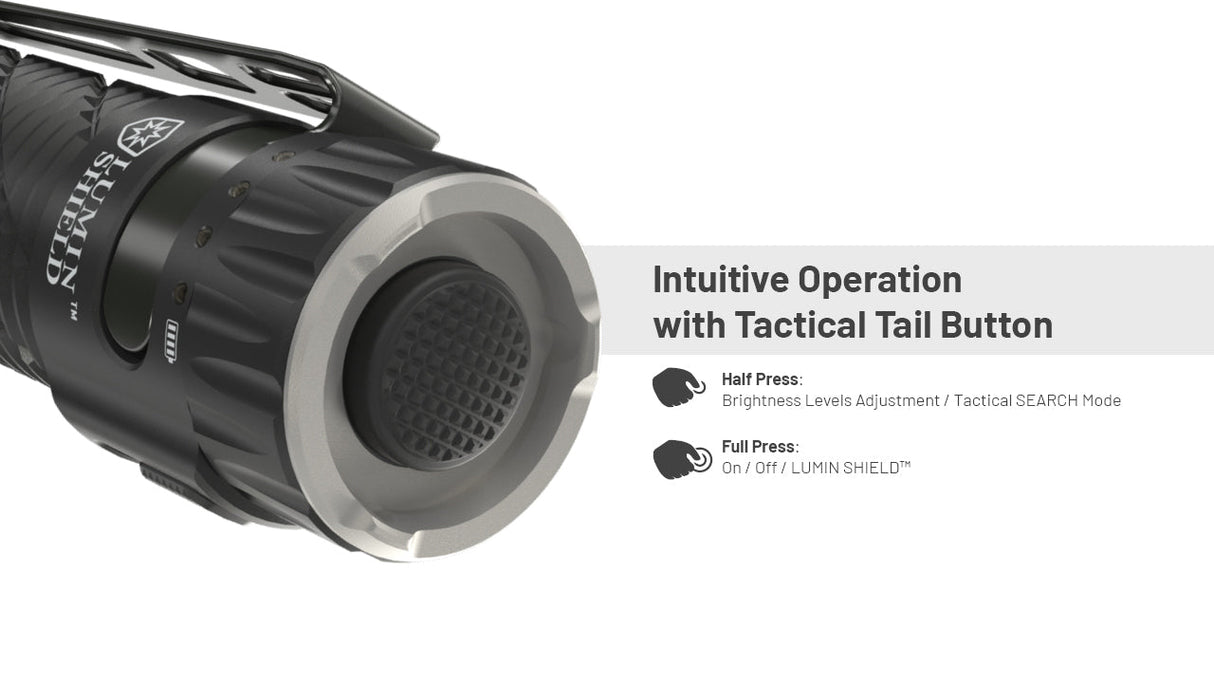

The power button on the tail cap of the EDC35 turns the torch on or off with a full press. While on, half press the button to cycle through the outputs of ultralow, low, medium and high. Thanks to the memory function the torch will turn on in the last used output.

The EDC33 features a lumin shield floodlight which offers instant protection with a broad wall of light plus the search spotlight which features a 550 m beam range for long range coverage. For direct access while on or off, half press and hold for the search output and full press and hold for the lumin shield output. Release the button in either mode to return to the previous output, or if accessed from off the torch will turn off.

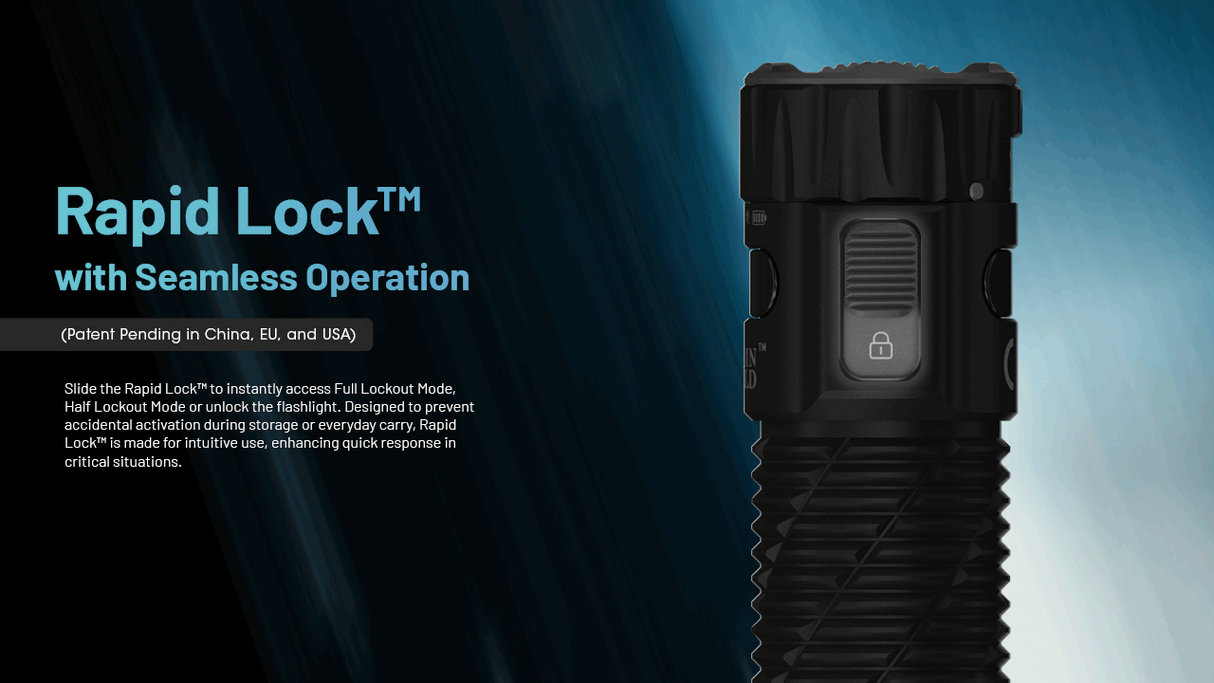

To prevent accidental activation, the EDC35 has two lockout modes and now features the Rapid Lock. The Rapid Lock is a half lockout mode which only allows access the the search and lumin shield outputs. Half press and hold the mode button to access the search output or full press and hold the mode button to access the lumin shield output, should you still need partial access to light in an emergency. This mode is activated while the torch is on by holding down the power button while sliding the Rapid Lock switch up, the lock icon can be seen below the lockout switch.

Lockout 2 is a full lockout mode and disables all output functions. It is accessed while the torch is on or off, simply slide the lockout switch up and the lock icon can be seen under the switch. To unlock the light from either lockout modes, slide the lockout switch back down.

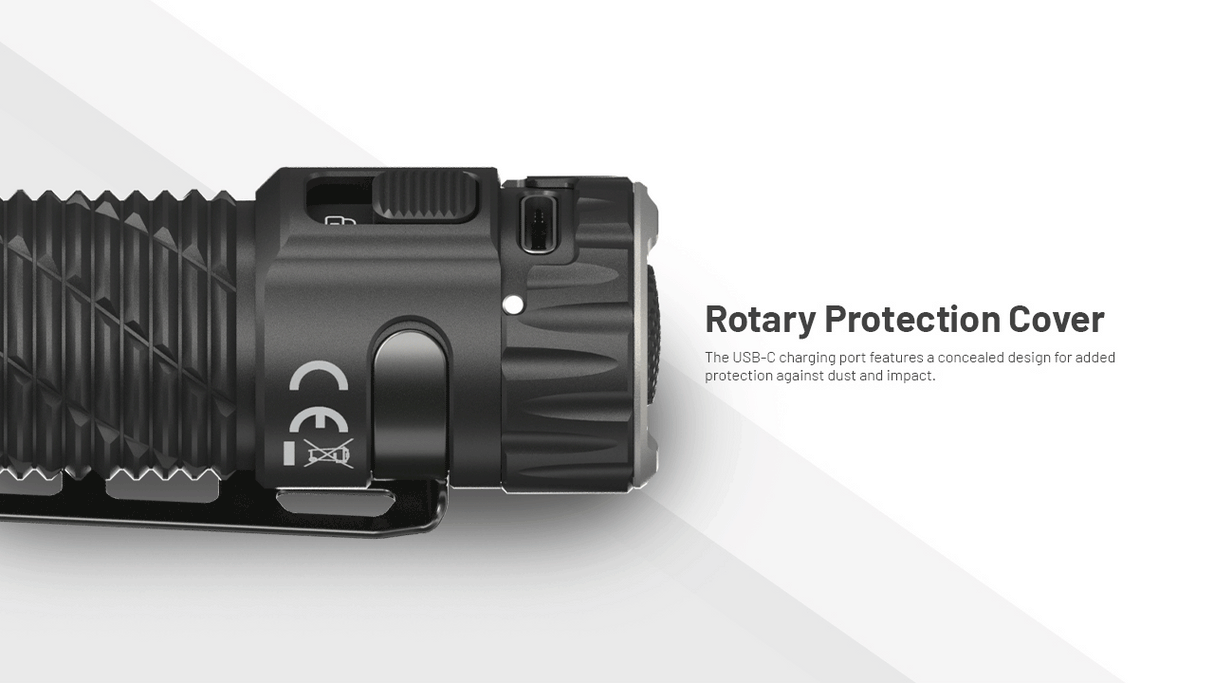

The EDC35 is powered by a built-in 6000 mAh lithium-ion rechargeable battery which is recharged via the USB-C charging port located on the tail of the torch. Rotate the dust cover and plug in the included USB-C cable at one end and plug the other end into a compatible USB power source. The power indicator will blink slowly before turning solid to indicate a full charge after approximately 3 hours and 30 minutes. The torch can still be operated during charging, excluding the lumin shield and search outputs.

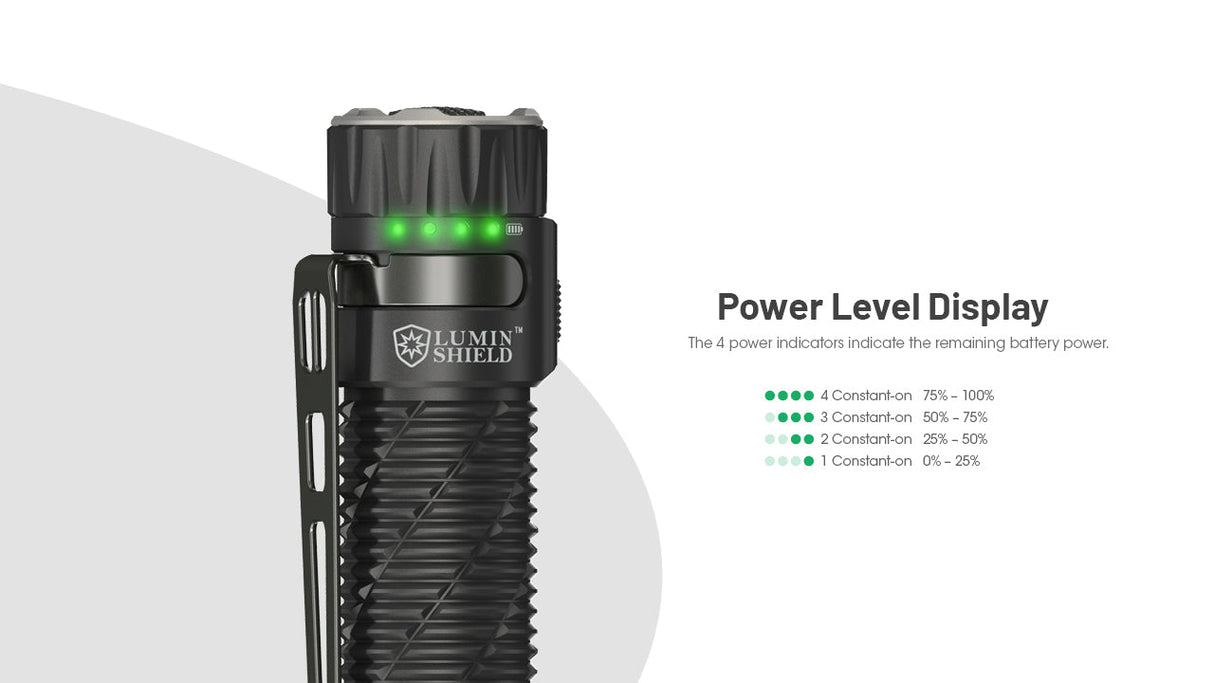

Remaining battery power is indicated while the torch is on, while off half press the tail button and the indicator will display (except when in lockout modes). Four indicators show 75-100%, three indicators show 50-75%, two indicators show 25-50% and one indicator shows 0-25% and the torch should be charged as soon as possible.

The advanced temperature regulation module allows the EDC35 to regulate its output and adapt to the ambient environment to maintain optimal performance.

Product Features

Built-in rechargeable lithium-ion battery with USB-C charging
Integrated intelligent Li-ion battery charging circuit
Over-discharge, overcharge and short circuit protections
Advanced temperature regulation
Lightweight, compact and portable

Operational Modes

Lumin Shield: 5000 lumens; 500 m beam range
Search: 3000 lumens; 550 m beam range
High: 1300 lumens; 4 hours, 45 minutes run-time; 230 m beam range
Mid: 300 lumens; 9 hours 15 minutes run-time; 200 m beam range
Low: 70 lumens; 40 hours run-time; 100 m beam range
Ultralow: 5 lumens; 90 hours run-time; 27 m beam range

Advanced temperature regulation dynamically adjusts output to prevent the LED from overheating, therefore these run-times are variable.

Technical Details

Type: LED torch
Operating Modes: Lumin Shield / Search / High / Mid / Low / Ultra Low
Luminous Flux: Up to 5000 lumens
Beam Range: Up to 550 m

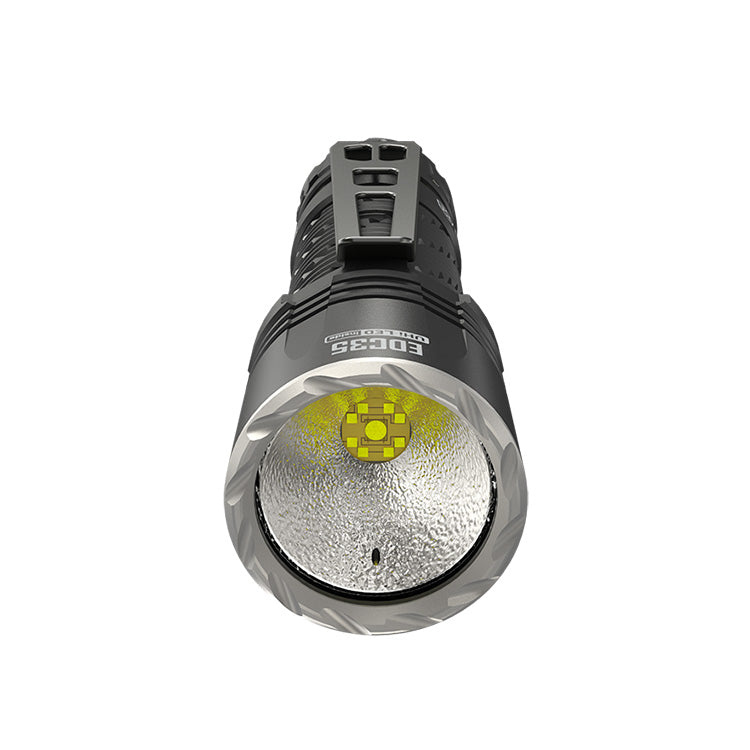

Lamp Type: 9-Core NiteLab UHi 40 MAX LED

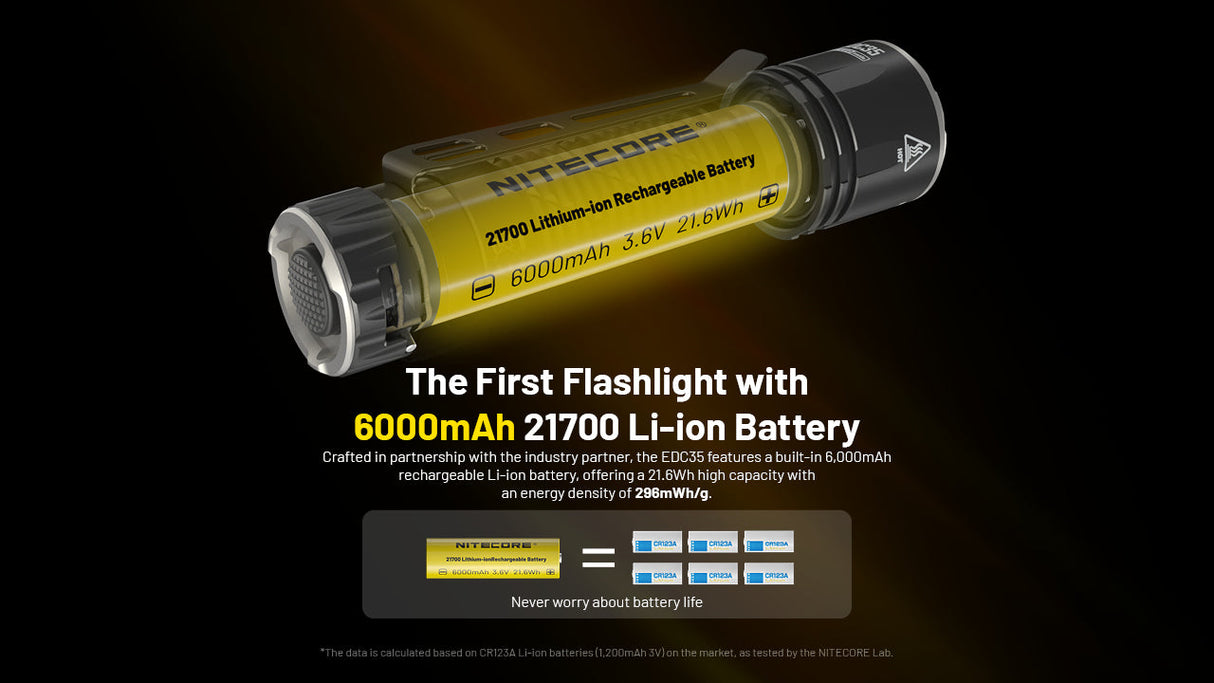

Batteries Required: Built-in 6000 mAh, 21700 lithium-ion battery

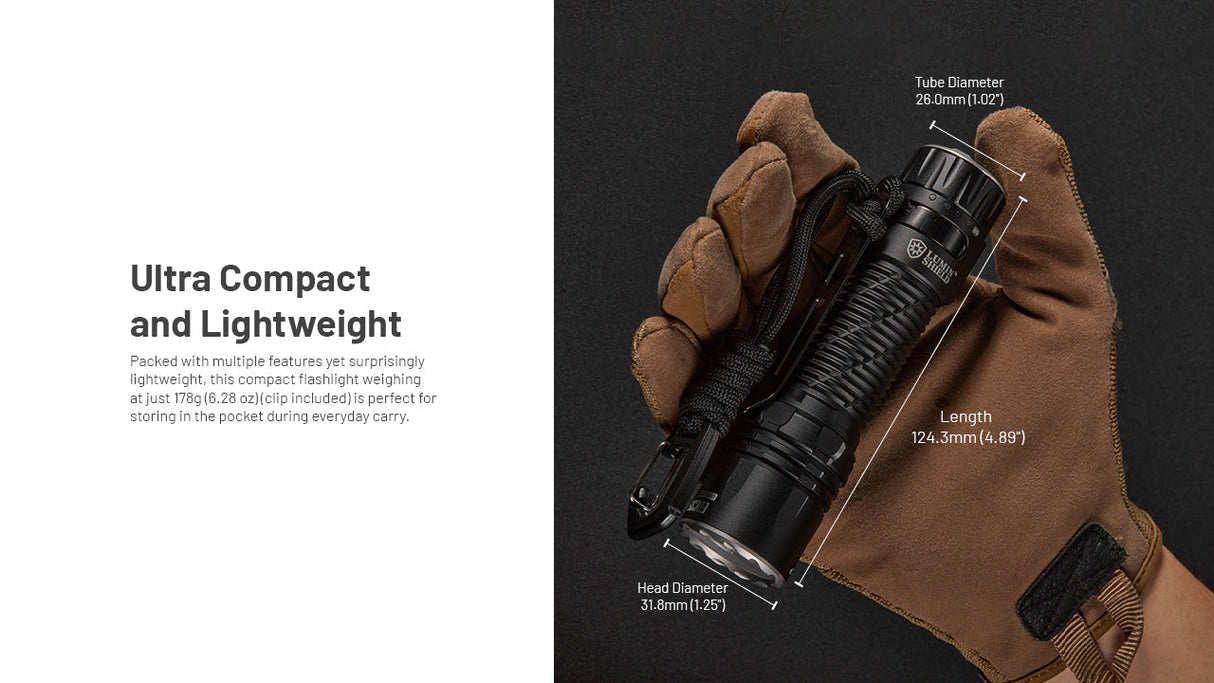

Length: 124.3 mm
Head diameter: 31.8 mm
Weight: 171 grams
Body Colour: Black

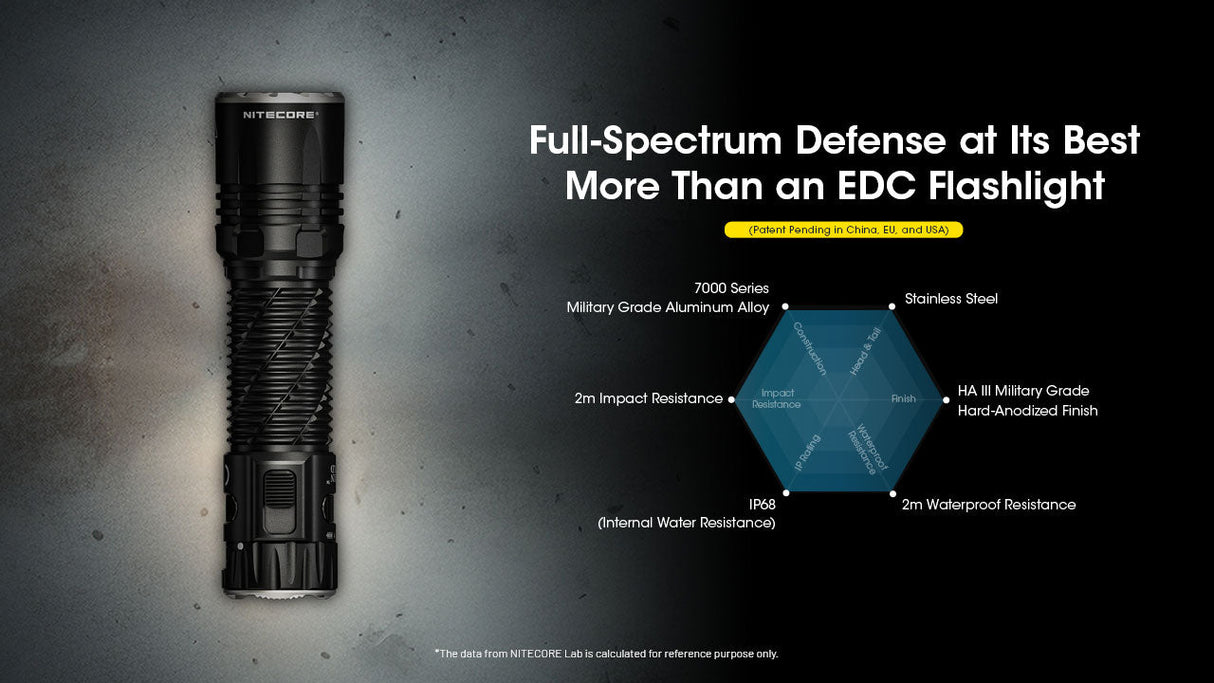

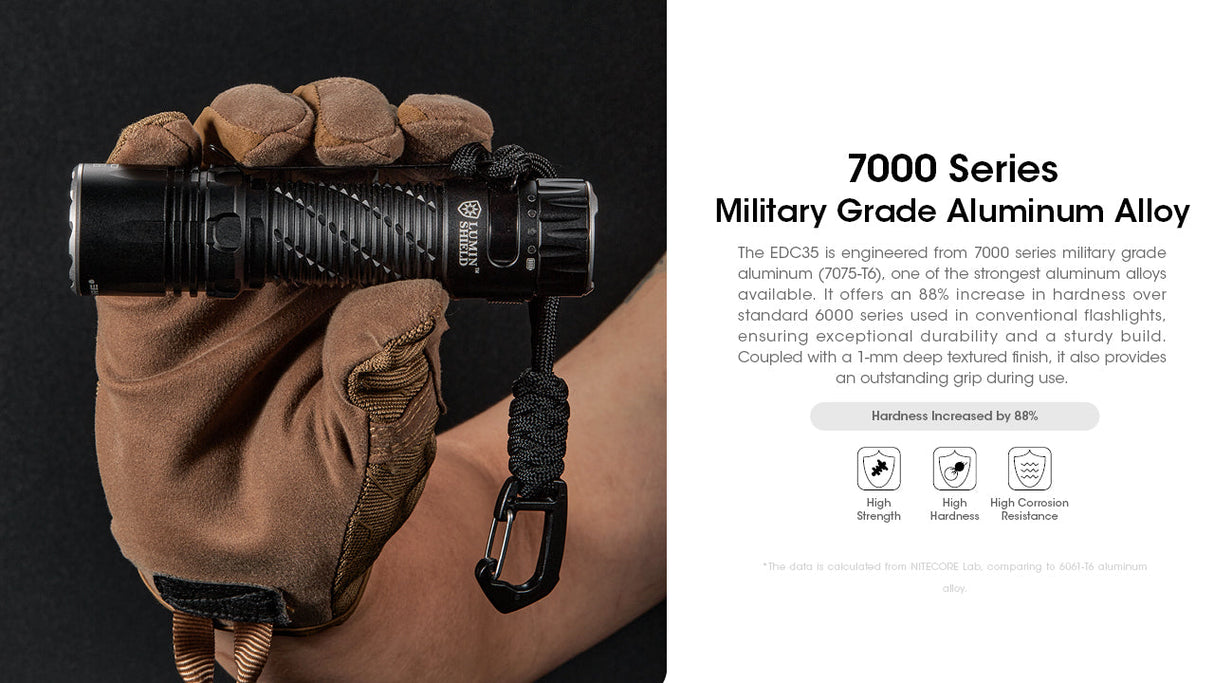

Body Material: Military grade aluminium alloy
Environmental: IPX8
Impact Resistance: 2 m
Warranty: 2 years

Packaging and Contents

Supplied in retail packaging and includes:
Nitecore EDC35 LED torch x 1
USB-C charging cable x 1

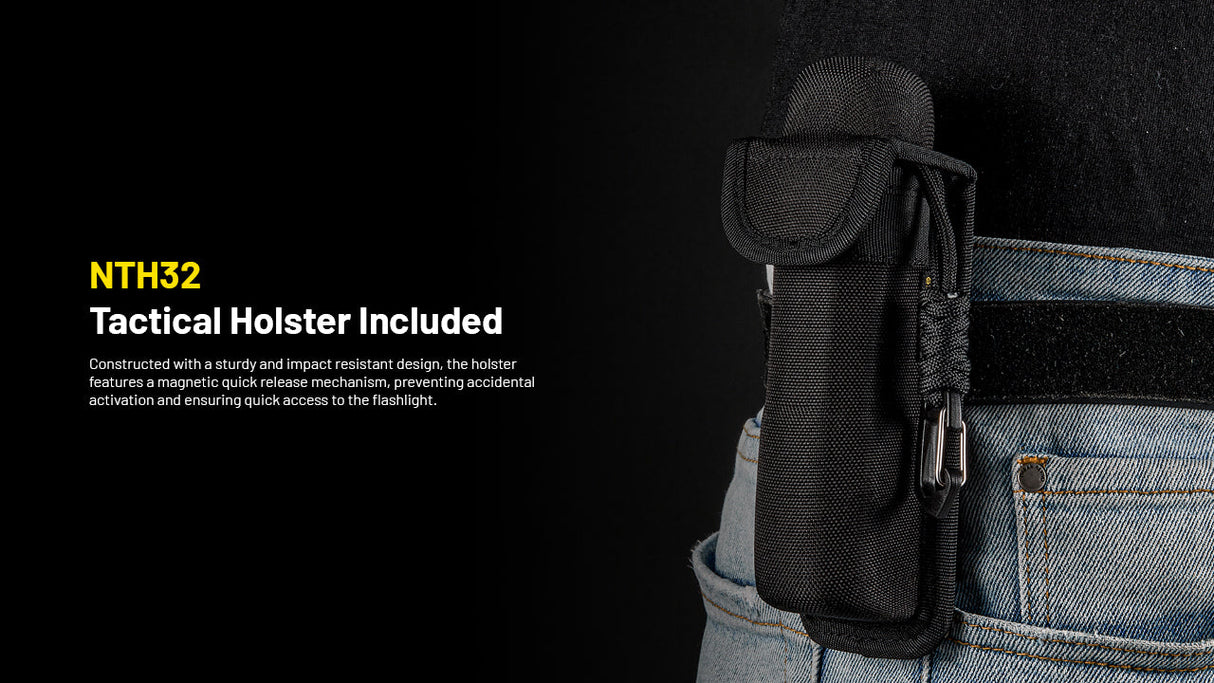

NTH32 Holster x 1

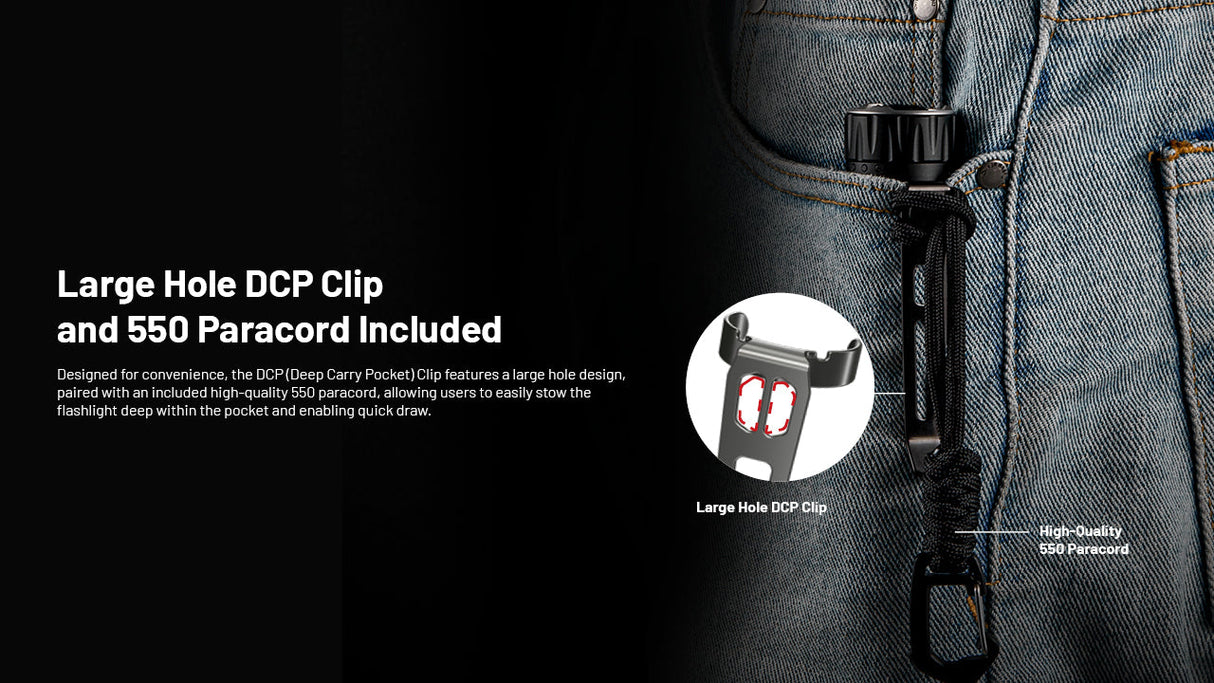

Clip x 1
Lanyard x 1
Manual x 1
