Ledlenser iL7 ATEX Zone 2/22 LED Torch
Ledlenser iL7 ATEX Zone 2/22 LED Torch is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

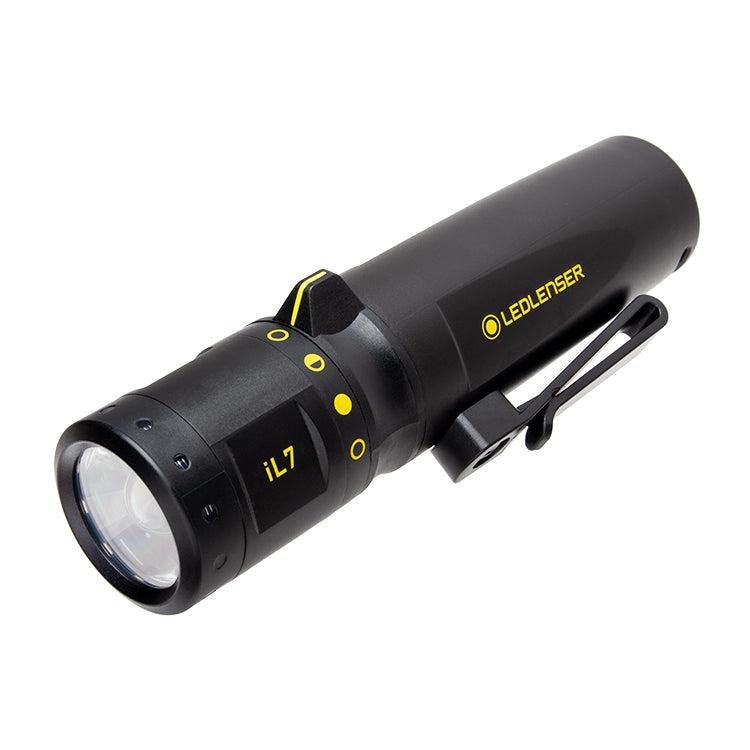

The LED Lenser iL7 intrinsically safe torch is ATEX Zone 2/22 compliant and uses a high quality LED to deliver 340 lumens of white light.
The industrial strength polycarbonate body features a removable pocket clip so that it can be easily carried on a shirt pocket or on a trouser pocket. The pocket clip is screwed into place and can be removed using a flat head screwdriver.
The iL7 is powered by three AA alkaline batteries which are fitted by unscrewing the head of the torch, removing the battery carrier and then inserting the batteries into the carrier as indicated by the + and - at the ends of each battery slot. The battery carrier is then reinserted into the body of the torch, ensuring that the arrow on the carrier lines up with the arrow on the rim of the body and the head is then screwed back on tightly. Never open the torch when in an explosive environment.
The selector ring switch on the body has two off positions, low position and high position so you can easily select the brightness level required. A fresh set of batteries provides a run-time of up to 37 hours on low. Always remove depleted batteries as soon as possible and also remove batteries before storing the torch to avoid battery leakage.
The IP66 rating means that this torch is dustproof as well as water resistant to a powerful water jet. Due to the energy saving features the output will gradually drop throughout use to preserve the battery life.
Note: Please carefully read all warnings in the product manual before use.
Only specific types of AA alkaline batteries are permitted for use in this torch, they are as follows;
Duracell Plus Power
Energizer E91
Energizer Industrial EN91
Varta High Energy
Panasonic Industrial Powerline
Panasonic Evolta
Panasonic LR6XJ
Ledlenser Alkaline LR6
Certifications
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc
Certification number:
Baseefa18ATEX0070
Certificate of conformity:
IECEx BAS18.0008
Operational Modes
High: 340 lumens; 7 hours run-time; 165 m beam range*
Low: 70 lumens; 37 hours run-time; 80 m beam range**
* The lumen output will gradually decrease from 100% to 60% over 1 hour and then from 60% to 20% over 4 hours, 30 minutes and it will run at 20% for the remainder of the battery life in order to prolong the run-time.
** The lumen output will gradually decrease from 100% to 60% over 3 hours and then from 60% to 20% over 30 hours and it will then run at 20% for the remainder of the battery life in order to prolong the run-time.
Technical Details
Type: ATEX hand torch
Operating Modes: High / Low / Off
Luminous Flux: Up to 340 lumens
Lamp: White LED
Beam Range: Up to 165 m
Batteries Required: 3 x AA alkaline (included)
Run Time: Up to 37 hours
Dimensions: 161.4 x 41.1 mm
Weight: 232 grams (excluding batteries)
Body Colour: Yellow and black
Body Material: Polycarbonate housing
Switch Type: Selector ring
Environmental: IP66 standard (dust proof and water resistant)
Packaging and Contents
Supplied in retail packaging and includes:
LED Lenser iL7 Zone 2/22 torch x 1
AA alkaline battery x 3
Manual x 1
