Ledlenser  |  SKU: 501018

Ledlenser EXH8R ATEX Zone 1/21 Rechargeable LED Head Torch

£149.94 £189.90

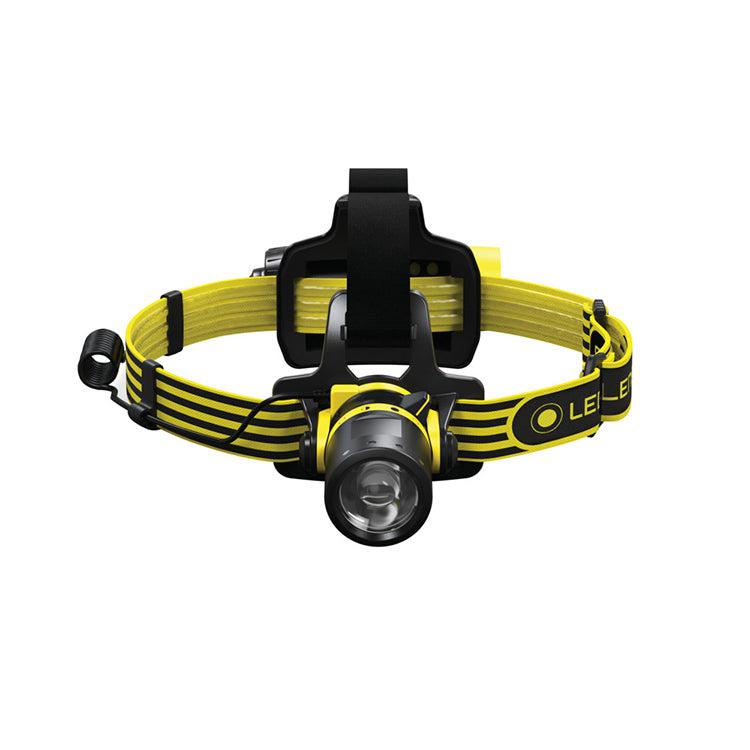

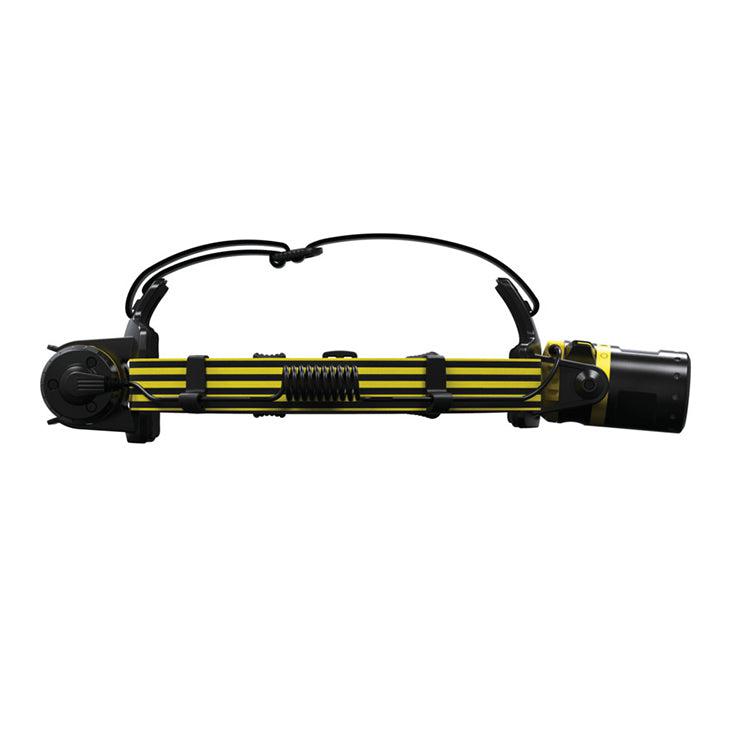

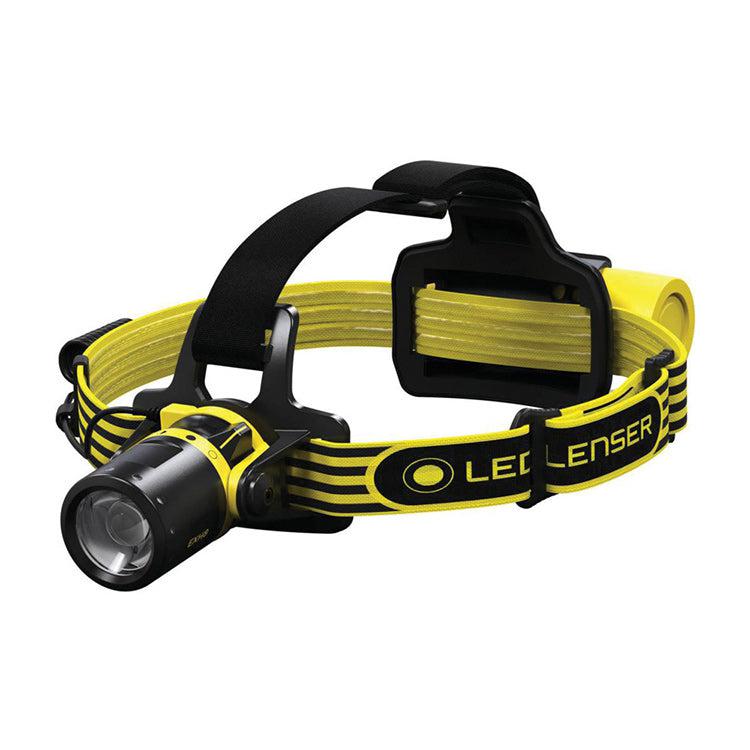

The LED Lenser EXH8R is an intrinsically safe head torch for use in ATEX zone 1/21 and has an output of 200 lumens using a white LED.

The EXH8R is powered by a lithium-ion cell which is sealed in a battery pack design for safety purposes. The battery pack is charged up with the included charging cradle which attaches to the mains power and then the battery pack is detached from the head band and placed into the cradle. The charging light on the battery will turn red to show charging is in progress and will turn green once charging is complete.

Never install the charging cradle inside an explosive atmosphere and never attempt to charge the battery while inside an explosive atmosphere.

The selector ring switch on the head has two off positions, low position and high position so you can easily select the brightness level required. A fresh charge provides a run-time of up to 45 hours on low and 10 hours on high. Due to the energy saving features the output will gradually drop throughout use to preserve the battery life.

Like most LED Lenser head torches, the EXH8R has a focusing feature on the head of the torch that can be twisted to focus the light between spot and flood light to suit your requirements.

The IP66 rating means that this torch is dustproof as well as water resistant to a powerful water jet. Due to the use this product is intended for it is advised that it is cleaned down regularly with a dry lint free cloth to prevent dust buildup on the outer casing.

Note: Please carefully read all warnings in the product manual before use.

Certifications

II 2G Ex ib op is IIC T4 Gb
II 2D Ex ib op is IIIC T135°C Db

Certification number:
Baseefa17ATEX0157

Certificate of conformity:
IECEx BAS18.0008

Operational Modes

High: 200 lumens; 10 hours run-time; 130 m beam range*
Low: 45 lumens; 45 hours run-time; 60 m beam range**

*The lumen output will gradually decrease from 100% to 60% over 2 hours and then from 60% to 20% over 5 hours and it will run at 20% for the remainder of the battery life in order to prolong the run-time.
**The lumen output will gradually decrease from 100% to 60% over 5 hours and then from 60% to 20% over 33 hours and it will then run at 20% for the remainder of the battery life in order to prolong the run-time.


Technical Details

Type: ATEX head torch
Operating Modes: High / Low / Off
Luminous Flux: Up to 200 lumens
Lamp: White LED
Beam Range: Up to 130 m
Batteries Required: Lithium-ion battery pack (included)
Run Time: Up to 45 hours on low
Weight: 342 grams (including batteries)
Body Colour: Yellow and black
Body Material: Durable polycarbonate construction
Switch Type: Selector ring
Environmental: IP66 standard (dust proof and water resistant)


Packaging and Contents

Supplied in retail packaging and includes:
LED Lenser EXH8R Zone 1/21 head torch x 1
Charging cradle x 1
UK Mains 3 pin power cable x 1
Manual x 1
