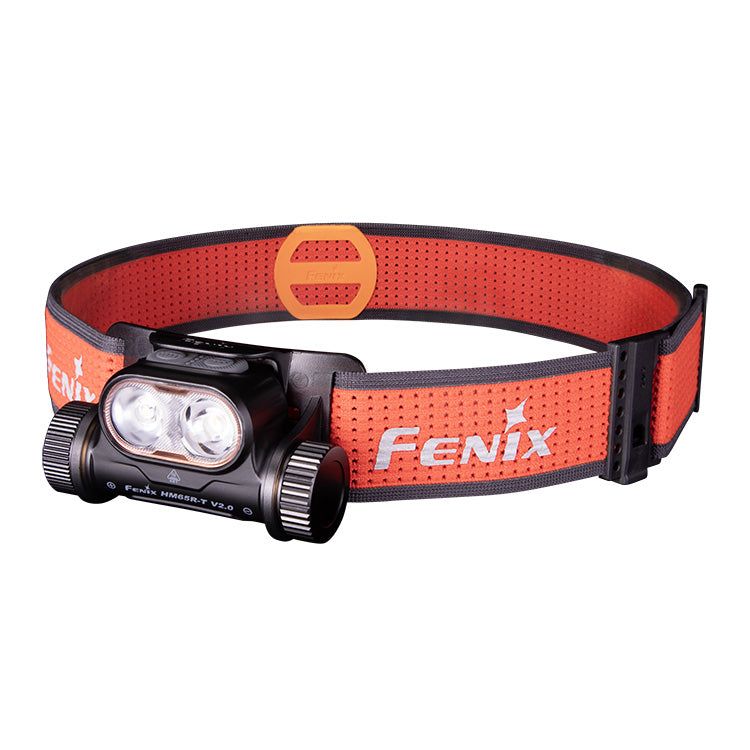

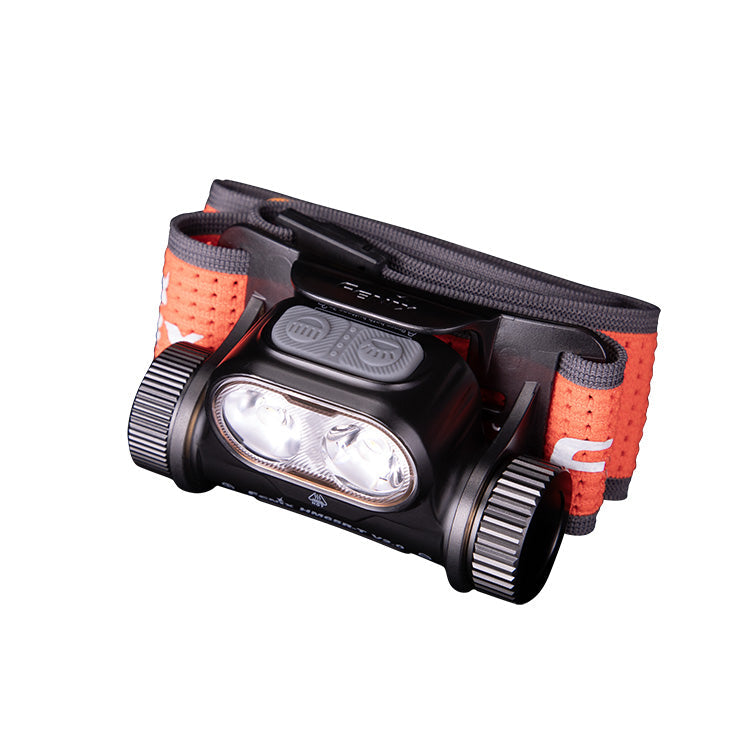

Fenix HM65R-T V2.0 Trail Running Rechargeable LED Head Torch

The Fenix HM65R-T V2.0 is the updated rechargeable head torch that is designed for trail running, and delivers a maximum output of 1600 lumens from the white light.

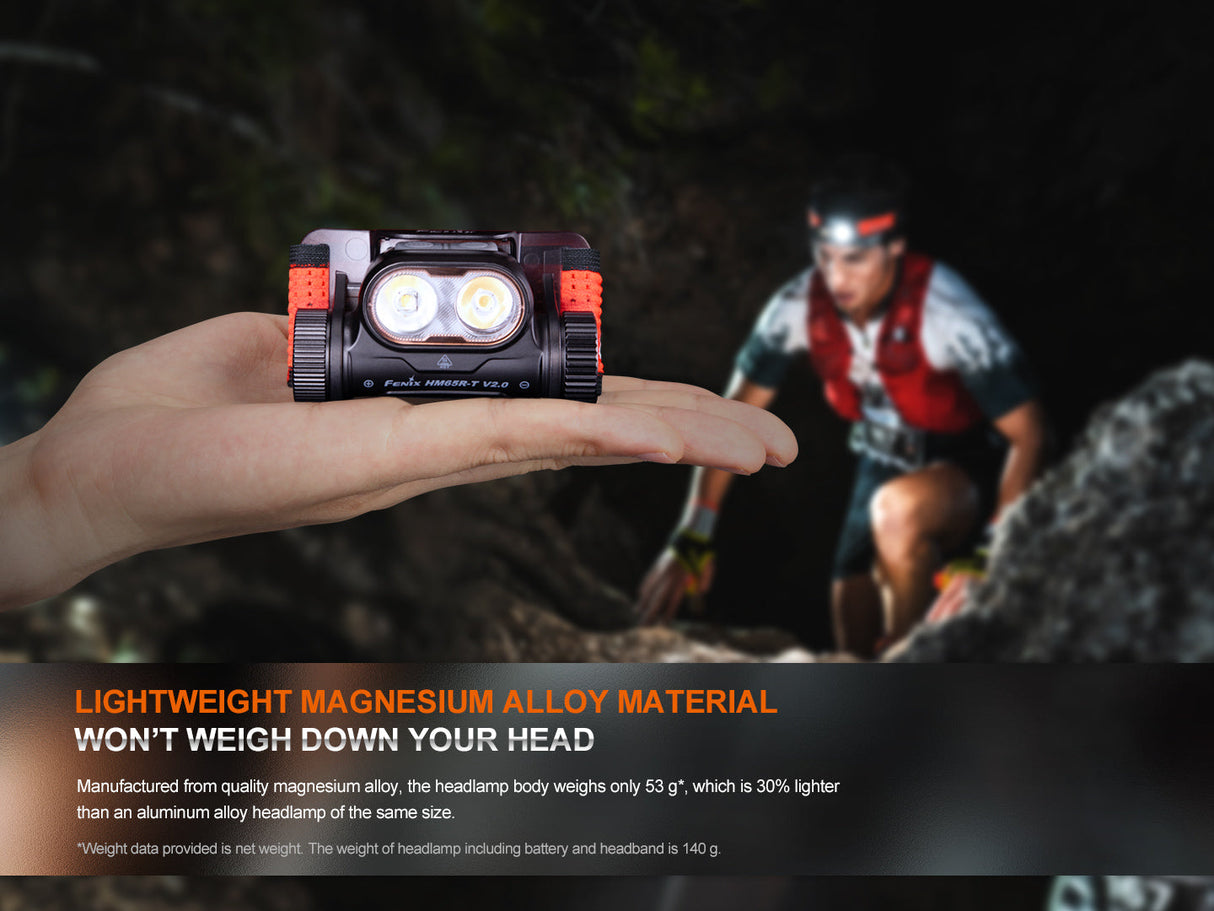

For extra durability and resilience the HM65R-T V2.0 is made from lightweight magnesium alloy, which is 30% lighter than the equivalent aluminium alloy body, and it is drop resistant to 2 metres distance as well as being waterproof to IP68 standard, which makes it perfect for outdoor activities.

The main right hand SST40 LED provides a white light that can reach up to 170 metres with a maximum output of 1600 lumens in the high setting. The left hand SST20 LED provides a warm white light  with a maximum output of 800 lumens and a beam range of 112 metres. The white and warm white lighting are controlled separately.

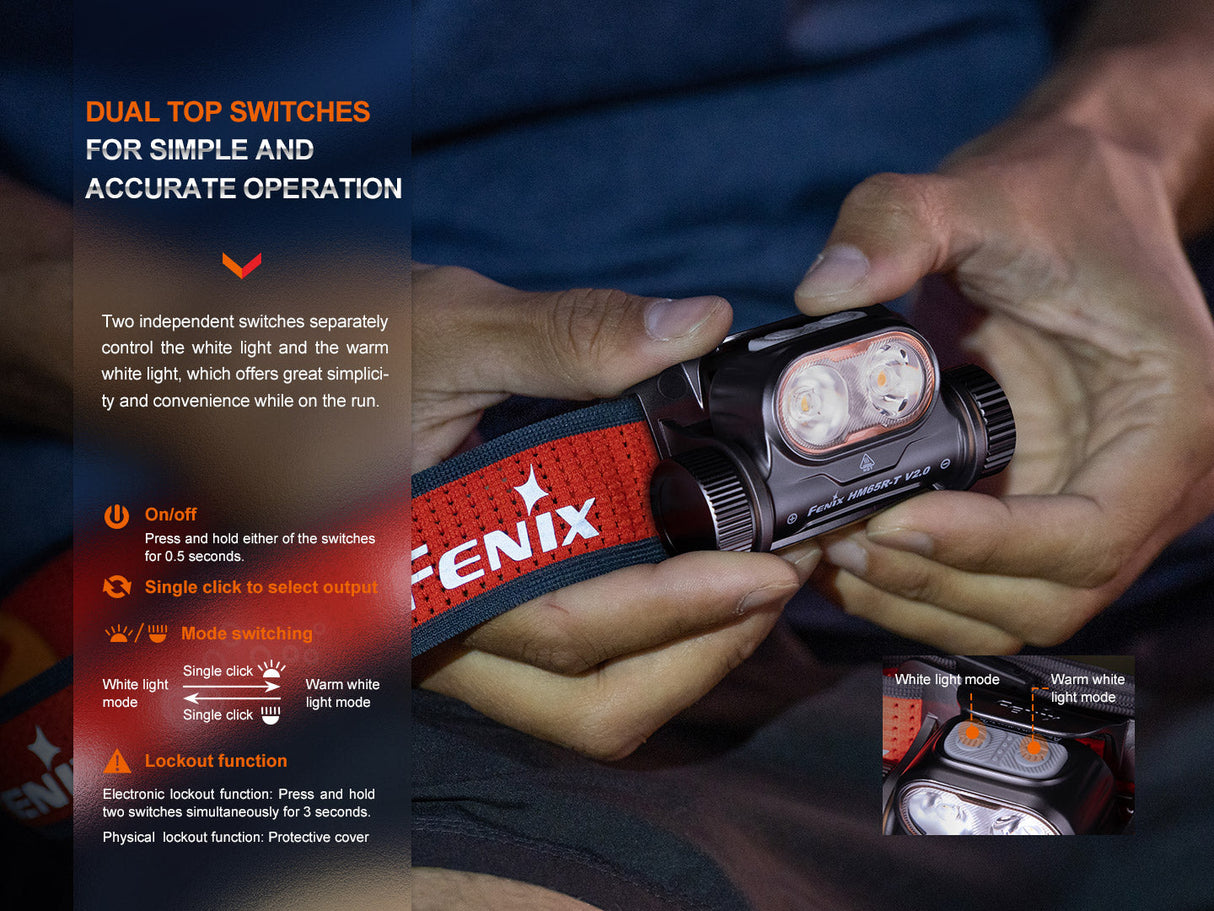

Two buttons are located on top of the head torch and are operated in the same way with one controlling the white light LED and the other controlling the warm white light LED. Press and hold either button for 0.5 seconds to turn the light on and then each press will cycle through eco, low, mid and high in the corresponding mode. Holding the relevant button for 0.5 seconds will turn the light off and the last used setting will be remembered next time the light is turned on.

To prevent accidental activation the HM65R-T V2.0 has a lockout function. To access the lockout, with the lamp turn off, press and hold either or both buttons for 3 seconds and the low flood will blink four times to show it is in lockout. Press both buttons simultaneously for 3 seconds to unlock the light.

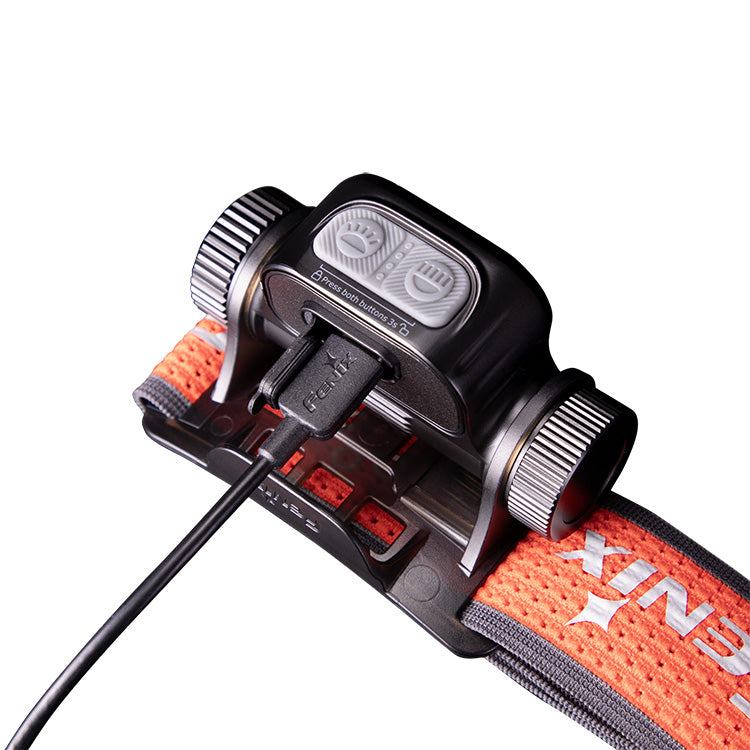

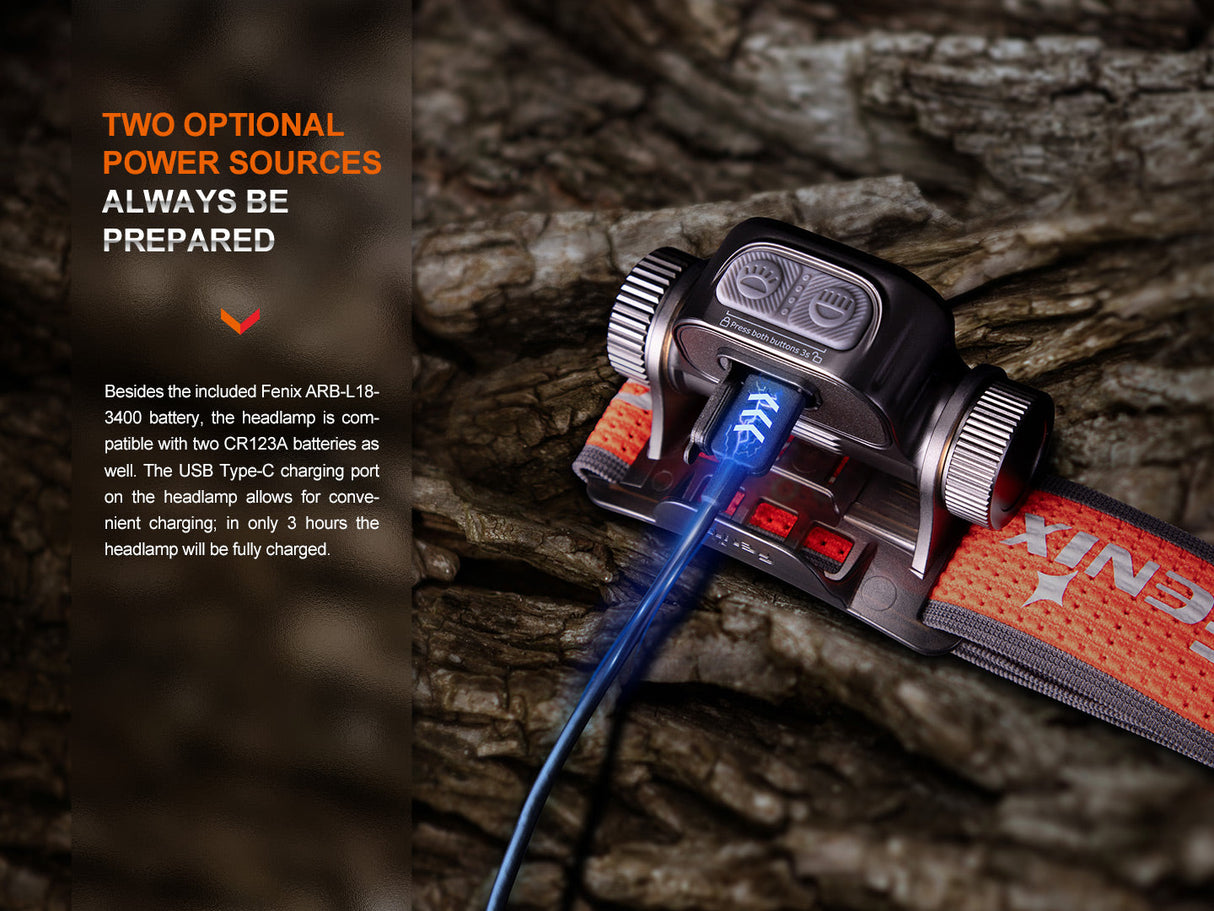

The included 18650 rechargeable 3400 mAh lithium-ion battery is charged inside the headlamp via the USB Type-C charging port which is located on the back of the headlamp. Simply lift the dust cover and plug in the USB Type-C cable at one end and plug the standard USB end into a USB port or a USB adaptor. The four charging indicators that sit between the two buttons will gradually illuminate until all four are lit to show charging is complete, which takes approximately 3 hours with a 3400 mAh battery.

Two CR123A lithium metal batteries can be used with this head torch, however they are not rechargeable therefore please do not attempt to charge the torch with these batteries installed.

The four LED indicators also light up when either button is pressed when the light is off or when the torch is turned on to show remaining battery power. Four LEDs is 81-100% power, three LEDs is 61-80% power, two LEDs is 41-60% power, one LED is 21-40% and one flashing LED is less than 20% power and the torch should be charged as soon as possible when at this stage.

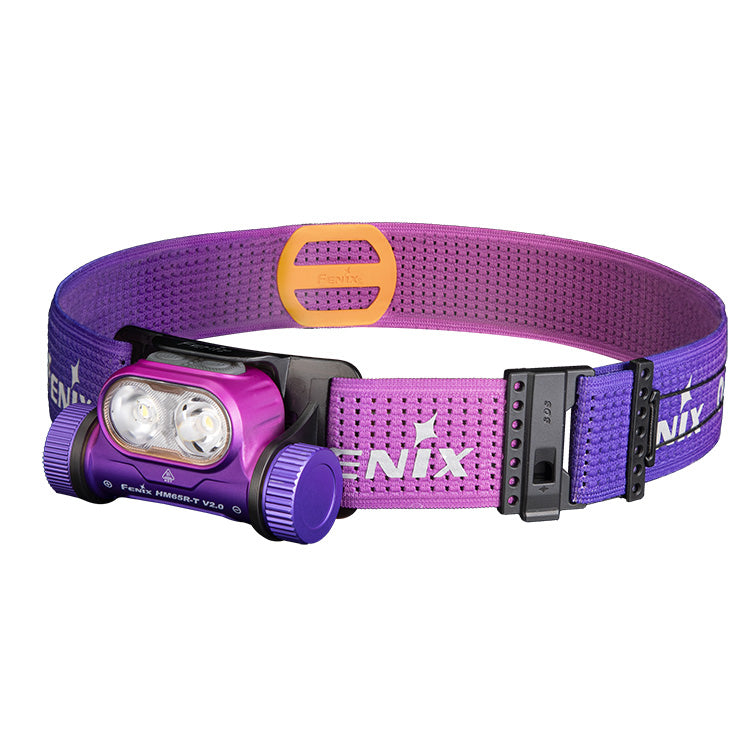

The newly designed sport headband features a two way fit-system which allows for easy one handed adjusting for a comfortable fit. Simply turn the dial clockwise to tighten or counter-clockwise to loosen. It is widened for a more comfortable fit, with the hollow design providing more breathability and the headband also features reflective strips, which are excellent for enhanced visibility plus an emergency whistle.

The headlamp bracket is ergonomically designed to comfortably fit the curvature of the head and it also allows the head torch to be tilted within a 60° angle.

Product Features

Dual switches for easy operation
LED battery indicators
Reverse polarity protection
USB Type- C charging port

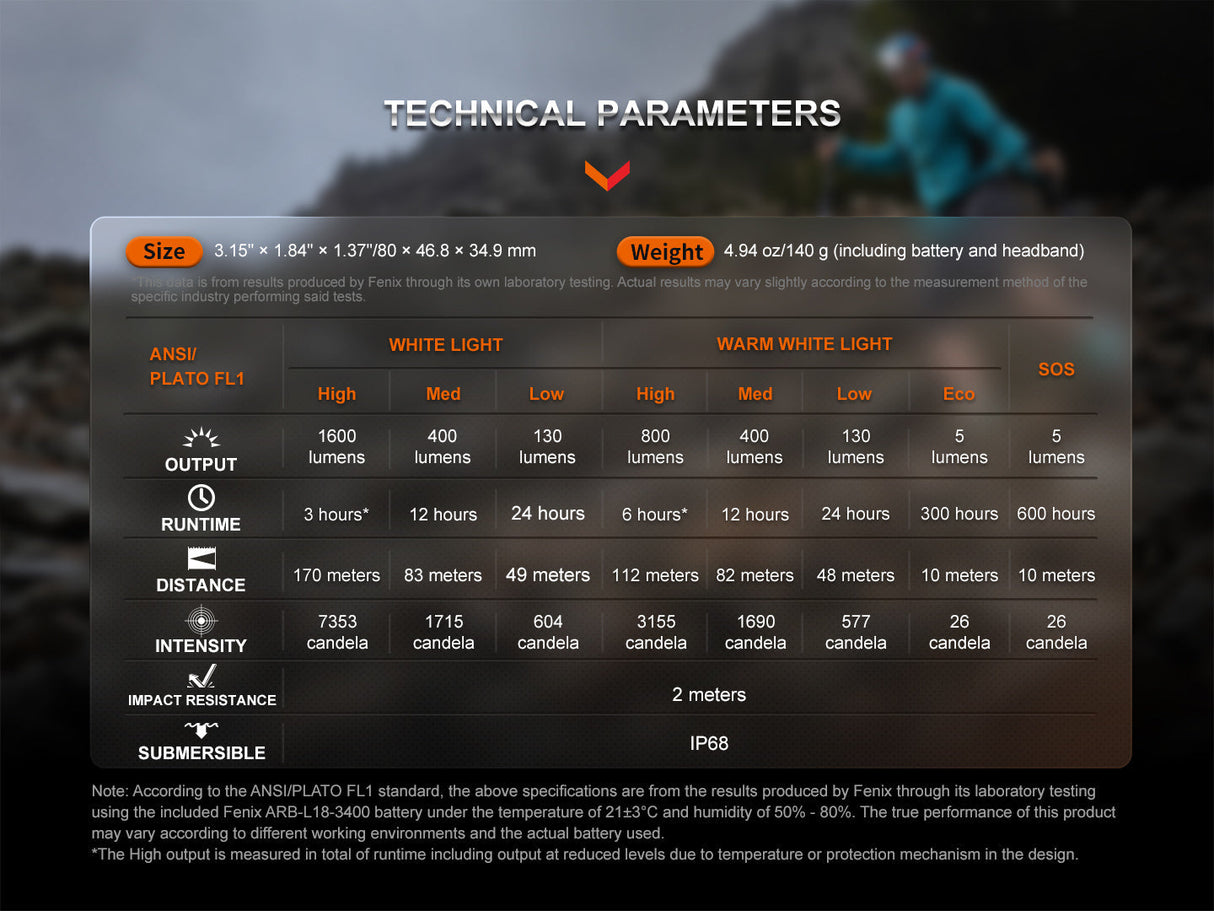

Operational modes

White Light:
High: 1600 lumens; 3 hours run-time; 170 m beam range*
Mid: 400 lumens; 12 hours run-time; 83 m beam range

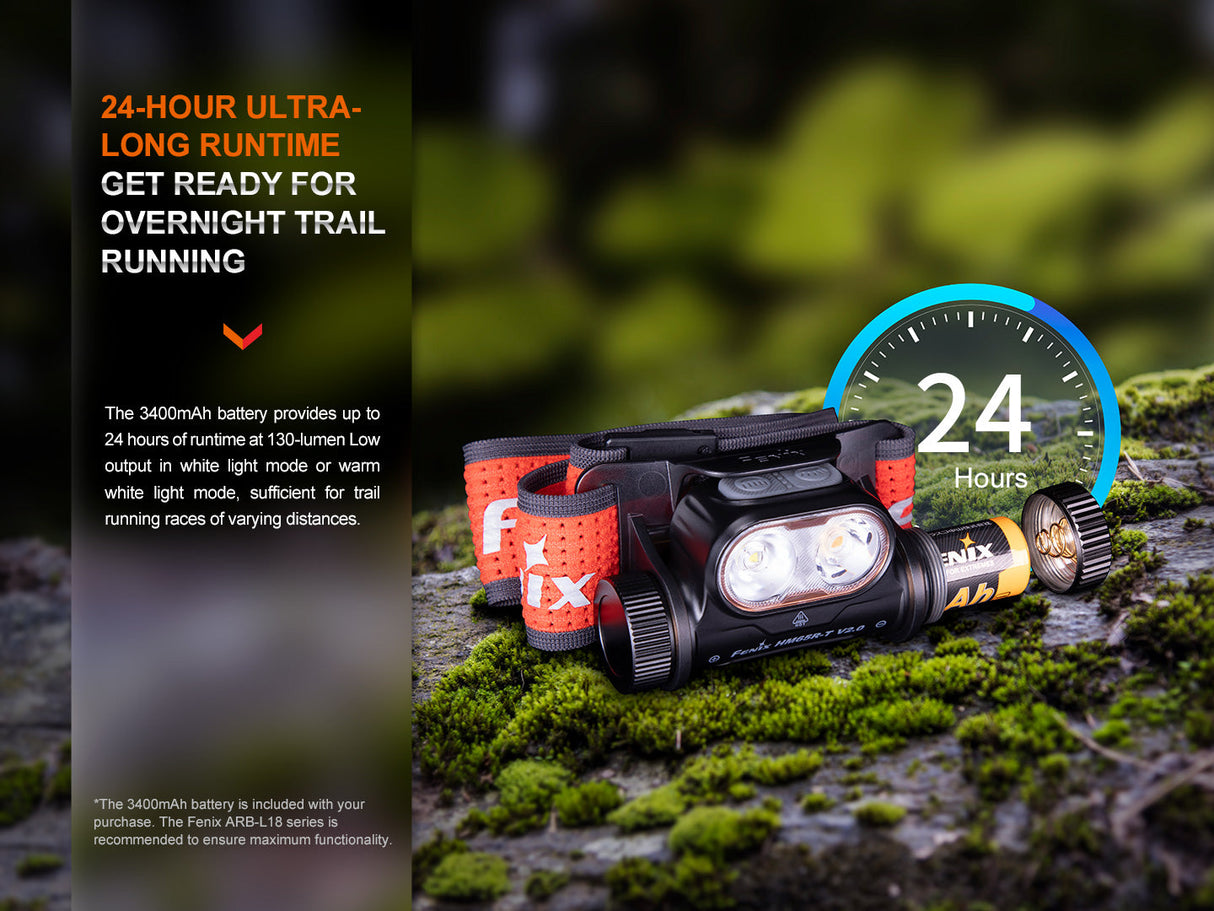

Low: 130 lumens; 24 hours run-time; 49 m beam range

Floodlight:
High: 800 lumens; 6 hours run-time; 112 m beam range
Mid: 400 lumens; 12 hours run-time; 82 m beam range
Low: 130 lumens; 24 hours run-time; 48 m beam range
Eco: 51 lumens; 300 hours; 10 m beam range

SOS: 51 lumens; 600 hours run-time; 10 m beam range

Note: *The high spot output is measured at total run-time, including output at reduced levels due to temperature or the built-in protection mechanism.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using a Fenix 3400 mAh 18650 lithium-ion rechargeable battery under the temperature of 21±3°C and humidity of 50% - 80%. Results may vary between torch, battery and environments.

Technical Details

Type: Rechargeable LED head torch
Operating Modes: Low / Mid / High / Eco / SOS
Luminous Flux: Up to 1600 lumens
Lamp Type: SST40 LED x 1 and SST20 LED x 1
Beam Range: Up to 170 m

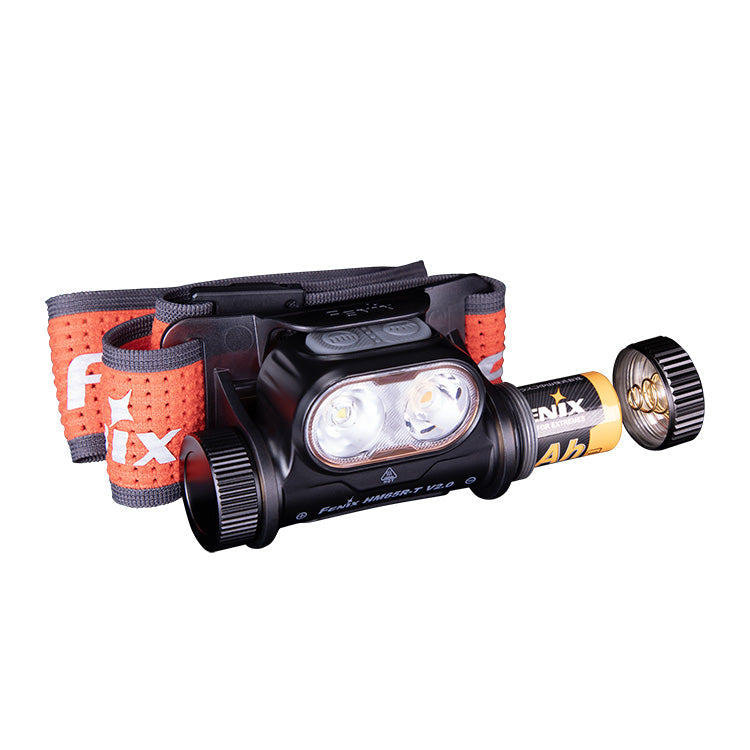

Batteries Required: CR123A lithium metal x 2 or 18650 lithium-ion x 1 (included)
Dimensions: 80 x 47 x 39 (mm)
Weight: 140 grams (excluding battery)

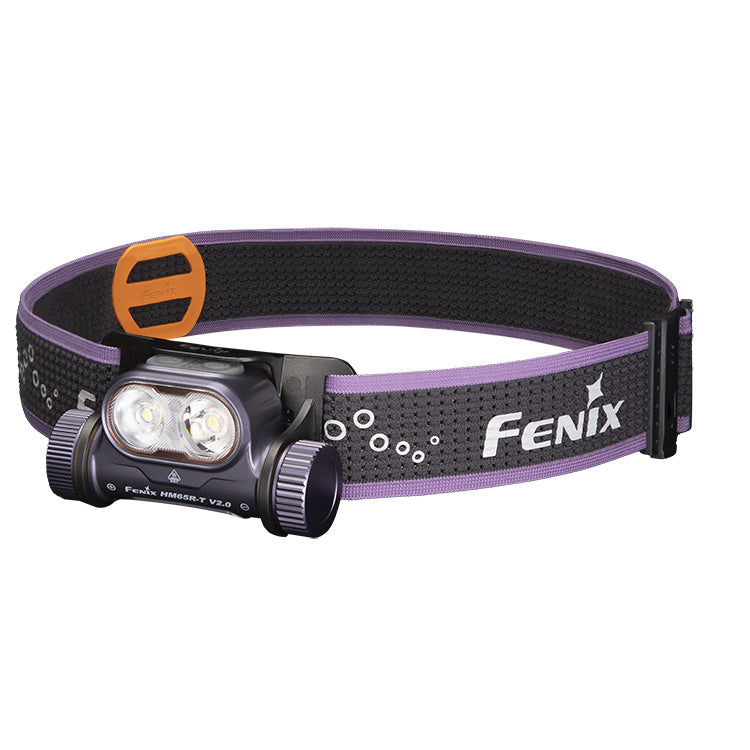

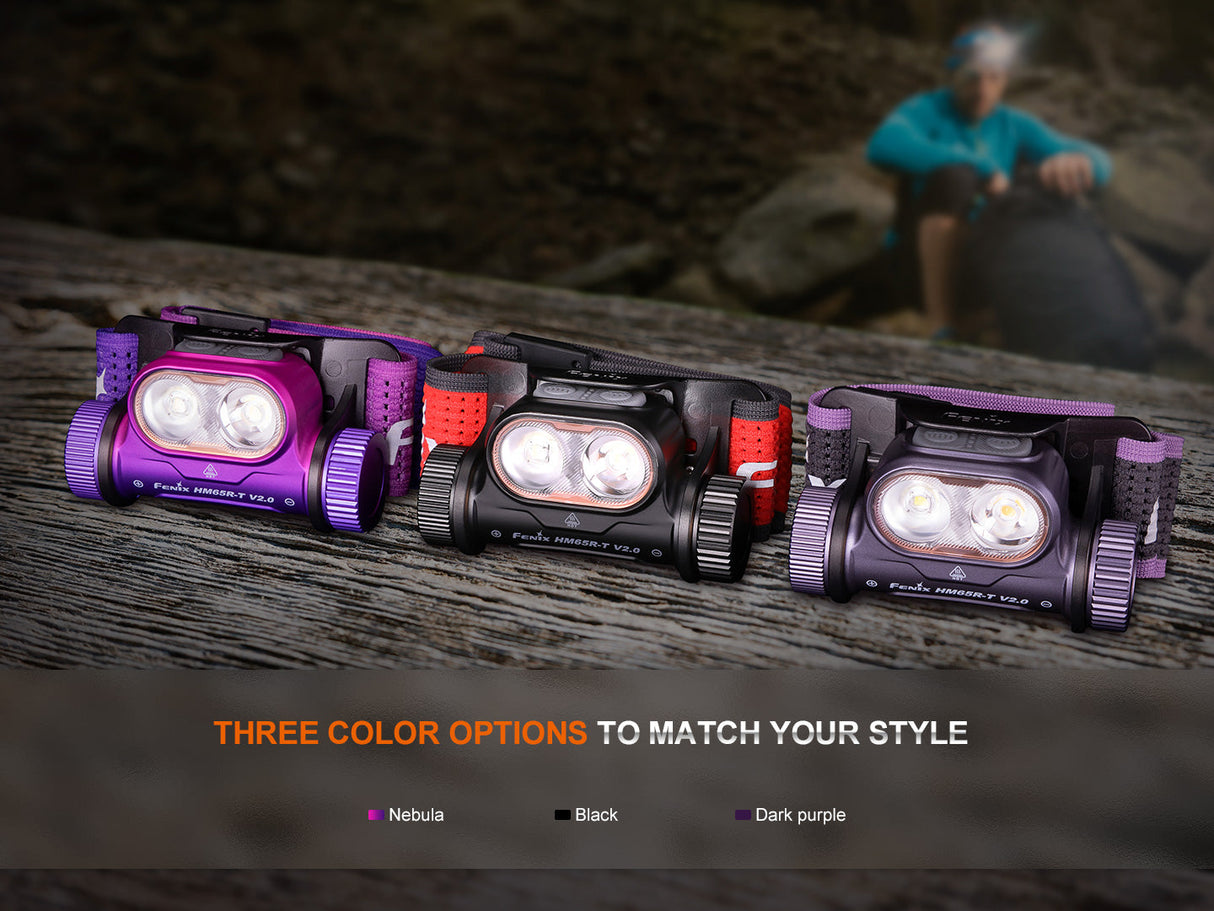

Body Colour: Black, Dark Purple or Nebula
Body Material: Magnesium alloy and PC
Switch Type: Two separate push buttons
Impact Resistance: 2 m
Environmental: IP68)
Warranty: 5 years (head torch) / 1 year (battery)

Packaging and Contents

Supplied in retail packaging and includes:
Fenix HM65R-T V2.0 LED head torch x 1
Fenix 18650 3400 mAh lithium-ion battery x 1
USB Type-C charging cable x 1
Spare O-ring x 1
Manual x 1
