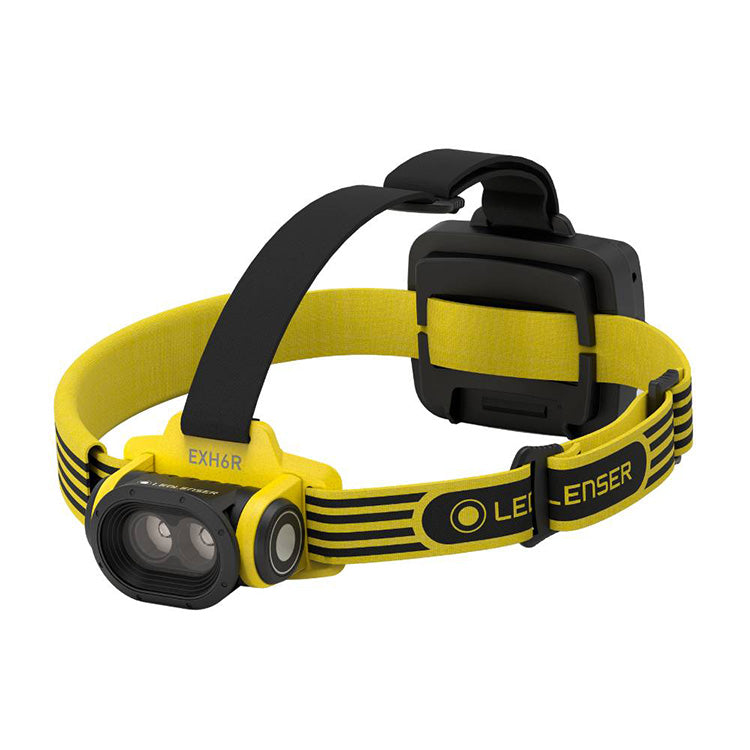

Ledlenser EXH6R ATEX Zone 0/21 Rechargeable LED Head Torch

The Ledlenser EXH6R is a rechargeable intrinsically safe head torch for use in professional hazardous locations with an output of 250 lumens using a combined spot and flood LED.

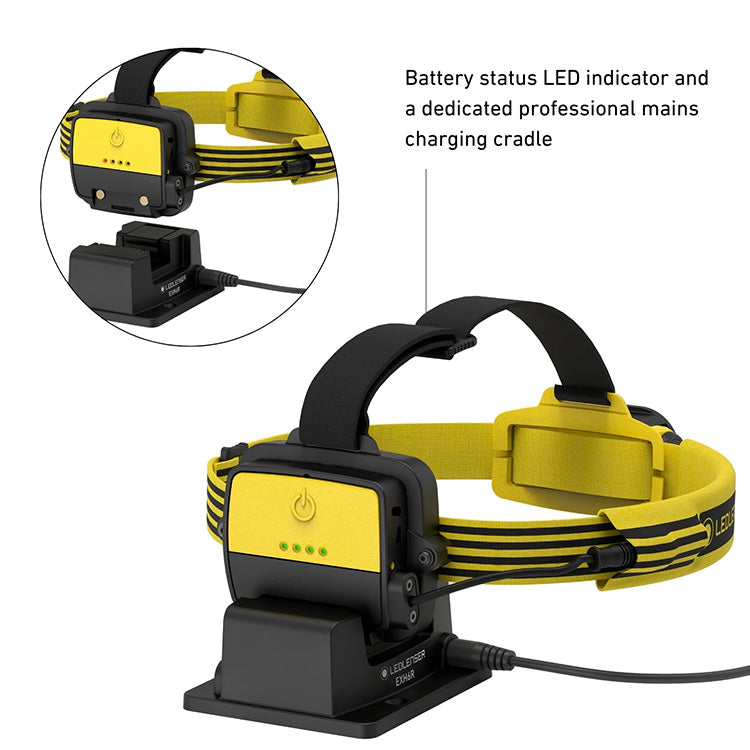

The EXH6R is powered by a built-in lithium-ion battery pack, which can be replaced if necessary. The battery can be attached to clothing or equipment using an extension cable (not included) which takes the weight from the headband. To charge the battery pack simply insert it into the included charging station. The LED indicators on the power button will flash while charging is taking place and gradually turn solid once charging is complete.

Never install the charging cradle inside an explosive atmosphere and never attempt to charge the battery while inside an explosive atmosphere.

Connect the power input cable from the battery pack to the head torch, the power button on the battery pack turns the torch on. Simply press and hold for two seconds. Each press after will cycle through the spot standard, flood standard, spot low and combined outputs. Press and hold for two seconds to turn the torch off.

When the battery is running low the torch will flash periodically to let you know and provide a sufficient run-time giving you time to safely evacuate the work area.

The EXH6R features a lockout mode to prevent accidental activation. To lock or unlock the torch simply press and hold the power button for five seconds while the torch is off until it blinks three times.

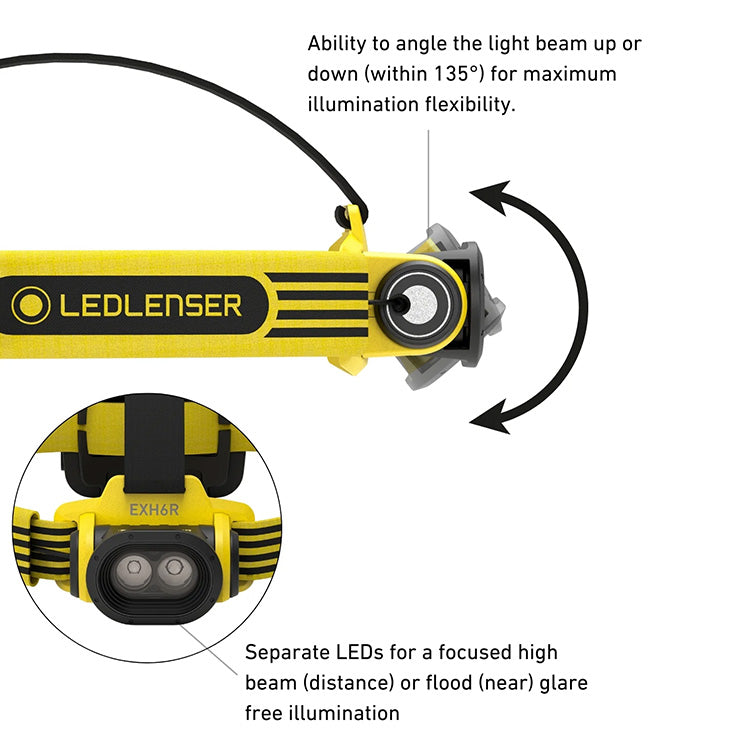

The head torch sits on a hinged bracket allowing for the light to be angled 135°, directed exactly where you need it while the IPX8 ratings makes it suitable for all conditions. The washable headband is adjustable for your comfort.

Note: Please carefully read all warnings in the product manual before use.

Certifications

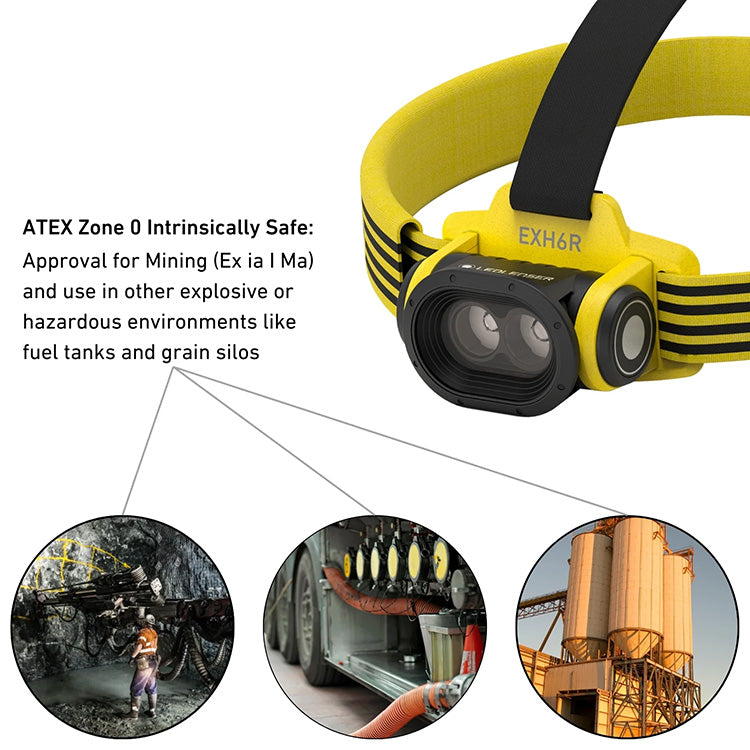

Zone 0/21

II 1G Ex ia IIC T4 Ga
II 2D Ex ib is IIIC T135°C Db

Certification number:
SGS22ATEX0039

Certificate of conformity:
IECEx BAS 22.0027

Operational Modes

Spot Low: 50 lumens; 15 hours run-time; 90 m beam range
Spot Standard: 180 lumens; 4 hours run-time; 140 m beam range
Flood Standard: 100 lumens; 10 hours run-time; 30 m beam range
Combined: 250 lumens; 3 hours run-time; 170 m beam range

Technical Details

Type: ATEX head torch
Operating Modes: Spot Low / Spot Standard / Flood Standard / Combined
Luminous Flux: Up to 250 lumens
Lamp: 1 x Spot power LED, 1 x Flood high power LED
Beam Range: Up to 170 m
Batteries Required: built in 1900 mAh lithium-ion battery, 3.7V
Run Time: Up to 15 hours
Weight: 330 grams
Body Colour: Yellow and black
Body Material: Polycarbonate housing
Switch Type: Push button

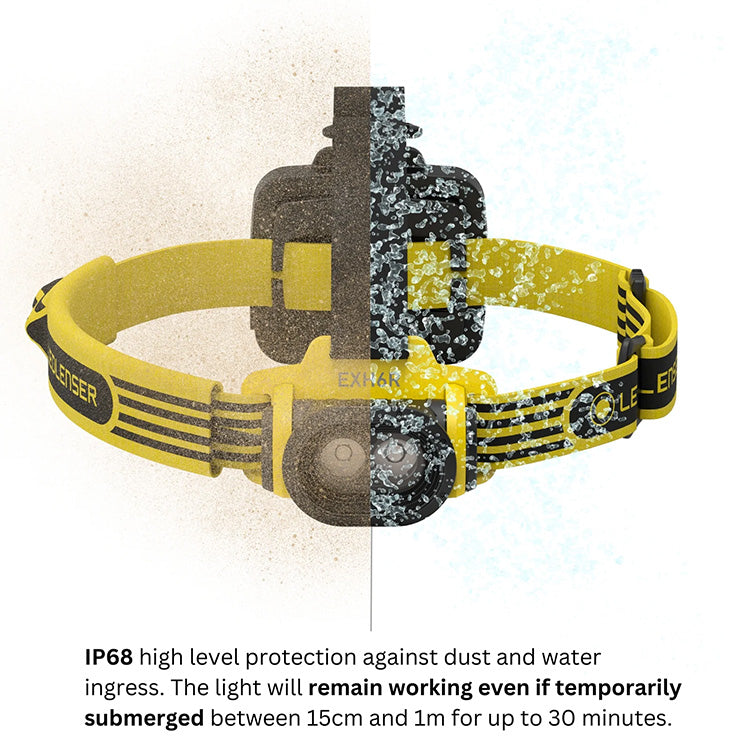

Environmental: IPX8
Warranty: 7 years with product registration

Packaging and Contents

Supplied in retail packaging and includes:
Ledlenser EXH6R Zone 0/21 head torch x 1
Charging station x 1
Power adaptor x 1
Manual x 1
