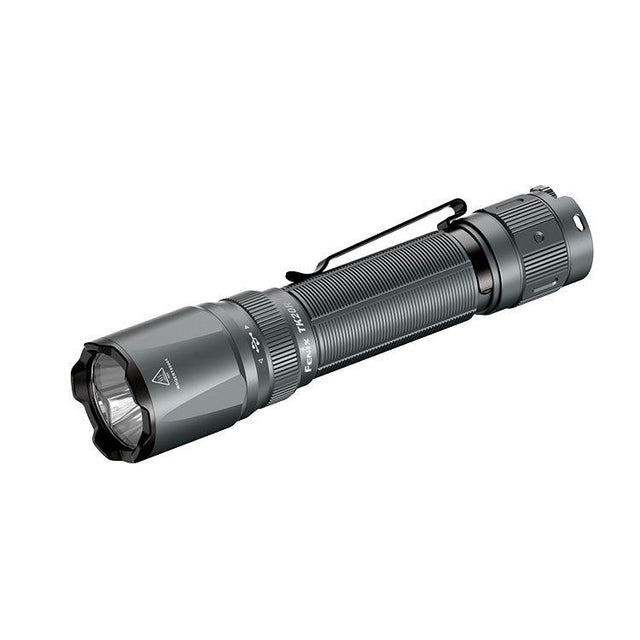

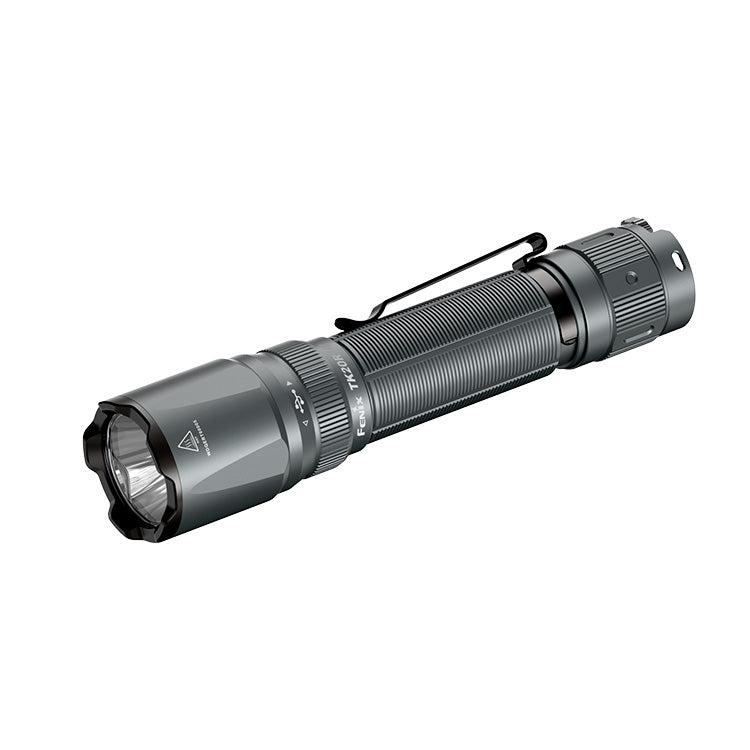

Fenix TK20R UE Rechargeable LED Torch

£139.98 £149.95
Body Colour: City Grey

The Fenix TK20R UE is a compact rechargeable torch, which is an update to the popular TK20R V2.0 model with the most notable update being the newly developed and patented FlexiSensa rotary control switch which toggles between Tactical, Duty and lock modes via single handed tail cap operation.

Equipped with a powerful Luminus SFT70 LED and powered by one high capacity 21700 rechargeable lithium-ion battery, the Fenix TK20R UE puts out a superb performance with a beam distance of 465 metres.

The included Fenix 21700 5000 mAh lithium-ion battery charges inside the torch via the USB-C charging port for faster charging. The hidden USB-C port is revealed by twisting down the neck of the torch, and the cable can then be inserted and connected to a USB power source. The LED charging indicator next to the charging port will go red to indicate charging is in progress and will turn green once charging is complete after approximately 3 hours, 30 minutes when charging the included battery.

The LED next to the charging port is also a battery level indicator (screw down the neck to reveal) and will light up for 3 seconds when the torch is first turned on, with either a green, green flashing, red or red flashing light to show the battery power remaining and notify you when the battery needs charging.

The TK20R UE features a dual tactical tail switch, simply turn the rotary switch to select either Tactical, Duty or Lock modes. The torch is then turned on and off with the tactical tail switch by fully pressing it down, and it also offers a momentary function by half pressing the button (the light will turn off when the button is released). Once the torch is on, the functional switch will cycle through each output for the mode selected. The last used brightness setting will be remembered next time the light is turned on. The lockout function prevents accidental activation and the torch will not turn on when in this setting.

The torch will generate a lot of heat when used in turbo, therefore the overheat protection will automatically reduce the output when the internal temperature reaches 60° in order to protect the LED from overheating, and once the torch has cooled the turbo mode can be reselected. If the battery voltage drops below the pre-set level the torch is programmed to downshift to a lower brightness level until eco output is reached, at which point the light will flash 3 times every 5 minutes to remind you to charge the battery.

For weapon mounted use the TK20R UE is compatible with the Fenix ALG-00 gun mount.

Product Features

Patented FlexiSensa rotary switch
Dual tactical tail switch
Overheat protection to protect the LED
Advanced pulse-frequency transmission system
Low voltage warning function & battery status indicator
Intelligent memory circuit remembers last brightness setting
Hidden USB-C charging port for faster charging

Operational Modes

Tactical Mode:
Turbo: 2800 lumens; 3 hours run-time; 465 metres beam range*
Strobe: 2800 lumens; 465 m beam range

Duty Mode:
Turbo: 2800 lumens; 3 hours run-time; 465 metres beam range*
High: 1000 lumens; 3 hours, 15 minutes run-time; 465 m beam range
Mid: 350 lumens; 9 hours run-time; 465 metres beam range
Low: 30 lumens; 40 hours run-time; 465 metres beam range

Note: *The turbo output is measured at total run-time, including output at reduced levels due to temperature or the built-in protection mechanism. The over-heat protection will drop the turbo brightness level if the internal temperature reaches 60°C.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using 1 x Fenix ARB-L21-5000 21700 lithium-ion rechargeable battery under the temperature of 21±3°C and humidity of 50% - 80%. Results may vary between torch, battery and environments.


Technical Details

Type: Tactical LED torch
Operating Modes: Turbo / High / Mid / Low / Strobe
Luminous Flux: Up to 2800 lumens
Lamp Type: Luminus SFT70 LED
Beam Range: Up to 465 m
Batteries Required: 1 x 21700 rechargeable li-ion (included)
Charging Time: 3 hours, 30 minutes (based on the included battery)
Overall Length: 153.7 mm
Weight: 135 grams (including battery)

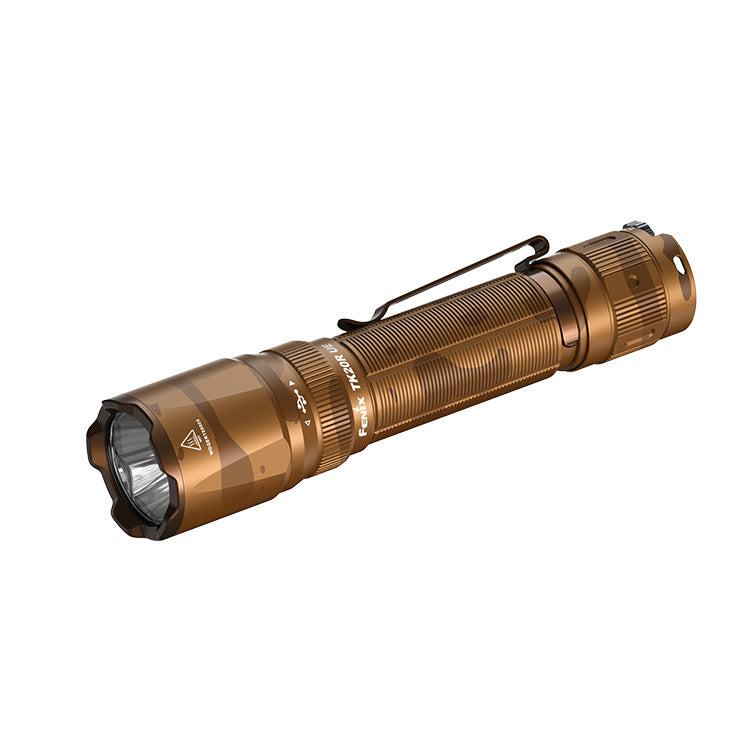

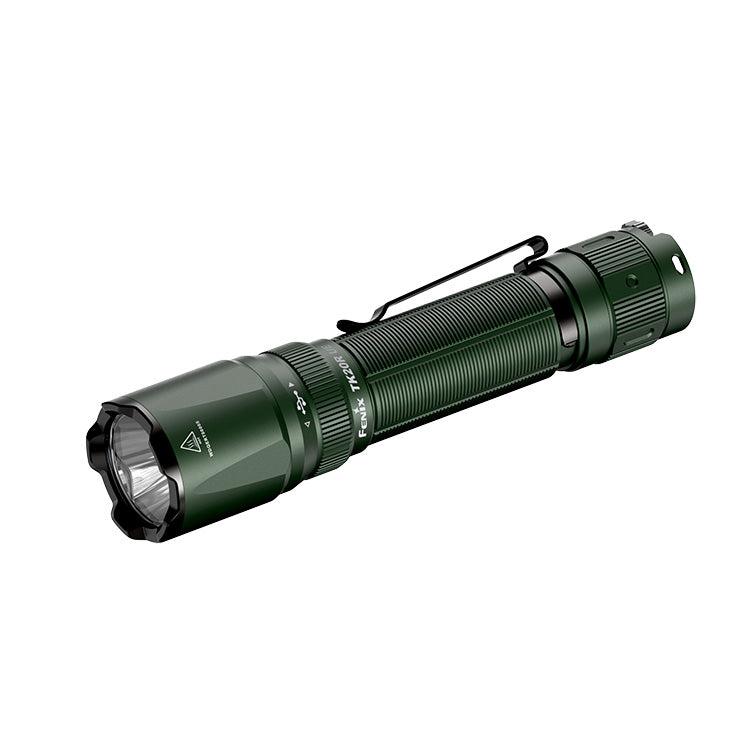

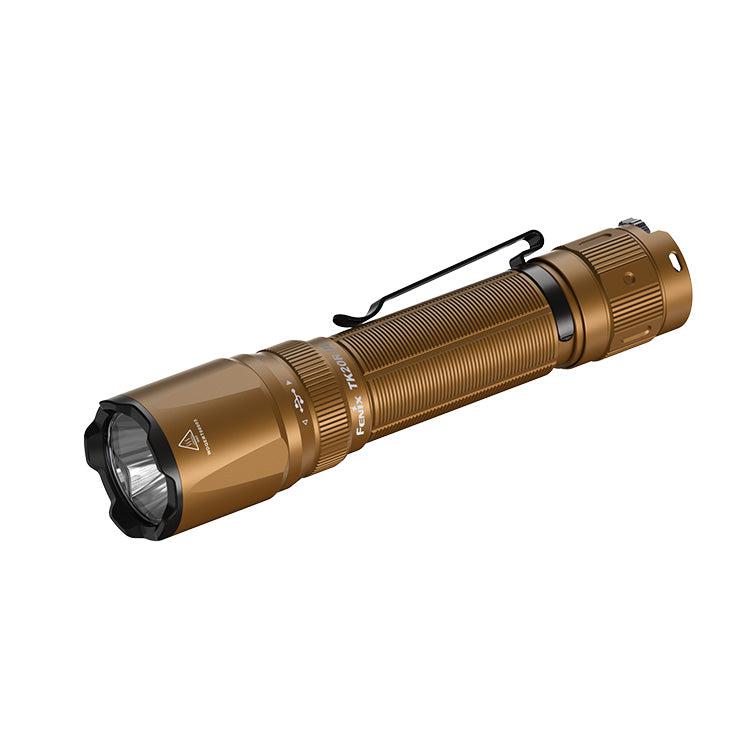

Body Colour: Grey, Green, Tan or Desert Camo
Body Material: Aircraft grade aluminium
Body Finish: Premium type III hard-anodised anti-abrasive finish
Switch Type: Dual tactical tail cap switch
Impact Resistance: 1.5 m
Environmental: Dust and waterproof to IP68 standard (2 m)
Warranty: 5 years (torch), 1 year (battery)


Packaging and Contents

Supplied in retail packaging and includes:
Fenix TK20R V2.0 rechargeable LED torch x 1
Fenix 5000 mAh 21700 lithium-ion battery x 1
USB-C to USB-A charging cable x 1
Wrist lanyard x 1
Nylon holster x 1
Spare O-ring x 2
Manual x 1


Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
P.S.
A great torch from Fenix

I have been using this torch for a few weeks now and I have to say that I am very impressed with it. I usually go for a well known USA brand of torch, which I have used for many years now. However I decided to go for this particular torch as an upgrade for my EDC torch, a well known USA brand. The things that impress me with this torch from Fenix are as follows: The great build quality, it is well engineered and very smooth in its operation. The lens on the torch is toughened glass and not plastic which disperses light better. The various functions of the torch. For example the duty and tactical modes. I particularly like the tactical dual tail switch. You can easily switch from duty mode to tactical mode with one swift flick of the switch without the need to keep pressing the button to find which setting you want. In addition, I like the lockout function which saves the torch from coming on when shoved in your pocket. On tests the battery life I find that on duty full beam mode you get about two and half hours run time. On duty mode mid setting I get between six to seven hours run time. I have not tested the low mode duration of the torch. The torch does flash when the battery is getting low and needs to be charged up or a battery change, which is useful in my view. The torch is compact enough to fit into your pocket, although a bit fatter than my other torch from the USA brand. However it is a bit smaller in length, which to me is a bonus. Brightness wise this torch is bright, very bright in fact, and is far better in my opinion for my needs than the torch its replacing. The 21700 battery is big and to be honest gives the torch all of its functions as it should do. I would suggest buying just one spare battery if like me you are out and about during dark hours just for peace of mind as this torch will not run on standard batteries. The torch has a built in charging facility which is fully sealed which you screw up or down to gain access to it. You will need a battery charger that can take a 21700 battery if you prefer to use a separate charger. Overall yes I would recommend this torch to people as it is a tough, waterproof, reliable and a very bright torch, it is now my primary EDC torch. The service from Torches direct is brilliant and personally I would not go elsewhere to buy torches. Am really pleased with the purchase.
