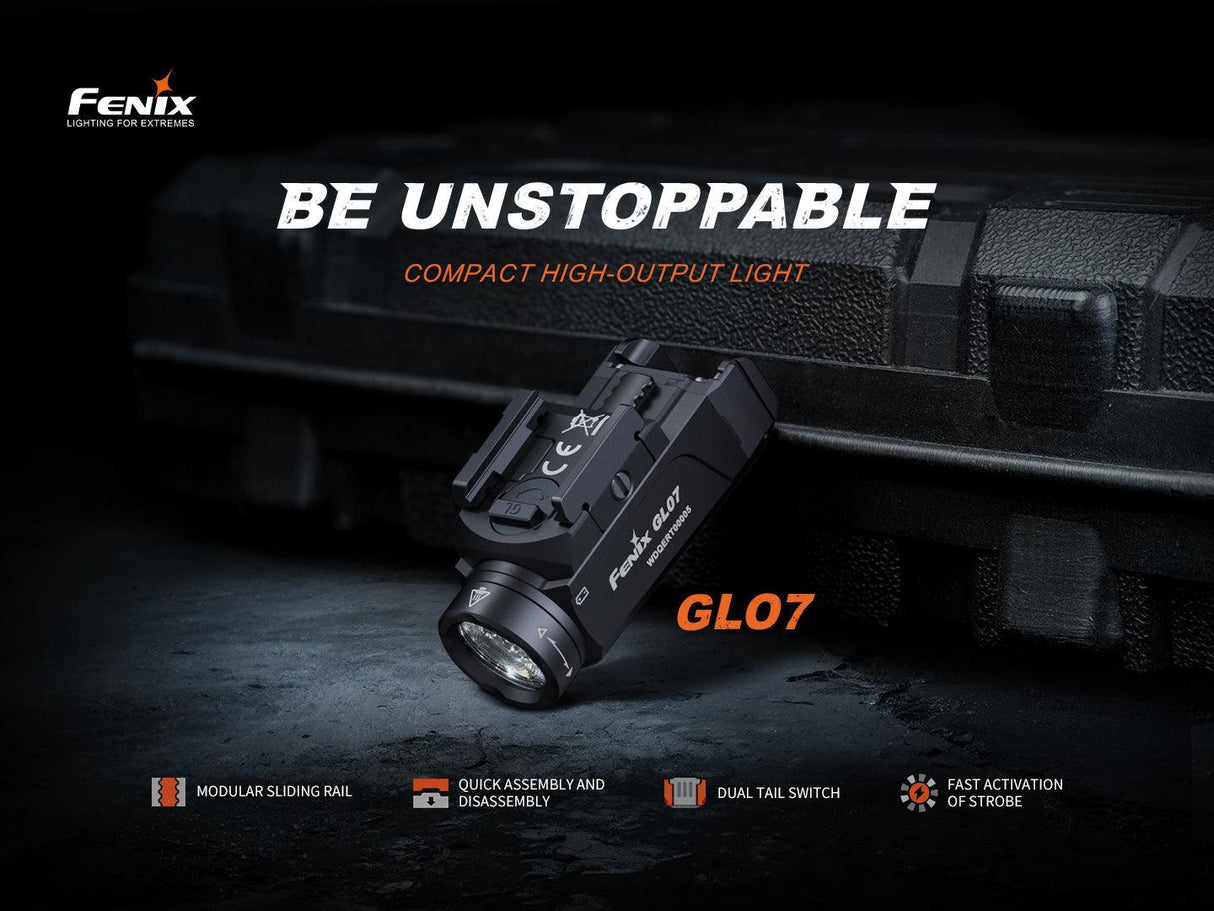

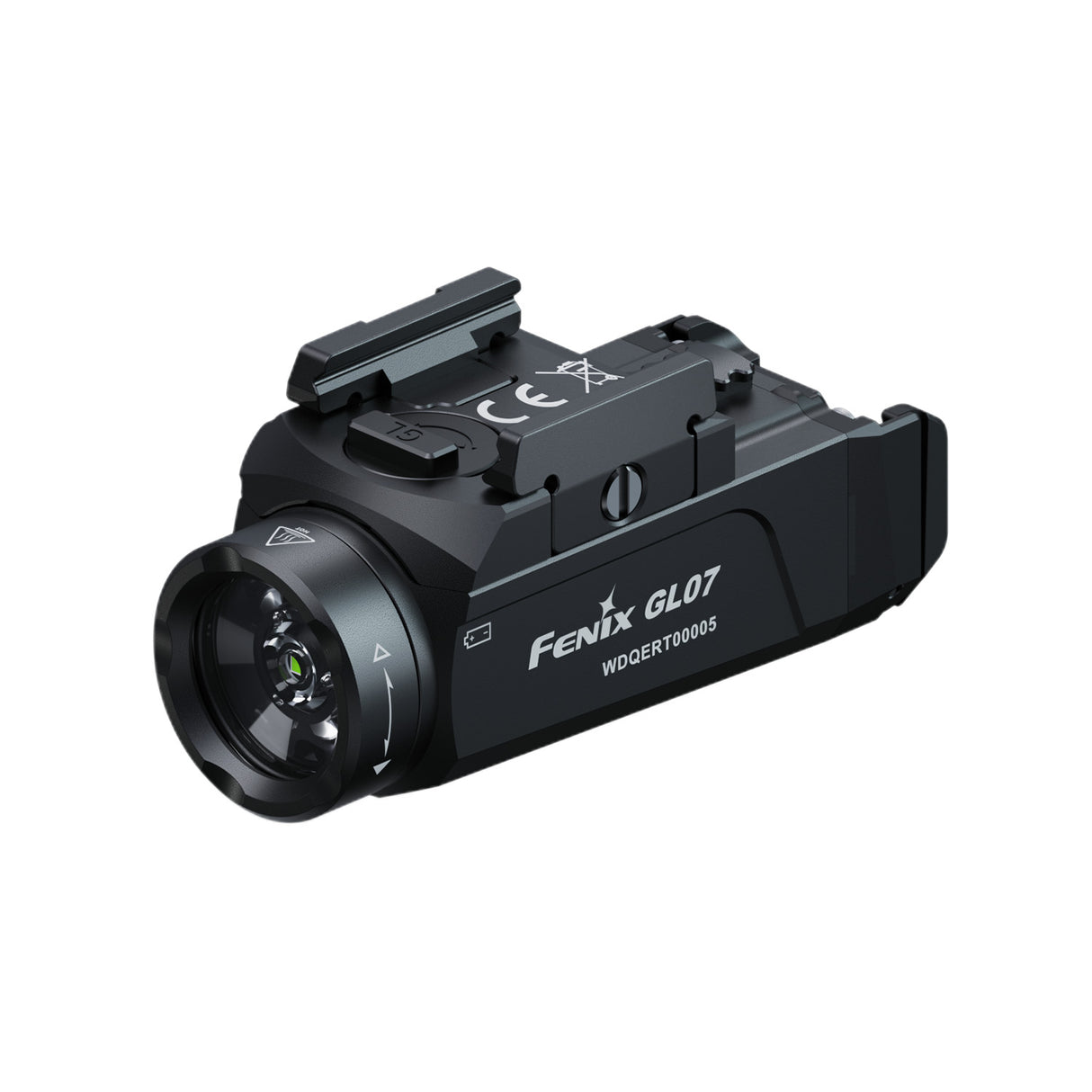

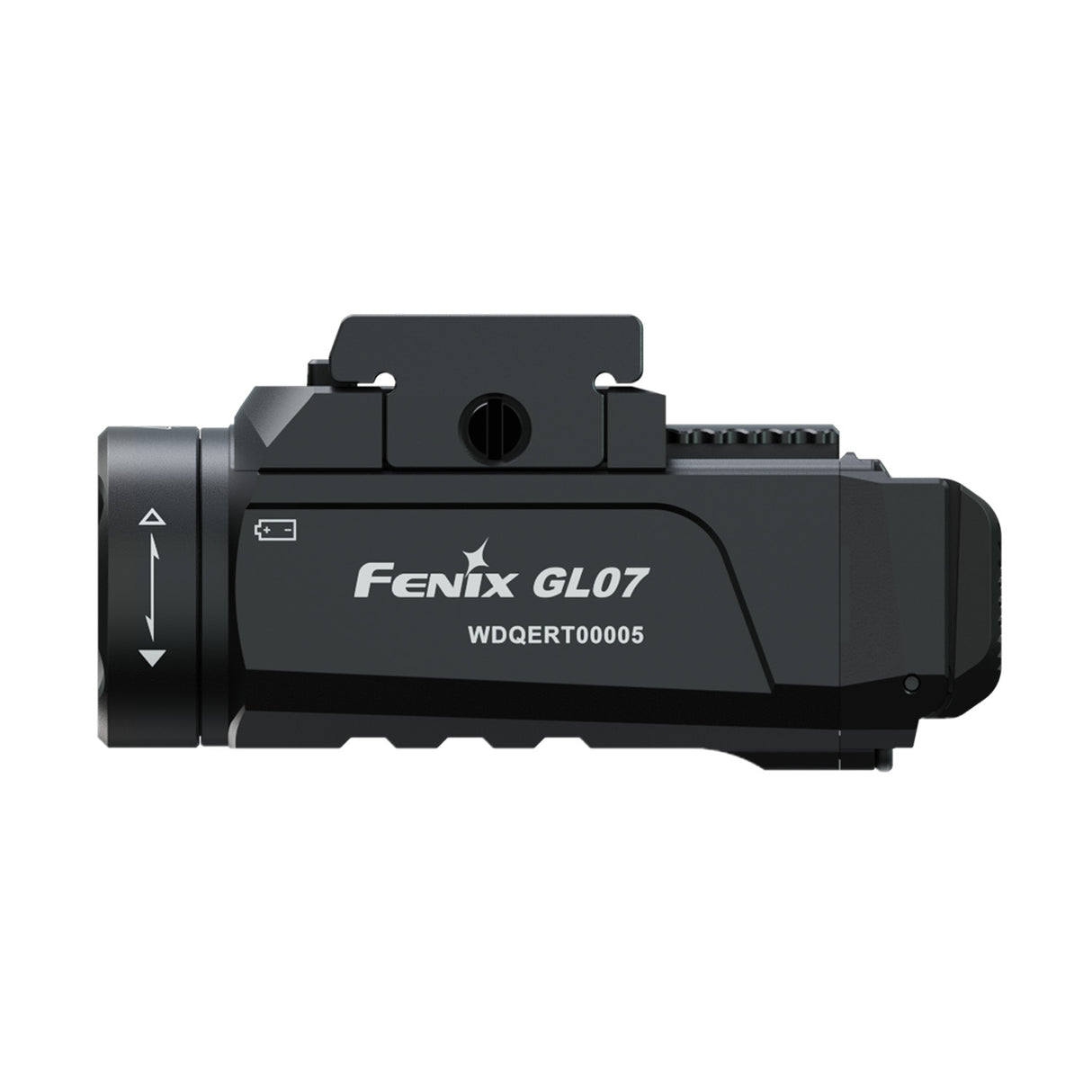

Fenix GL07 Tactical Rail Light

The Fenix GL07 is a rechargeable, weapon-mountable light with a maximum output of 700 lumens from its Luminus SFT12R LED. It's designed for handguns and comes with both Glock (GL) and Picatinny (1913) rail inserts.

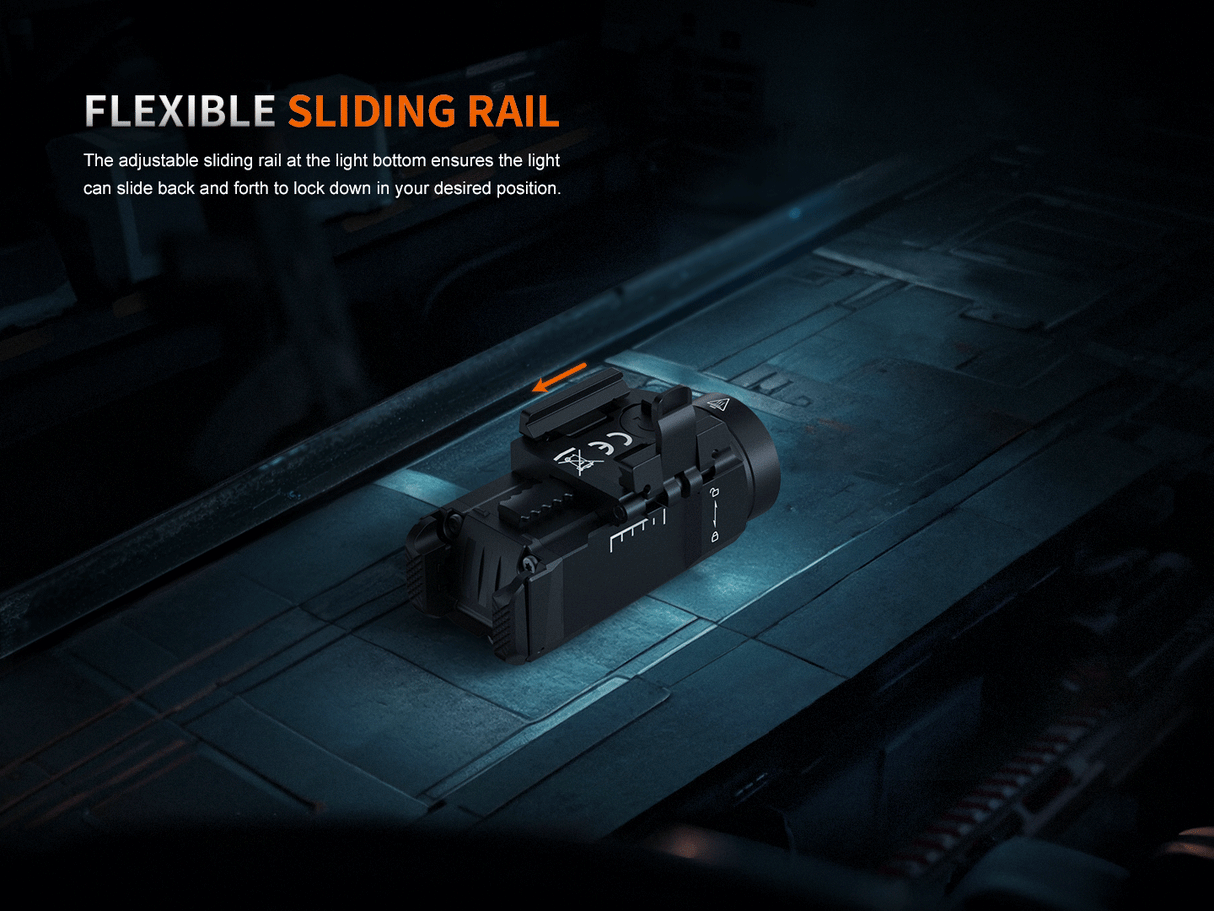

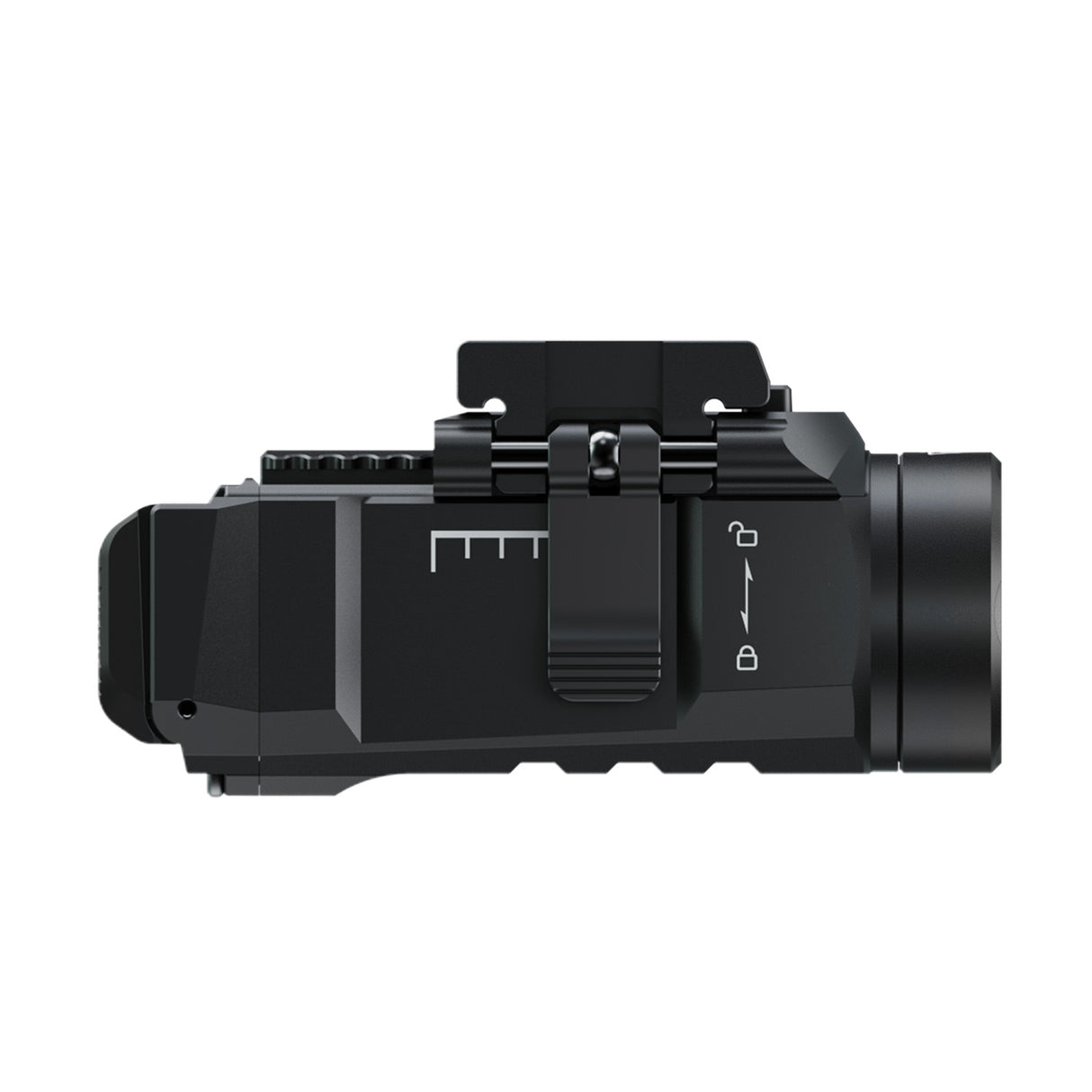

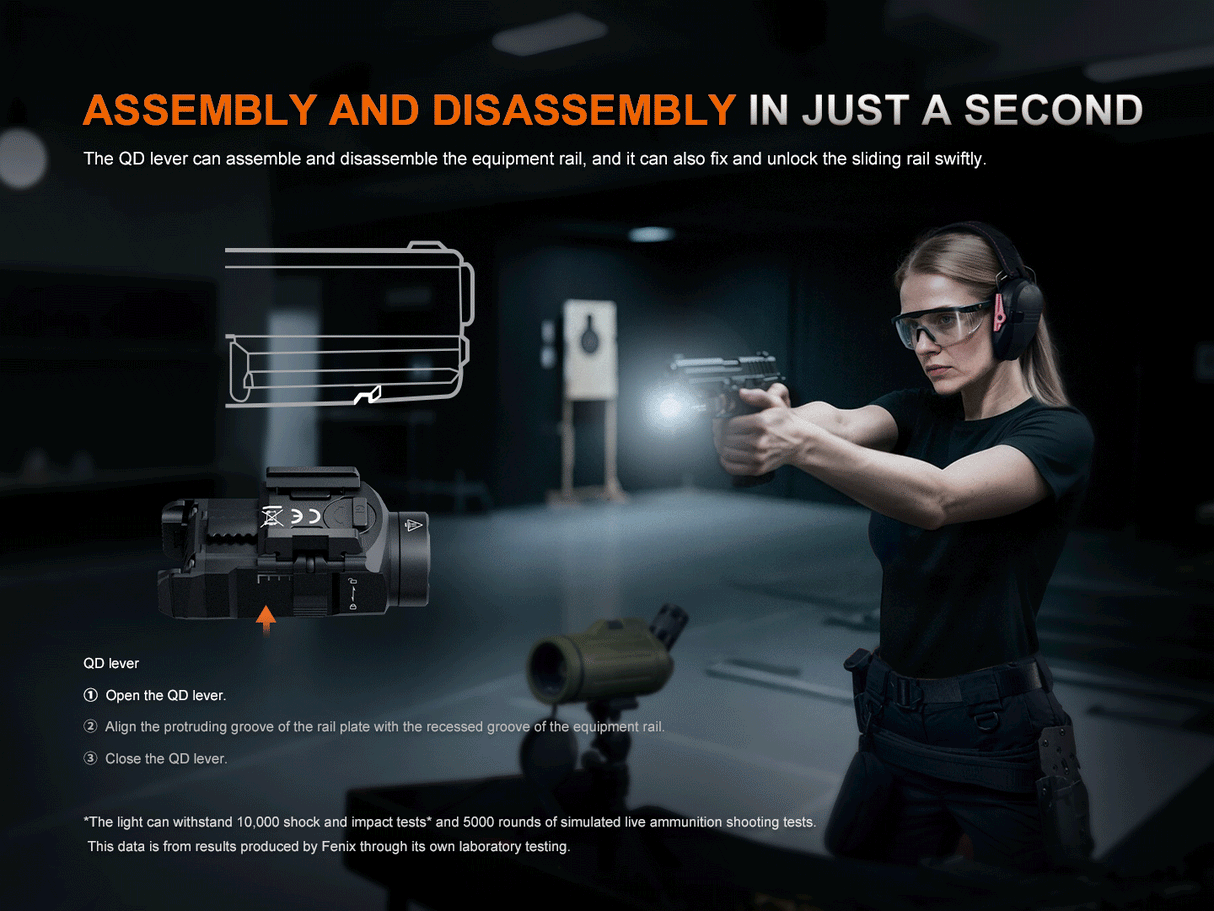

The GL07 features a quick-release mount with a sliding rail, making it easy to position the light precisely. The attach-and-release mounting system allows for quick deployment. To use it, simply lift the QD lever on the side of the torch to open the mount. With the correct adaptor plate fitted, align the grooves on the plate and the rail, then slide the GL07 onto the gun's accessory rail. Move it back and forth to find your desired position, then close the QD lever to lock it in place. You can then adjust the rail clamp bolt on the opposite side to ensure the GL07 is securely fitted.

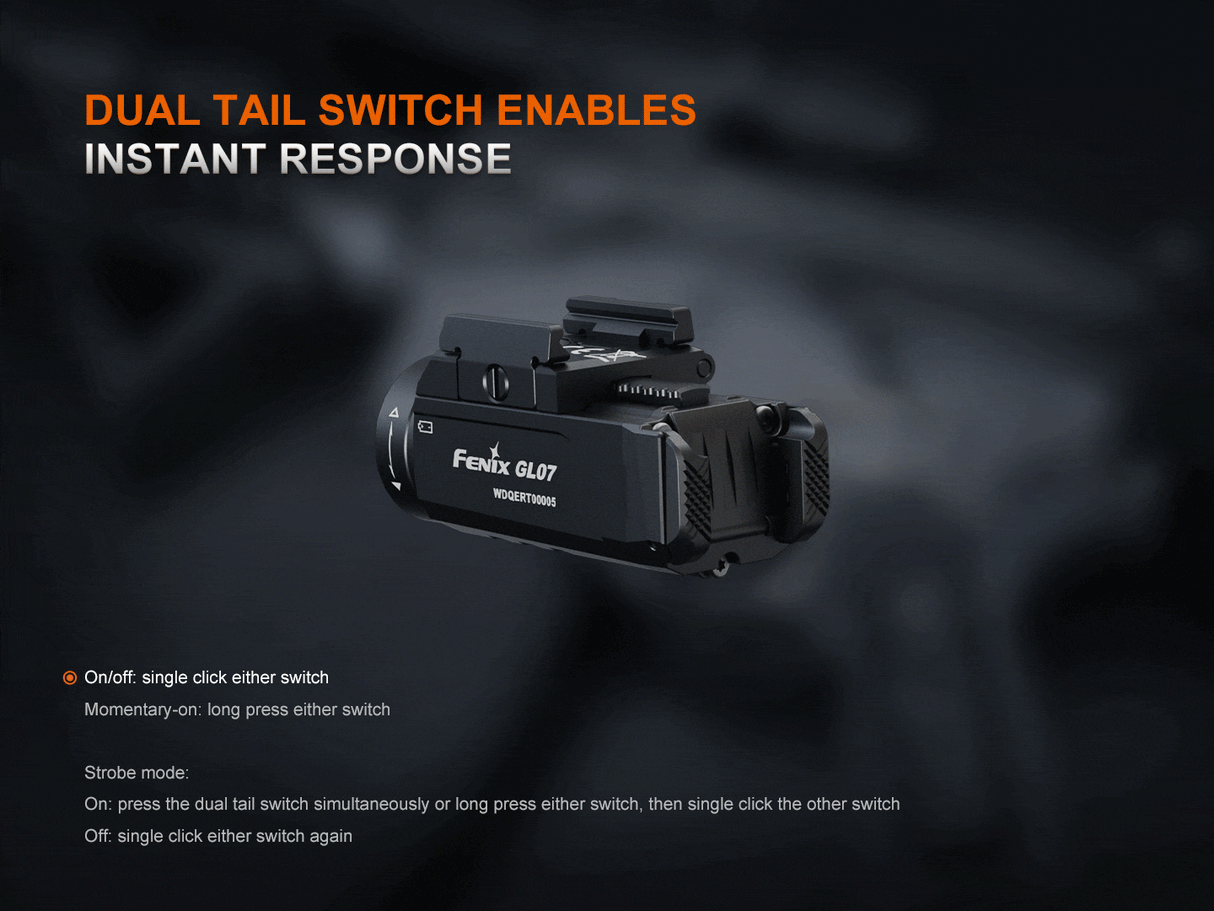

The light is operated by dual switches located at the rear, allowing for easy activation while attached to a firearm. To turn the light on/off, press and release either switch. For momentary-on, press and hold either switch for over one second; the light will stay on until you release the button. To access strobe mode, press both switches simultaneously. Alternatively, press and hold one switch, then single-click the other. To turn off strobe mode, single-click either switch or press both switches simultaneously to return to the previous output level.

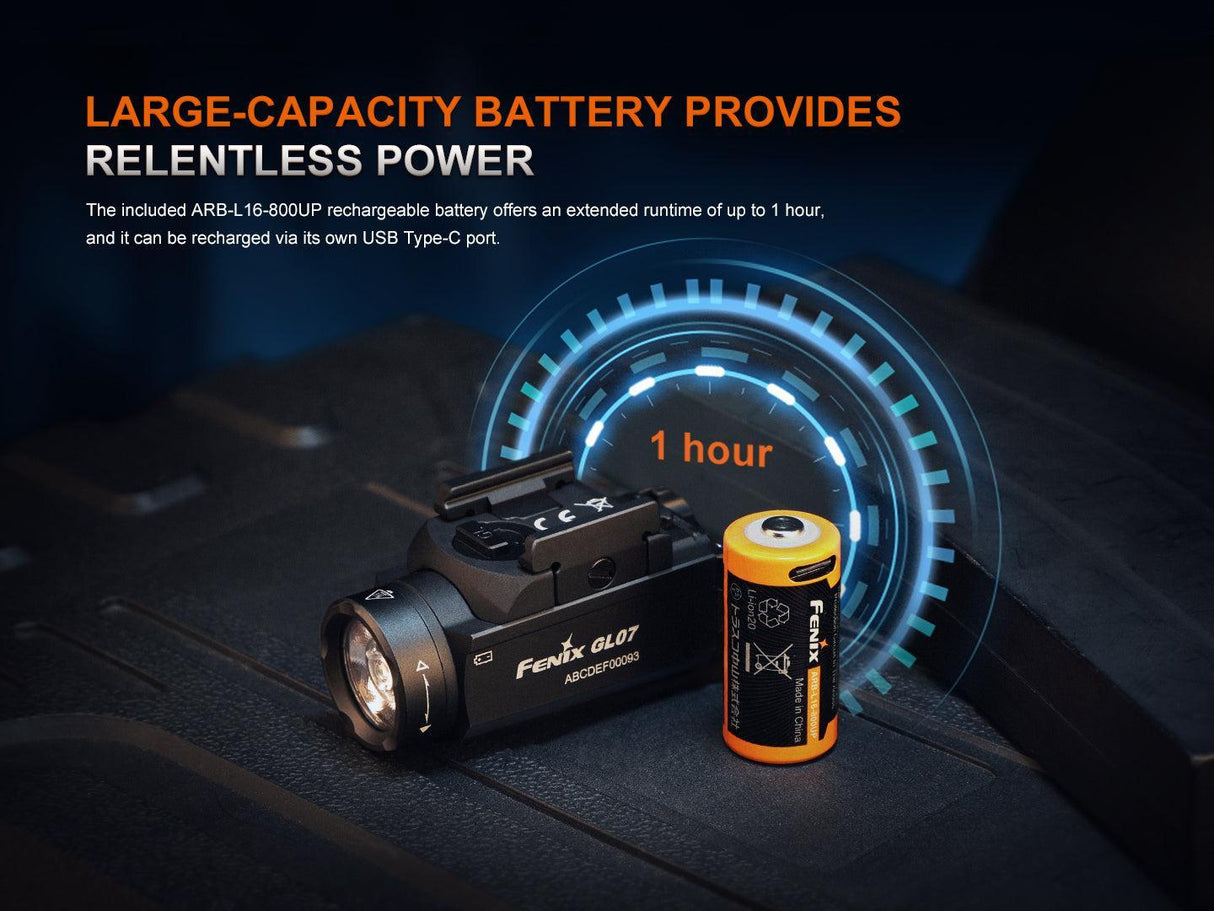

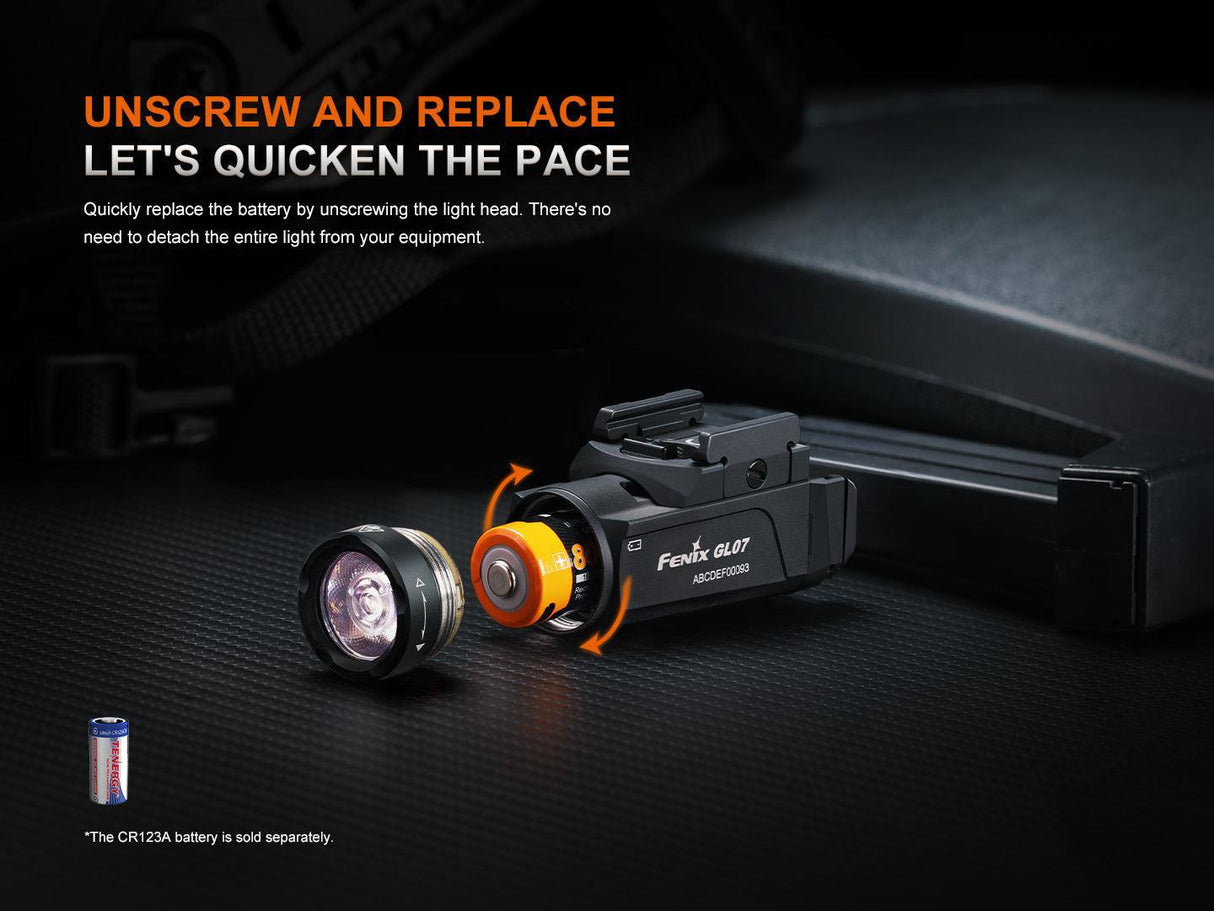

A Fenix 16340 mAh lithium-ion battery is included with the GL07. To recharge it, unscrew the lamp head, remove the battery, and plug the supplied USB-C cable directly into the battery. The light can also use CR123A non-rechargeable batteries, but the output will be limited to 180 lumens, although this will significantly extend the runtime. The light has an intelligent overheat protection system. If the temperature reaches or exceeds 55°C, the output will automatically step down to reduce the temperature. When the temperature drops back below 55°C, the light will gradually return to the previous output level.

The GL07 also features a low-voltage warning. When the voltage drops below a preset level, the brightness decreases. If the voltage drops below 3V, the light will blink three times every two minutes to remind you to recharge or replace the battery. This feature only works with a Fenix ARB-L16-800UP rechargeable battery.

Product Features

Dual Tail switch operation
Includes a Fenix ARB-L16-800UP Battery
Blinding strobe mode
Luminus SFT12R LED
Quick release lever mount with integrated sliding rail for precise fit

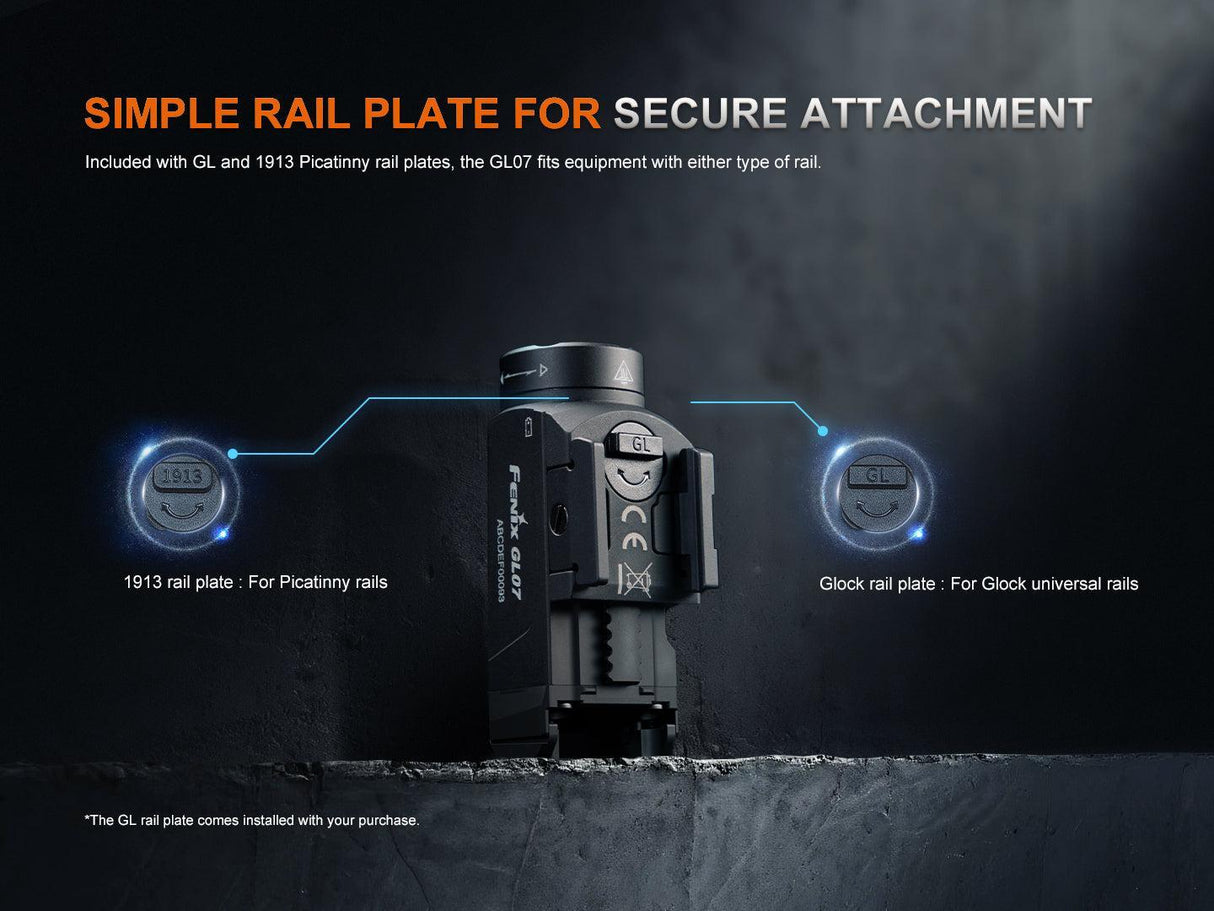

Includes Glock and 1913 / Picatinny rail plates (Glock installed)
55° C intelligent overheat protection

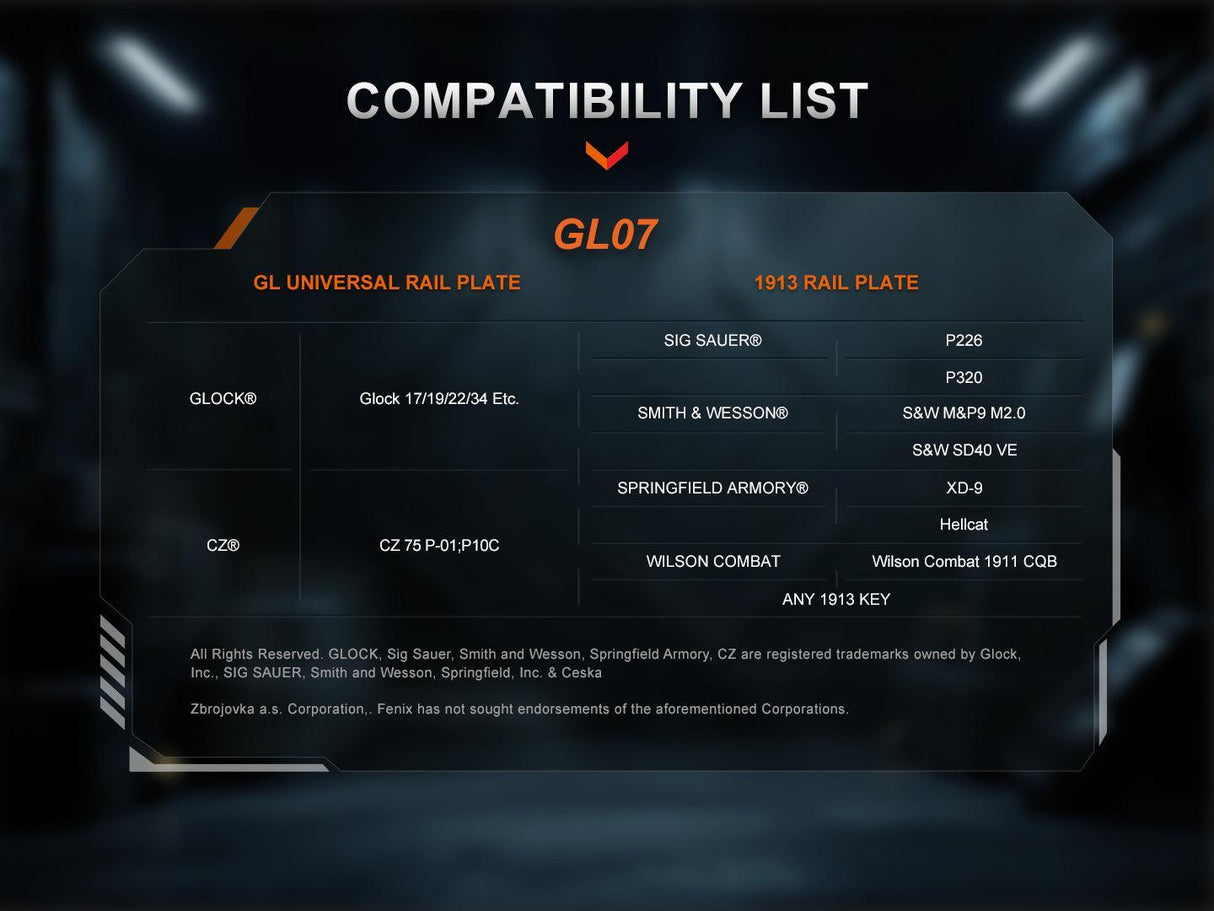

Fits most pistols with Glock and 1913 Picatinny rails
Low voltage warning

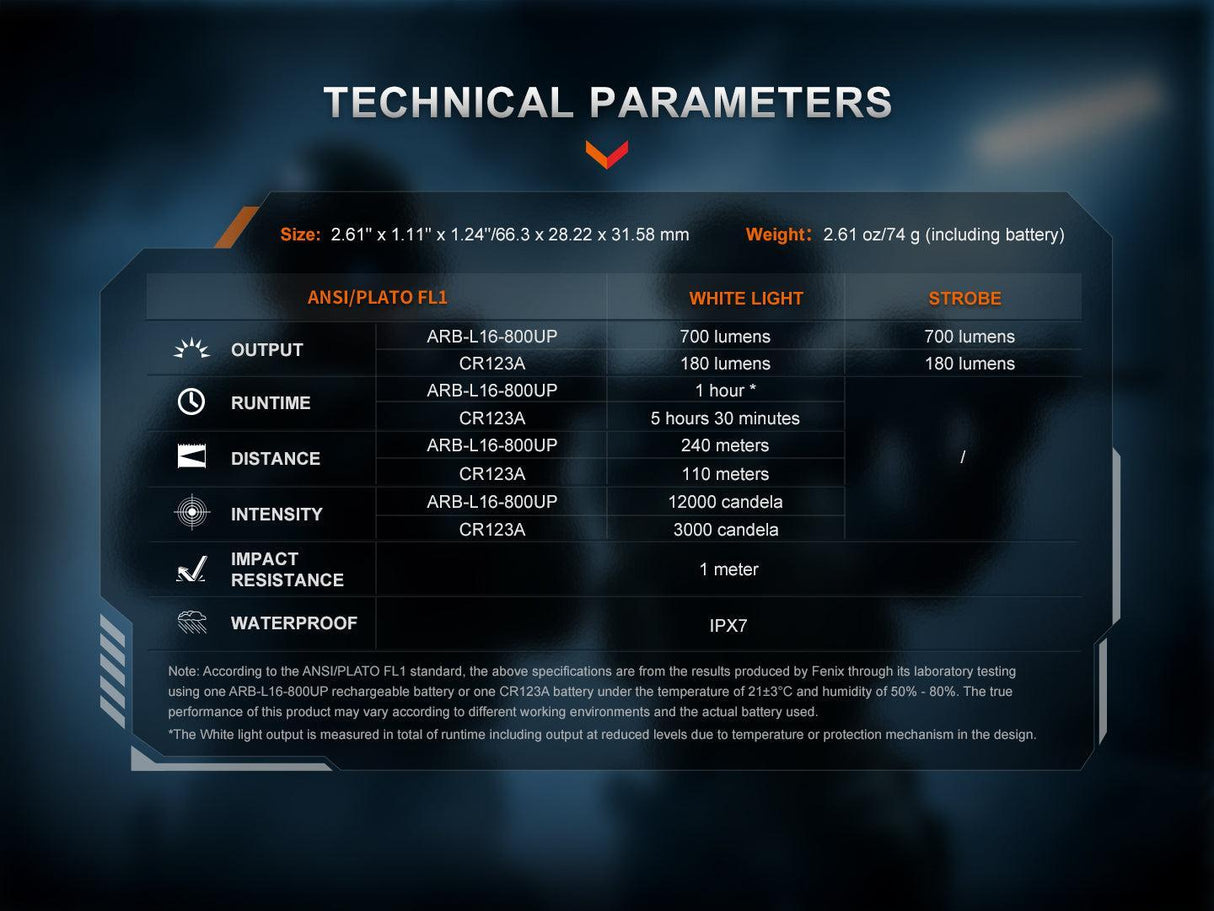

Operational Modes

White Light (ARB-L16-800UP): 700 lumens; 1 hour run time* ; 240 m beam range
White Light (CR123A): 180 lumens; 5 hours and 30 min run time; 110 m beam range
Strobe (ARB-L16-800UP): 700 lumens
Strobe (CR123A): 180 lumens

*The white light output is measured over a total runtime, which includes periods of operation at reduced levels due to the design's temperature or protection mechanisms.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using 1 x Fenix ARB-L16-800UP lithium-ion rechargeable battery or 1 x CR123A battery under the temperature of 21±3°C and humidity of 50% - 80%. Results may vary between torch, battery and environments.

Technical Details

Type: Tactical Rail Light
Operating Modes: White Light / Strobe
Luminous Flux: Up to 700 lumens
Lamp Type: Luminus SFT12R LED
Beam Range: Up to 240 m
Batteries Required: 1 x Fenix ARB-L16-800UP battery (Included), or 1 x CR123A

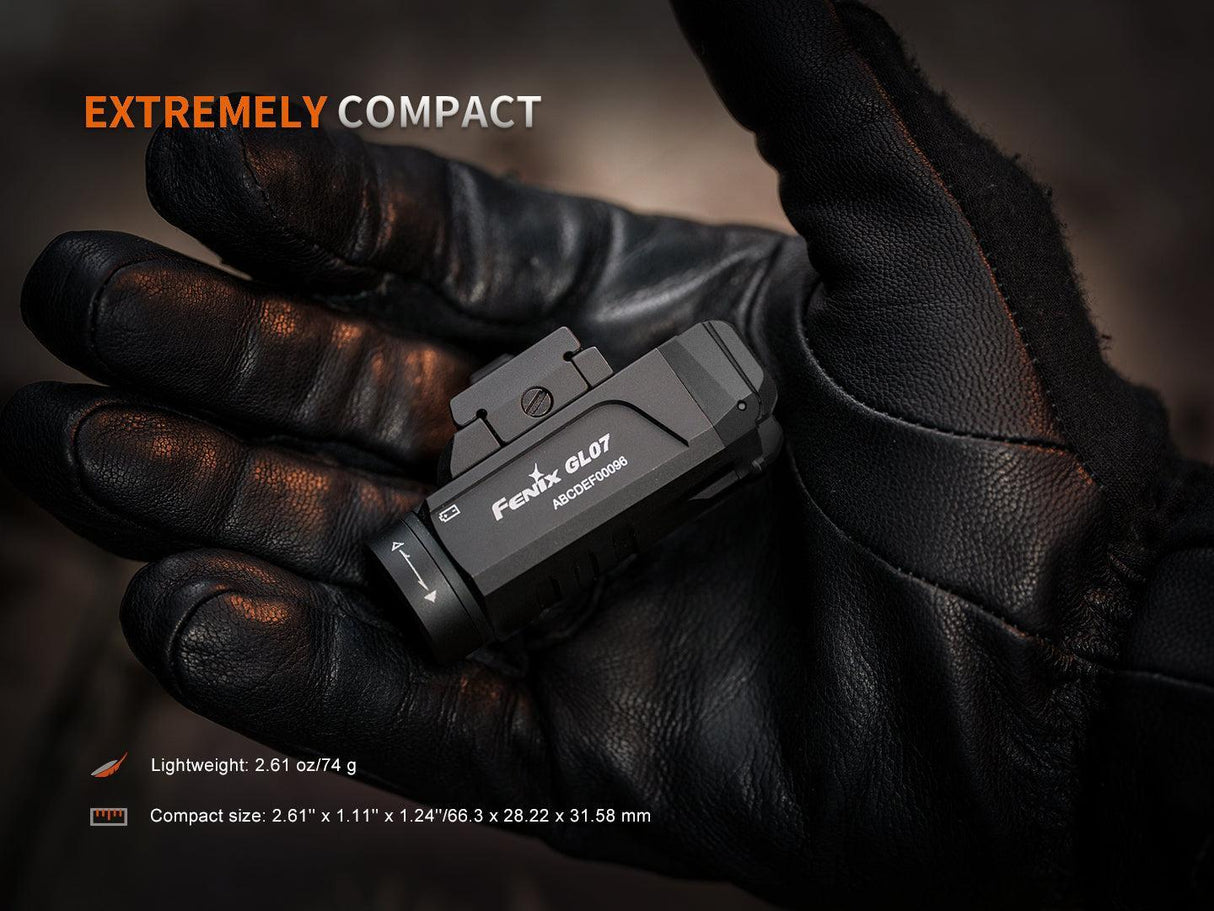

Dimensions: 66.3 mm x 28.22 mm x 31.58 mm (Length, Height, Width)
Weight: 74 grams
Body Colour: Black
Body Material: A6061-T6 aircraft grade aluminium
Body Finish: Premium Type III hard-anodised anti-abrasive finish
Switch Type: Dual tactical on/off mode tail switches
Impact Resistance: 1 m

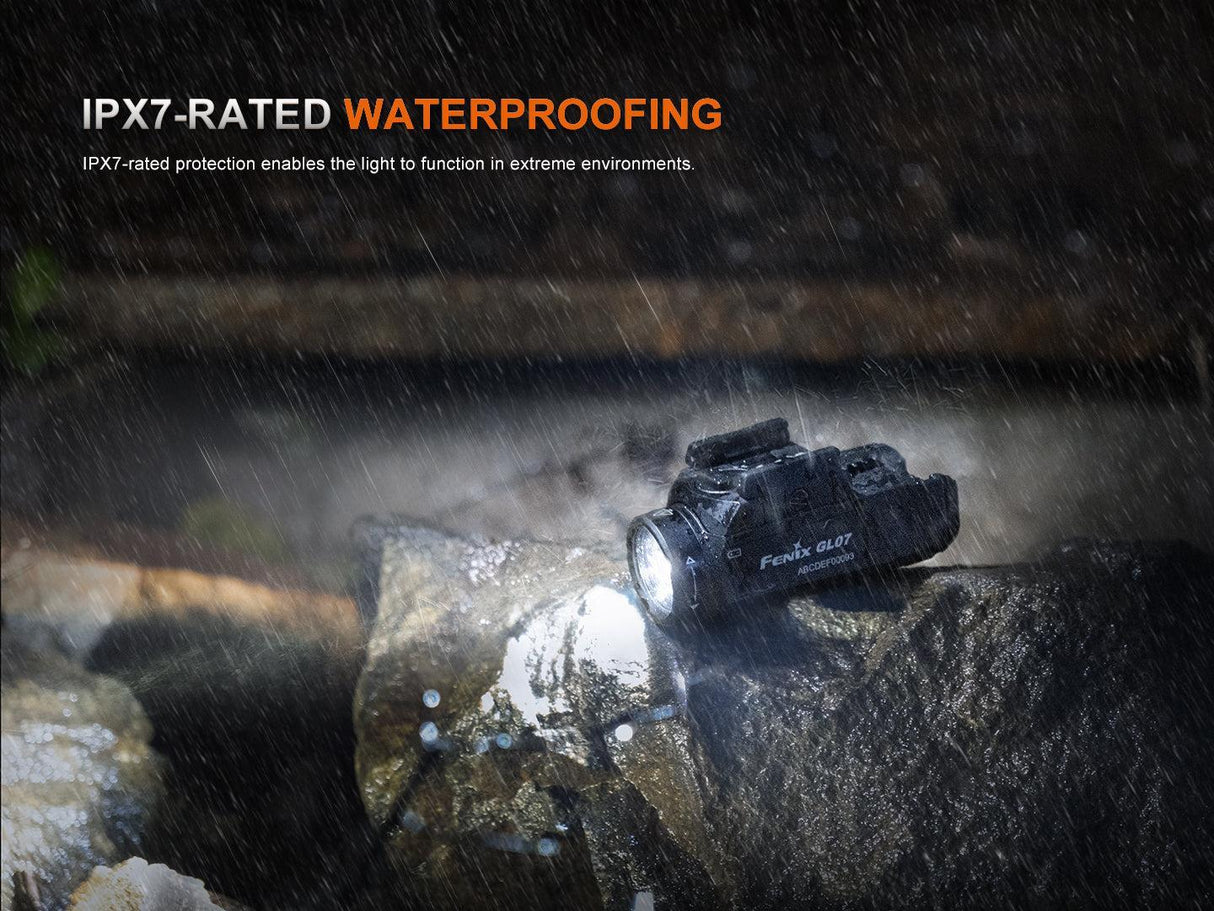

Environmental: IPX7
Warranty: 5 years (torch), 1 year (battery)

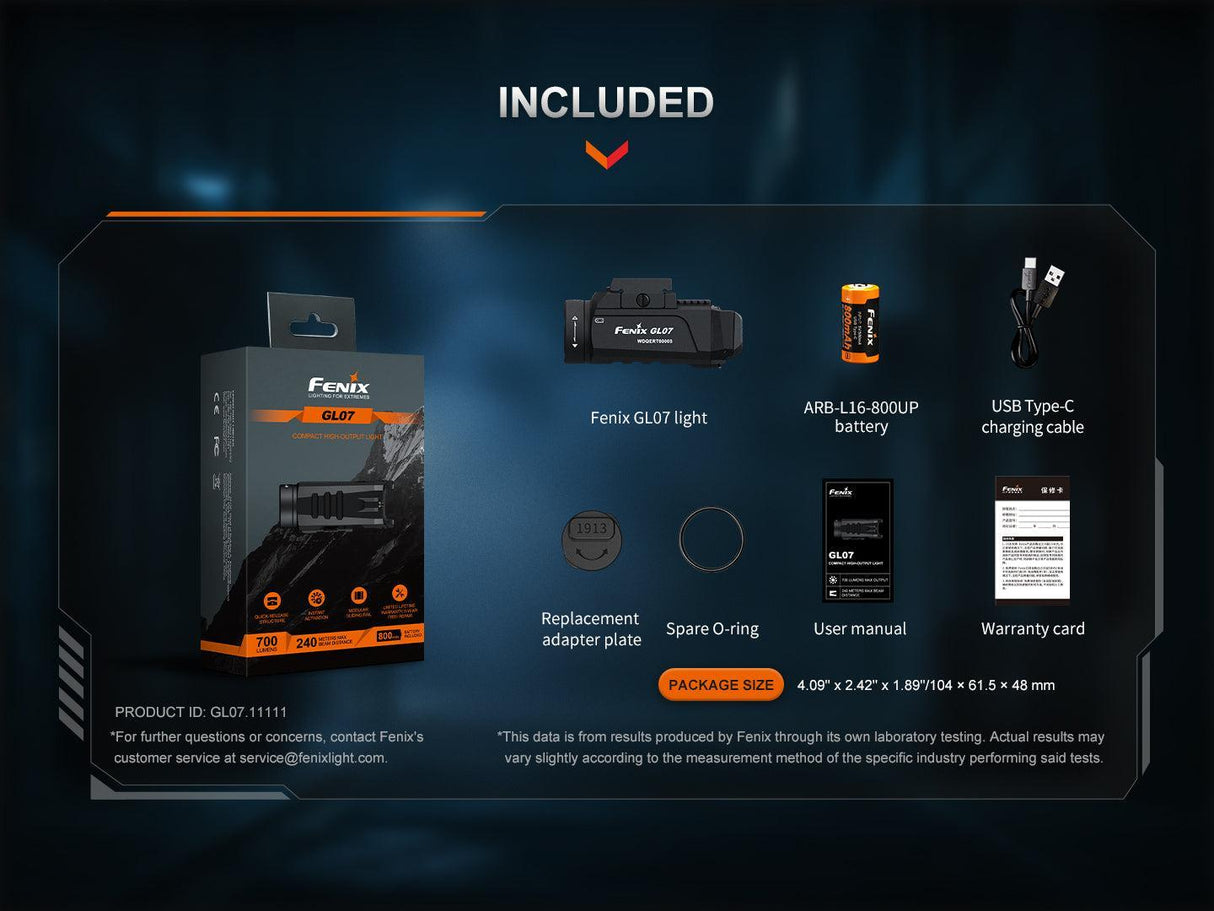

Packaging and Contents

Supplied in retail packaging and contains:
Fenix GL07 Light x 1
Fenix ARB-L16-800UP Rechargeable Battery x 1
USB-C Charger Lead x 1
Picatinny Adapter Plate x 1
Spare O-Ring x 1
Warranty Card x 1
User Manual x 1
