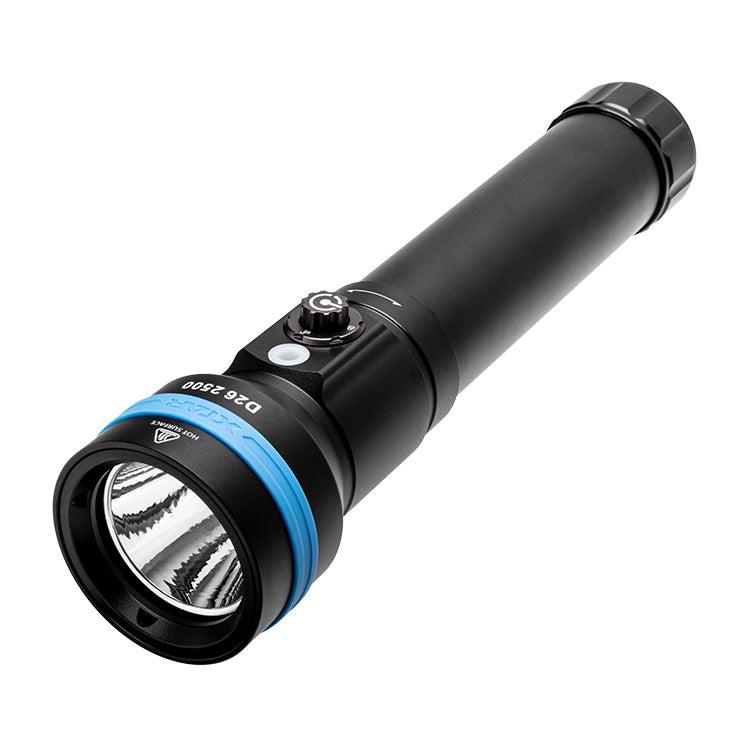

Xtar D26 2500 LED Diving Torch Kit

A long body dive torch that provides an excellent output, as well as longer run-time due to it's ability to hold two batteries instead of one.

The D26 2500 includes the following main items:

D26 2500 LED diving torch
Xtar 26650 5200 mAh battery x 2
FC2 Dual bay battery charger & USB cable
Lanyard

More information about the D26 2500 LED Torch

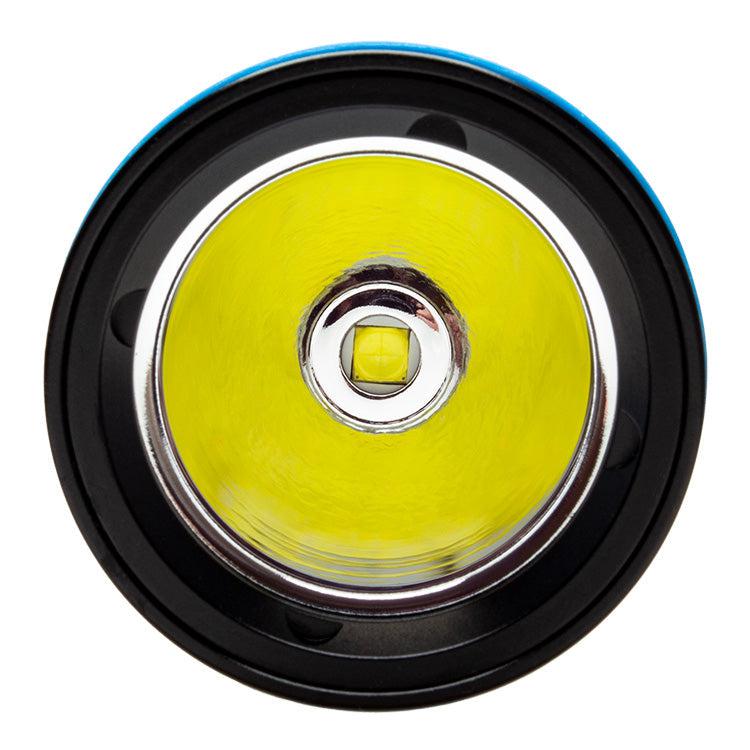

The Xtar D26 2500 is an updated version of the popular D26 1600 dive torch, now with a 2500 lumen white output on maximum setting and utilising a Cree XHP50.2 LED with a colour temperature of 6000 K.

It can work to a depth of 100 metres and uses a high transmittance lens combined with an upgraded reflector to produce a beam range of 320 metres, enabling you to see further in front to avoid marine life and also making it safer for diving.

Powered by two 26650 lithium-ion batteries (included) which can be easily recharged in the provided external FC2 battery charger. It features two bays so both batteries can be charged as the same time, and the charging lights above each battery display charging progress.

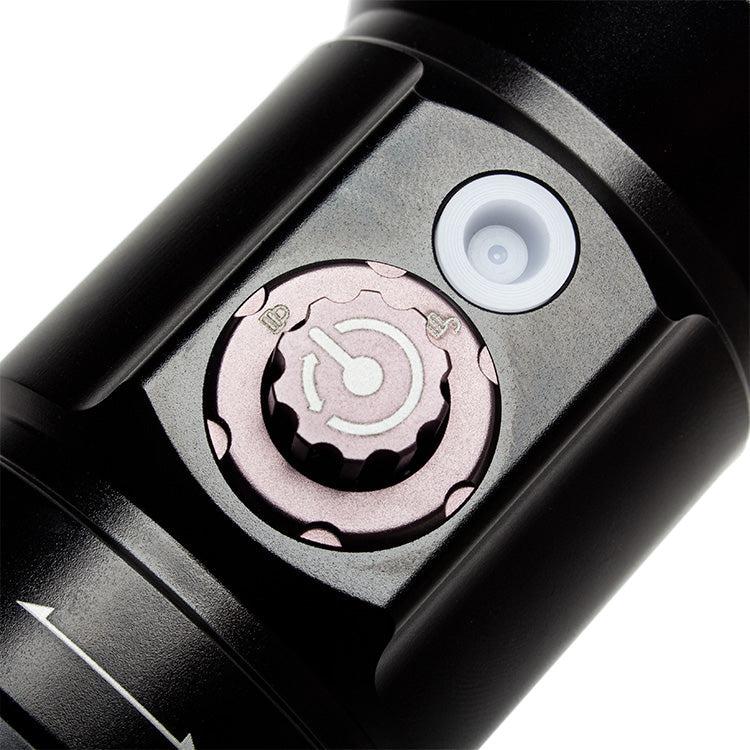

Four brightness levels are available and are useful in different underwater situations. The magnetic switch controls the outputs when in the unlocked position, with one press turning the light on and each press thereafter cycling through the brightness settings as follows; turbo, high, mid and low. Hold the switch for 1.5 seconds to turn the torch off.

To prevent accidental activation the torch can be placed in lockout mode by twisting the switch 90° to the left to face the locked padlock symbol. To exit the lockout mode simply twist the button 90° to the right so it is facing upwards towards the unlocked padlock symbol.

An LED power indicator just above the power switch lets you know when your battery is running low. Above 25% power the light will be green, between 5%-25% the light will go red and below 5% the red light will flash to remind you to charge the battery.

Operational Modes

Turbo: 2500 lumens; 2 hours, 12 minutes run-time
High: 1400 lumens; 4 hours, 30 minutes run-time
Mid: 700 lumens; 9 hours run-time
Low: 30 lumens; 72 hours run-time

Lab tested to ANSI standards using 2 x Xtar 5200 mAh 26650 lithium-ion batteries with 25° water cooling. Parameters may vary between torches, chargers, batteries and environments.

Technical Details

Type: Diving torch
Operating Modes: Low / Mid / High / Turbo
Luminous Flux: Up to 2500 lumens
Lamp Type: Cree XHP50.2 LED
Beam Range: Up to 320 m
Batteries Required: 2 x 26650 lithium-ion battery (included)
Overall Length: 236.6 mm
Head Diameter: 54 mm
Barrel Diameter: 36.5 mm
Weight: 435 grams (excluding battery)
Body Colour: Black with blue head detailing
Body Material: 6N01 aircraft-grade aluminium alloy
Body Finish: Type III hard anodised anti-corrosion finish
Switch Type: Push button magnetic switch
Impact Resistance: 1.5 m
Environmental: Waterproof to IPX8 standard (submerged up to 100 m depth)
Warranty: 2 years

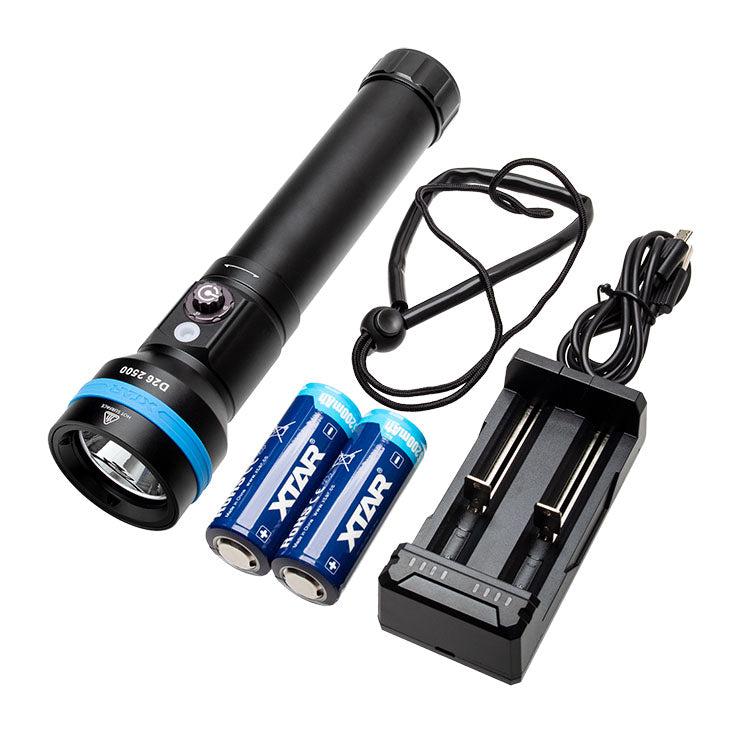

Packaging and Contents

Supplied in retail packaging and includes:
Xtar D26 2500 LED dive torch x 1
Xtar FC2 battery charger (with USB cable) x 1
Xtar 5200 mAh 26650 lithium-ion battery x 2
Lanyard x 1
O-ring x 2
Manual x 1
