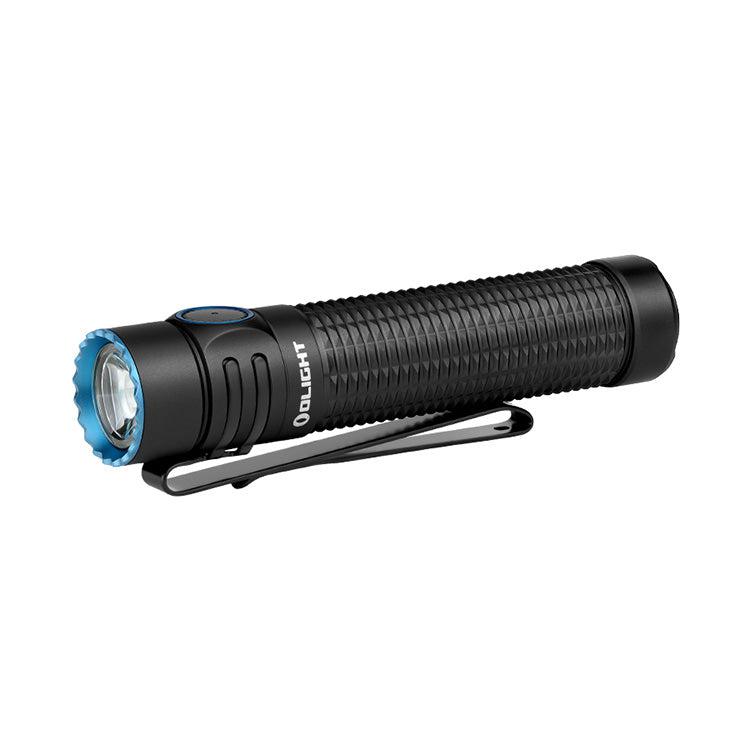

Olight Warrior Mini 3 Rechargeable LED Torch

The Olight Warrior Mini 3 is an upgraded version of the Warrior Mini 2, maintaining the dual switches, customised 3500 mAh battery and MMC3 charging cable, but now with improved features such as a proximity sensor, the tail switch and hotspot and tint.

It features a maximum output of 1750 lumens, before dropping down to 500 lumens after 2 minutes to prevent the LED from overheating. It will run at 500 lumens for 210 minutes before dropping a final time to 200 lumens for 30 minutes.

As well as the active thermal management system that reduces the output when the temperature gets too hot, the Warrior Mini 3 also features a proximity sensor that will automatically reduce the output if the head of the torch becomes too close to an object when accidentally activated in the higher settings. This ensures that the heat expelled from the torch doesn't cause any damage. However the upgraded Warrior Mini 3 now ensures that the sensor does not hinder with intended use when in the higher outputs, for example; purposefully activating the torch in a high output and then becoming close to an object like a wall or window.

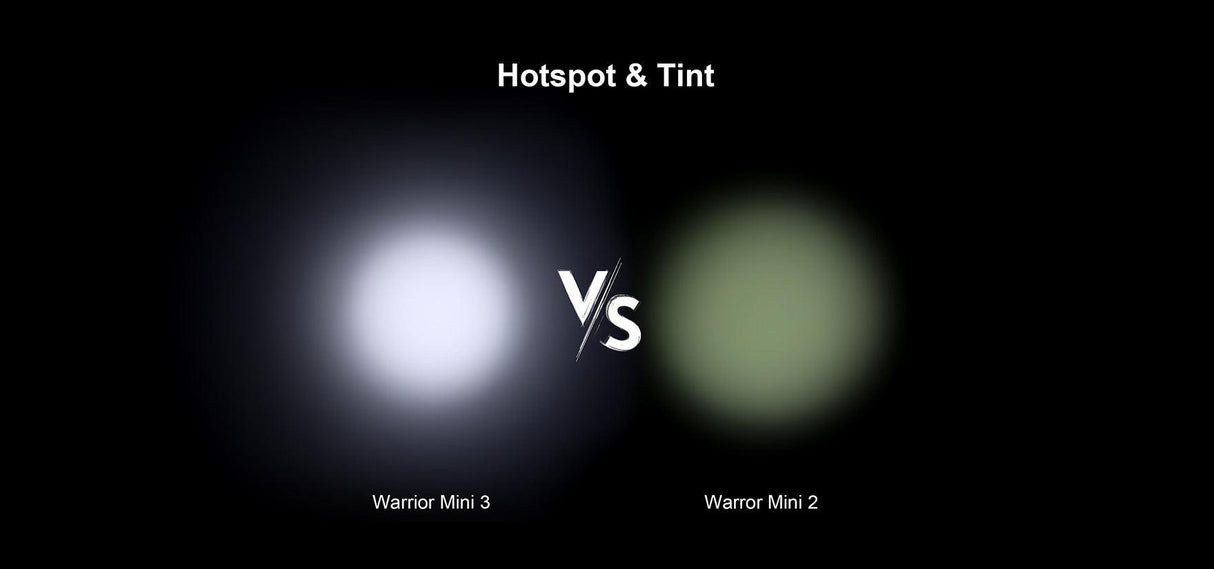

Utilising a TIR optic lens, the Warrior Mini 3 provides better light quality with a smooth and balanced beam profile and updated hotspot and tint from the Warrior Mini 2.

The included Olight 18650 3500 mAh tailored lithium-ion battery is specially designed and only this battery can be charged within the torch. The battery is recharged inside the torch using the included MCC3 magnetic charging cable.

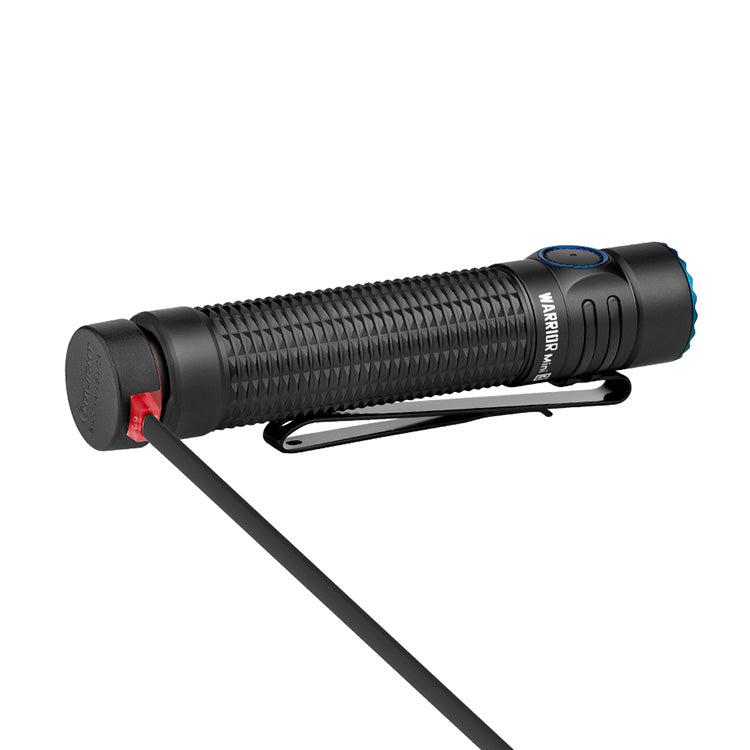

Simply connect the magnet to the base of the torch and plug the USB end into a computer or suitable adaptor. The light on the cable will go red to show charging is in progress and turn green once charging is complete.

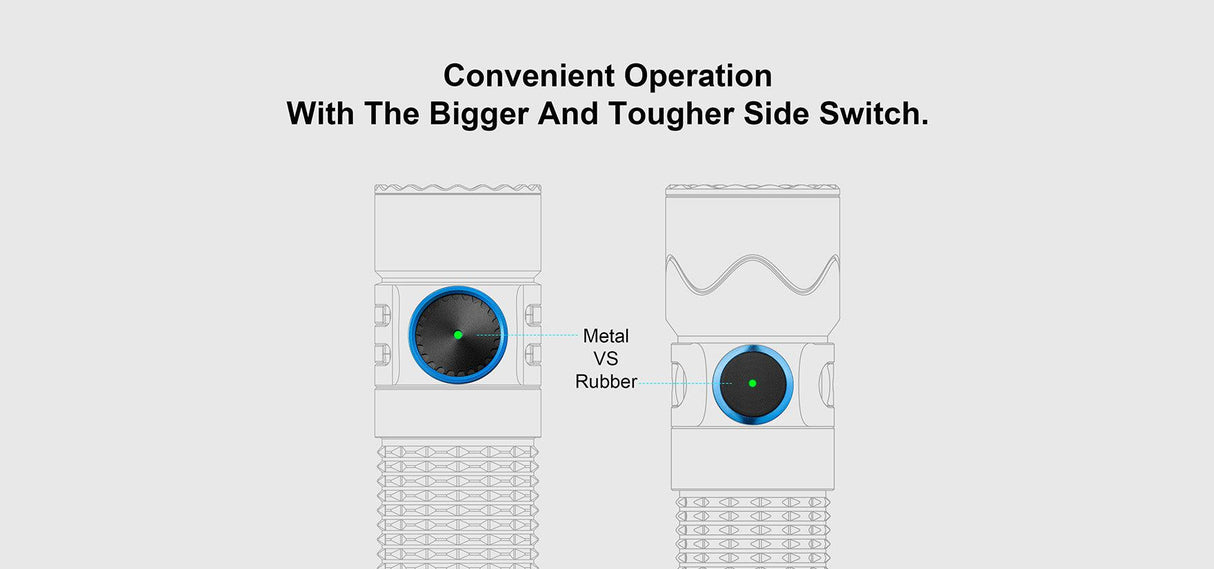

Featuring five brightness levels and strobe, the torch is turned on and off with a single press of the side mounted push button. Select the brightness level, with the torch turned on, by holding the switch to cycle through low, mid and high in turn, whilst the moonlight mode of 0.5 lumens can be accessed directly when the torch is off by pressing and holding down the switch, or a single press if it is the last used memorised mode.

Quickly double pressing the side switch will enter and exit turbo mode, while three quick presses with the light on will activate the strobe mode. The memory function will remember the last mode used for moonlight, low, mid and high.

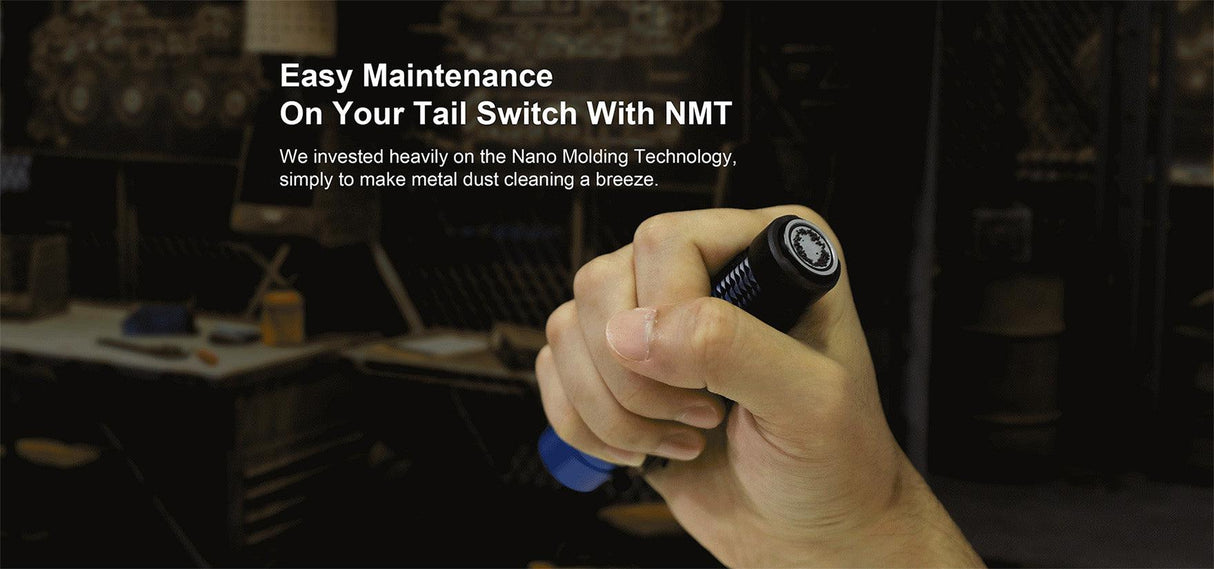

The redesigned tactical tail switch is now created using Nano Moulding Technology for easy maintenance and provides stronger magnetism. The tactical tail switch is a quiet press button with minimal noise for tactical purposes and can be used in two modes; either configuration 1 or configuration 2. The torch default setting is configuration 1 and to switch to configuration 2 you deep press and hold the tail switch then single press the side switch. In Configuration 1 the tail switch will provide mid output with a half press or turbo output with a full press, and can provide momentary operation by holding down the button either half or fully. Configuration 2 will provide turbo output with a half press or strobe with a full press.

There is a battery level indicator built into the side switch that lets you know when the battery needs charging. A green light indicates above 60% power, a orange light indicates 10% - 60 % power a red light indicates 10% - 5% power and a red flashing light indicates less than 5% power and that the torch needs to be charged.

A handy lockout function prevents the torch from being accidentally activated and is accessed by pressing and holding the switch for 2 seconds to lock it (it will enter moonlight mode first and then lockout) and the same again will unlock it. The Warrior Mini 3 also features a dual purpose magnetic tail cap, so you can use it as a hands-free work light on magnetic surfaces, and attach it securely to the included charging cable.

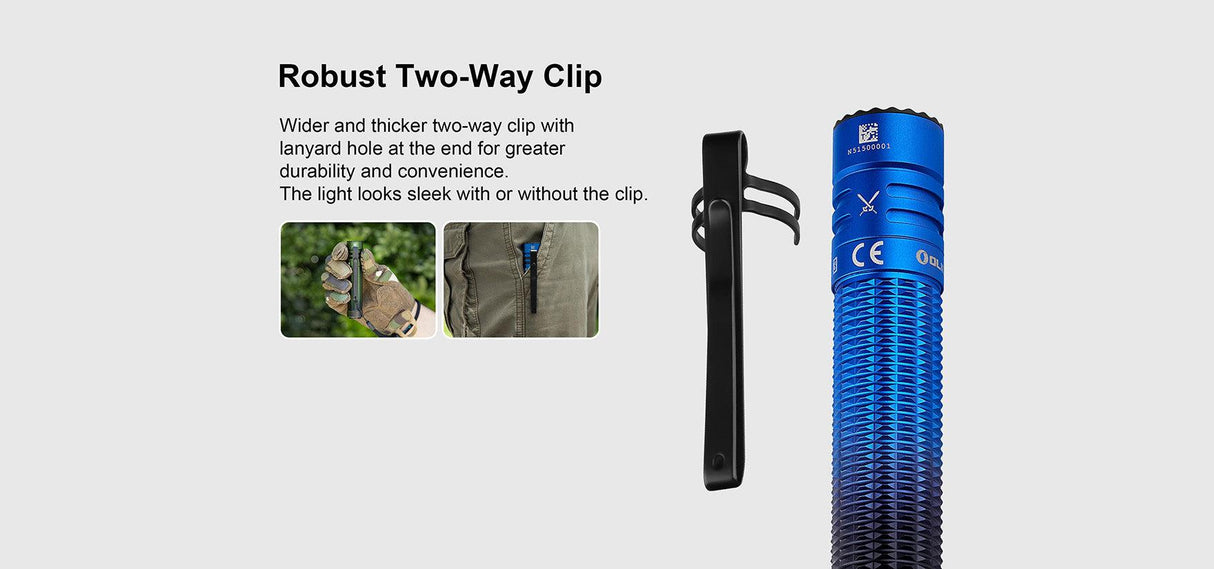

The innovative two way pocket clip makes it easy to carry the Warrior Mini 3 on clothing and it comes with a circular opening which a lanyard can be attached through. The Warrior Mini 3 also comes with an L-Stand for easy storage which is also compatible with other Olight products.

Please note: Ensure the torch is stowed away from magnetic objects and is placed in lockout mode for transport and storage. ALWAYS fully read the manual before use.

Operational Modes

Turbo*:
1750 lumens; 2 minutes run-time
500 lumens; 210 minutes run-time
200 lumens; 30 minutes run-time

High*:
500 lumens; 215 minutes run-time
200 lumens; 30 minutes run-time

Mid: 120 lumens; 18 hours run-time
Low: 15 lumens; 165 hours run-time
Moonlight: 0.5 lumen; 100 days run-time

Please note: *The turbo & high settings will reduce in output to protect the LEDs from overheating, and will continue to decrease as the battery voltage decreases.

The above results are based on ANSI/NEMA FL1-2009 standard and are tested using the included battery.

Technical Details

Type: EDC hand-held LED torch
Operating Modes: Moonlight / Low / Mid / High / Turbo / Strobe
Luminous Flux: Up to 1750 lumens
Lamp Type: White LED
Lens: TIR reflector
Beam Range: Up to 240 m
Batteries Required: 1 x customised 3500 mAh 18650 lithium-ion (included)
Overall Length: 111 mm
Bezel Diameter: 23 mm
Body Diameter: 23 mm
Weight: 122 grams (including battery)

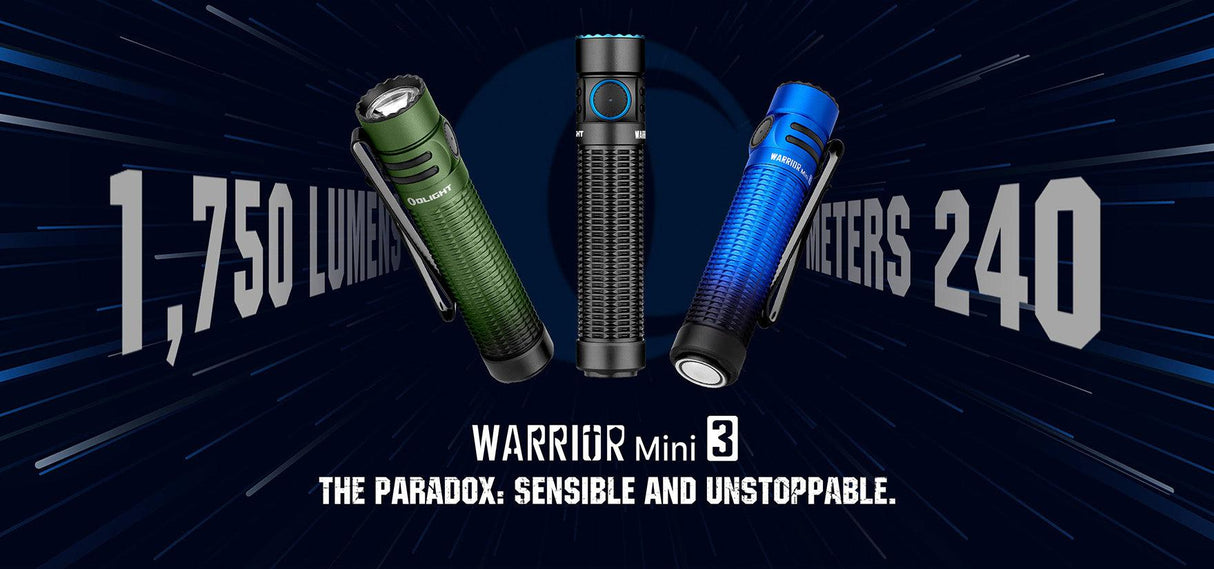

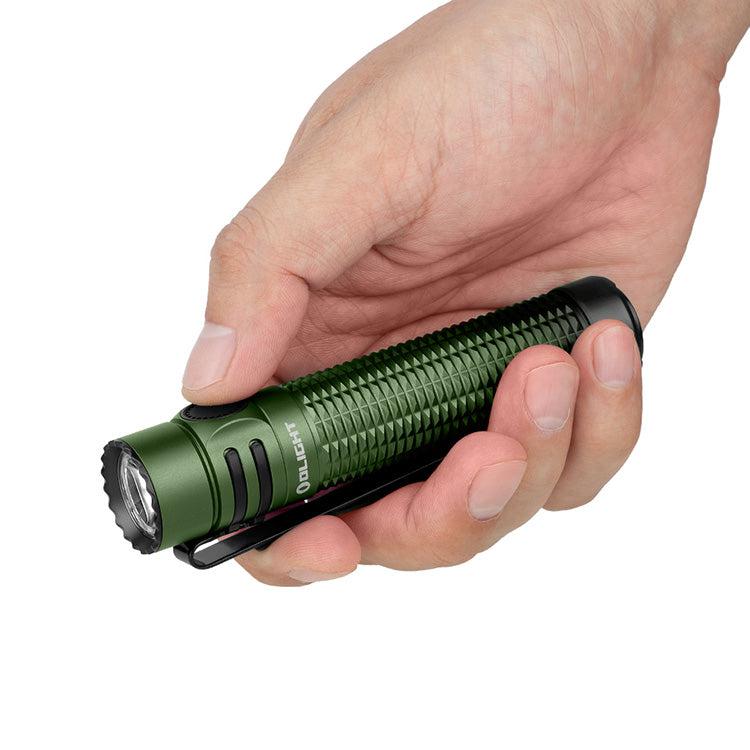

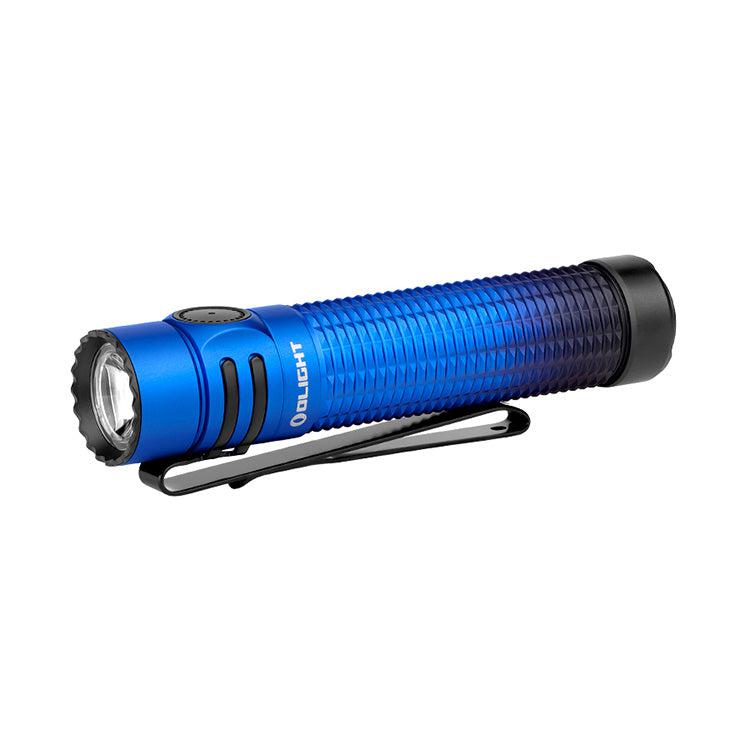

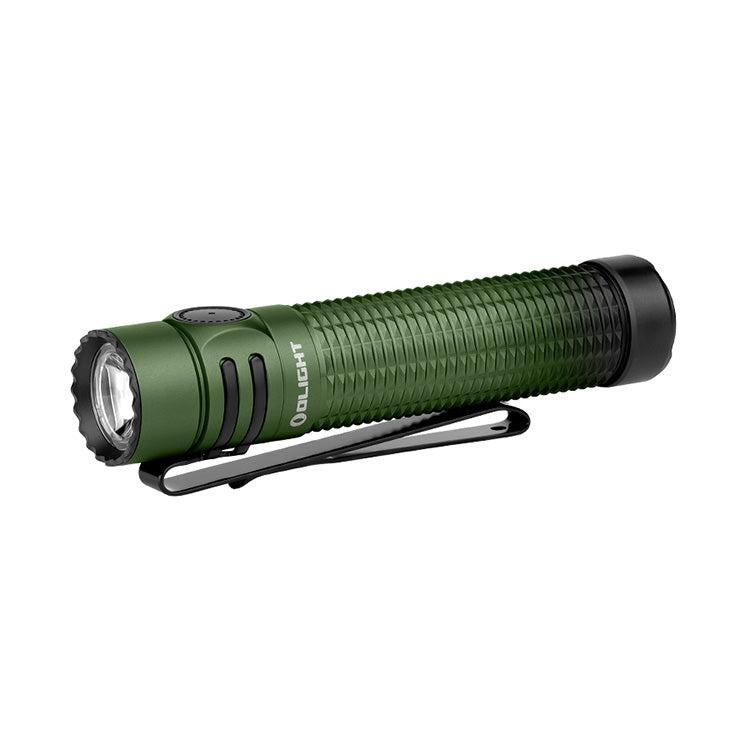

Body Colour: Black, Forest Gradient or Midnight Horizon
Body Material: Aluminium alloy
Body Finish: Type III hard-anodised
Switch Type: Side mounted and tactical tail switch
Impact Resistance: 1.5 m
Environmental: Waterproof to IPX8 Standard (2 m)
Warranty: 5 years (torch only)

Packaging and Contents

Supplied in retail packaging and contains:
Olight Warrior Mini 3 torch x 1
Olight tailored 18650 3500 mAh lithium-ion battery x 1
MCC3 USB magnetic charging cable x 1
Two way pocket clip x 1
L-Stand x 1
Manual x 1
