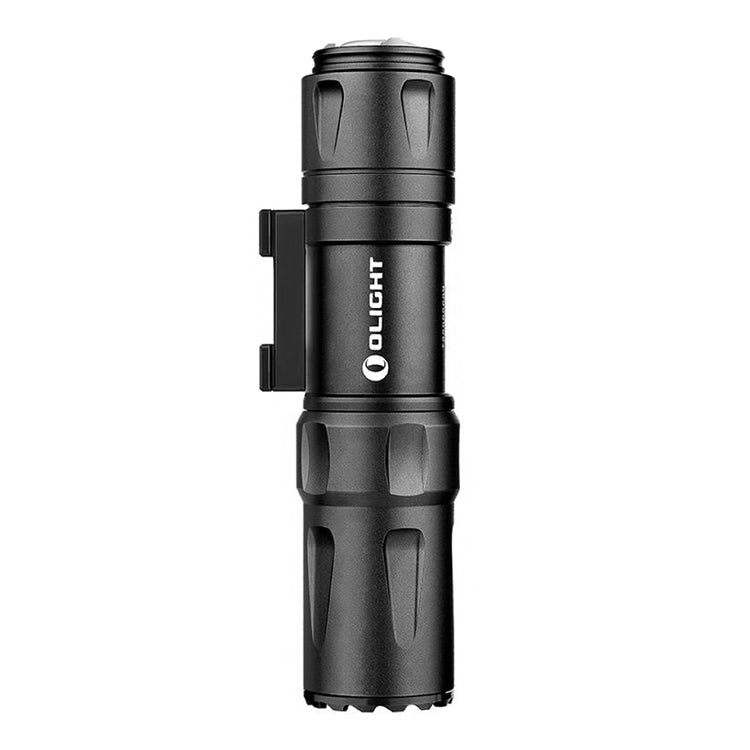

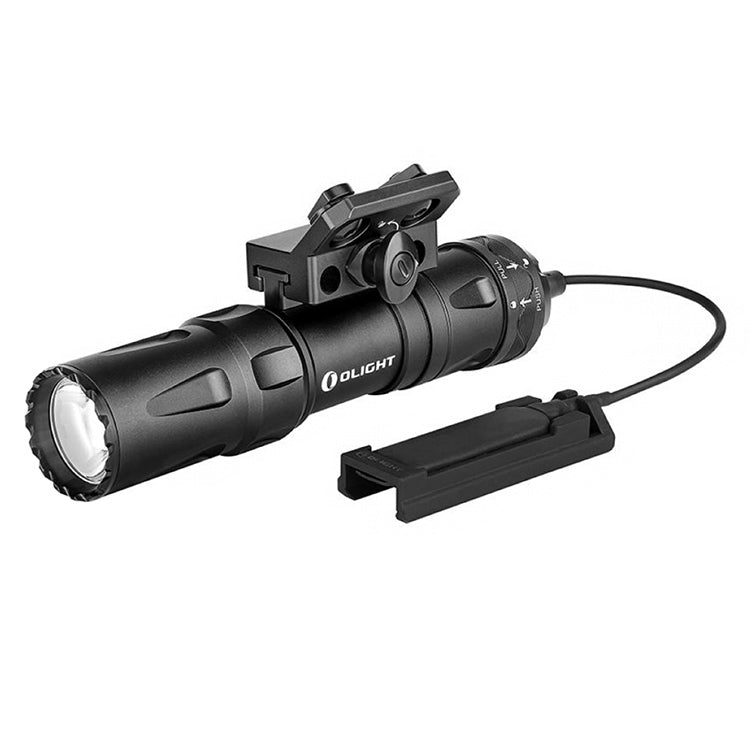

Olight Odin Mini Rechargeable LED Weapon Mountable Torch

The Odin Mini is a smaller version of the Odin, still offering Olight's exquisite design with a clever mounting system combined with some of the much loved features such as the vibration battery indicator, metal silent switch and magnetic charging.

Utilising a neutral white LED, the Odin Mini has a maximum output of 1250 lumens on turbo, which drops to 900 lumens after 6 minutes use, drops again after 11 minutes to 700 lumens and will run for 39 minutes before dropping a final time to 200 lumens for which it will then run for 14 minutes.

Professionally designed for M-LOK rails, the Odin Mini features an innovative removable slide M-LOK mount with a twist mechanical lock for secure connection to the torch. The torch is also compatible with the separately available picatinny rail mount, or third party picatinny mounts. To attach the mount to the M-LOK rail, the mount needs to be opened up by loosening the screws with the included tool. Once loosened it can be positioned wherever you want it on your rail and the screws can then be tightened up to ensure the mount is secure.

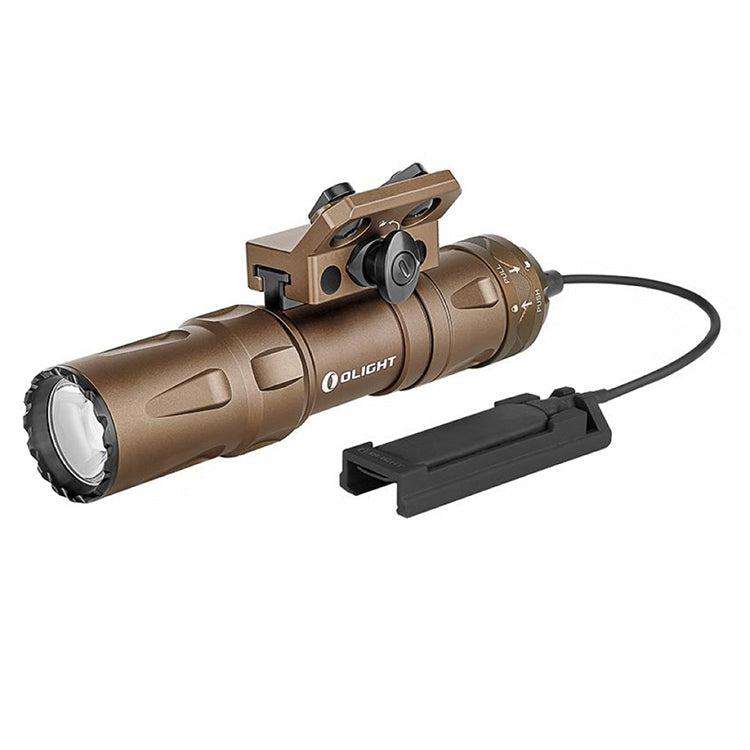

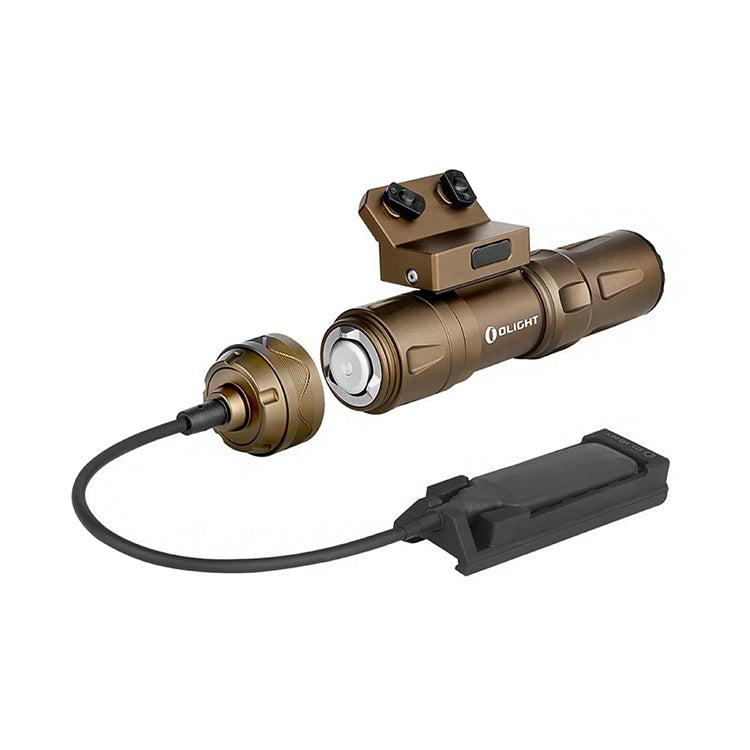

It connects to the included remote pressure switch magnetically, rather than having to unscrew the tail cap and replace it, which makes it much more efficient. Once the pressure switch is magnetically connected, the ring can then be pushed down to lock it to the torch for extra security. The pressure pad can also be mounted on the rail as it is set in it's own rail mountable holder. A quick press of the pressure switch will access constant on/off, while press and hold will access the momentary operation.

And if all that wasn't enough already, the Odin features the innovative low battery level warning function in the form of a subtle vibration within the torch, rather than an indicator light, making it much more stealthy.

The low power vibration feature will notify you at the following power levels:
Power ≤20% - vibrate once every 5 minutes
Power ≤10% - vibrate once per minute
Power ≤5% - vibrate once every 10 seconds

The included 18500 customised lithium-ion battery with a capacity of 2040 mAh is recharged inside the torch using the included MCC3 magnetic charging cable (only this cable can be used with the Odin Mini).

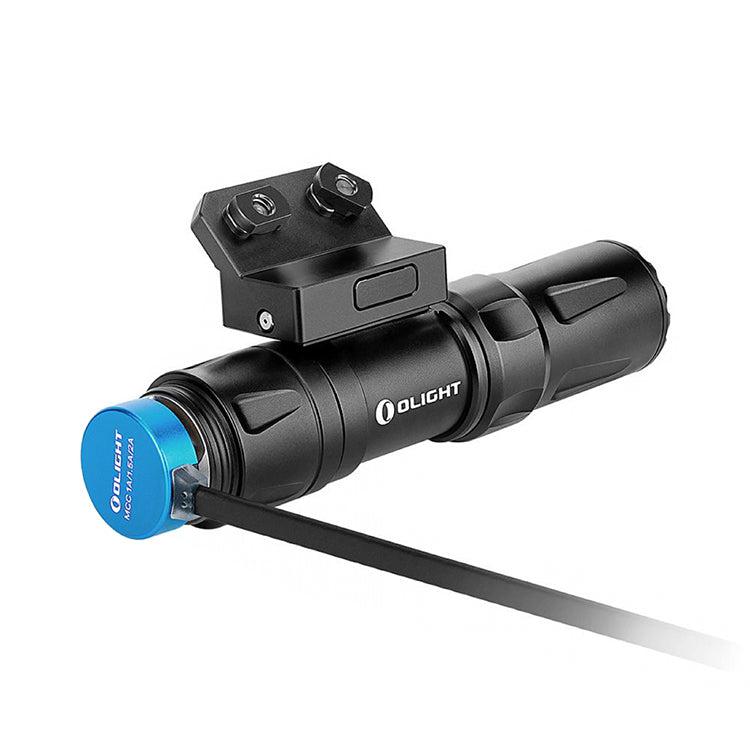

Simply connect the magnet to the base of the Odin Mini and plug the USB end into a computer or the mains using a suitable USB adaptor. The indicator light on the magnet will go red while charging is in progress and turn green once charging is complete after approximately 3 hours if the power supply is sufficient enough to support the 1.5 A output, otherwise the cable will output at a lower rate and charging will take longer.

The tactical tail switch provides strong magnetism and allows for easy operation while wearing gloves and due to the raised button, but without compromising accidental activation thanks to the three raised struts that not only prevent it easily turning on but also allow for tail stand capability. The tail switch will access constant low with a quick half press, or momentary low with a half press and hold. Constant high is accessed with a quick deep press or momentary high is activated with a deep press and hold. Single press the button again to turn the torch off.

Two small zip ties are included for cable management of the remote switch to ensure that the wire is secure and won't get in your way.

Product Features

Heavy duty build
Metal tail switch that won't wear down like a rubber switch
Innovative M-LOK mounting system
Magnetic remote pressure switch included
Magnetic tail cap charging
Compact size with high output

Operational Modes

High:
1250 lumens; 6 minutes run-time; 240 m beam range*
900 lumens; 11 minutes run-time
700 lumens; 49 minutes run-time
200 lumens; 14 minutes run-time

Low:
200 lumens; 5 hours run-time

Tested using the included battery. Results may vary between torch, environment and usage.

Please note: *The high setting will continue to decrease under continuous use to protect the LED from overheating

Technical Details

Type: Tactical weapon torch
Operating Modes: Low / High
Luminous Flux: Up to 1250 lumens
Lamp Type: Neutral White LED

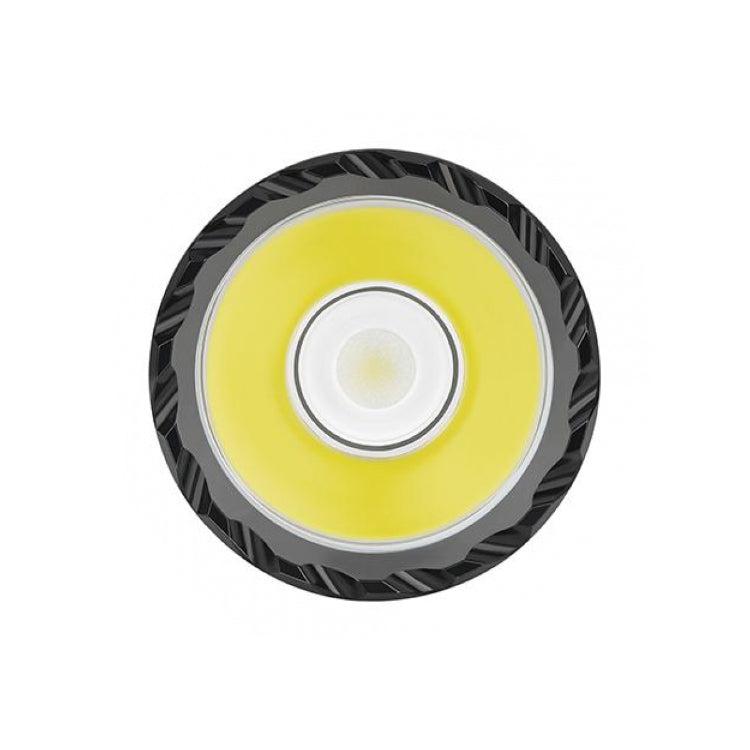

Lens: PMMA optical lens
Beam Range: Up to 300 m
Batteries Required: Olight customised 2040 mAh 18500 lithium-ion
Overall Length: 115.5 mm
Head Diameter: 29 mm
Barrel Diameter: 25.7 mm
Weight: 176 grams (including battery)
Body Colour: Black or desert tan
Body Material: Aluminium alloy
Body Finish: Type III hard anodised
Switch Type: Tail cap push button
Impact Resistance: 1.5 m
Environmental: Waterproof to IPX8 standard (2 m)
Warranty: 5 years (torch), 1 year (battery)

Packaging and Contents

Supplied in a retail packaging and includes:
Olight Odin Mini LED torch (with mount attached) x 1
Olight customised 2040 mAh 18500 lithium-ion battery x 1
MCC3 USB magnetic charging cable x 1
Magnetic remote pressure switch x 1
H3 allen wrench x 1
M-LOK rail mount x 1
M-LOK nut x 2
M-LOK socket screw x 2
Cable zip tie x 2
Manual x 1
