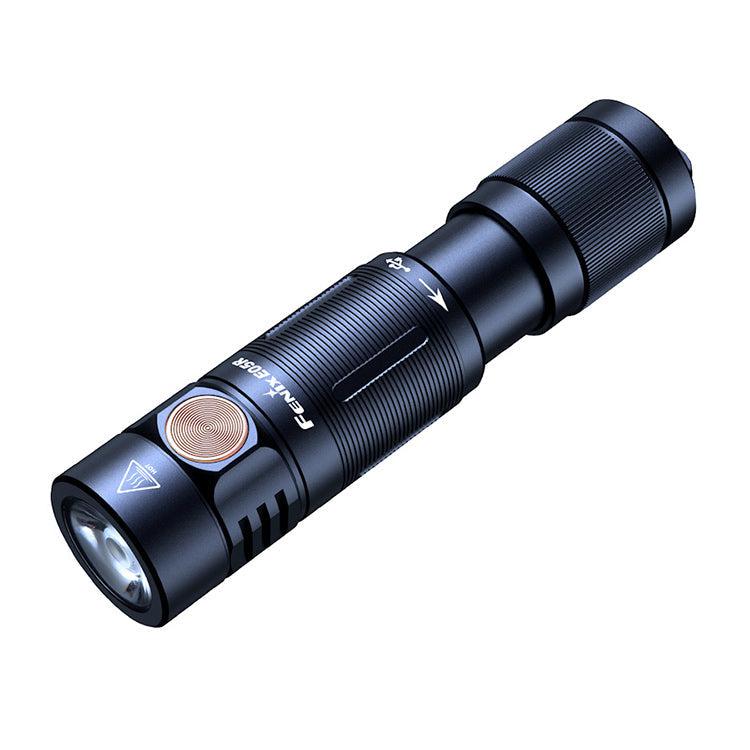

Fenix E05R Rechargeable LED Mini Torch

The Fenix E05R is a mini rechargeable torch with easy one hand operation that can provide a bright 400 lumens momentary burst output, or a maximum of 150 lumens constant output.

Weighing only 24 grams the E05R is perfect for everyday carry, camping, general use and can easily be suspended from a set of keys via the rear loop using the included key ring.

It is powered by a built-in 320 mAh lithium polymer rechargeable battery which is recharged via the micro USB charging port that is concealed on the body of the torch. Loosen the body at the indicated arrow section to reveal the port and plug in the included micro USB cable at one end and plug the other end into a standard USB-A port or a compatible USB adaptor. The charging indicator will go red while charging is in progress and turn green once charging is complete after approximately 1 hour. Be sure to fully tighten the body after charging to maintain the waterproof ability.

Four brightness levels are available and are controlled using the metal side switch. To turn on the light hold the button for 0.5 seconds, and then single press to cycle through moonlight, low, mid and high. To access the 400 lumen burst press and hold the button for 1.2 seconds to turn it on, and it will stay on while the button is held and revert back to low mode when the button is released.

To prevent accidental activation when not in use while stowed in a pocket or backpack, the E05R has a handy lockout function. To activate the lockout quickly double press the button within 0.5 seconds while the light is off and the light will blink twice on low to indicate the lockout status. It can be unlocked in the same way and will turn on in the low mode.

The torch will generate a lot of heat when used in turbo, therefore the overheat protection will automatically reduce the output when the internal temperature reaches 60° in order to protect the LED from overheating, and once the torch has cooled the turbo mode can be reselected.

Product Features

Built-in rechargeable lithium polymer battery
Hidden micro USB charging port with indicator light
Metal side switch for easy operation
Lockout function to prevent accidental activation
Extremely lightweight, compact and portable

Operational Modes

Burst: 400 lumens; 64 m beam range
High: 150 lumens; 55 minutes run-time: 40 m beam range*
Mid: 25 lumens; 5 hours run-time; 17 m beam range
Low: 3 lumen; 30 hours run-time; 28 m beam range

Note: *The high output is measured at total run-time, including output at reduced levels due to temperature or the built-in protection mechanism.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using the built-in 320 mAh lithium polymer rechargeable battery under the temperature of 21±3°C and humidity of 50% - 80%. Results may vary between torch, battery and environments.

Technical Details

Type: EDC mini LED torch
Operating Modes: Low / Mid / High / Burst
Luminous Flux: Up to 400 lumens
Beam Range: Up to 64 m
Lamp Type: 1 x Cree XP-G2 S3 LED
Batteries Required: Built-in 320 mAh lithium polymer battery
Measurements: 68 x 15.3 x 15 mm
Weight: 24 grams

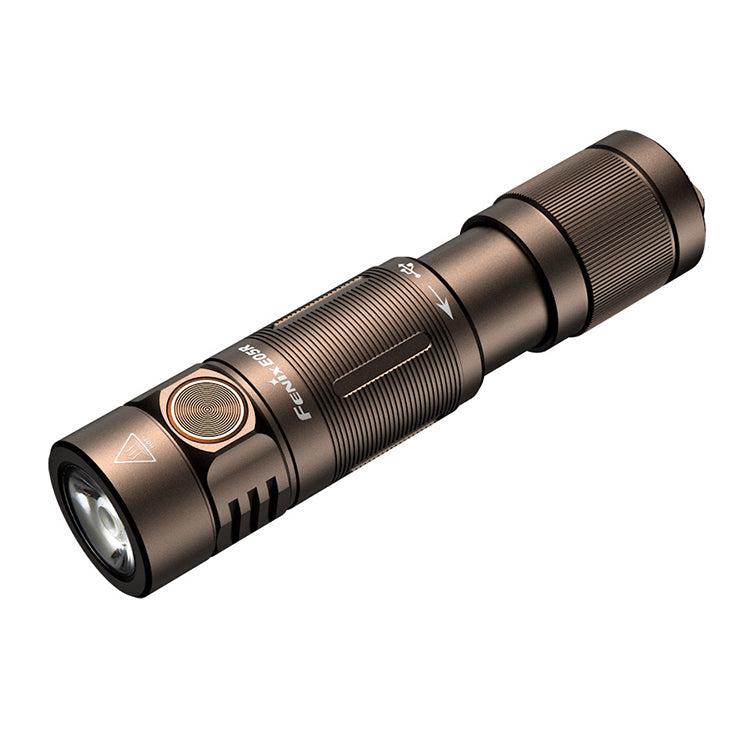

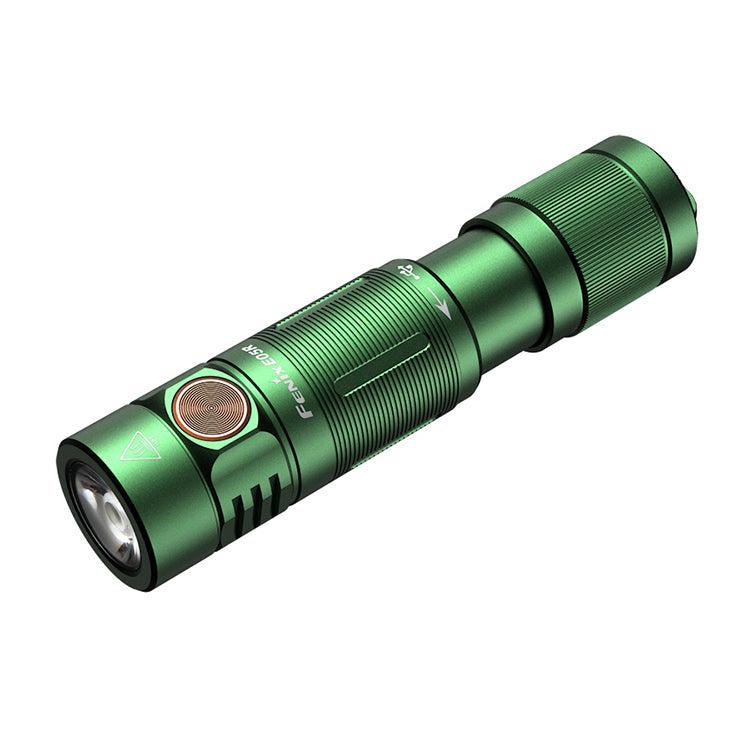

Body Colour: Black. green or brown
Body Material: Durable A6061-T6 aluminium
Body Finish: Premium type III hard-anodised anti-abrasive finish
Switch Type: Metal side button
Environmental: Waterproof to IP68 standard (2 m)
Impact Resistance: 1 m
Warranty: 2 years

Packaging and Contents

Supplied in retail packaging and includes:
Fenix E05R LED key ring torch x 1
Micro USB to USB-A charging cable x 1
Key chain x 1
Spare O-ring x 1
Manual x 1
