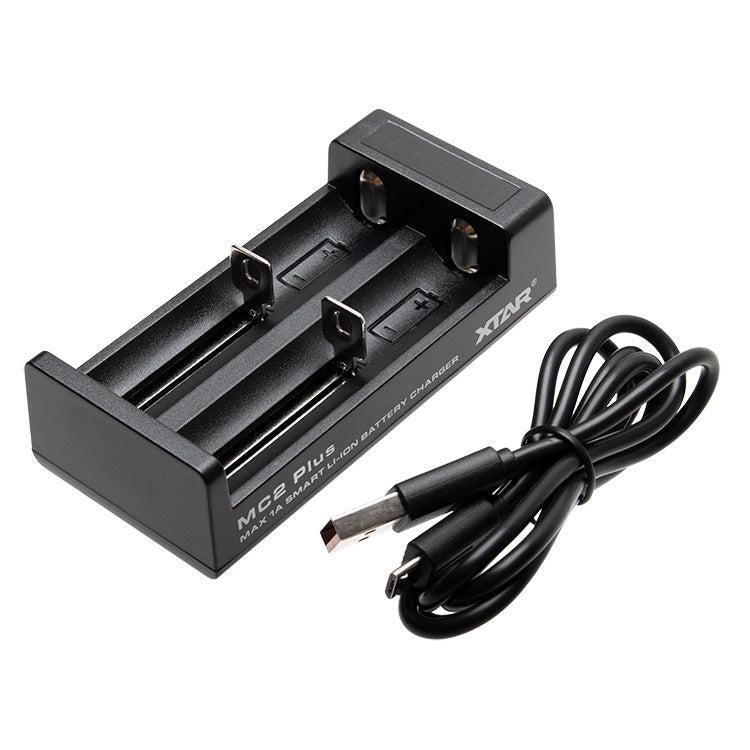

Xtar MC2 Plus Dual Bay Lithium-ion Battery Charger

The Xtar MC2 Plus is a lithium-ion battery charger with a two charging bays that has a charging current of either 0.5 A or 1 A.

The MC2 is suitable for charging the following Lithium-ion / IMR / INR / ICR batteries 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 20700*, 21700*

Note: *Can not charge protected 20700 or 21700 lithium-ion batteries as they are too long to fit in the charger.

The supplied micro USB charging cable plugs into the micro USB port on the charger at one end and into a computer USB port / mains adaptor the other end. Insert a compatible battery into one or both charging bays and the MC2 Plus will automatically detect the battery type and select the suitable charging current of either 500 mA or 1000 mA.

A small display screen will light up and show the charging current and the charging progress of the battery above each charging bay. The charger will automatically stop charging when the battery is full.

The 0 V activation function can revive an over depleted or old battery giving it a new lease of life and saving you money.

For charging 3.6 V or 3.7 V lithium-ion batteries only. Supplied with a USB charging cable.

Note: Always use in accordance with instruction manual and read before first use.

Product Features

Three stage ( TC.CC.CV ) charging system
0 V battery activation
Reverse polarity, short circuit, overcharge and overheat protection
Current buffering technology
Stops Charging when the battery reaches 4.2 V

Operation Temperature: 0 to 40℃
Input Voltage: 5 V dc @ 2100 mA
Constant Charge Current: 500 mA x 2 or 1000 mA x 2
Termination Current: <120 mA
Cut-off Voltage: 4.2 V
Weight: 48 grams
Dimensions: 92 x 47 x 26 mm

Supplied in retail packaging and includes:
Xtar MC2 Plus dual bay charger x 1
Micro USB charging cable x 1
Instruction manual x 1

Safety Notes

1. Charge only rechargeable 3.6/3.7 V lithium-ion batteries.
2. Charging any other types of batteries may cause them to leak rupture or explode.
3. Do not disassemble or modify any part of the charger or use as a power source.
4. Always unplug the charger from outlet before attempting maintenance or cleaning.
5. This charger should not be used by persons without adequate training or knowledge.
