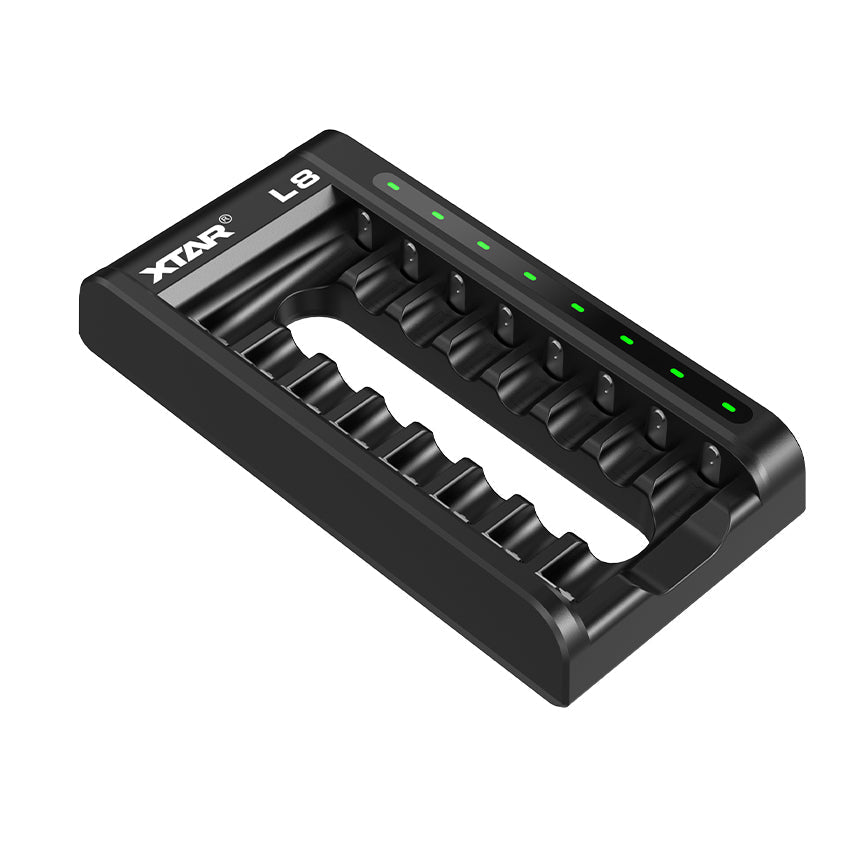

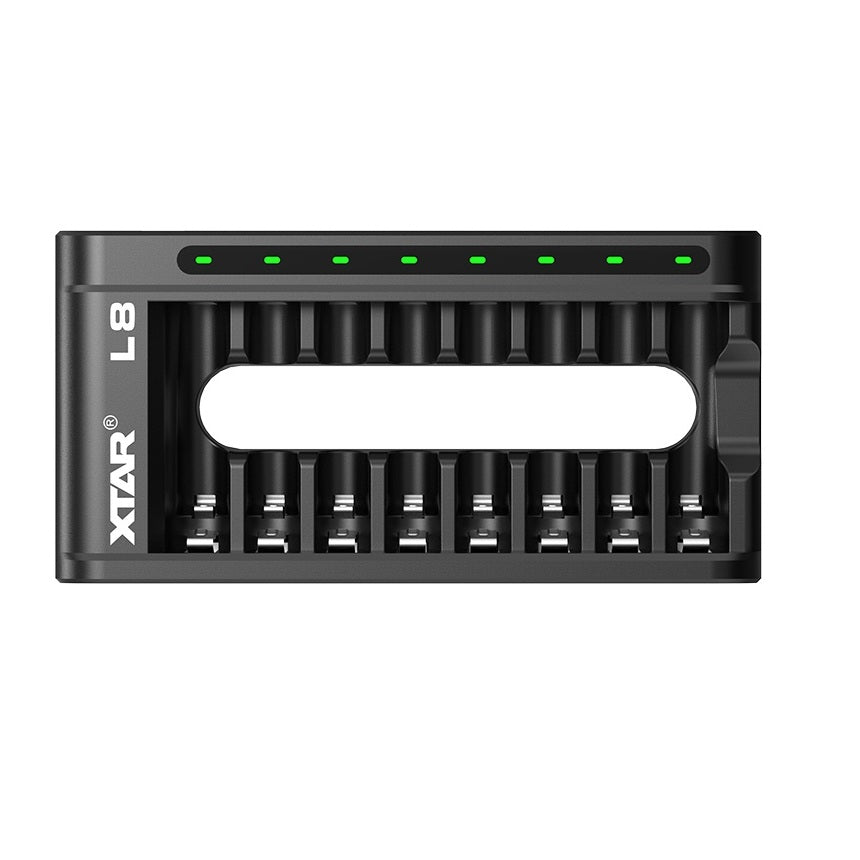

Xtar L8 Lithium-ion Battery Charger
Xtar L8 Lithium-ion Battery Charger is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Xtar L8 is a high performance charger which supports both 1.5 V lithium-ion and 1.2 V NiMH batteries simultaneously, with an incredible eight charging bays.

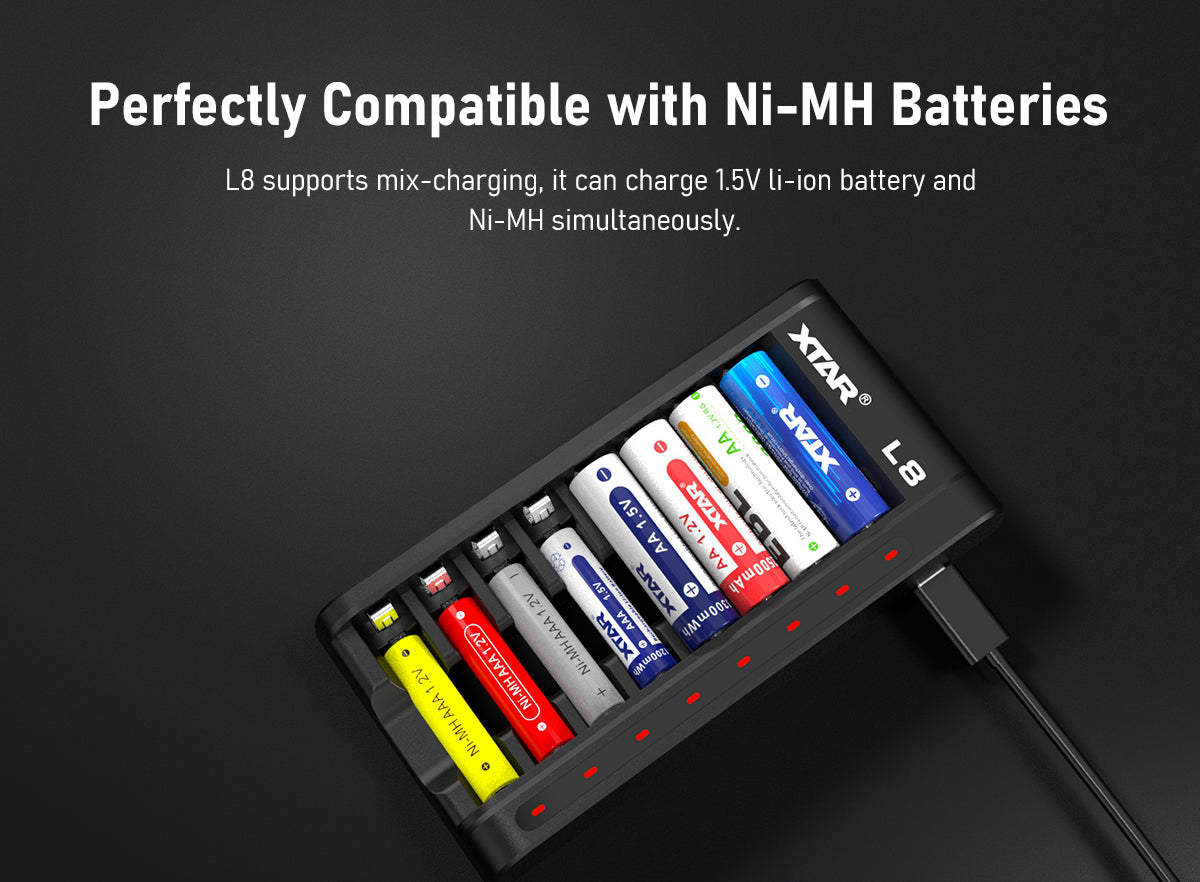

The L8 is suitable for charging AA/AAA 1.5 V lithium-ion batteries and 1.2V NiMH batteries. The individual charge control allows you to recharge any combination of compatible batteries at once while the built-in intelligent chip auto detects the battery type and automatically adjusts the charging current to the suitable mode.

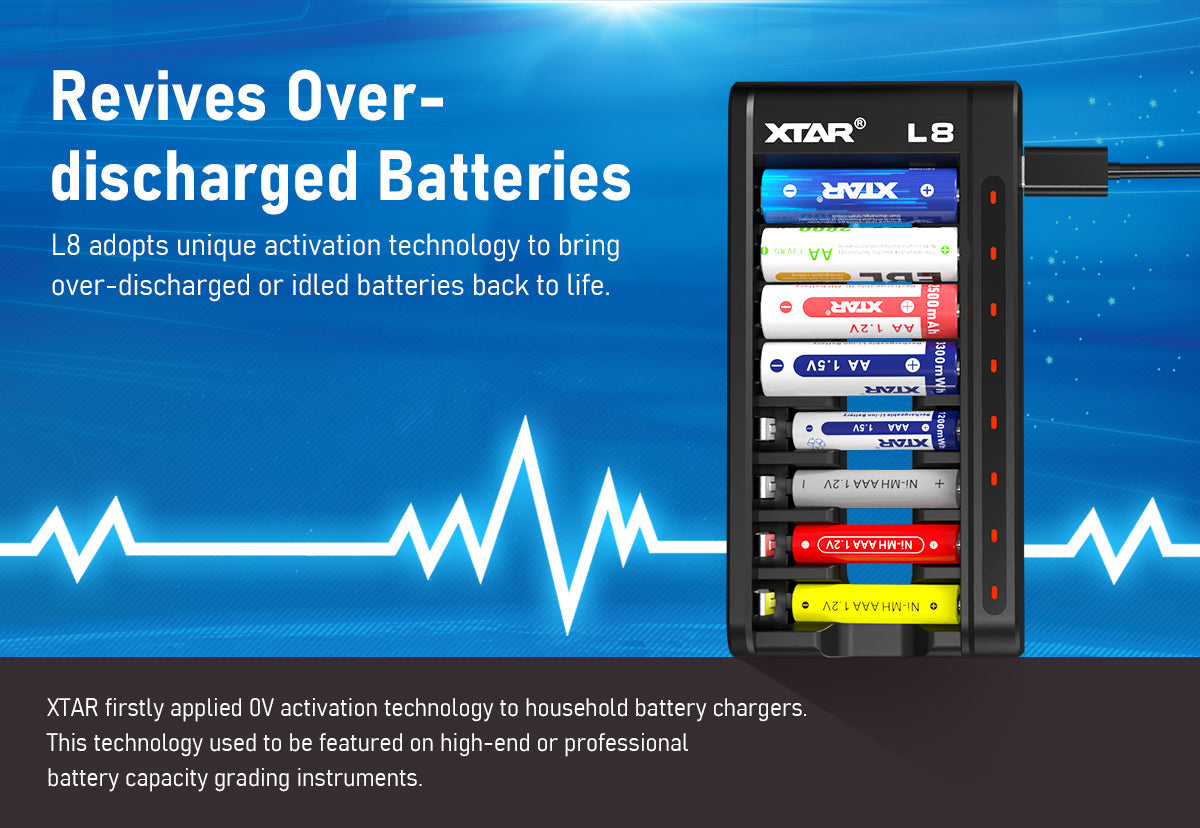

The L8 features the 0 V activation function which brings over discharged batteries back to life saving money and energy while the unique control technology makes charging faster, cut off more precise and NiMH battery temperatures lower.
The L8 checks if the installed batteries can be charged and if the 0 V activation function has failed. If installed incorrectly or failure occurs, the light above the batteries slot will flash red quickly to indicate a problem. Please remove any failed 0 V activation batteries immediately.
Note: Always use in accordance with instruction manual and read before first use.
Product Features
Three-modes ( TC.CC.CV ) charging system
Safety systems
USB-C port to supply power for the charger
0 V activation function
Independent charging bays
Specifications
Operating temperature range: 0 to 40℃
Type C input: 5V-2 A
Charging current: 0.5A
End-of charge voltage: 4.20 ±0.05 V / 1.45 ±0.1 V
End-of charge current: ≤100 mA
Dimensions: 153 x 76.5 x 27.6 mm
Weight: 118 g
Supplied in retail packaging and includes:
Xtar L8 eight bay charger x 1
USB-C charging cable x 1
Manual x 1
Safety Notes
1. Charge only rechargeable 1.5V lithium-ion batteries or 1.2V NiMH batteries.
2. Charging any other types of batteries may cause them to leak rupture or explode.
3. Do not disassemble or modify any part of the charger or use as a power source.
4. Always unplug the charger from outlet before attempting maintenance or cleaning.
5. This charger should not be used by persons without adequate training or knowledge.
