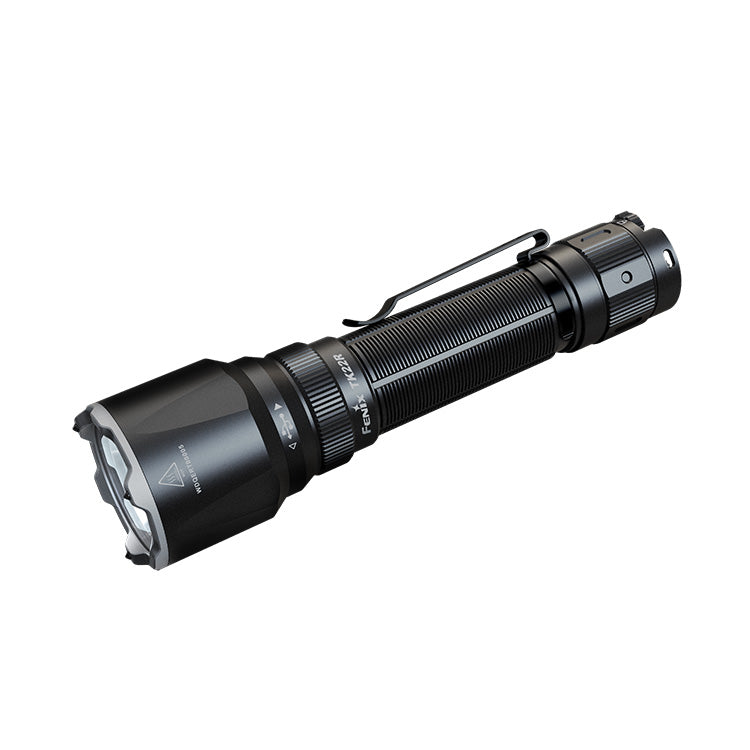

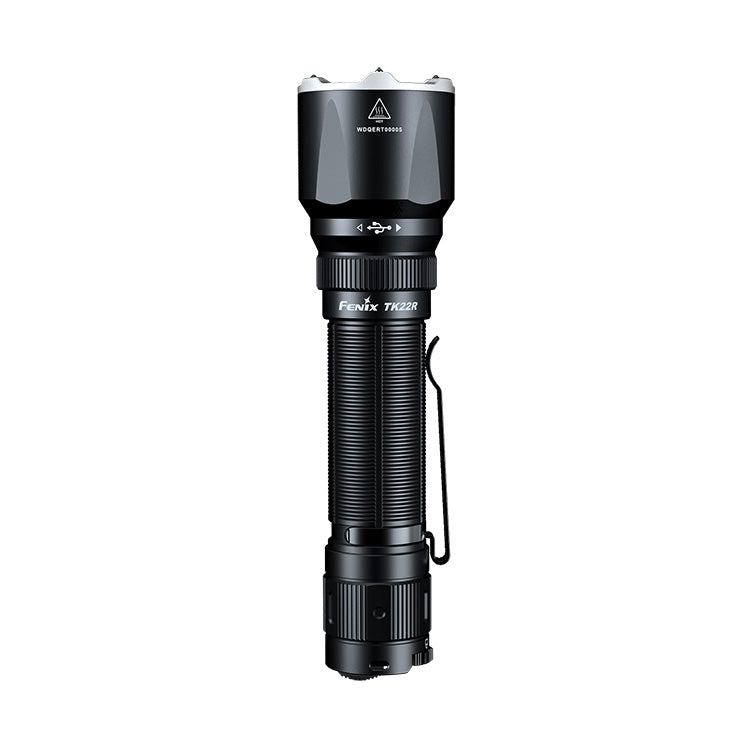

Fenix TK22R Rechargeable Tactical LED Torch

The Fenix TK22R is designed with Military and Law Enforcement professionals in mind, and features a mechanical tactical tail switch that has a rotary collar to easily change between tactical, duty and lockout modes.

Utilising a Luminus SST470 LED it offers a maximum output of 3200 lumens on high and throws the beam up to 480 metres, providing an excellent combination of output and distance.

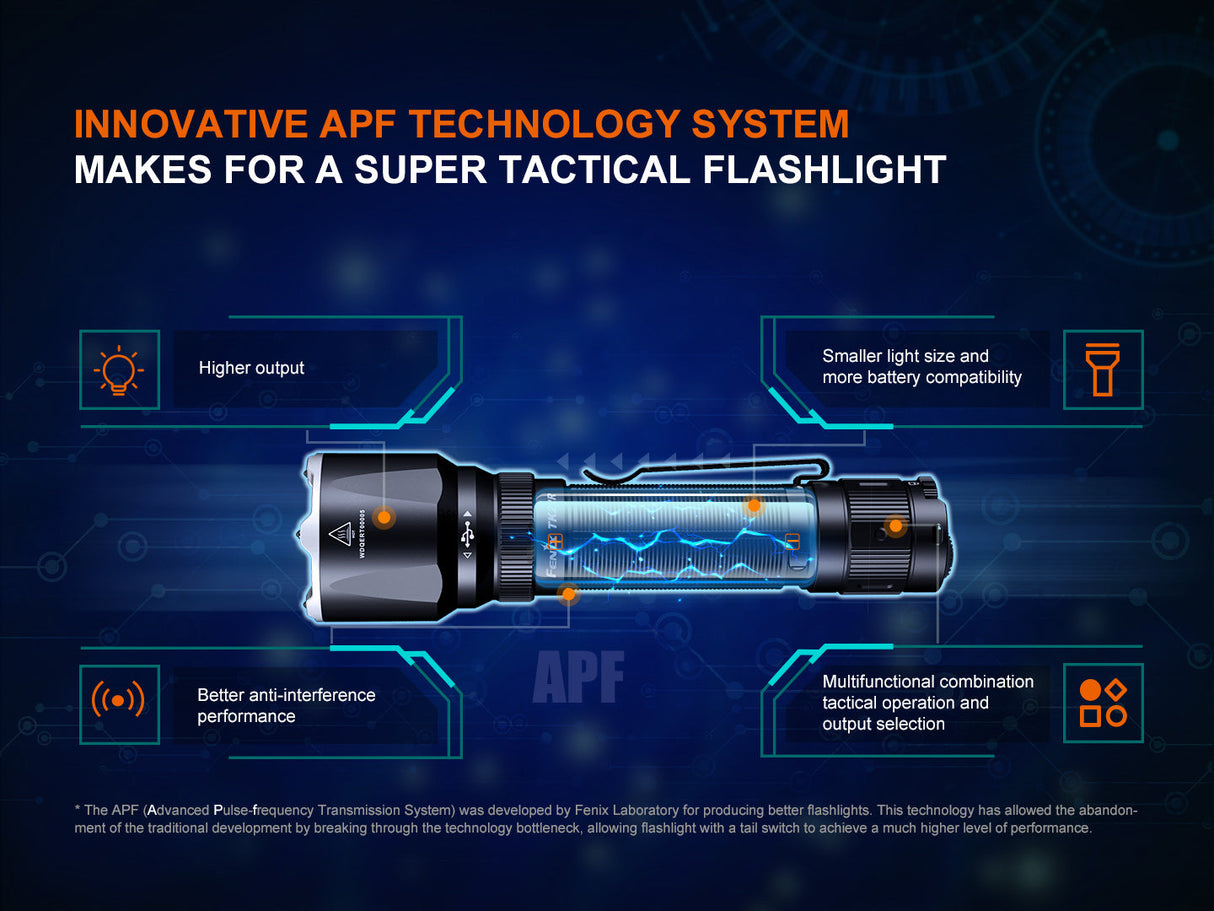

The innovative Advanced Pulse Frequency signal transmission technology uses a digital switch signal instead of the usual current signal to greatly increase reliability. Combined with patented mechanical switches this allows Fenix to create a smaller, more efficient light that is much less prone to switching interference than similar magnetic tail cap systems.

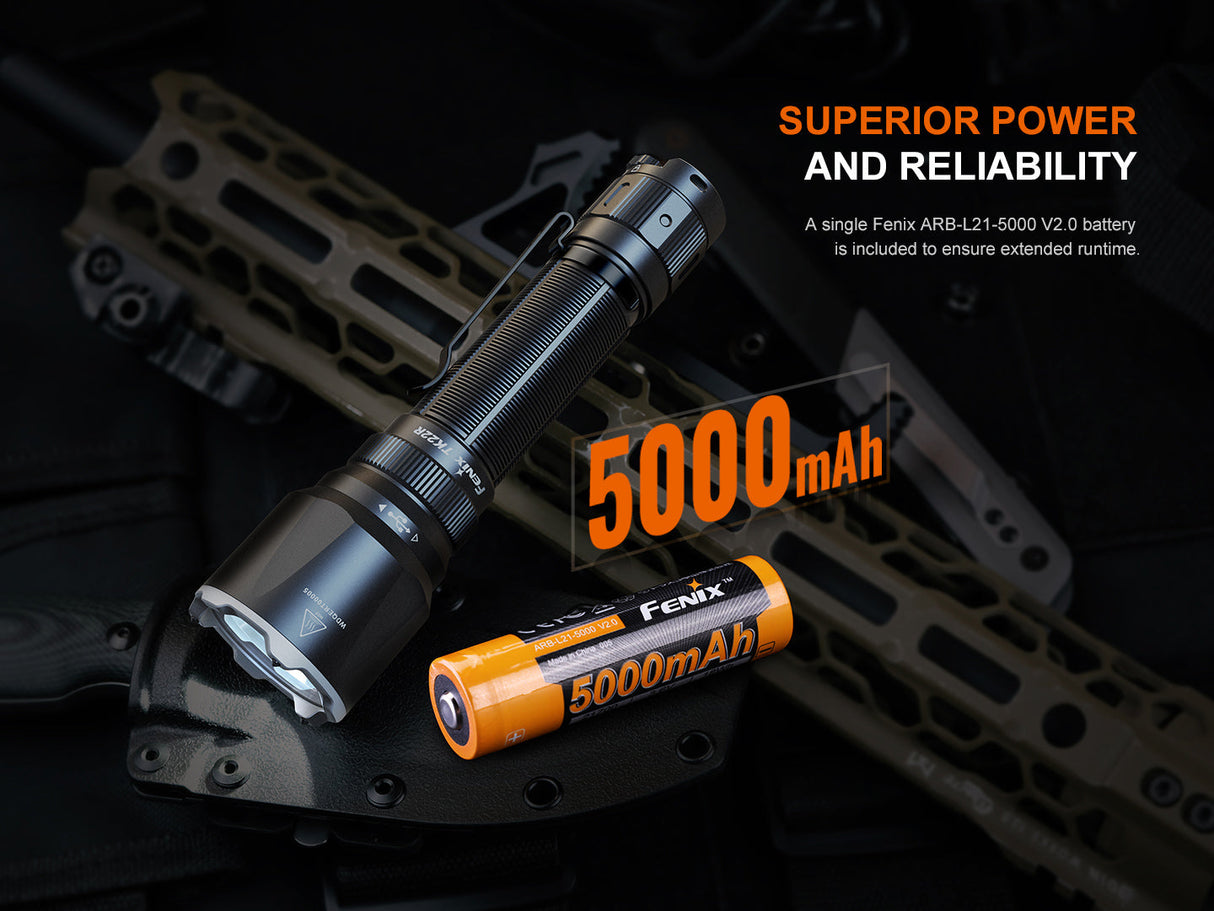

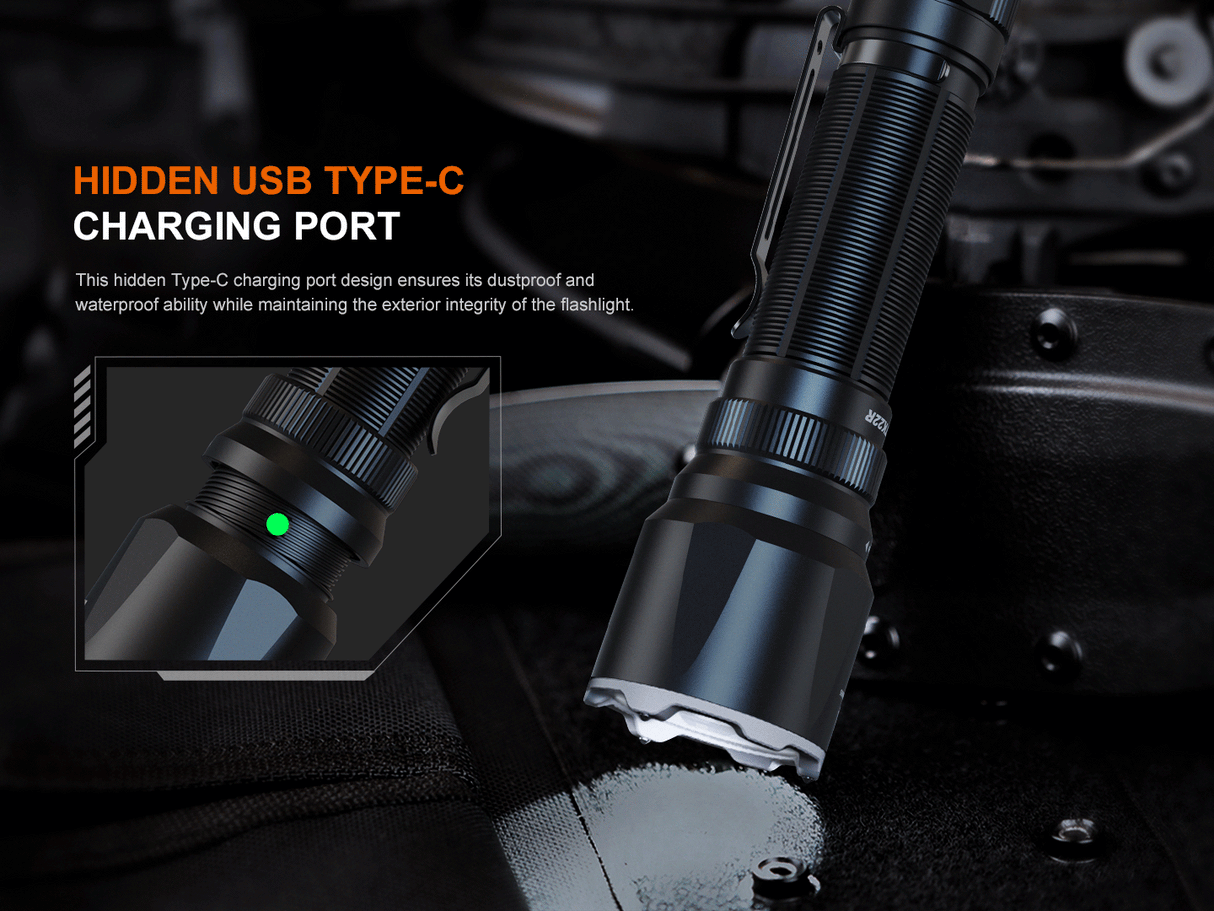

It is powered using the included Fenix 21700 5000 mAh V2 rechargeable lithium-ion battery which is charged inside of the torch via the USB-C charging port hidden in the neck of the torch. Loosen the head of the torch to reveal the USB-C charging port and plug in the included USB-C charging cable and the standard USB-A end into a USB power source to begin charging. A red light will illuminate on the battery to show charging is in progress, and turn green once charging is complete.

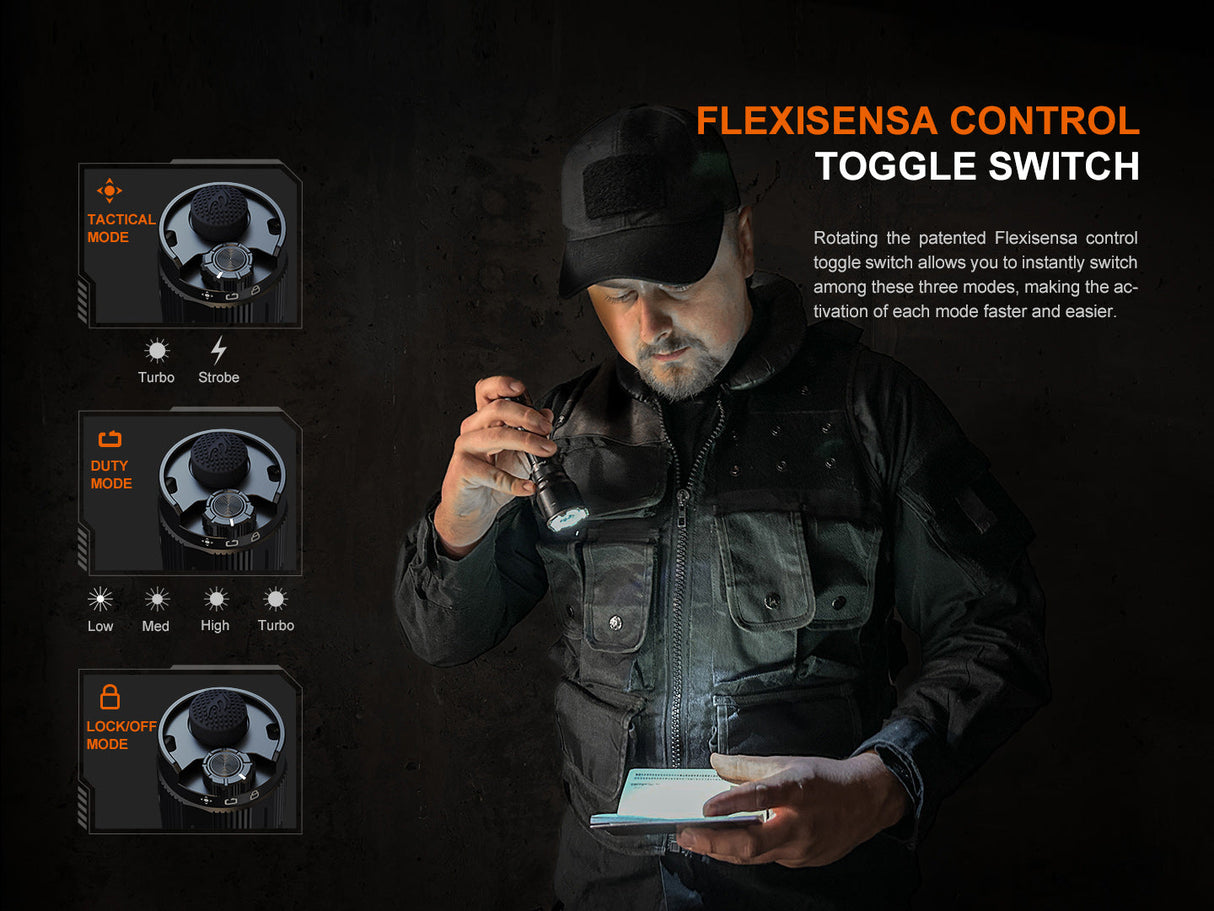

Two user modes are available, with different outputs for each mode. In tactical mode the user will have access to turbo and strobe only, and in duty mode outputs of low, mid, high and turbo are accessible. The rotary collar below the tail switch allows the user to select the mode.

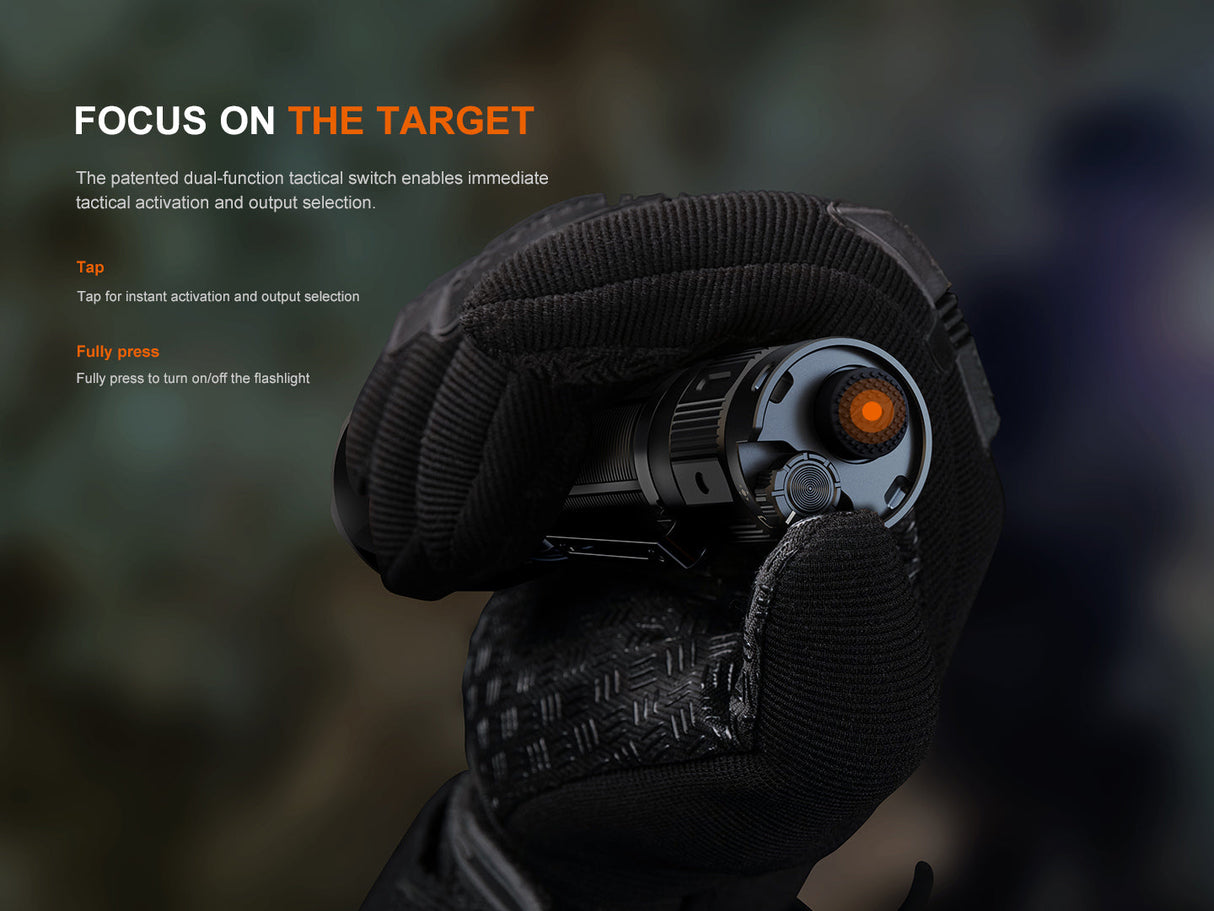

When tactical mode is selected tap the tail switch to cycle between the turbo and strobe outputs. In duty mode tap the tail switch to cycle through the turbo, high, medium and low outputs. The intelligent memory circuit remembers the last used output in both tactical and duty mode.

The TK22R features a lockout mode to prevent accidental activation. In any output, turn the Flexisensa rotary switch to the lock mode to turn off and lock the torch. The torch can be put into the locked position while the torch is turned on to lock in that output to ensure the light stays on and the tail switch cannot be accidentally pressed to change mode, or alternatively with the light off the torch will be locked in the off position to prevent accidental activation when not in use.

Intelligent overheat protection will lower the output of the torch if the internal temperature reaches 60°C in order to cool the torch and prevent damage from overheating. Once the torch has cooled the high mode can be selected again. If the battery voltage drops below the pre-set level the torch is programmed to downshift to a lower brightness level until low output is reached, at which point the light will flash 3 times every 5 minutes to remind you to recharge or replace your battery.

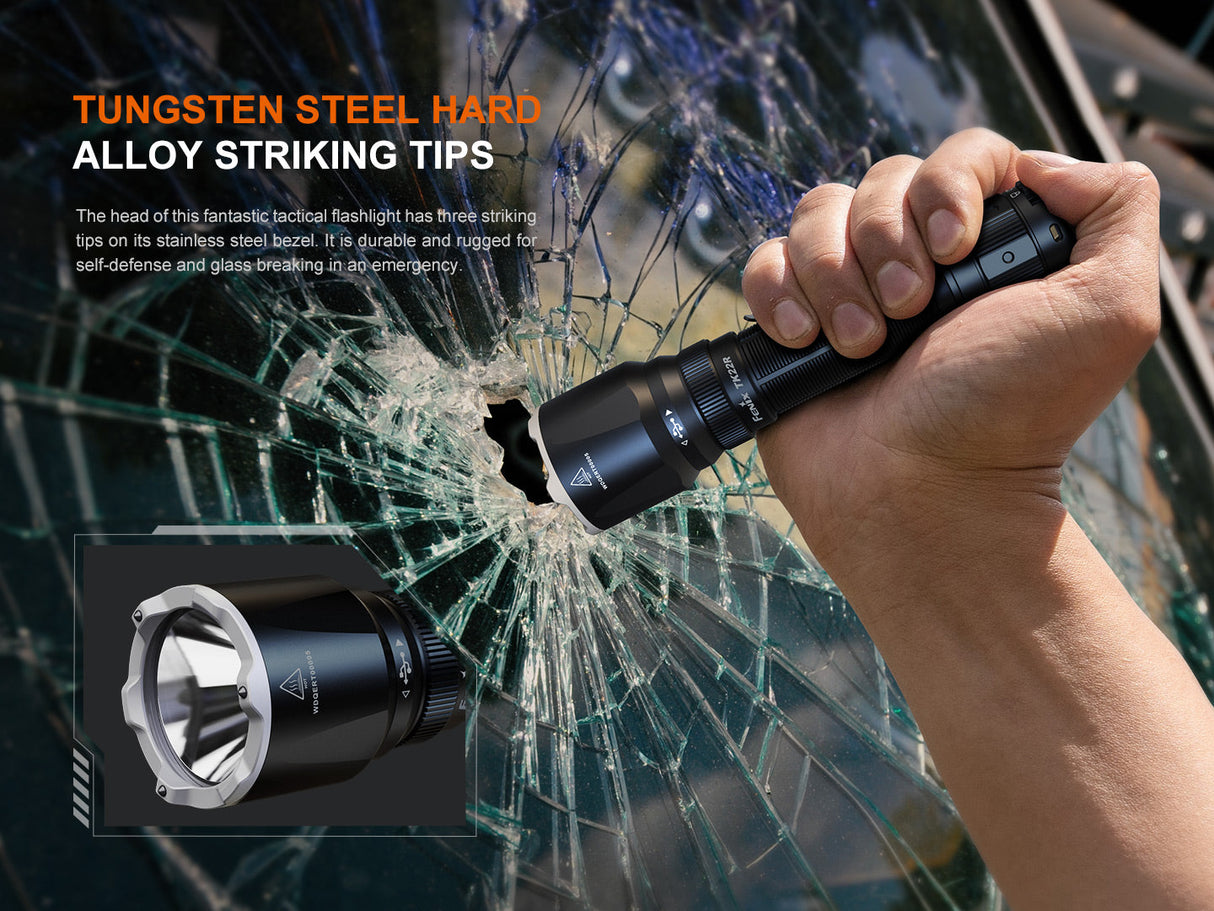

The alloy striking tips on the bezel of the torch are great for breaking glass in an emergency, making the TK22R the perfect tactical companion.

Product Features

Tactical tail switch and rotary mode selection collar
Tactical and duty modes for flexible use
Low voltage warning function
Lockout mode to prevent accidental activation
Reverse polarity protection
Over heat protection
Alloy striking tips

Operational Modes

Low: 30 lumens; 50 hours run-time; 45 m beam range
Mid: 350 lumens; 7 hours, 45 minutes run-time; 155 m beam range
High: 1000 lumens; 2 hours, 35 minutes run-time; 265 m beam range*
Turbo: 3200 lumens; 2 hours, 15 minutes run-time; 480 m beam range*
Strobe: 3200 lumens

Note: *The turbo and high output are measured at total run-time, including output at reduced levels due to temperature or the built-in protection mechanism. Turbo output is only available in the tactical mode.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using 1 x Fenix ARB-L21-5000U 21700 lithium-ion rechargeable battery under the temperature of 21±3°C and humidity of 50% - 80%. Results may vary between torch, battery and environments.

Technical Details

Type: Hand held tactical LED torch
Operating Modes: Low / Mid / High / Turbo / Strobe
Luminous Flux: Up to 3200 lumens
Lamp Type: Luminus SST70 LED
Beam Range: Up to 480 m
Batteries Required: 1 x Fenix 21700 L21 series lithium-ion rechargeable
Overall Length: 158 mm
Head Diameter: 40 mm
Body Diameter: 25.4 mm
Weight: 218 grams (including battery)
Body Colour: Black
Body Material: A6061-T6 aluminium
Body Finish: Premium type III hard anodised anti-abrasive finish
Switch Type: Tactical tail switch and rotary mode switch
Impact Resistance: 1 m

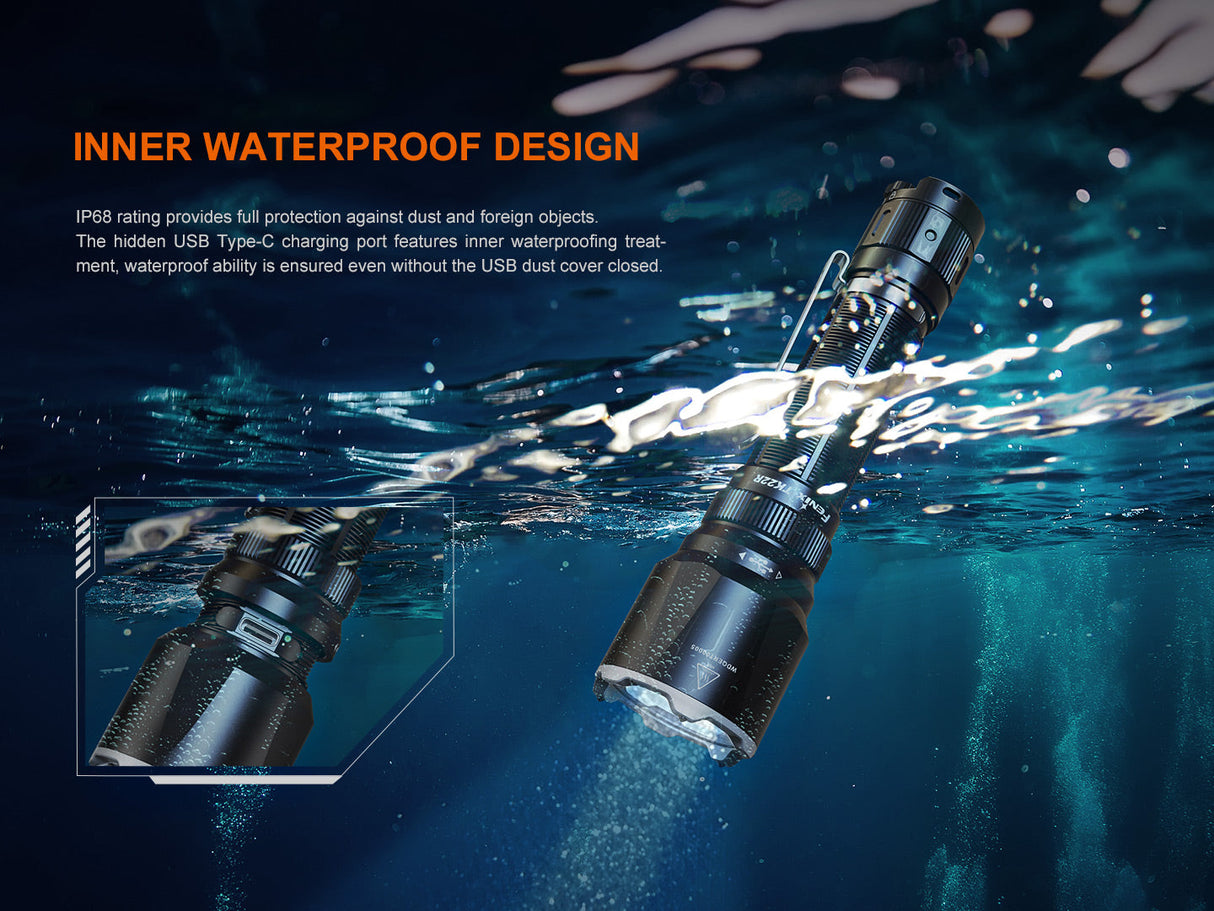

Environmental: IPX8
Warranty: 5 years

Packaging and Contents

Supplied in retail packaging and includes:
Fenix TK22R LED torch x 1
Fenix ARB-L21-5000 V2 21700 rechargeable lithium-ion battery x 1
USB-C charging cable x 1
Lanyard x 1
Holster x 1
Spare O-ring x 2
Manual x 1
