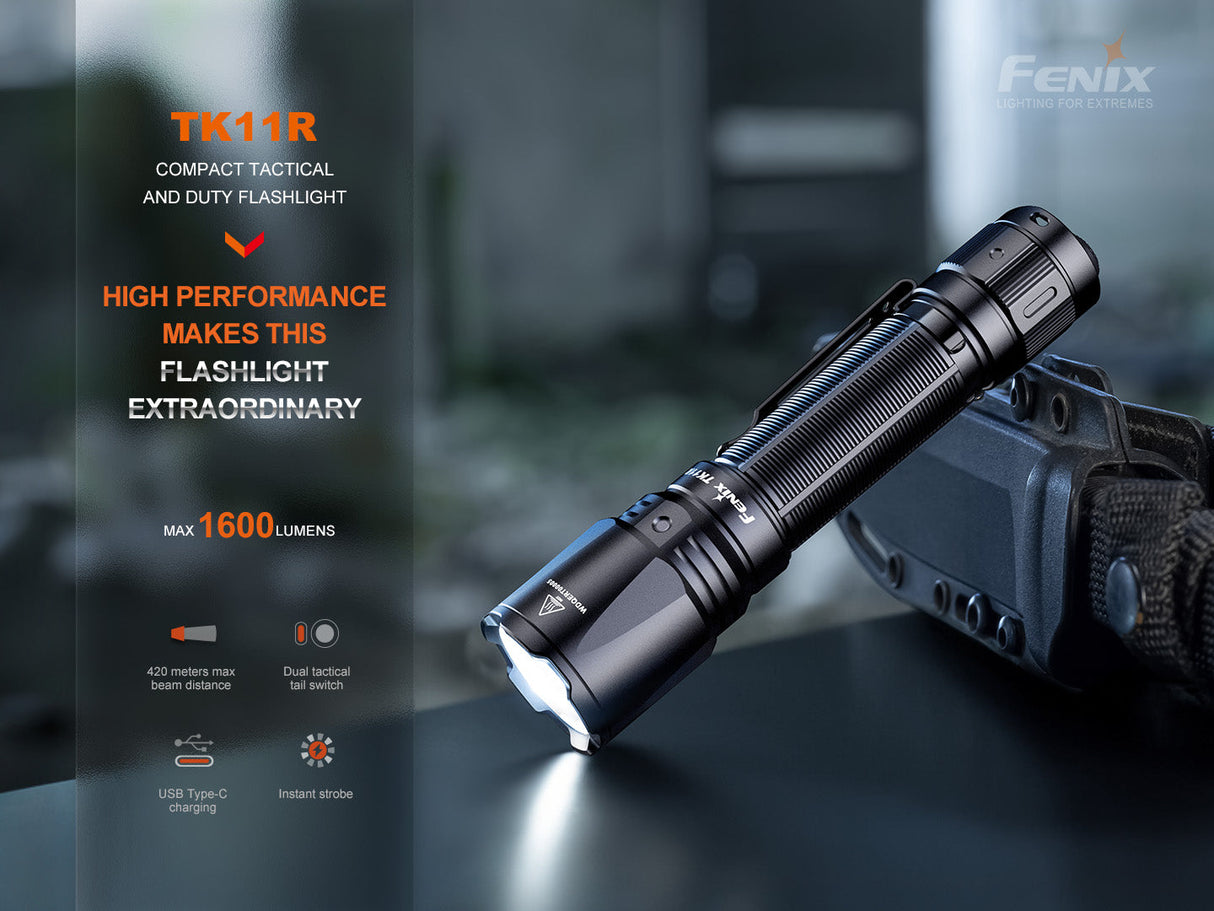

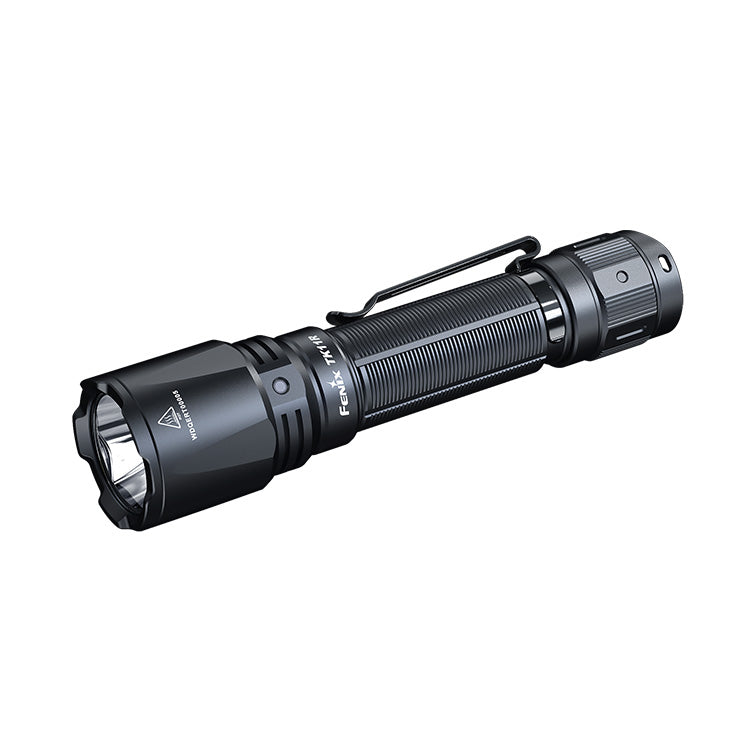

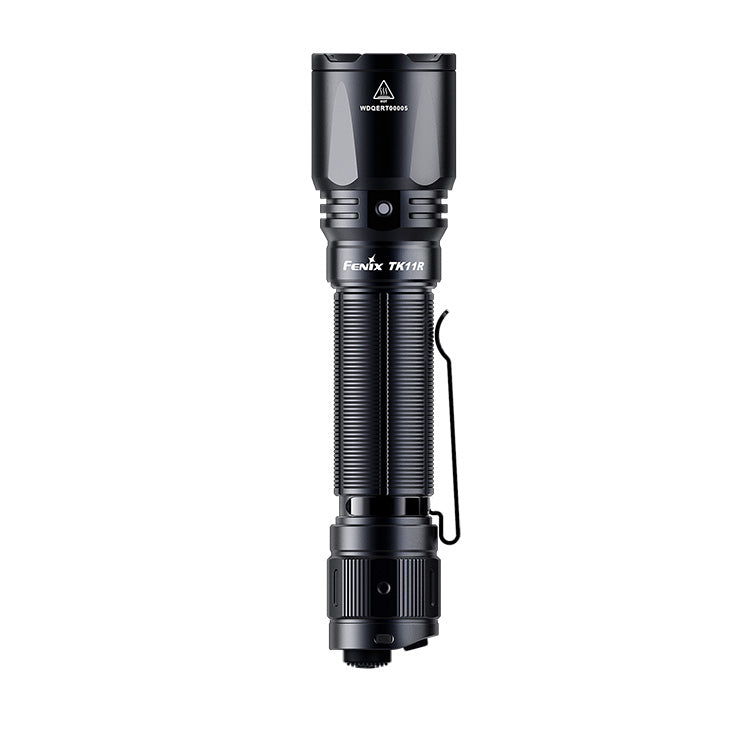

Fenix TK11R Rechargeable Tactical LED Torch

The Fenix TK11R is a versatile and compact torch, perfect for rugged outdoor use, search and rescue or police.

Utilising a Luminus SFT40 LED it offers a maximum output of 1600 lumens on high and throws the beam up to 420 metres, providing an excellent combination of output and distance in a compact body.

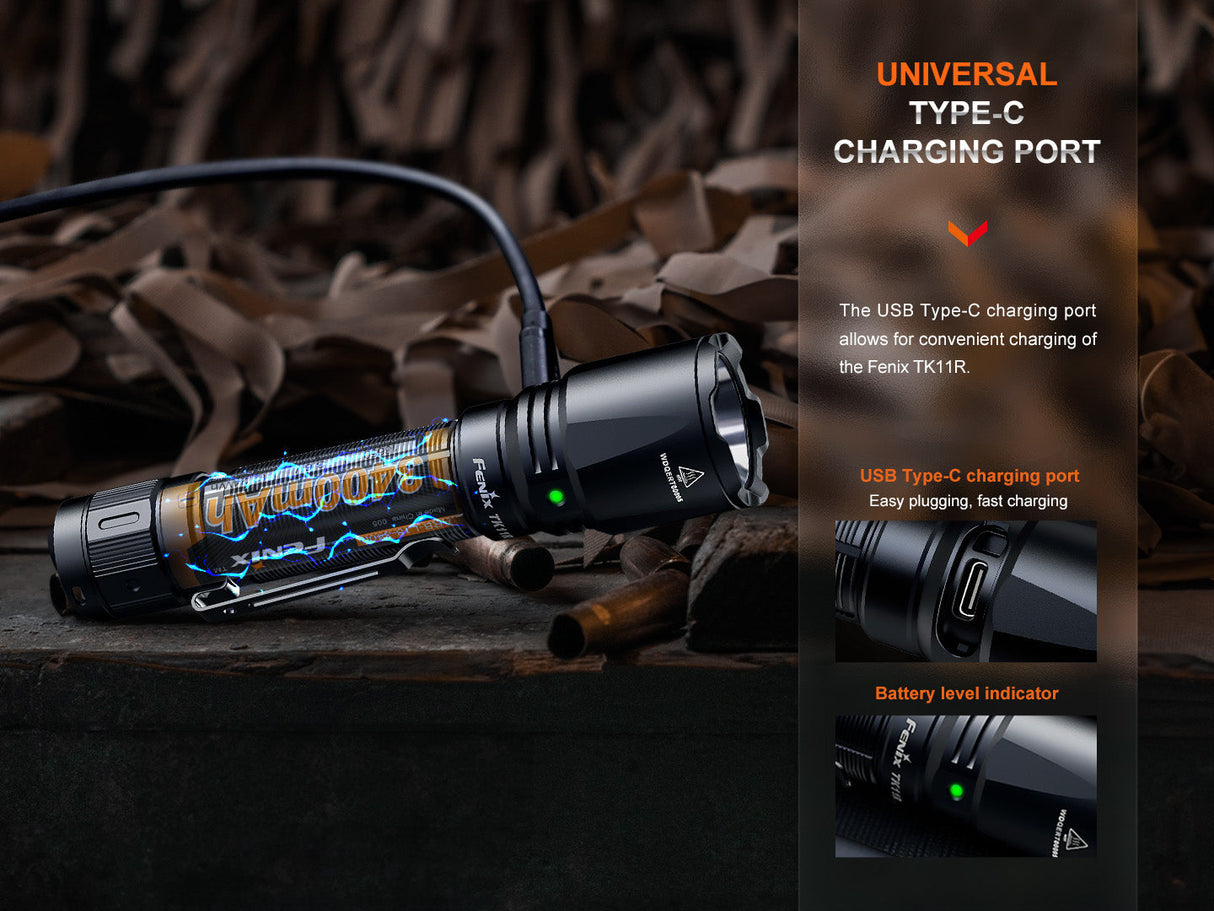

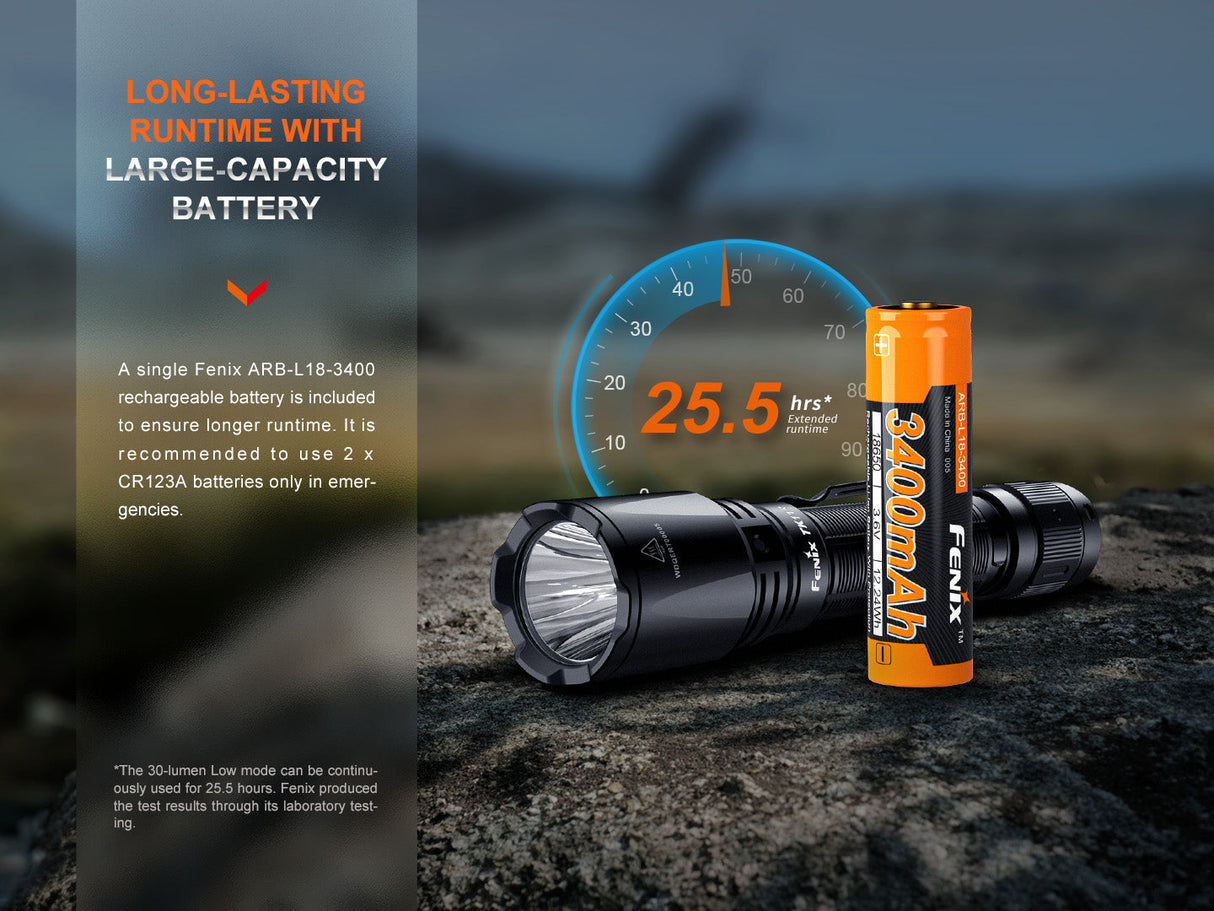

It is powered using the included Fenix 18650 3400 mAh rechargeable lithium-ion battery which is charged inside of the torch via the USB-C charging port on the neck of the torch. Simply plug in the included USB-C charging cable and the standard USB-A end into a USB power source to begin charging. A red light will illuminate on the battery to show charging is in progress, and turn green once charging is complete.

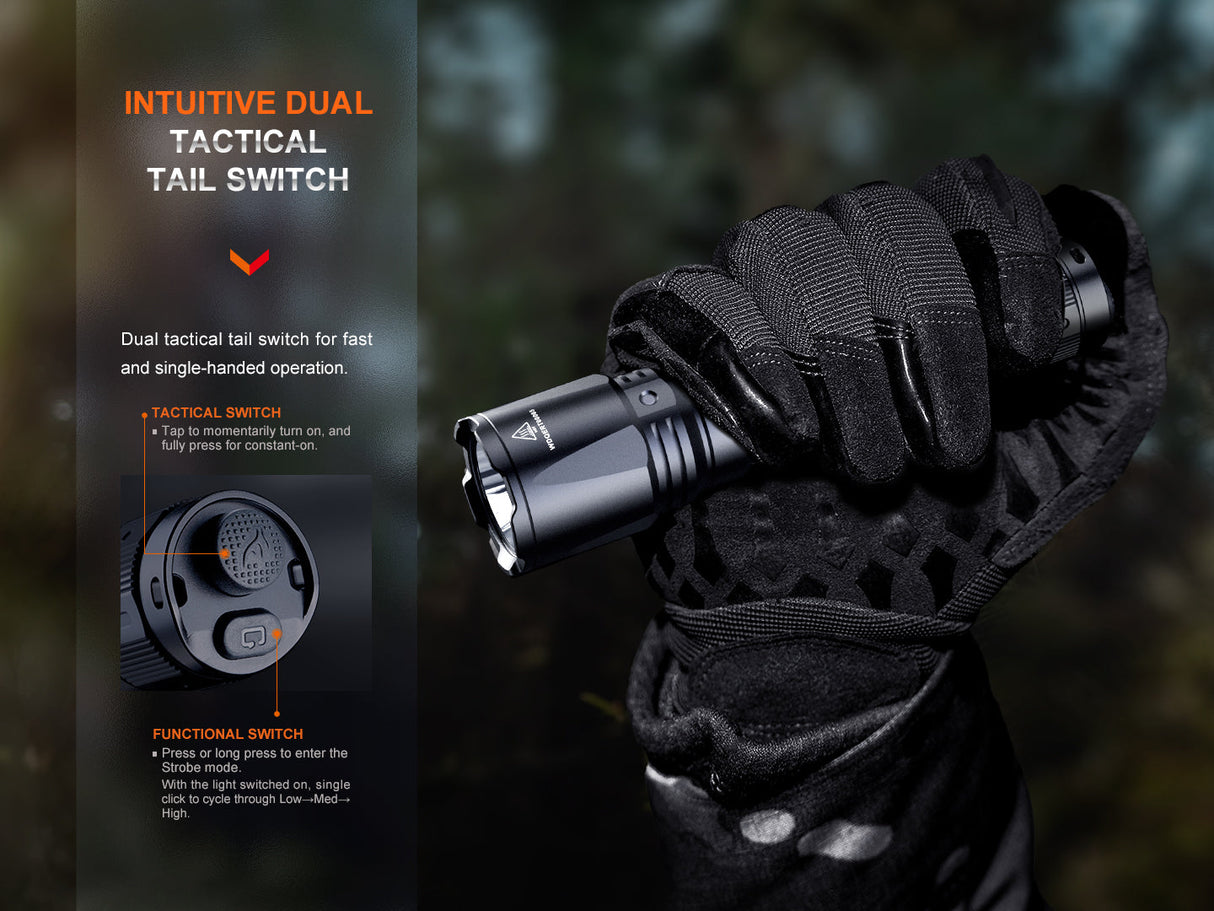

Three brightness levels are available plus the strobe output and they are controlled by the circular tactical and oval functional switch located on the tail cap of the torch. To turn the TK11R on or off press the tactical switch. Half pressing the switch will temporally turn the torch on and when releasing the switch the torch will turn off.

With the torch on, press the functional switch to cycle through the low, medium and high outputs. To access the strobe with the torch on, press and hold the functional switch for 0.5 seconds. The next half press of the switch will return the torch to its previous setting or a full press will turn the torch off. To access strobe instantly, while the torch is off press and hold the functional switch, when released the torch will turn off.

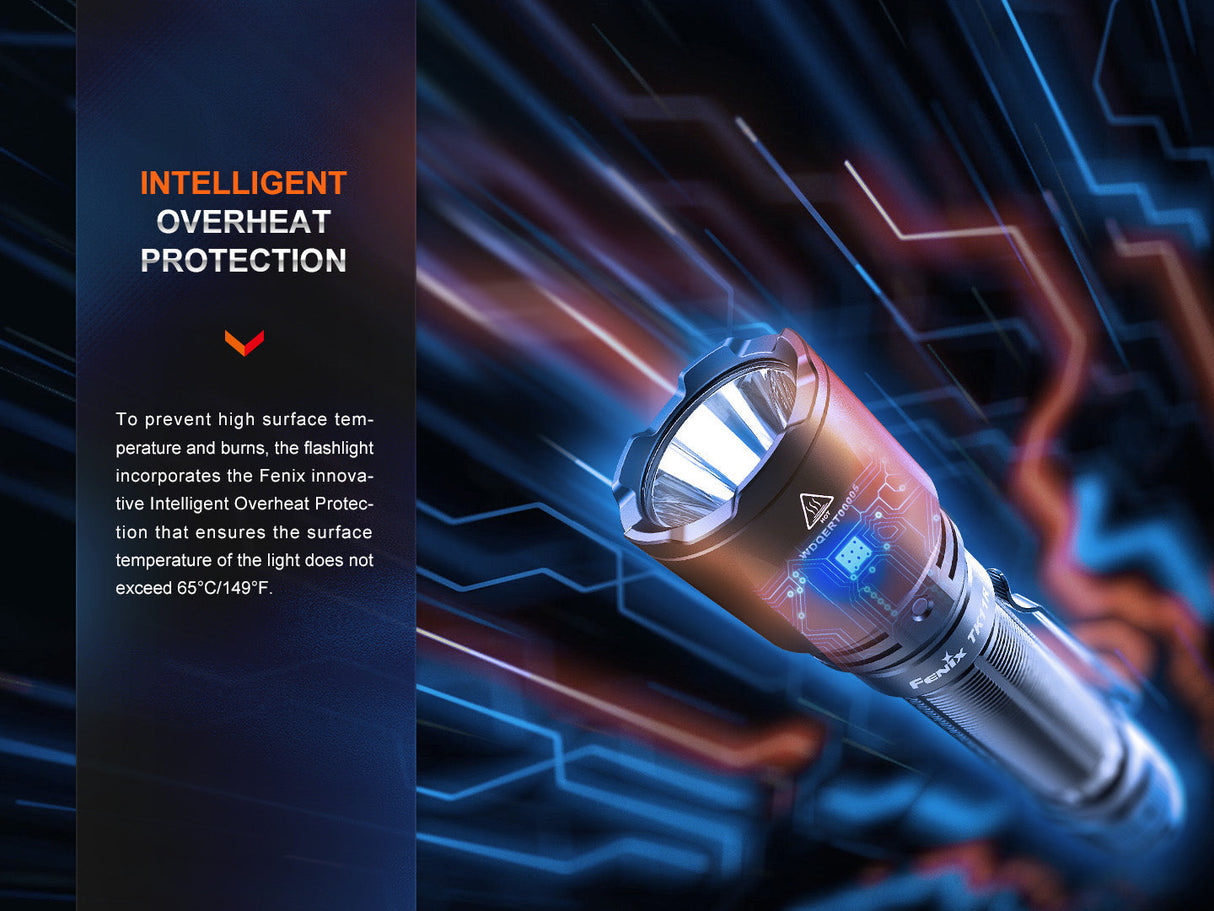

Intelligent overheat protection will lower the output of the torch if the internal temperature reaches 65°C in order to cool the torch and prevent damage from overheating. Once the torch has cooled the high mode can be selected again. If the battery voltage drops below the pre-set level the torch is programmed to downshift to a lower brightness level until low output is reached, at which point the battery indicator will flash red.

Product Features

Tactical tail switch and rotary mode selection collar
Tactical and duty modes for flexible use
Low voltage warning function
Lockout mode to prevent accidental activation
Reverse polarity protection
Over heat protection
Alloy striking tips

Operational Modes

Low: 30 lumens; 25 hours, 30 minutes run-time; 60 m beam range
Mid: 350 lumens; 4 hours, 10 minutes run-time; 200 m beam range
High: 1600 lumens; 1 hours, 50 minutes run-time; 420 m beam range*
Strobe: 1600 lumens

Note: *The high output are measured at total run-time, including output at reduced levels due to temperature or the built-in protection mechanism. Turbo output is only available in the tactical mode.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using 1 x Fenix ARB-L18-3400 18650 lithium-ion rechargeable battery. Results may vary between torch, battery and environments.

Technical Details

Type: Hand held tactical LED torch
Operating Modes: Low / Mid / High / Strobe
Luminous Flux: Up to 1600 lumens
Lamp Type: Luminus SFT40 LED
Beam Range: Up to 420 m
Batteries Required: 1 x Fenix 18650 L18 series lithium-ion rechargeable or 2 x CR123 non-rechargeable lithium-metal

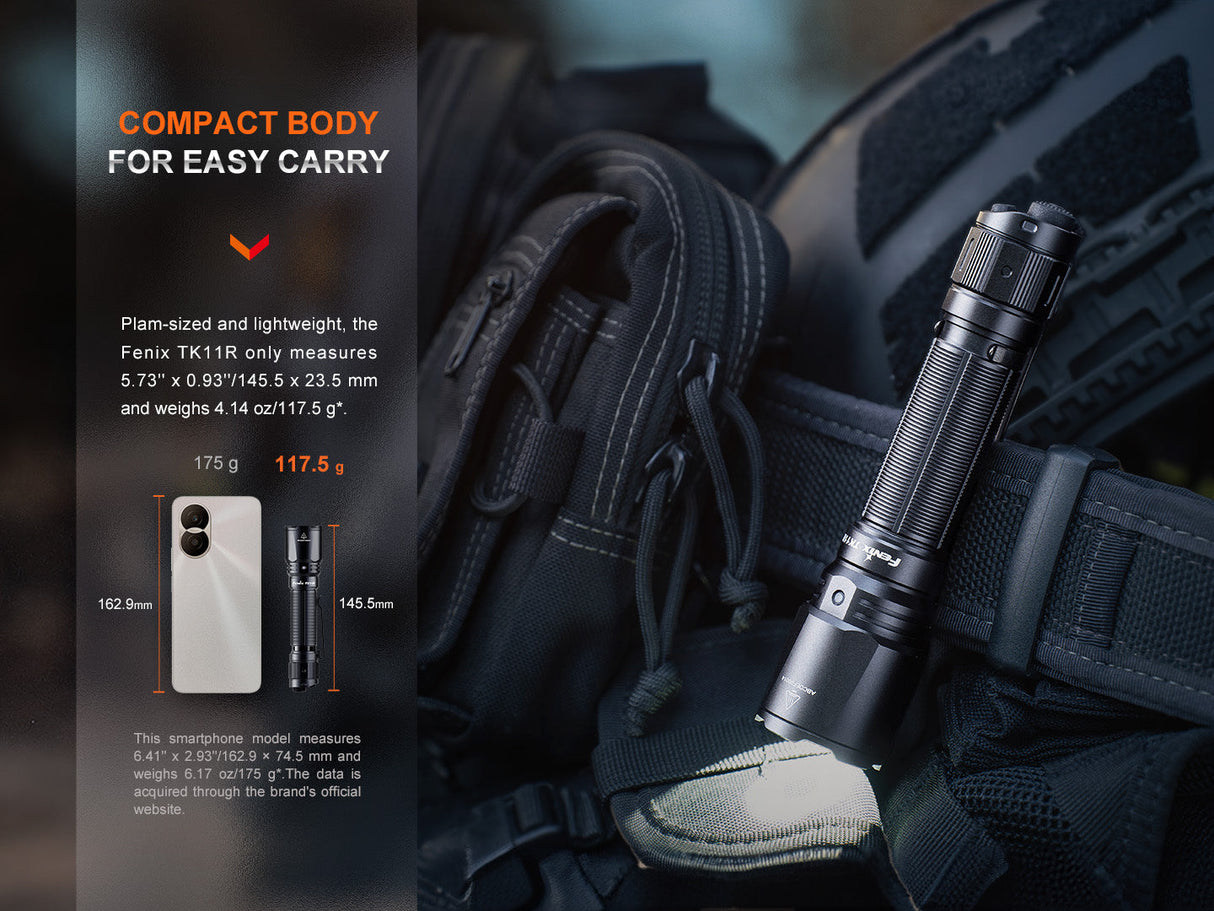

Overall Length: 145.5 mm
Head Diameter: 34 mm
Body Diameter: 253.5 mm
Weight: 117.5 grams (excluding battery)
Body Colour: Black

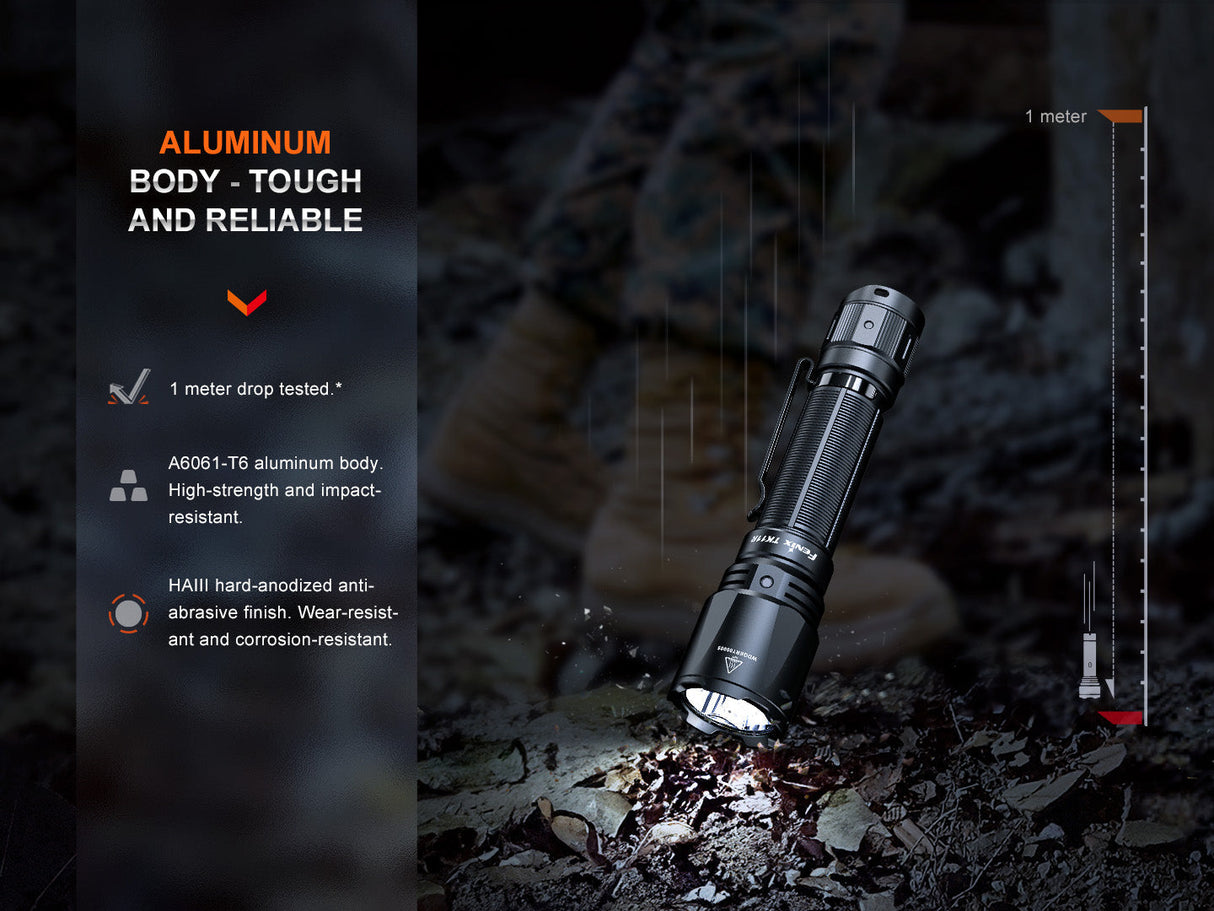

Body Material: A6061-T6 aluminium
Body Finish: Premium type III hard anodised anti-abrasive finish
Switch Type: Tactical tail switch and functional side switch
Impact Resistance: 1 m

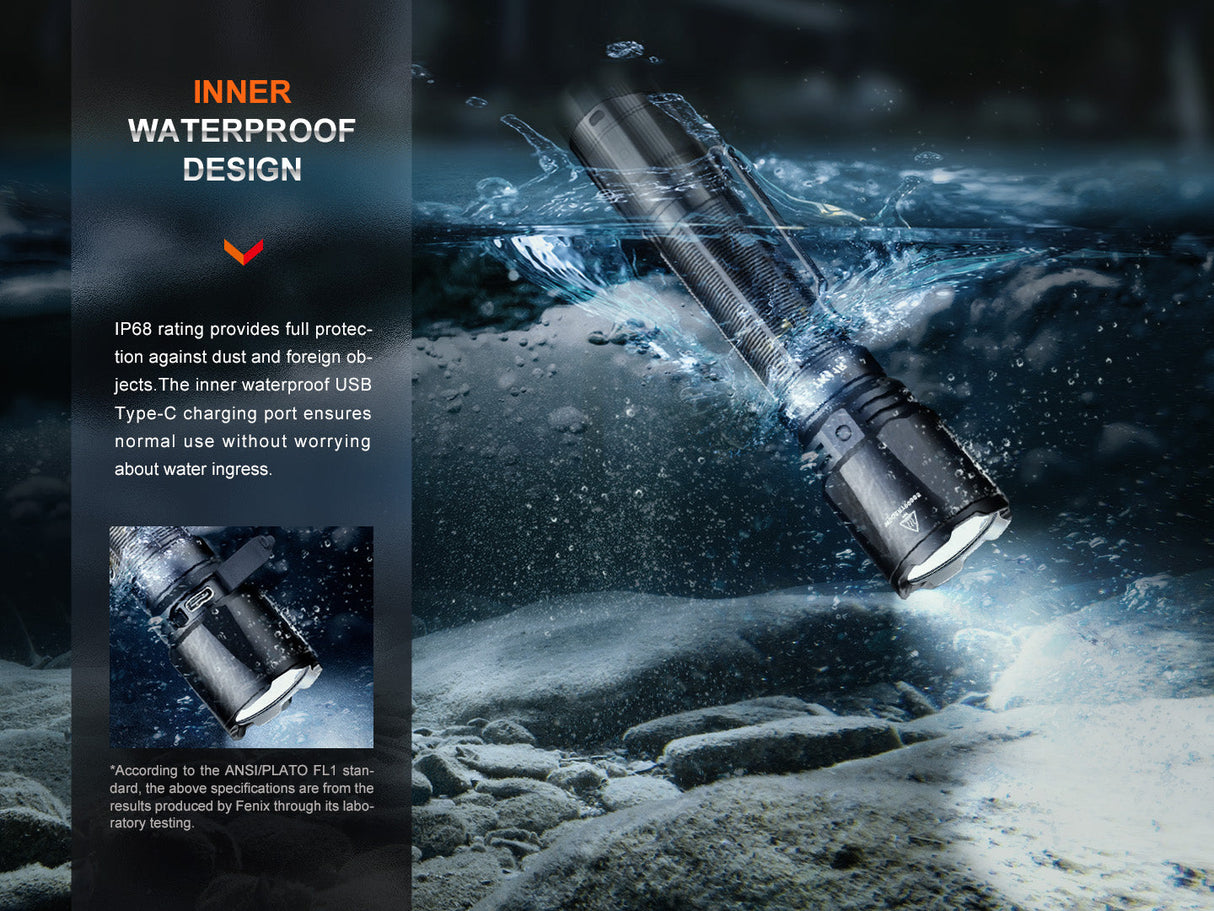

Environmental: IPX8
Warranty: 5 years

Packaging and Contents

Supplied in retail packaging and includes:
Fenix TK11R LED torch x 1
Fenix ARB-L18-3400 V2 18650 rechargeable lithium-ion battery x 1
USB-C charging cable x 1
Lanyard x 1
Holster x 1
Spare O-ring x 1
Manual x 1
