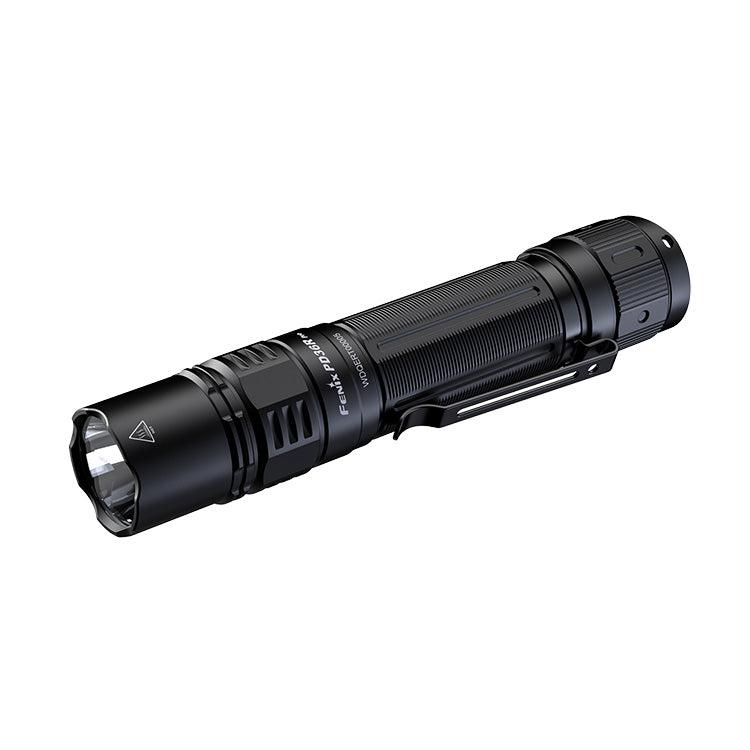

Fenix PD36R Pro Rechargeable LED Torch

The PD36R Pro is the next Fenix pocket rocket to use a 21700 lithium-ion rechargeable battery and also use the USB-C charging port for faster and more efficient charging.

Utilising a Luminus SFT70 LED it offers a maximum output of 2800 lumens on turbo and throw the beam up to 380 metres distance.

The included Fenix 21700 5000 mAh lithium-ion battery is charged inside the torch with the supplied USB-C cable. Remove the dust cover from the USB port, located on the neck of the torch, and plug the cable into the torch one end and the other end into a computer/laptop or a suitable USB mains/car adaptor.

An LED indicator inside the switch will go red to indicate charging is in progress and will turn green once charging is complete. The charging time for the included 21700 5000 mAh capacity battery is approximately 3 hours. Always replace the dust cover after charging to maintain the dust ingress protection.

The PD36R Pro features a dual tail switch system which gives you access to the five brightness levels, plus strobe mode. The PD36R Pro is turned on and off with the tactical tail switch (round button) by fully pressing it down, and it also offers a momentary function by half pressing the button (the light will turn off when the button is released). Once the torch is on, the functional switch (oval button) will cycle through turbo, eco, low, mid, high with each press.

Strobe is activated by holding the function switch for 0.5 seconds when the torch is turned on. A single press will return the torch to the previous brightness setting. The last used brightness setting (excluding strobe) will be remembered next time the light is turned on.

A built-in battery indicator is located next to the charging port, which displays the battery status for 3 seconds every time the torch is turned on when using the included battery. A solid green light indicates saturated, flashing green is sufficient, solid red is poor and flashing red is critical. The battery indicator also acts as a low voltage warning light while the torch is in use when using the included battery.

The overheat protection will automatically reduce the turbo or high lumen output if the temperature of the torch reaches 60°C or above in order to protect the LED from overheating. This will last until the torch drops below 60°C after which the turbo and high modes will be selectable again. When using the included battery, if the battery voltage drops below 3 V the torch is programmed to downshift to a lower brightness level until eco output is reached, at which point the battery indicator will flash red to remind you to charge the battery.

The two way body clip allows easy attachment to a pocket, clothing or backpack and the included holster and lanyard make carrying it easy.

Product Features

Digitally regulated output to maintain stable output
Low voltage warning function and battery status indicator
Intelligent memory function
Reverse polarity protection
Over heat protection
Tactical and function tail switch
USB-C fast charging.

Operational Modes

Eco: 30 lumens; 42 hours run-time; 40 m beam range
Low: 150 lumens; 19 hours run-time; 90 m beam range
Mid: 350 lumens; 8 hours, 15 minutes run-time; 130 m beam range
High: 1000 lumens; 3 hours, 55 minutes run-time; 225 m beam range
Turbo: 2800 lumens; 3 hours, 30 minutes run-time; 380 m beam range*
Strobe: 2500 lumens

Note: *The turbo output is measured at total run-time, including output at reduced levels due to temperature or the built-in protection mechanism.

Tested to ANSI/PLATO FL1 standard using 1 x Fenix ARB-L21-5000 21700 lithium-ion rechargeable battery. Results may vary between torch, battery and environments.

Technical Details

Type: Hand held rechargeable LED torch
Operating Modes: Eco / Low / Mid / High / Turbo / Strobe
Luminous Flux: Up to 2800 lumens
Lamp Type: Luminus SFT70 LED
Beam Range: Up to 380 m
Batteries Required: 1 x 21700 lithium-ion rechargeable (included)
Overall Length: 145.8 mm
Head Diameter: 26.5 mm
Body Diameter: 25.7 mm
Weight: 169 grams (including battery)
Body Colour: Black
Body Material: High strength and oxidation resistant aluminium
Body Finish: Premium type III hard anodised anti-abrasive finish
Window Type: Toughened ultra-clear glass lens with anti-reflective coating
Reflector: Smooth for excellent beam throw
Switch Type: Tactical and function tail switch
Impact Resistance: 1 m
Environmental: Waterproof and dust resistant to IP68 Standard (2 m)
Warranty: 5 years (torch) / 1 year (battery)

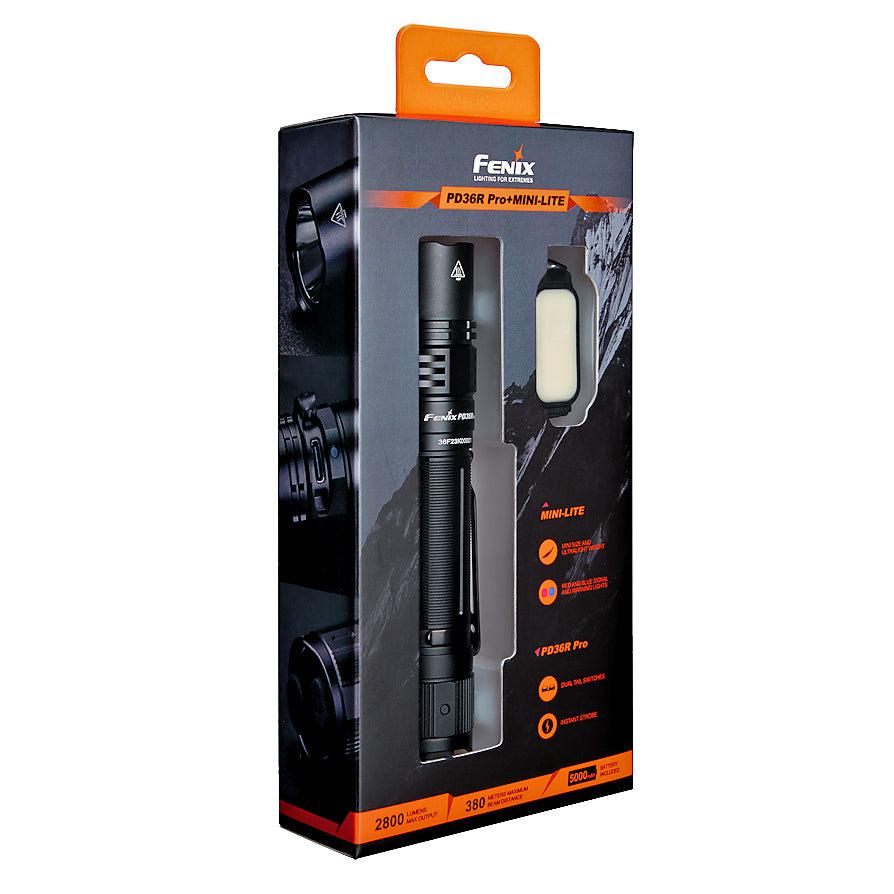

Packaging and Contents

Supplied in retail packaging and includes:
Fenix PD36R Pro LED torch x 1
Fenix ARB-L21-5000 mAh lithium-ion battery x 1
USB-C to USB-A charging cable x 1
Durable nylon holster x 1
Lanyard x 1
Spare O-ring x 1
Manual x 1
