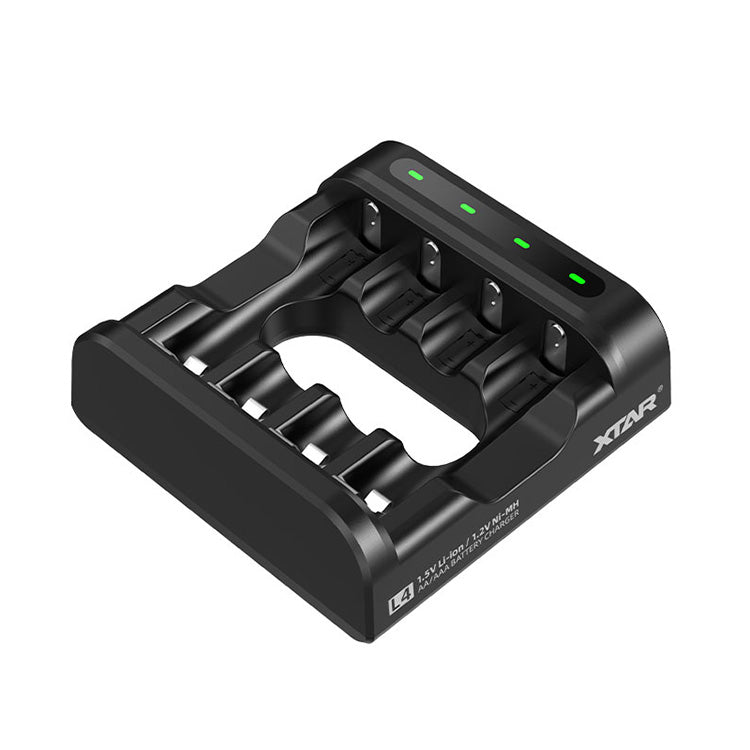

Xtar L4 Battery Charger

The Xtar L4 is a high performance charger which supports both 1.5V lithium-ion and 1.2V NiMH batteries simultaneously, with four charging bays.

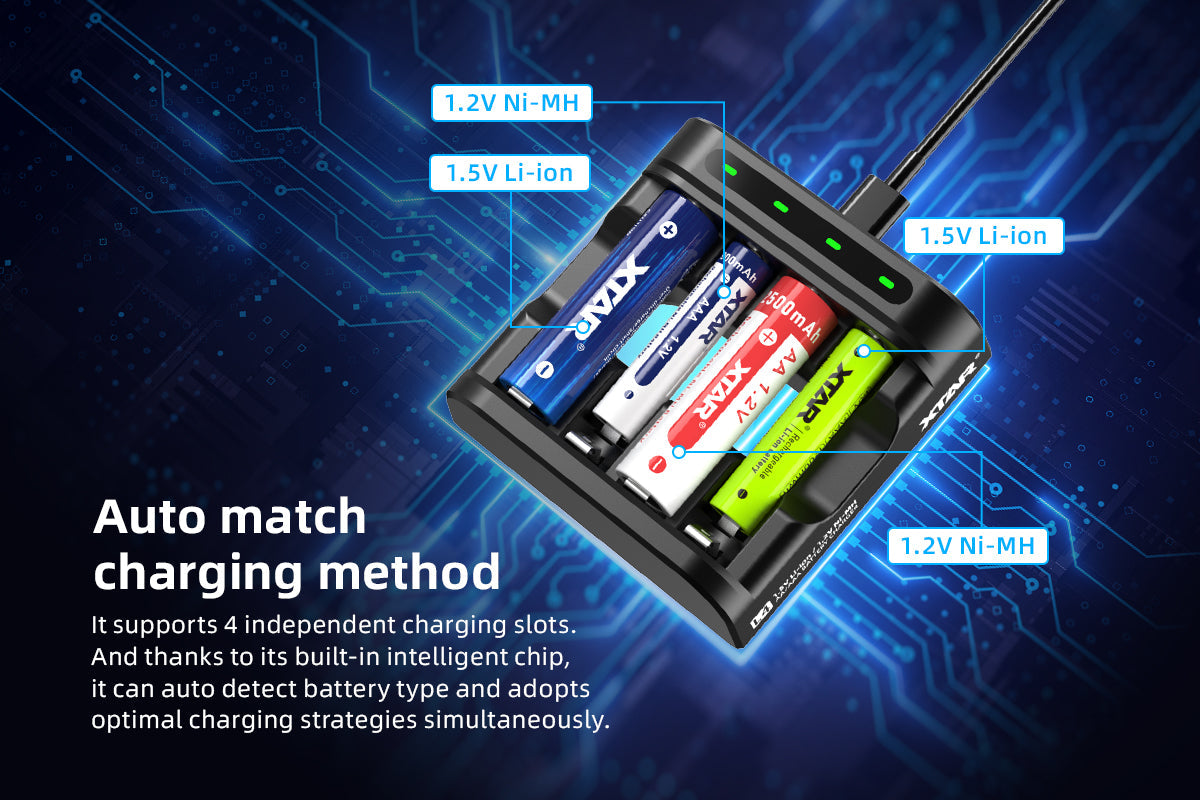

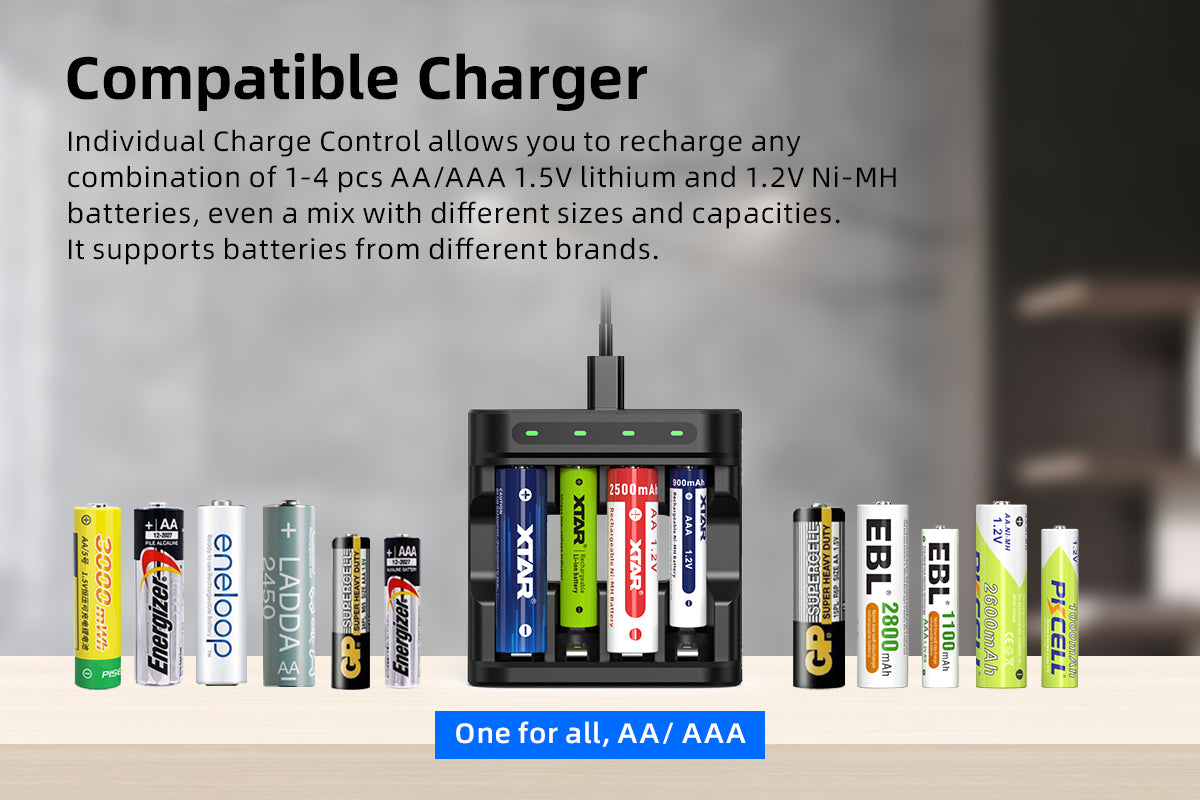

The L4 is suitable for charging AA/AAA 1.5V lithium-ion batteries and 1.2V NiMH batteries. The individual charge control allows you to recharge any combination of compatible batteries at once while the built-in intelligent chip auto detects the battery type and automatically adjusts the charging current to the suitable mode.

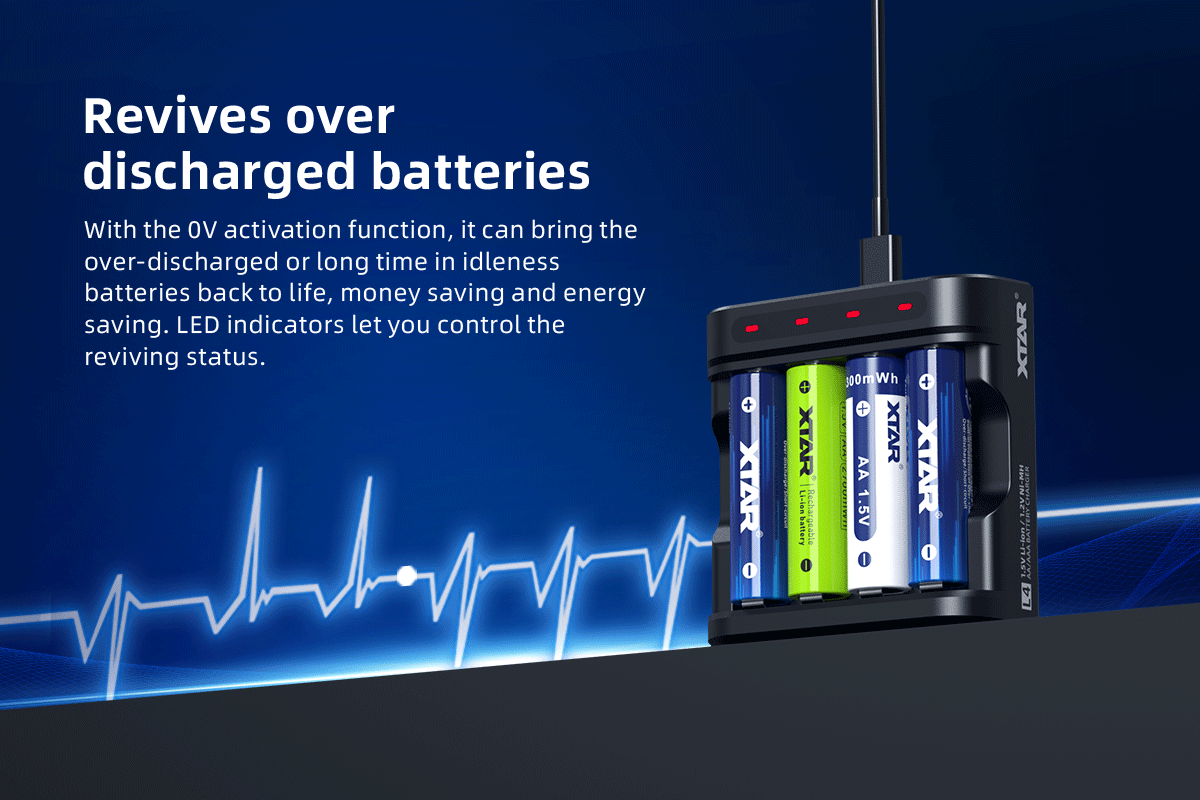

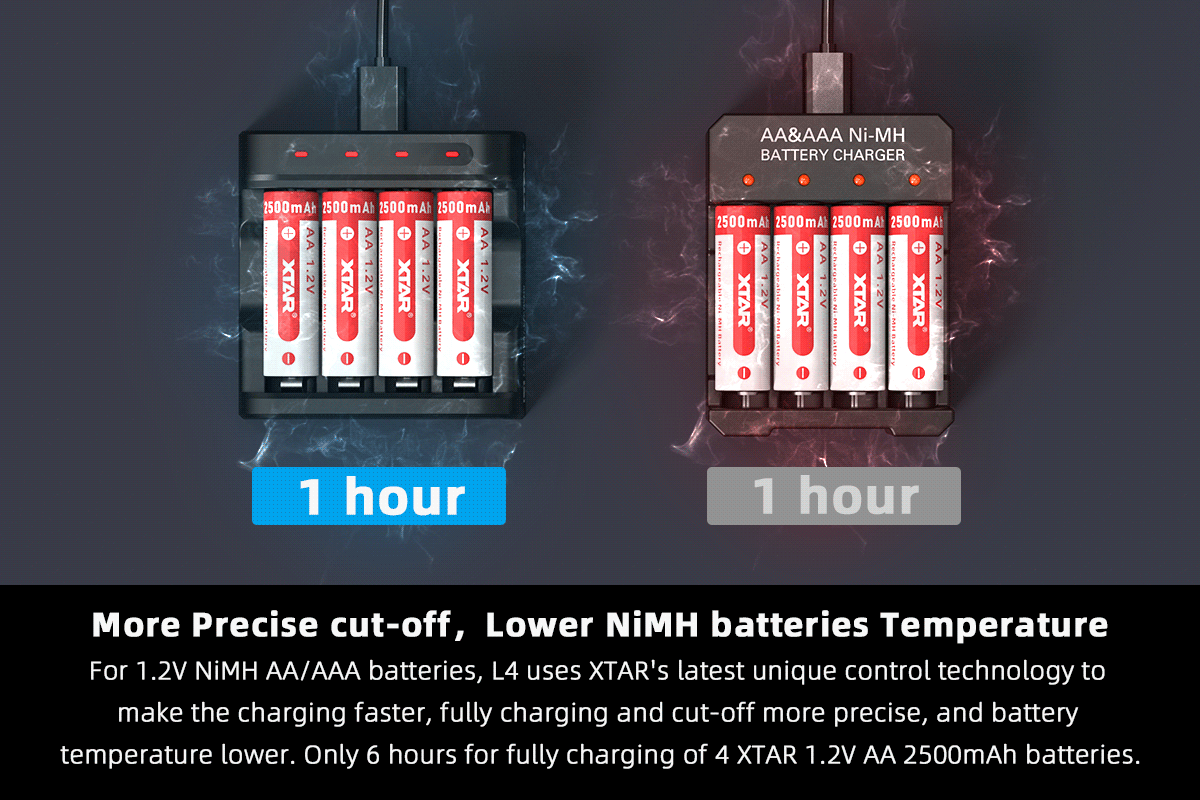

The L4 features the 0V activation function which brings over discharged batteries back to life saving money and energy while the unique control technology makes charging faster, cut off more precise and NiMH battery temperatures lower.

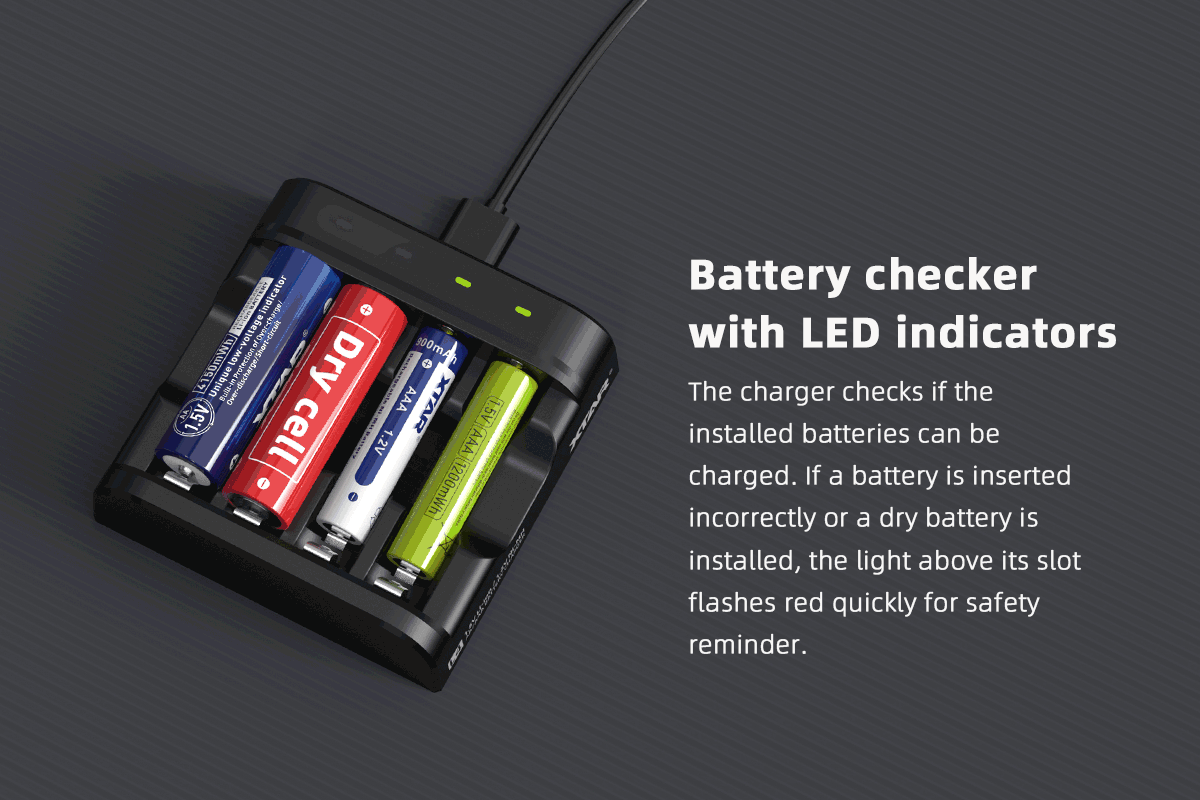

The L4 checks if the installed batteries can be charged and if the 0V activation function has failed. If installed incorrectly or failure occurs, the light above the batteries slot will flash red quickly to indicate a problem. Please remove any failed 0V activation batteries immediately.

Note: Always use in accordance with instruction manual and read before first use.

Product Features

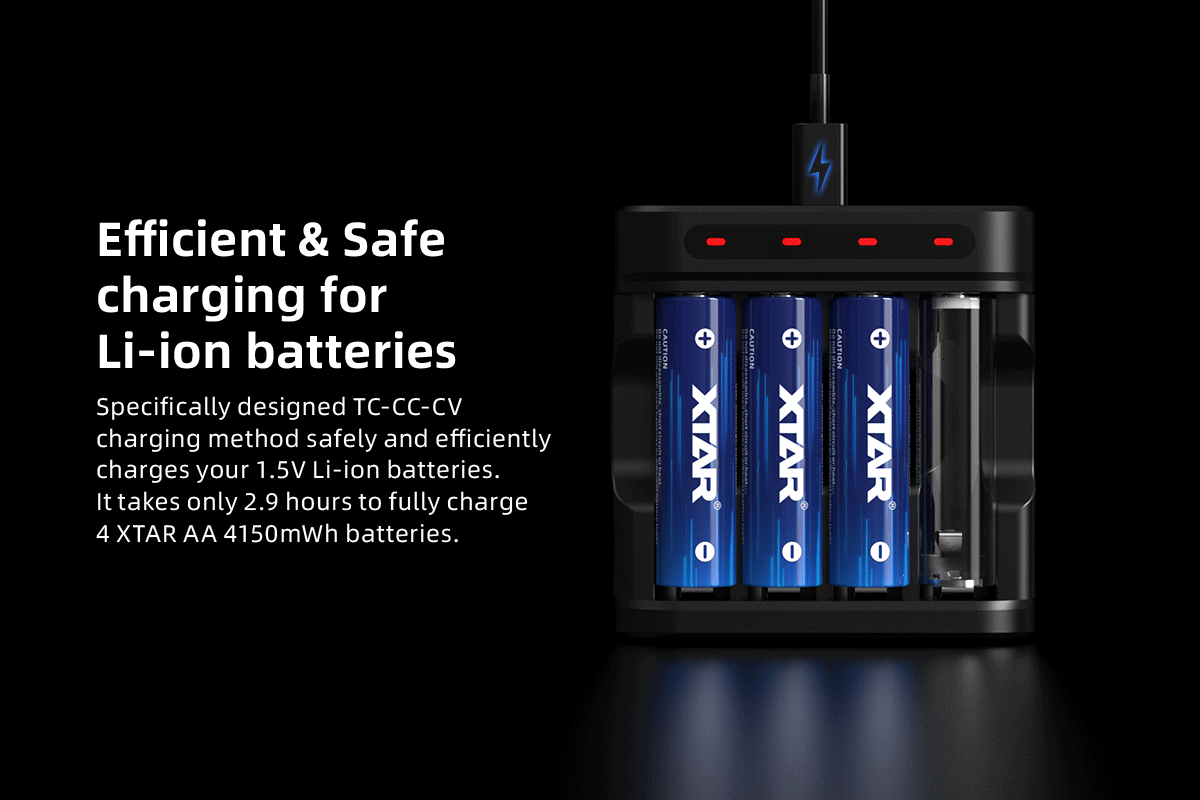

Three-modes ( TC.CC.CV ) charging system

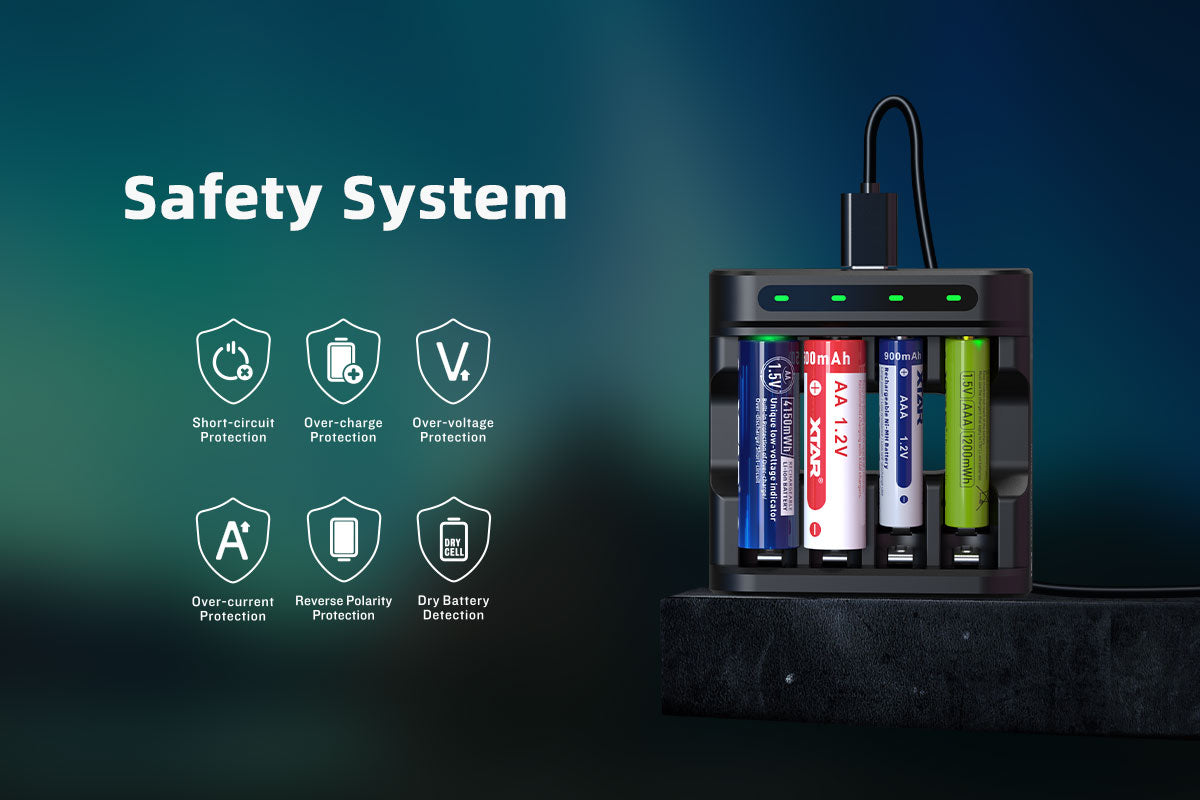

Safety systems
USB-C port to supply power for the charger
0 V activation function

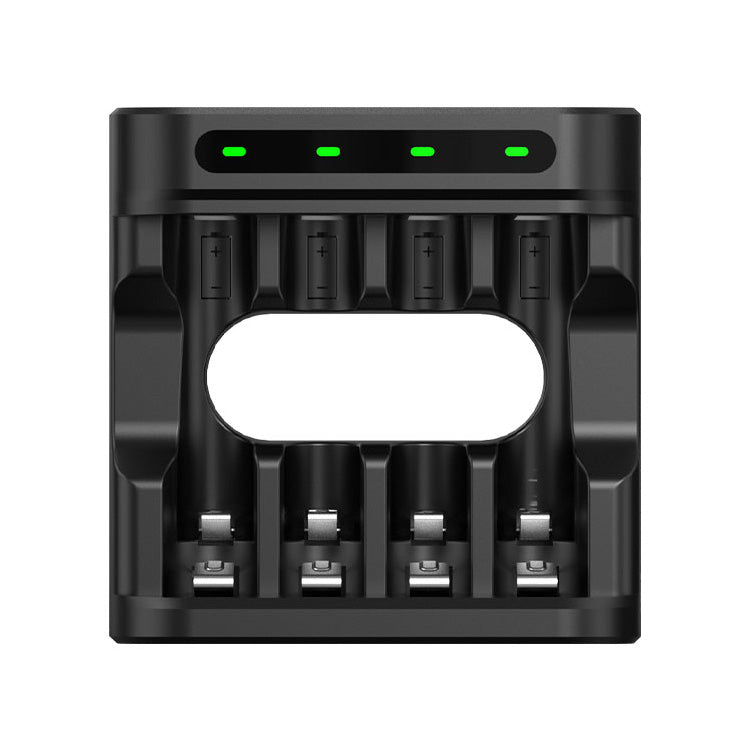

Independent charging bays

Operational Temperature: 0 to 40℃
Type C input: 5V-2A
Charging current: 0.5A
End-of charge voltage: 4.20 ±0.05V / 1.45 ±0.1V
End-of charge current: ≤100 mA
Dimensions: 76 x 76.5 x 27.6 mm
Weight: 51 g

Supplied in retail packaging and includes:
Xtar L4 four bay charger x 1
USB-C charging cable x 1
Manual x 1

Safety Notes

1. Charge only rechargeable 1.5V lithium-ion batteries or 1.2V NiMH batteries.
2. Charging any other types of batteries may cause them to leak rupture or explode.
3. Do not disassemble or modify any part of the charger or use as a power source.
4. Always unplug the charger from outlet before attempting maintenance or cleaning.
5. This charger should not be used by persons without adequate training or knowledge.
