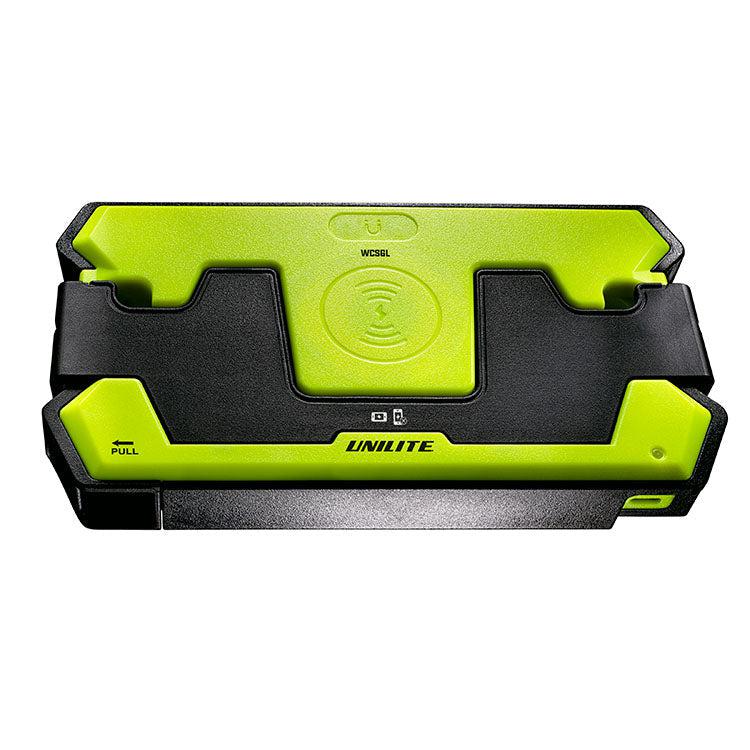

Unilite WCSGL Single Wireless Charging Pad

The Unilite WCSGL is a single wireless charging pad designed to wirelessly charge a range of compatible Unilite torches with the wireless charging feature, such as the WCHT5, WCHX7, WCFL12 and WCIL11.

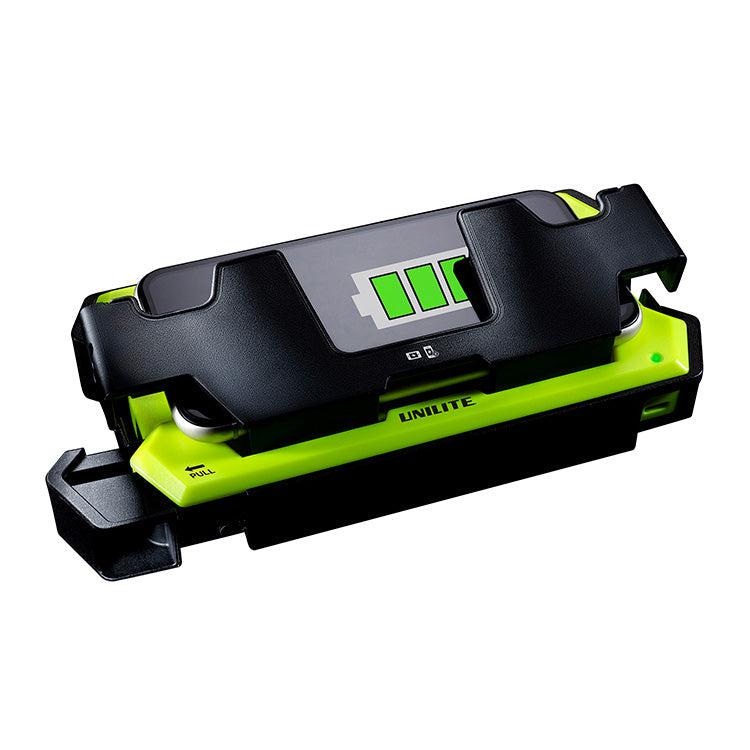

It can also charge mobile phones with the wireless charging feature by placing the phone on top, or if the charger is wall mounted you can pull the lever on the side which extends out the phone holder to securely hold the device in place.

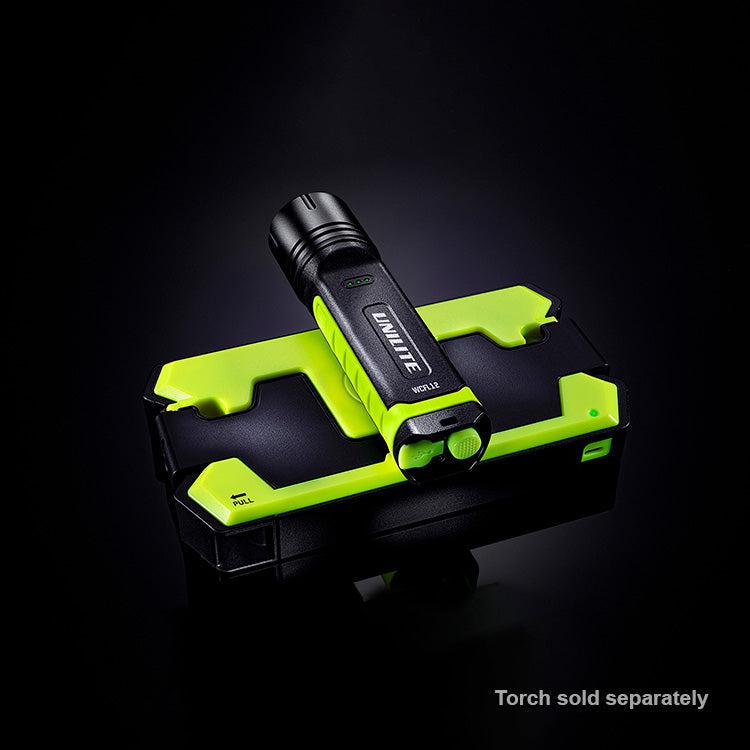

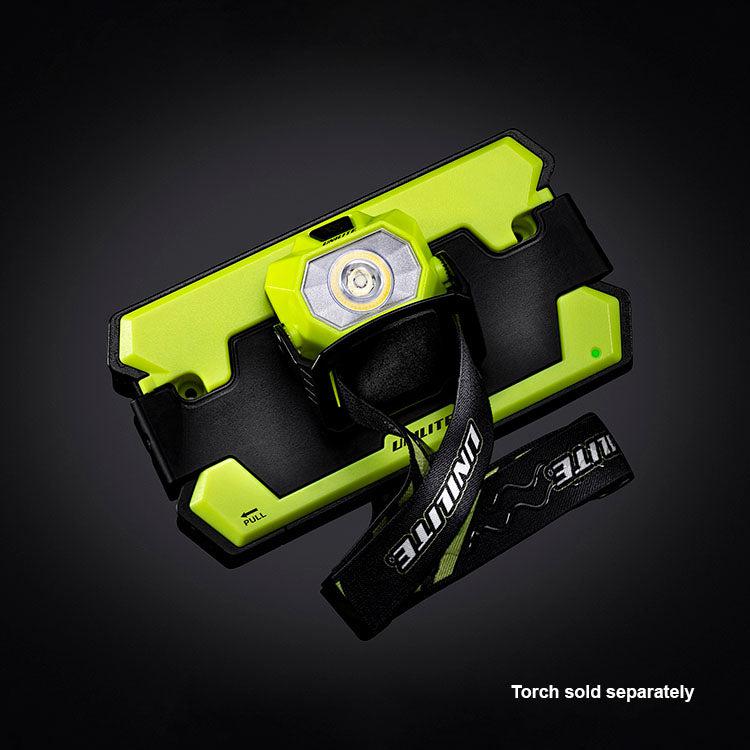

To charge a Unilite wireless torch, take the cable that is included with the torch and instead plug it into the USB-C port on the wireless charging pad and connect it to a USB-A power source with an output of up to 2 A. Then connect the torch to the magnetic connection point on the charging pad which is just about the charging symbol. To show charging is in progress a green flashing LED on the front will illuminate and turn solid green to show charging is complete. If an incompatible device is detected the LED will flash red.

The back of the charging pad feature strong magnets so that it can be mounted to a metal surface, and there is also two screw holes in the front for more permanent wall mounting (screws not included) The pad is made of a tough ABS and nylon polymer construction which is impact resistant to IK07 standard, drop resistant to 2 metres height and has dust ingress protection rated to IP20 (please note this product is note protected against water).

Specifications

Normal Input: 5 V, 2 A
Fast Charge Inputs: 12 V, 1.5 A / 9 V, 2 A / 5 V, 3 A
Colour: Black & fluorescent yellow
Dimensions: 190.5 x 101.2 x 28.1 mm
Weight: 335 grams

Packaging and Contents

Supplied in retail packaging and includes:
Unilite single wireless charging pad x 1
