Nitecore SC2 Dual Bay Li-ion/NiMH Charger

This Nitecore SC2 is a smart charger with high compatibility and quick charge technology. It can charge various rechargeable batteries in its two independent charging slots with up to a maximum of 3 A speed in one slot and 2 A speed in the other slot.

The SC2 also offers two others charging current options of 0.5 A and 1 A. For lithium-ion batteries and NiMH batteries the charger will automatically select the appropriate charging voltage and charging current. For IMR batteries you will have to manually set the voltage and then the charging current will be automatically selected.

You can manually change the charging current with the option of 3 A, 2 A, 1 A and 0.5 A for larger capacity batteries over 1200 mAh and the option of 1 A and 0.5 A for smaller capacity batteries under 1200 mAh.

When the battery is inserted into the charger (while connected to mains power) the SC2 will inspect the battery before charging commences. If the battery inserted is a non-rechargeable lithium battery, a short circuited battery or has been inserted with the polarity the wrong way round, the eight LEDs above the charging slot will blink to notify the user of an error.

The SC2 is also capable of activating depleted lithium-ion batteries and will test the battery to check if it is damaged before charging it. Recovery of 0 V IMR batteries is also possible with the recovery mode on the charger.

Safety features include reverse polarity protection, shirt circuit protection, temperature monitoring to prevent overheating and over time protection that will calculate the charging time of each battery. When the overall charging time exceeds 10 hours the SC2 will automatically stop charging and display a fully charged status.

A USB port is located on the top of the charger that offers an output of 2.1 A so that you charge external devices. It works independently of slot one and can charge an external device with or without a battery in slot 1, however is a battery is placed in slot 2 the battery will take priority and will be fully charged before continuing to charge the external device.

Compatible with and identifies the following rechargeable batteries

Note: Always use in accordance with instruction manual and read before first use.

Product Features

Two independent charging bays
Detects battery capacity and selects appropriate charging current
Optimised charging design for IMR batteries
Fast charging with maximum output up to 3 A
Detects battery power status and displays charging progress
Automatically stops charging when complete
Over discharged battery activation
Overtime charging protection

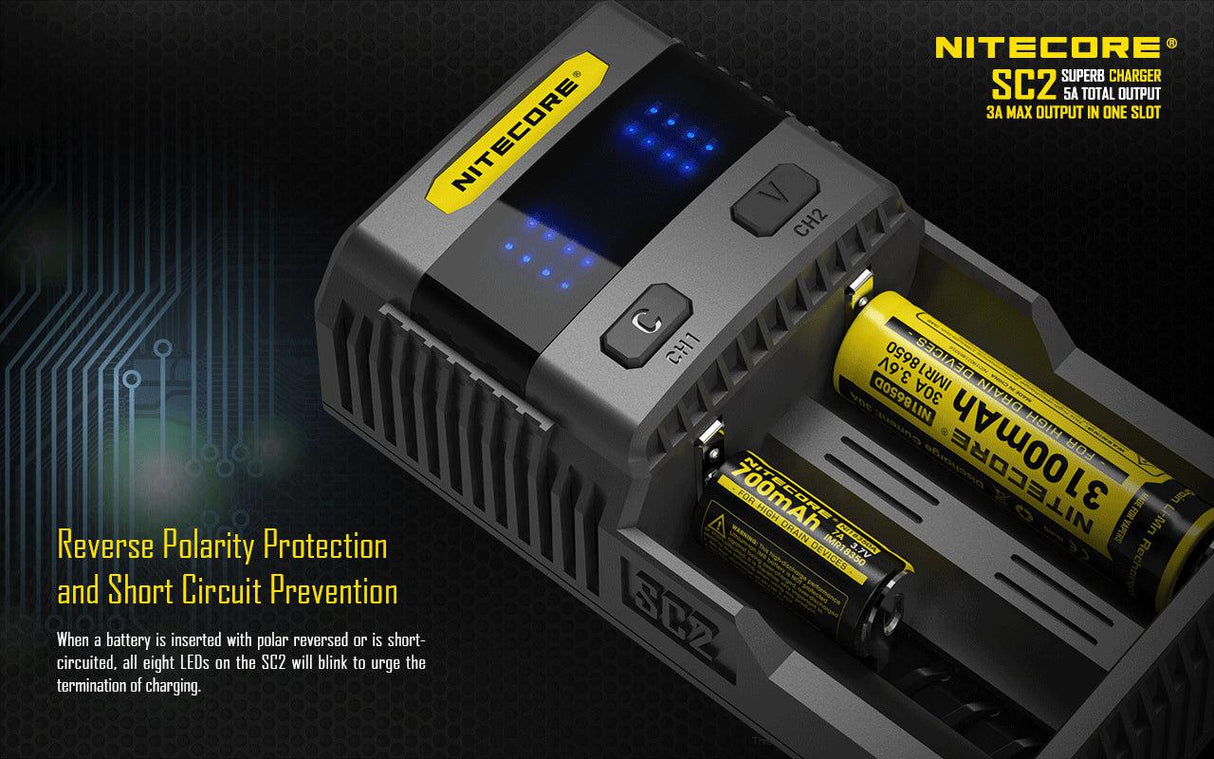

Features reverse polarity protection and short circuit prevention
Designed for optimal heat dissipation
Integrated USB output

Specifications

Input: 100-240 V ac, 50/60 Hz, 900 mA (max), 30 W, 12 V dc 2.5 A
Output Voltage: 4.35V ± 1% / 4.2V ± 1% / 3.7V ± 1% / 1.48V ± 1%
Output Current: 3 A x 1 / 2 A x 1
USB Output: 5 V, 2.1 A
Dimensions: 155 x 80 x 44 mm
Material: Made from fire retardant, flame resistant PC material
Weight: 263 g
Warranty: 1 year

Packaging and Contents

Supplied in retail packaging and includes:
Nitecore SC2 charger x 1
UK mains plug x 1
Manual x 1

Safety Notes

1. Charge only Lithium-ion/IMR/LiFePO4 or NiMH rechargeable batteries.
2. Charging any other types of batteries may cause them to leak rupture or explode.
3. Do not disassemble or modify the charger or attempt to use as a power source.
4. Always unplug the charger from outlet before attempting maintenance or cleaning.
5. This charger should not be used by persons without adequate training or knowledge.
