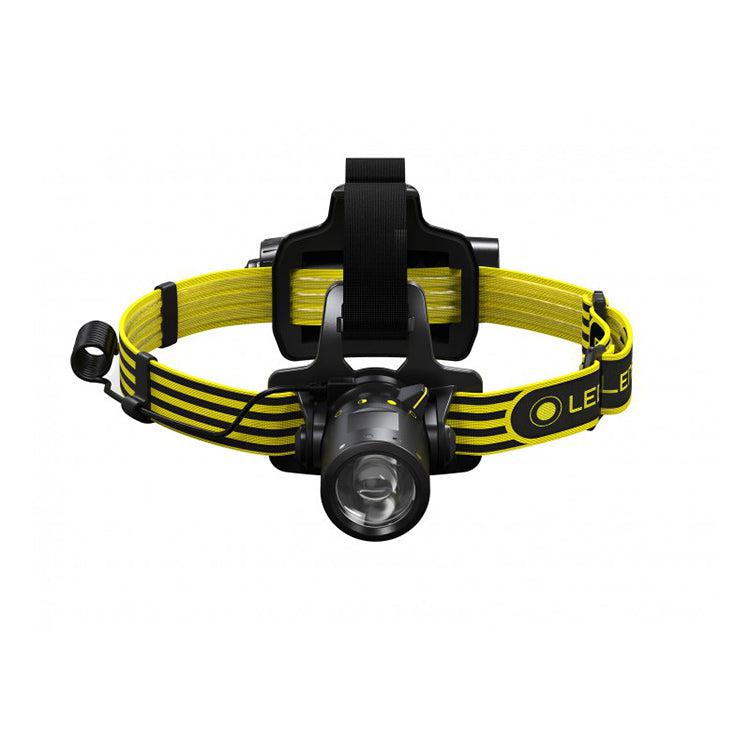

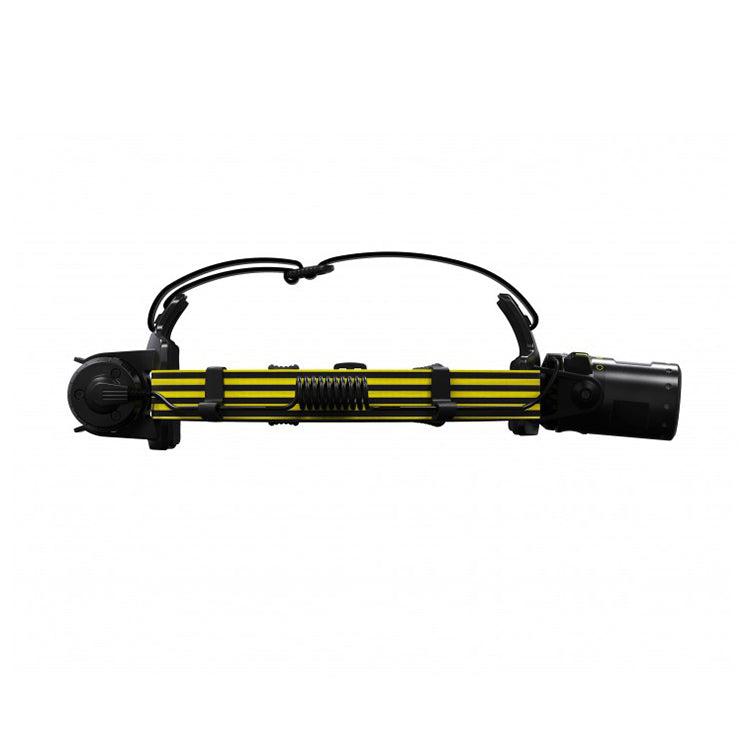

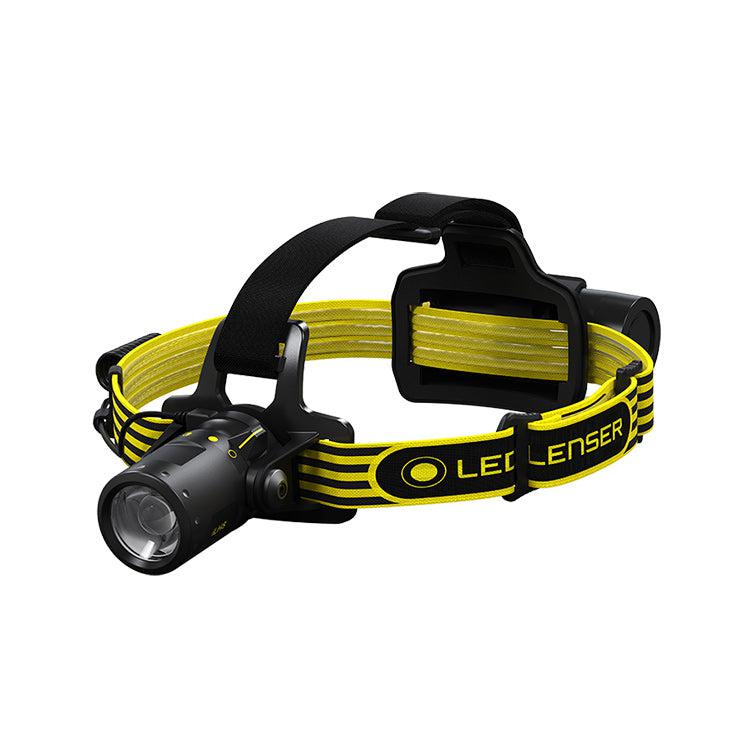

Ledlenser iLH8 ATEX Zone 2/22 LED Head Torch

The LED Lenser iLH8 is an intrinsically safe head torch for use in ATEX zone 2/22 locations and has an output of 280 lumens using a white LED.

The iLH8 is powered by three AA alkaline batteries which are fitted by unscrewing the side of the battery compartment on the rear of the head band, removing the battery carrier and then inserting the batteries into the carrier as indicated by the + and - at the ends of each battery slot. The battery carrier is then reinserted into the battery compartment, ensuring that the arrow on the carrier lines up with the arrow on the rim of the body and the cover is then screwed back on tightly. Never open the torch when in a explosive environment.

The selector ring switch on the head has two off positions, low position and high position so you can easily select the brightness level required. A fresh set of batteries provides a run-time of up to 38 hours on low and the battery compartment features a red light to warn you when the batteries need replacing. Always remove depleted batteries as soon as possible and also remove batteries before storing the torch to avoid battery leakage.

Like most LED Lenser head torches, the iLH8 has a focusing feature on the head of the torch that can be twisted to focus the light between spot and flood light to suit your requirements.

The IP66 rating means that this torch is dustproof as well as water resistant to a powerful water jet. Due to the use this product is intended for it is advised that it is cleaned down regularly with a dry lint free cloth to prevent dust buildup on the outer casing.

Note: Please carefully read all warnings in the product manual before use.

Only specific types of AA alkaline batteries are permitted for use in this torch, they are as follows;

Duracell Plus Power
Energizer E91
Energizer Industrial EN91
Varta High Energy
Panasonic Industrial Powerline
Panasonic Evolta
Panasonic LR6XJ
Ledlenser Alkaline LR6

Certifications

II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIC T135°C Dc

Certification number:
Baseefa18ATEX0070

Certificate of conformity:
IECEx BAS18.0008

High: 280 lumens; 9 hours run-time; 160 m beam range*
Low: 60 lumens; 38 hours run-time; 80 m beam range**

* The lumen output will gradually decrease from 100% to 60% over 1 hour and then from 60% to 20% over 5 hours and it will run at 20% for the remainder of the battery life in order to prolong the run-time.
** The lumen output will gradually decrease from 100% to 60% over 3 hours and then from 60% to 20% over 30 hours and it will then run at 20% for the remainder of the battery life in order to prolong the run-time.

Technical Details

Type: ATEX head torch
Operating Modes: High / Low / Off
Luminous Flux: Up to 280 lumens
Lamp: White LED
Beam Range: Up to 160 m
Batteries Required: 3 x AA alkaline batteries (included)
Run Time: Up to 38 hours on low
Weight: 345 grams (including batteries)
Body Colour: Yellow and black
Body Material: Durable polycarbonate construction
Switch Type: Selector ring
Environmental: IP66 standard (dust proof and water resistant)

Packaging and Contents

Supplied in retail packaging and includes:
LED Lenser iLH8 Zone 2/22 head torch x 1
AA alkaline battery x 3
Manual x 1
