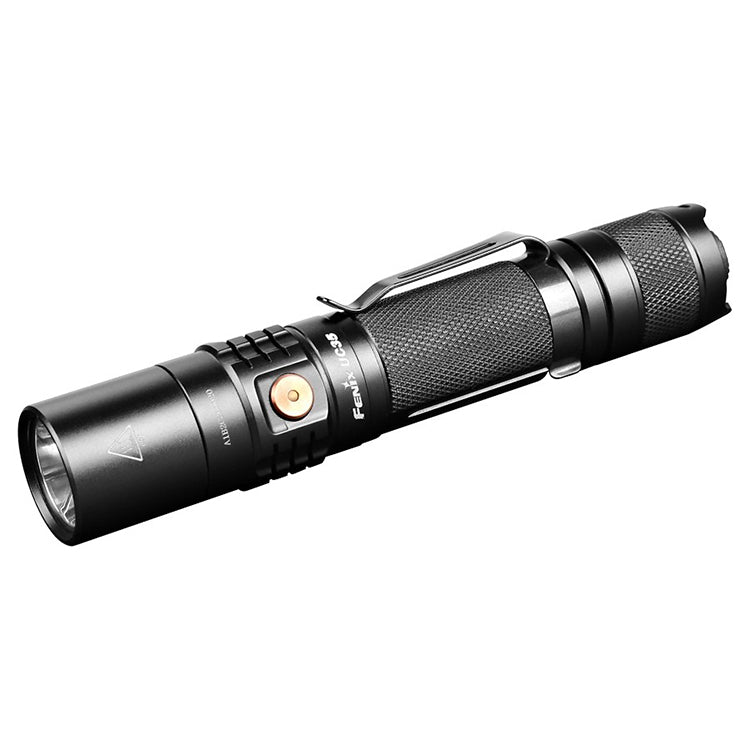

Fenix UC35 V2.0 Rechargeable LED Torch

The Fenix UC35 V2.0 rechargeable LED torch is the updated version of the popular UC35.

It has had an update in lumen output from 960 lumens to 1000 lumens in turbo mode, but the biggest improvement is the beam range which now reaches an impressive 266 metres, which is an increase of 66 metres, all thanks to the addition of the Cree XP-L HI V3 LED.

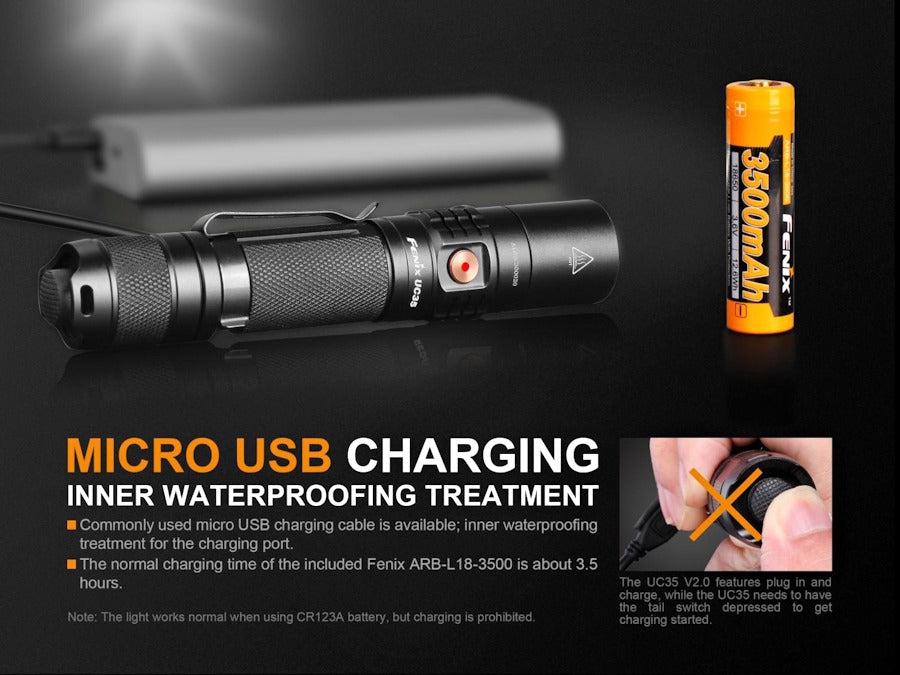

The included Fenix 18650 3400 mAh lithium-ion battery is charged inside the torch with the supplied micro USB cable. Remove the dust cover from the micro USB port, located on the neck of the torch, and plug the cable into the torch one end and the other end into a computer/laptop or a suitable USB mains/car adaptor (sold separately).

An LED indicator inside the switch will go red to indicate charging is in progress and will turn green once charging is complete. The charging time for the included 3400 mAh capacity battery is approximately 3 hours, 30 minutes.

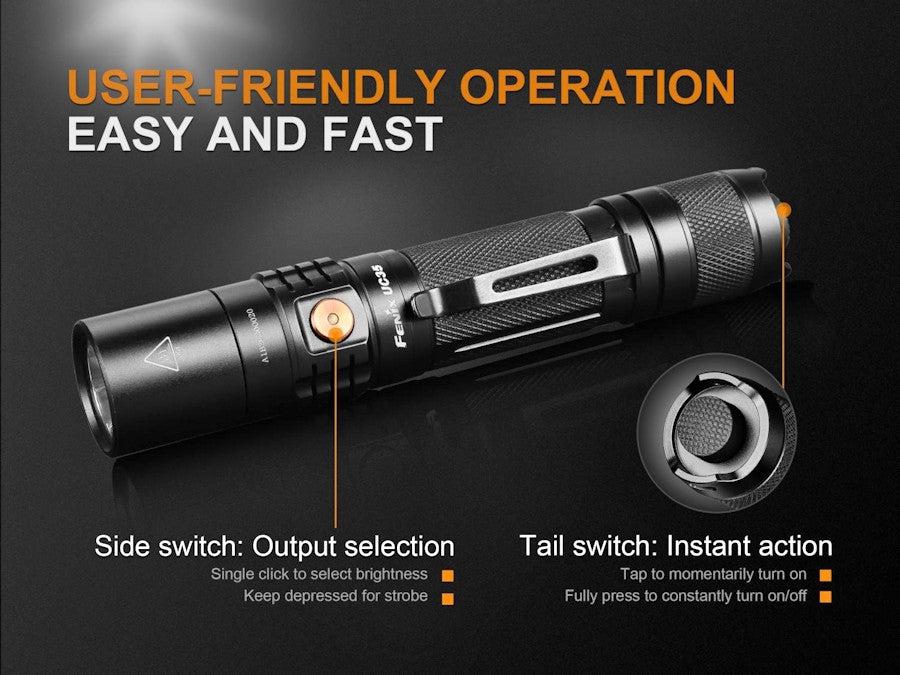

Five brightness levels, plus strobe mode are available and operated with the tactical tail switch and side functional switch. The UC35 V2.0 is turned on and off with the tactical tail switch by fully pressing it down, and it also offers a momentary function by half pressing the button (the light will turn off when the button is released). Once the torch is on, the side switch will cycle through turbo, moonlight, low, mid, high with each press.

Strobe is activated by holding the side switch for 0.5 seconds when the torch is turned on. A single press will return the torch to the previous brightness setting.

The switch features a built-in battery indicator that displays the battery status for 3 seconds every time the torch is turned on when using an 18650 battery. A solid green light indicates saturated, flashing green is sufficient, solid red is poor and flashing red is critical. The battery indicator also acts as a low voltage warning light while the torch is in use when using an 18650 battery.

The overheat protection will automatically reduce the turbo lumen output if the temperature of the torch reaches 60°C or above in order to protect the LED from overheating. Once the torch has cooled to below 60°C the output will gradually increase again.

When using an 18650 battery, if the battery voltage drops below 3 V the torch is programmed to downshift to a lower brightness level until moonlight output is reached, at which point the battery indicator will flash red to remind you to charge the battery.

Product Features

Digitally regulated output to maintain constant brightness
Low voltage warning function and battery status indicator
Intelligent memory function
Reverse polarity protection
Over heat protection
Tactical tail switch and side mode switch

Operational Modes

Moonlight: 1 lumen; 750 hours run-time; 10 m beam range
Low: 50 lumens; 27 hours, 50 minutes run-time; 64 m beam range
Mid: 150 lumens; 9 hours, 55 minutes run-time; 98 m beam range
High: 350 lumens; 4 hours run-time; 160 m beam range
Turbo: 1000 lumens; 2 hours, 5 minutes run-time; 266 m beam range*
Strobe: 1000 lumens

Tested to ANSI/PLATO FL1 standard using 1 x Fenix ARB-L18-3400 18650 lithium-ion rechargeable battery. Results may vary between torch, battery and environments.

Technical Details

Type: Hand held rechargeable LED torch
Operating Modes: Moonlight / Low / Mid / High / Turbo / Strobe
Luminous Flux: Up to 1000 lumens
Lamp Type: Cree XP-L HI V3 LED
Beam Range: 266 m
Batteries Required: 1 x 18650 lithium-ion rechargeable (included) / 2 x CR123A non-rechargeable
Run Time: Up to 800 hours (moonlight setting)

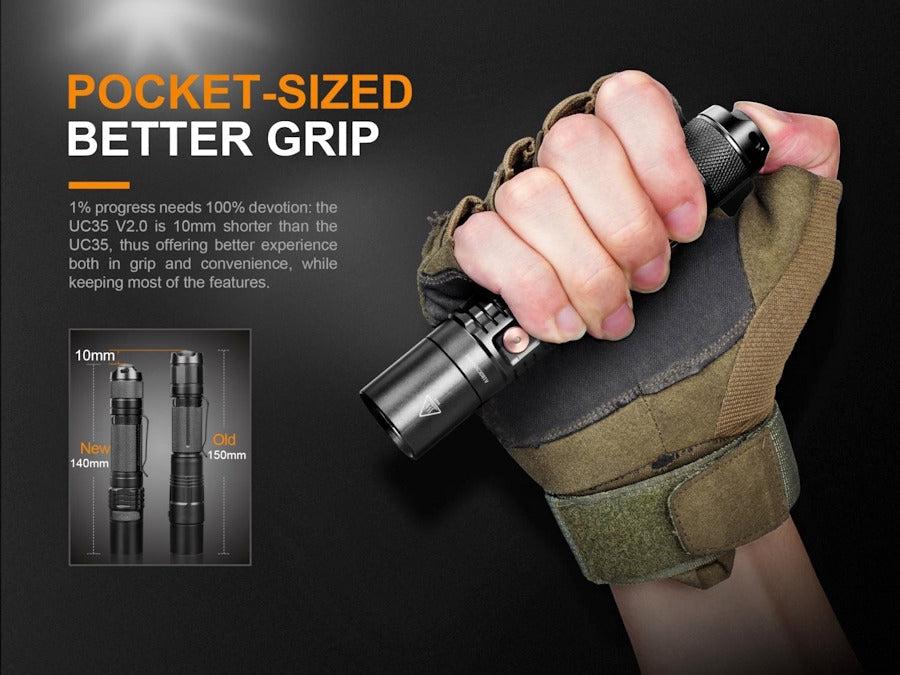

Overall Length: 140 mm
Head Diameter: 25.4 mm
Body Diameter: 23.5 mm
Weight: 89 grams (excluding battery)
Body Colour: Black
Body Material: High strength and oxidation resistant aluminium
Body Finish: Premium type III hard anodised anti-abrasive finish
Window Type: Toughened ultra-clear glass lens with anti-reflective coating
Reflector: Smooth for excellent beam throw
Switch Type: Tactical tail switch and side mode switch
Impact Resistance: 1 m

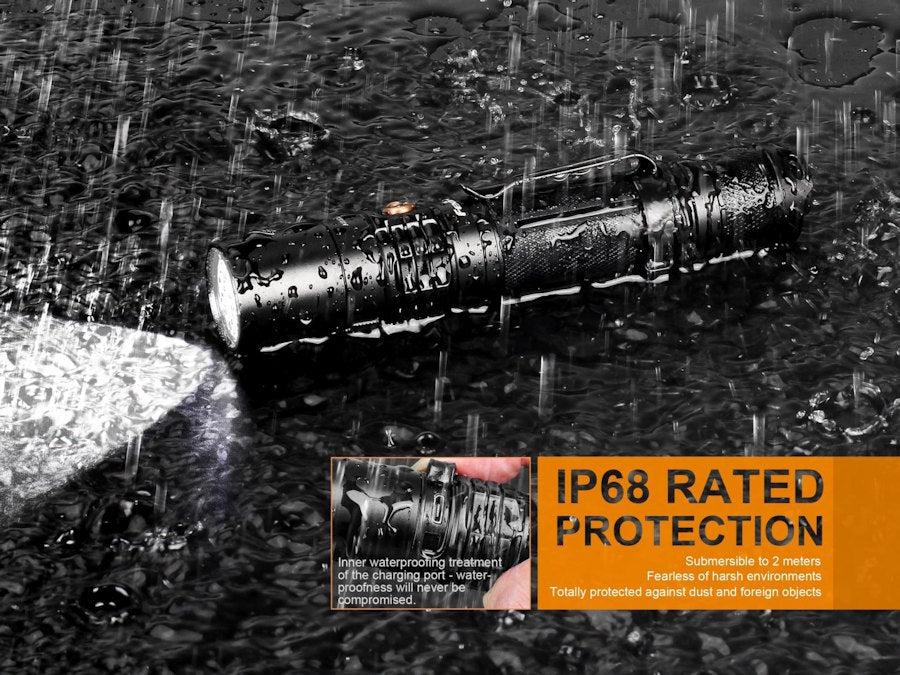

Environmental: Waterproof and dust resistant to IP68 Standard (2 m)

Packaging and Contents

Supplied in retail packaging and includes:
Fenix UC35 V2.0 LED torch x 1
Fenix 3400 mAh 18650 lithium-ion battery x 1
Micro USB charging cable x 1
Spare rubber switch x 1
Nylon holster x 1
Wrist lanyard x 1
Spare O-ring x 2
Manual x 1
