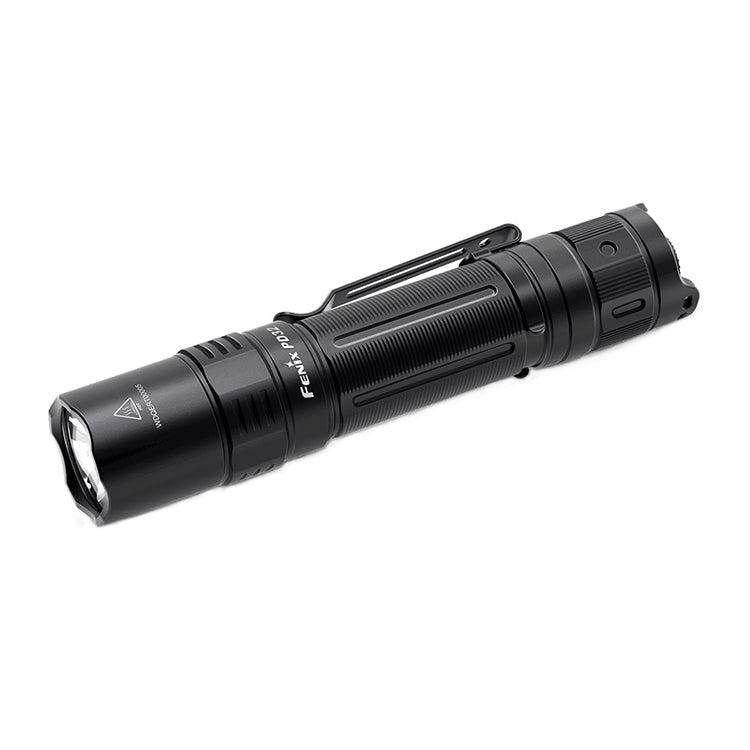

Fenix PD32 V2.0 LED Torch

The Fenix PD32 V2.0 is a compact and lightweight LED torch that delivers 1200 lumens maximum output from the OSRAM KW CSLPM1.TG LED. It is powered by either two non rechargeable CR123A lithium metal batteries or one rechargeable 18650 lithium-ion battery (not included).

With a maximum beam distance of 395 metres in a compact package, the PD32 V2.0 LED torch is ideal for dog walkers who appreciate a lighter torch with great beam distance, but equally is great for tactical operations or hunting as it is compatible with the ALG-00 gun mount and AER-02 V2.0 pressure switch.

Offering three brightness levels and strobe, the torch is operated using the tactical tail button. The light is turned on and off by fulling clicking the tail switch or momentary illumination can be achieved by half pressing the tail button while the light is off. With the light turned on half presses of the button will cycle through low, mid and high. The last used brightness level will be memorised for when the light is next turned on. Holding the button for 0.5 seconds in any state will access the strobe setting and one press of the button will revert back to the previous brightness level.

A battery level indicator will automatically display the battery status each time the torch is turned on if you are using a 18650 lithium-ion battery. Constant green indicates a full charge, green flashes is sufficient charge, red constant is poor battery level and red flashes indicates critical battery level.

When using an 18650 battery, if the battery voltage drops below the preset level, the PD32 V2.0 is designed to downshift in brightness level until the low output is reached. When low is reached the torch will flash 3 times every 5 minutes to remind you to charge or replace the battery.

The intelligent over-heat protection will drop the high brightness level if the internal temperature reaches 60°C or above. When the temperature has reduced the light will automatically go back up to full brightness. This is to protect the LED from damage and prevent the surface temperature from becoming too high.

Operational Modes

Low: 30 lumens, 82 hours run-time; 55 m beam range
Mid: 350 lumens, 5 hours, 20 minutes run-time; 218 m beam range
High: 1200 lumens, 2 hours, 40 minutes run-time; 395 m beam range*
Strobe: 1200 lumens

Note: *The high mode is measured at total run-time including any reduced output levels due to the temperature regulation design.

Tested in laboratory conditions to ANSI/PLATO FL1 standard using 1 x Fenix 3500 mAh 18650 lithium-ion rechargeable battery under the temperature of 21±3°C and humidity of 50% - 80%. Results may vary between torch, battery and environments.

Technical Details

Type: Hand-held LED torch
Operating Modes: High / Mid / Low / Strobe
Luminous Flux: Up to 1200 lumens
LED Type: OSRAM KW CSLPM1.TG LED
Beam Range: 395 m
Batteries Required: 2 x CR123A  non-rechargeable lithium metal / 1 x rechargeable 18650 lithium-ion (not included)
Overall Length: 129.4 mm
Head Diameter: 25.4 mm
Body Diameter: 23.6 mm
Weight: 82 grams (excluding battery)
Body Colour: Black
Body Material: High strength and oxidation resistant 6061 aluminium
Body Finish: Premium type HAIII hard anodised anti abrasive finish
Switch Type: Tail switch and side mode switch
Impact Resistance: 1 m
Environmental: Waterproof and dust resistant to IP68 standard (2 m)
Warranty: 5 years

Packaging and Contents

Supplied in retail packaging and includes:
Fenix PD32 V2.0 LED torch x 1
Pocket clip x 1
Holster x 1
Lanyard x 1
Spare O-ring x 1
Manual x 1
