Fenix HL60R Rechargeable LED Head Torch

The Fenix HL60R is a rechargeable head torch offering a maximum output of 950 lumens from a single neutral white Cree XM-L2 T6 LED and a beam range of up to 116 metres.

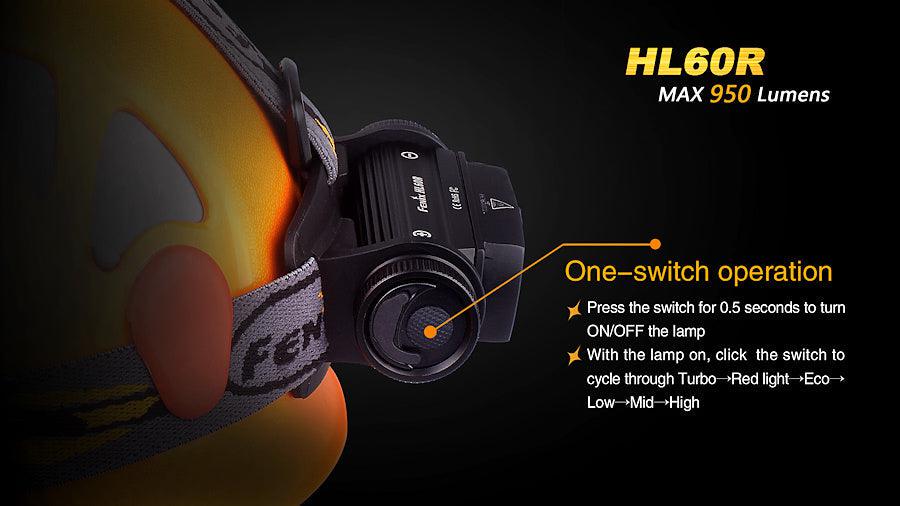

Five brightness levels as well as a red output are available, and are controlled by the single button on the end of the torch. Turn the light on or off by holding the side button for 0.5 seconds, and once the light is on each press cycles through the modes of turbo, red light, eco, low, mid and high. The intelligent memory circuit remembers the last brightness setting used. The red light is useful for preserving night vision or night time activities such as reading, animal spotting and astronomy.

The included 18650 rechargeable 2600 mAh lithium-ion battery is charged inside the headlamp via the micro USB charging port which can be revealed by removing the silicone dust cover on the same side as the button. Plug in the included micro USB cable into the torch and plug the standard USB-A end into a USB power source. The two charging indicators will flash red to show charging is in progress and change to solid red once charging is complete after approximately 4 hours (full charge) when charging the included 2600 mAh battery (a larger capacity battery will take longer to charge).

When the torch is off, pressing the button once will display the battery level indicator for 3 seconds with either a white flashing light (+70% power), alternating white and red flashing (30-70% power) or red flashing (less than 30% remaining).

Product Features

Thermal heat control protection
Simple side switch operation
Main white LED & two red LEDs
USB rechargeable
Reverse polarity protection
Digitally regulated output maintains constant brightness

Operational Modes

Turbo: 950 lumens: 48 minutes run-time*
High: 400 lumens; 3 hours run-time
Mid: 150 lumens; 10 hours run-time
Low: 50 lumens; 29 hours run-time
Eco: 5 lumens; 100 hours run-time
Red Light: 1 lumen; 100 hours run-time

Tested to ANSI / PLATO FL1 standard using one Fenix ARB-L18-2600 18650 2600 mAh lithium-ion rechargeable battery.

Note: The overheat protection will automatically drop the brightness level if required, to prevent the LED from being damaged, therefore this is an accumulated run-time.

Technical Details

Type: Professional LED head torch
Operating Modes: Eco / Low / Mid / High / Turbo / Red Light
Luminous Flux: Up to 950 lumens
Lamp Type: Cree XM-L2 T6 LED
Beam Range: Up to 116 m
Batteries Required: 2 x CR123A lithium or 1 x 18650 lithium-ion (included)
Measurements: 87 × 46 × 51 mm
Weight: 121 grams (excluding battery)
Body Colour: Black
Body Material: High grade durable aluminium
Body Finish: Premium type III hard-anodised anti-abrasive finish
Window Type: Toughened ultra-clear glass lens with anti-reflective coating
Strap: Adjustable
Switch Type: Side push button switch
Impact Resistance: 1 m
Environmental: Waterproof to IPX8 standard (2 m)
Warranty: 5 years (torch) / 1 year (battery)

Packaging and Contents

Supplied in retail packaging and includes:
Fenix HL60R LED head torch x 1
Side and top headbands x 1
Spare O-ring x 1
Micro USB charging cable x 1
Fenix 18650 2600 mAh lithium-ion battery x 1
Manual x 1
